Uplus Lighting W1925 User manual

User manual
W1925
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions……………………………………………………………………………3-4
Technical Specifications…………………………………………………………………………4
Control Menu ……………………………………………………………………………………5-6
DMX Channels ……………………………………………………………………………………7-14

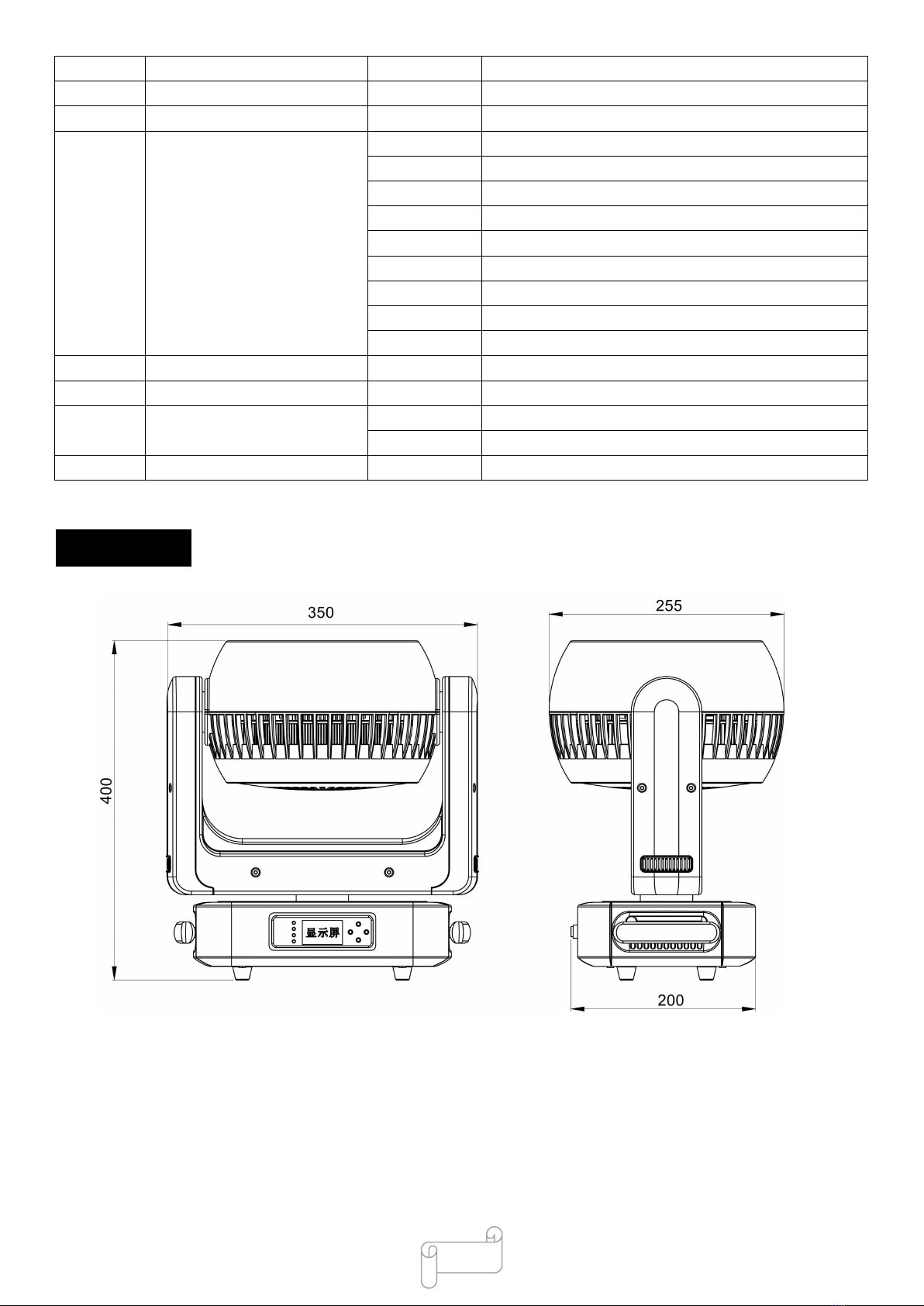

Dimension …………………………………………………………………………………………14
Trouble Shooting…………………………………………………………………………………15
Fixture Cleaning………………………………………………………… ………………………15
STATEMENT
The product has well capability and intact packing when leave factory. All of the user should
comply with warning item and manual, any misuse cause of the damages are not included in our
guarantee, and also can not be responsible for any malfunction & problem owing to ignore the
manual.

3
1.Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
•Unpack and check carefully there is no transportation damage before using the unit.
•Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•The unit is for indoor use only. Use only in a dry location.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
•Disconnect main power before replacement or servicing.
•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
•DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:

4
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also
always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people.
2.Technical Specifications
Power supply: 110-240V, 50/60HZ
Power consumption: 475W
Light source:19x25W 4inl RGBW LED
DMX Channel:10/15/21/39/37S CH
Zoom angle: 10°- 60 °
Horizontal scanning: 540° (16bit precision scanning) Electronic error correction
Vertical scanning: 270° (16bit precision scanning) Electronic error correction
Construction
Data In/Out : 3-pin XLP socket
Power in/Out : Power Con in / out
Protection Rating: IP20
Strobe: 1-25 times/S or random strobe
Dimming: 0-100% linear adjustment
Dimensions : 400*350*200mm
N Weight: 9.5kgs

5
3.Control Menu
1. Function Display:
Shows the various menus and the selected functions
2.LED：
POWER
ON
Power On
DMX
ON
DMX input present
3. Button:
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To confirm the selected functions
4. DMX IN:
DMX512 link, use 3/5‐pin XLR cable to link the unit and the DMX controller
5. DMX OUT:
DMX512 link, use 3/5‐pin XLR cable to link the next unit and output DMX signal
6. MAINS IN:
PowerCon connection from main power supply
7. MAIS OUT:
PowerCon loop connection for main power supply to the next unit
8. Fuse (T 10A):
Protects the unit from over‐voltage or short circuit
To select any of the given functions, press the MENU button until the required function is showing on the display.
Select the function by pressing the ENTER button and the display will blink. Use the
DOWN/UP buttons to change the mode. Once the required mode has been selected, press the ENTER button to
setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU
button for about one second or wait for one minute to exit the menu mode.
The main functions are shown overleaf:

6

7
4.DMX Channels
10 CH Mode
10CH
Function
DMX Values
Details
CH 1
Pan
0-255
0-540°
CH 2
Pan Fine
0-255
16 bit
CH 3
Tilt
0-255
0-270°
CH 4
Tilt Fine
0-255
16 bit
CH 5
P/T Speed
0-255
Fast to slow
CH6
Special Function
0-69
NULL
70-79
Moving Blackout Open
80-89
Moving Blackout Off
90-99
PanInvert Open
100-109
TiltInvert Open
110-119
PanTiltInvert Off
120-139
NULL
140-149
PanTilt Reset
150-179
NULL
180-189
Zoom Reset
190-199
NULL
200-209
All Reset
210-255
NULL
CH 7
Virtual Color Wheel
0
No function (0=default)
1-3
White 2700 K
4-6
White 3200 K
7-9
White 4200 K
10-12
White 5600 K
13-15
White 8000 K
16
Blue (Blue=full, Red+Green+White=0)
17-55
Red=0, Green->up,Blue =full, White=0
56
Light Blue (Red=0, Green=full, Blue =full, White=0)
57-95
Red=0, Green=full, Blue->down, White=0
96
Green (Red=0, Green=full, Blue =0, White=0)
97-134
Red->up, Green=full, Blue=0, White=0
135
Yellow (Red=full, Green=full, Blue=0, White=0)
136-174
Red=full, Green->down, Blue=0, White=0
175
Red(Red=full, Green=0, Blue=0, White=0)
176-214
Red=full, Green=0, Blue->up, White=0
215
Magenta (Red=full, Green=0, Blue=full, White=0)
216-246
Red -> down, Green=0, Blue=full, White=0
247
Blue (Red=0, Green=0, Blue=full, White=0)
248-255
NULL
CH 8
Zoom
0-255
CH 9
Shutter
0 - 15
LED_EFFECT_OPEN
16 - 131
LED_EFFECT_FLASH

8
CH 9
Shutter
132 - 139
LED_EFFECT_THUNDER
140 - 181
LED_EFFECT_PULSE_CLOSE_FADE_OPEN
182 - 189
LED_EFFECT_OPEN
190 - 231
LED_EFFECT_PULSE_OPEN_FADE_CLOSE
232 - 239
LED_EFFECT_OPEN
240 - 247
LED_EFFECT_RANDOM_FLASH
248 - 255
LED_EFFECT_OPEN
CH10
Dimmer
0-255
Linear dimmer （dark to brightness)
15 CH Mode
15CH
Function
DMX Values
Details
CH 1
Pan
0-255
0-540°
CH 2
Pan Fine
0-255
16 bit
CH 3
Tilt
0-255
0-270°
CH 4
Tilt Fine
0-255
16 bit
CH 5
P/T Speed
0-255
Fast to slow
CH6
Special Function
0-69
NULL
70-79
Moving Blackout Open
80-89
Moving Blackout Off
90-99
PanInvert Open
100-109
TiltInvert Open
110-119
PanTiltInvert Off
120-139
NULL
140-149
PanTilt Reset
150-179
NULL
180-189
Zoom Reset
190-199
NULL
200-209
All Reset
210-255
NULL
CH7
Red
0-255
CH8
Green
0-255
CH9
Blue
0-255
CH10
White
0-255
CH11
CTC
0
NULL
1-255
2700K-8000K
CH 12
Virtual Color Wheel
0
No function (0=default)
1-3
White 2700 K
4-6
White 3200 K
7-9
White 4200 K
10-12
White 5600 K
13-15
White 8000 K
16
Blue (Blue=full, Red+Green+White=0)
17-55
Red=0, Green->up,Blue =full, White=0
56
Light Blue (Red=0, Green=full, Blue =full, White=0)
57-95
Red=0, Green=full, Blue->down, White=0
96
Green (Red=0, Green=full, Blue =0, White=0)

9
CH 12
Virtual Color Wheel
97-134
Red->up, Green=full, Blue=0, White=0
135
Yellow (Red=full, Green=full, Blue=0, White=0)
136-174
Red=full, Green->down, Blue=0, White=0
175
Red(Red=full, Green=0, Blue=0, White=0)
176-214
Red=full, Green=0, Blue->up, White=0
215
Magenta (Red=full, Green=0, Blue=full, White=0)
216-246
Red -> down, Green=0, Blue=full, White=0
247
Blue (Red=0, Green=0, Blue=full, White=0)
248-255
NULL
CH 13
Zoom
0-255
CH 14
Shutter
0 - 15
LED_EFFECT_OPEN
16 - 131
LED_EFFECT_FLASH
132 - 139
LED_EFFECT_THUNDER
140 - 181
LED_EFFECT_PULSE_CLOSE_FADE_OPEN
182 - 189
LED_EFFECT_OPEN
190 - 231
LED_EFFECT_PULSE_OPEN_FADE_CLOSE
232 - 239
LED_EFFECT_OPEN
240 - 247
LED_EFFECT_RANDOM_FLASH
248 - 255
LED_EFFECT_OPEN
CH15
Dimmer
0-255
Linear dimmer （dark to brightness)
21 CH Mode
21CH
Function
DMX Values
Details
CH 1
Pan
0-255
0-540°
CH 2
Pan Fine
0-255
16 bit
CH 3
Tilt
0-255
0-270°
CH 4
Tilt Fine
0-255
16 bit
CH 5
P/T Speed
0-255
Fast to slow
CH6
Special Function
0-69
NULL
70-79
Moving Blackout Open
80-89
Moving Blackout Off
90-99
PanInvert Open
100-109
TiltInvert Open
110-119
PanTiltInvert Off
120-139
NULL
140-149
PanTilt Reset
150-179
NULL
180-189
Zoom Reset
190-199
NULL
200-209
All Reset
210-255
NULL
CH7
Red
0-255
CH8
Red fine
0-255
CH9
Green
0-255
CH10
Green fine
0-255
CH11
Blue
0-255

10
CH12
Blue fine
0-255
CH13
White
0-255
CH14
White fine
0-255
CH15
CTC
0
NULL
1-255
2700K-8000K
CH 16
Virtual Color Wheel
0
No function (0=default)
1-3
White 2700 K
4-6
White 3200 K
7-9
White 4200 K
10-12
White 5600 K
13-15
White 8000 K
16
Blue (Blue=full, Red+Green+White=0)
17-55
Red=0, Green->up,Blue =full, White=0
56
Light Blue (Red=0, Green=full, Blue =full, White=0)
57-95
Red=0, Green=full, Blue->down, White=0
96
Green (Red=0, Green=full, Blue =0, White=0)
97-134
Red->up, Green=full, Blue=0, White=0
135
Yellow (Red=full, Green=full, Blue=0, White=0)
136-174
Red=full, Green->down, Blue=0, White=0
175
Red(Red=full, Green=0, Blue=0, White=0)
176-214
Red=full, Green=0, Blue->up, White=0
215
Magenta (Red=full, Green=0, Blue=full, White=0)
216-246
Red -> down, Green=0, Blue=full, White=0
247
Blue (Red=0, Green=0, Blue=full, White=0)
248-255
NULL
CH 17
Zoom
0-255
CH18
Zoom fine
0-255
CH 19
Shutter
0 - 15
LED_EFFECT_OPEN
16 - 131
LED_EFFECT_FLASH
132 - 139
LED_EFFECT_THUNDER
140 - 181
LED_EFFECT_PULSE_CLOSE_FADE_OPEN
182 - 189
LED_EFFECT_OPEN
190 - 231
LED_EFFECT_PULSE_OPEN_FADE_CLOSE
232 - 239
LED_EFFECT_OPEN
240 - 247
LED_EFFECT_RANDOM_FLASH
248 - 255
LED_EFFECT_OPEN
CH20
Dimmer
0-255
Linear dimmer （dark to brightness)
CH21
Dimmer fine
0-255
37S CH Mode
37S CH
Function
DMX Values
Details
CH 1
Pan
0-255
0-540°
CH 2
Pan Fine
0-255
16 bit
CH 3
Tilt
0-255
0-270°
CH 4
Tilt Fine
0-255
16 bit
CH 5
P/T Speed
0-255
Fast to slow

11
CH6
Special Function
0-69
NULL
70-79
Moving Blackout Open
80-89
Moving Blackout Off
90-99
PanInvert Open
100-109
TiltInvert Open
110-119
PanTiltInvert Off
120-139
NULL
140-149
PanTilt Reset
150-179
NULL
180-189
Zoom Reset
190-199
NULL
200-209
All Reset
210-255
NULL
CH7
Zoom
0-255
CH8
Zoom fine
0-255
CH9
Shutter
0 - 15
LED_EFFECT_OPEN
16 - 131
LED_EFFECT_FLASH
132 - 139
LED_EFFECT_THUNDER
140 - 181
LED_EFFECT_PULSE_CLOSE_FADE_OPEN
182 - 189
LED_EFFECT_OPEN
190 - 231
LED_EFFECT_PULSE_OPEN_FADE_CLOSE
232 - 239
LED_EFFECT_OPEN
240 - 247
LED_EFFECT_RANDOM_FLASH
248 - 255
LED_EFFECT_OPEN
CH10
Dimmer
0-255
Linear dimmer （dark to brightness)
CH11
Dimmer fine
0-255
CH12
CTC
0
NULL
1-255
2700K-8000K
CH13
Virtual Color Wheel
0
No function (0=default)
1-3
White 2700 K
4-6
White 3200 K
7-9
White 4200 K
10-12
White 5600 K
13-15
White 8000 K
16
Blue (Blue=full, Red+Green+White=0)
17-55
Red=0, Green->up,Blue =full, White=0
56
Light Blue (Red=0, Green=full, Blue =full, White=0)
57-95
Red=0, Green=full, Blue->down, White=0
96
Green (Red=0, Green=full, Blue =0, White=0)
97-134
Red->up, Green=full, Blue=0, White=0
135
Yellow (Red=full, Green=full, Blue=0, White=0)
136-174
Red=full, Green->down, Blue=0, White=0
175
Red(Red=full, Green=0, Blue=0, White=0)
176-214
Red=full, Green=0, Blue->up, White=0
215
Magenta (Red=full, Green=0, Blue=full, White=0)
216-246
Red -> down, Green=0, Blue=full, White=0

12
CH13
Virtual Color Wheel
247
Blue (Red=0, Green=0, Blue=full, White=0)
248-255
NULL
CH14
Red 1
0-255
CH15
Red 1 fine
0-255
CH16
Green 1
0-255
CH17
Green 1 fine
0-255
CH18
Blue 1
0-255
CH19
Blue 1 fine
0-255
CH20
White 1
0-255
CH21
White 1 fine
0-255
CH22
Red 2
0-255
CH23
Red 2 fine
0-255
CH24
Green 2
0-255
CH25
Green 2 fine
0-255
CH26
Blue 2
0-255
CH27
Blue 2 fine
0-255
CH28
White 2
0-255
CH29
White 2 fine
0-255
CH30
Red 3
0-255
CH31
Red 3 fine
0-255
CH32
Green 3
0-255
CH33
Green 3 fine
0-255
CH34
Blue 3
0-255
CH35
Blue 3 fine
0-255
CH36
White 3
0-255
CH37
White 3 fine
0-255
39 CH Mode
39 CH
Function
DMX Values
Details
CH 1
Pan
0-255
0-540°
CH 2
Pan Fine
0-255
16 bit
CH 3
Tilt
0-255
0-270°
CH 4
Tilt Fine
0-255
16 bit
CH 5
P/T Speed
0-255
Fast to slow
CH6
Special Function
0-69
NULL
70-79
Moving Blackout Open
80-89
Moving Blackout Off
90-99
PanInvert Open
100-109
TiltInvert Open
110-119
PanTiltInvert Off
120-139
NULL
140-149
PanTilt Reset
150-179
NULL
180-189
Zoom Reset
190-199
NULL
200-209
All Reset

13
CH6
Special Function
210-255
NULL
CH7
Red 1
0-255
CH8
Red 1 fine
0-255
CH9
Green 1
0-255
CH10
Green 1 fine
0-255
CH11
Blue 1
0-255
CH12
Blue 1 fine
0-255
CH13
White 1
0-255
CH14
White 1 fine
0-255
CH15
Red 2
0-255
CH16
Red 2 fine
0-255
CH17
Green 2
0-255
CH18
Green 2 fine
0-255
CH19
Blue 2
0-255
CH20
Blue 2 fine
0-255
CH21
White 2
0-255
CH22
White 2 fine
0-255
CH23
Red 3
0-255
CH24
Red 3 fine
0-255
CH25
Green 3
0-255
CH26
Green 3 fine
0-255
CH27
Blue 3
0-255
CH28
Blue 3 fine
0-255
CH29
White 3
0-255
CH30
White 3 fine
0-255
CH31
CTC
0
NULL
1-255
2700K-8000K
CH32
Virtual Color Wheel
0
No function (0=default)
1-3
White 2700 K
4-6
White 3200 K
7-9
White 4200 K
10-12
White 5600 K
13-15
White 8000 K
16
Blue (Blue=full, Red+Green+White=0)
17-55
Red=0, Green->up,Blue =full, White=0
56
Light Blue (Red=0, Green=full, Blue =full, White=0)
57-95
Red=0, Green=full, Blue->down, White=0
96
Green (Red=0, Green=full, Blue =0, White=0)
97-134
Red->up, Green=full, Blue=0, White=0
135
Yellow (Red=full, Green=full, Blue=0, White=0)
136-174
Red=full, Green->down, Blue=0, White=0
175
Red(Red=full, Green=0, Blue=0, White=0)
176-214
Red=full, Green=0, Blue->up, White=0
215
Magenta (Red=full, Green=0, Blue=full, White=0)
216-246
Red -> down, Green=0, Blue=full, White=0
247
Blue (Red=0, Green=0, Blue=full, White=0)

14
CH32
Virtual Color Wheel
248-255
NULL
CH33
Zoom
0-255
CH34
Zoom fine
0-255
CH35
Shutter
0 - 15
LED_EFFECT_OPEN
16 - 131
LED_EFFECT_FLASH
132 - 139
LED_EFFECT_THUNDER
140 - 181
LED_EFFECT_PULSE_CLOSE_FADE_OPEN
182 - 189
LED_EFFECT_OPEN
190 - 231
LED_EFFECT_PULSE_OPEN_FADE_CLOSE
232 - 239
LED_EFFECT_OPEN
240 - 247
LED_EFFECT_RANDOM_FLASH
248 - 255
LED_EFFECT_OPEN
CH36
Dimmer
0-255
Linear dimmer （dark to brightness)
CH37
Dimmer fine
0-255
CH38
Dynamic
000 - 007
No effect
008 - 255
Effect mode
CH39
Dynamic Speed
000 - 255
5.Dimension

15
6.Trouble Shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e s o m e s ug g es tion s fo r
ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Check th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a ge on th e m a i n co nn e ct o r .
3. Check th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess s etti ng s a nd D M X p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Check if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta ge c a b les th a t m a y c a us e d a m a ge or
in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition
7.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
