Vicon Fanex 464 User manual

Fanex
464 / 524
Assembly instructions
Original assembly instructions
Edition 06.2012
Date of print 08.2012
Language EN
Machine number VF65902110 / VF65974001
Model VF6590 / VF6597
Document number VF16649095.EN

Kverneland Group Kerteminde AS
Taarupstrandvej 25
DK-5300 Kerteminde
Denmark
Tel: [phone]
Copyright by Kverneland Group Gottmadingen N. V., Germany. Reproduction, transfer to other media, translation or the use of extracts or parts
of this manual without the explicit permission of Kverneland, is not permitted. All rights reserved. The contents of this operating manual are subject
to change without notice. The right to technical revision is reserved.

Table of contents
3
Table of contents
Preliminary information ........................... 5
Target group for
these assembly instructions 5
Meaning of the symbols 5
Safety ......................................................... 6
For your safety 6
Screw and bolt tightening torques 8
Direction and rotary direction 8
Overview .................................................... 9
Designation of components 9
Crate packaging ........................................ 10
Assembly groups in
crate packaging 10
Basic machine 13

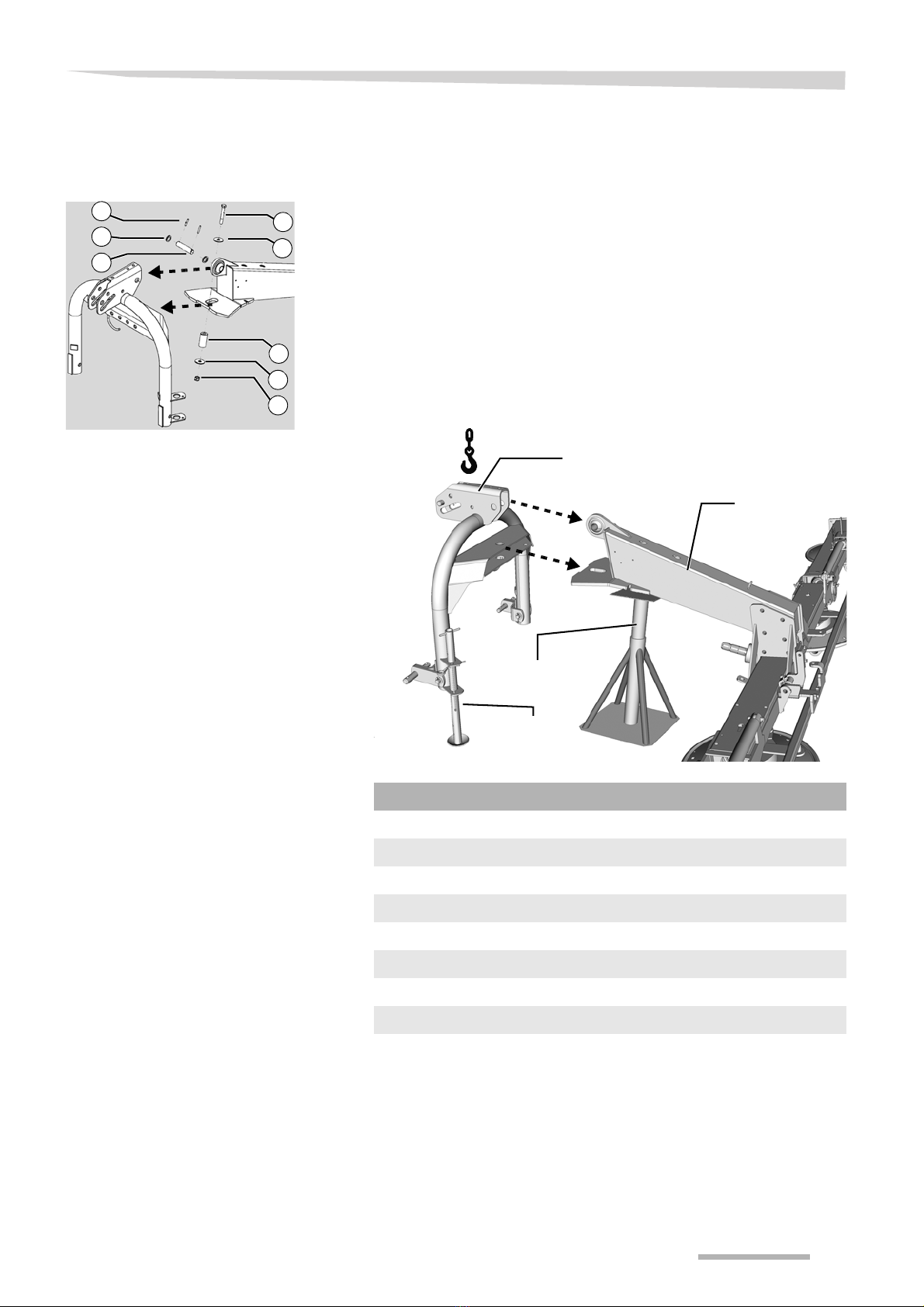

Fitting the support arm 14
Fitting the 3 point trestle 15
Fitting the protective pot 16
Fitting the protective bracket 16
Fitting the vibration dampers 17

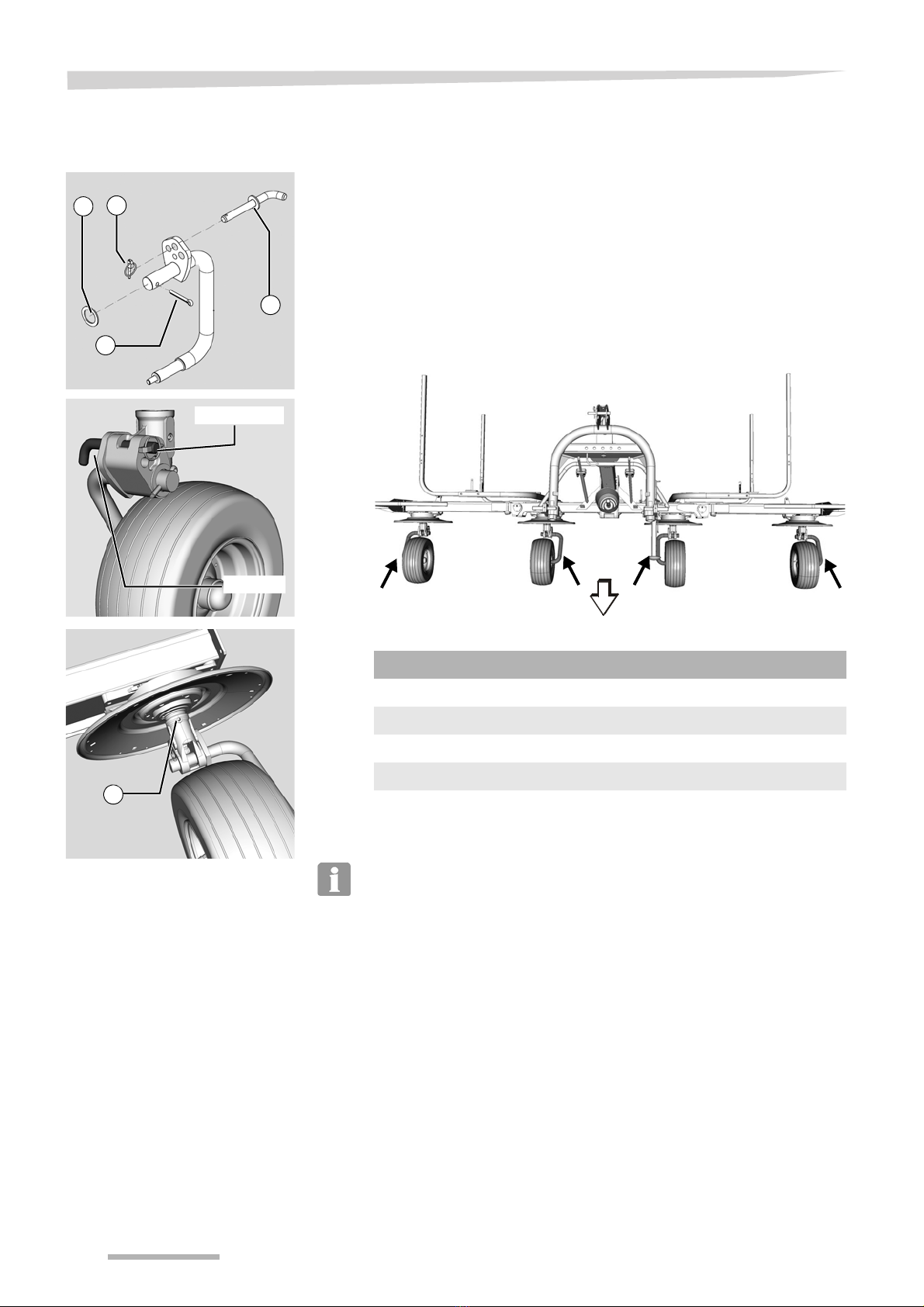

Fitting the wheels 18
Parking and securing the machine 18
Final assembly with crate packaging 19
Pallet packaging ....................................... 20
Requirements 20
Basic machine 21
Fitting the wheels 22
Parking and securing the machine 22
Final assembly for pallet packaging 23
Final assembly .......................................... 24
Fitting the 
deflector bars 24
Hydraulic 25
Laying the control cables 26
Fitting the tine supports 27
Fitting the deflector frame 28
Fitting the 
additional equipment 29
Adjusting work .......................................... 32
Coupling the machine 32
PTO shaft 33
Adjusting the working depth 35
Adjusting the rotor pitch 36
Adjusting the tine supports 37
Circuit diagrams ....................................... 38
Hydraulic diagram 38
Lighting equipment circuit diagram [+] 39
Final tasks ................................................. 40
Trial run 40
Environment 40

Table of contents
4

Preliminary information
5
Prelimi nary inform ation
Target group for 
these assembly
instructions
These instructions are intended for authorised dealers, workshops
and agents qualified in the field of agricultural mechanical engi-
neering.
For your safety
You must familiarise yourself with the contents of these assembly
instructions before assembly or operating the machine. In this way,
you will achieve optimum work results and operational safety. The
assembly instructions form an integral part of the machine and must
always be kept to hand. This will allow:
•accidents to be avoided,
•warranty requirements to be met.
The employer should:
Untrained or unauthorised individuals are not permitted to assemble
the machine.
Meaning of the
symbols
In these assembly instructions, the following symbols and terms have
been used:
•A bullet point accompanies each item in a list.
A triangle indicates operating functions which must be performed.

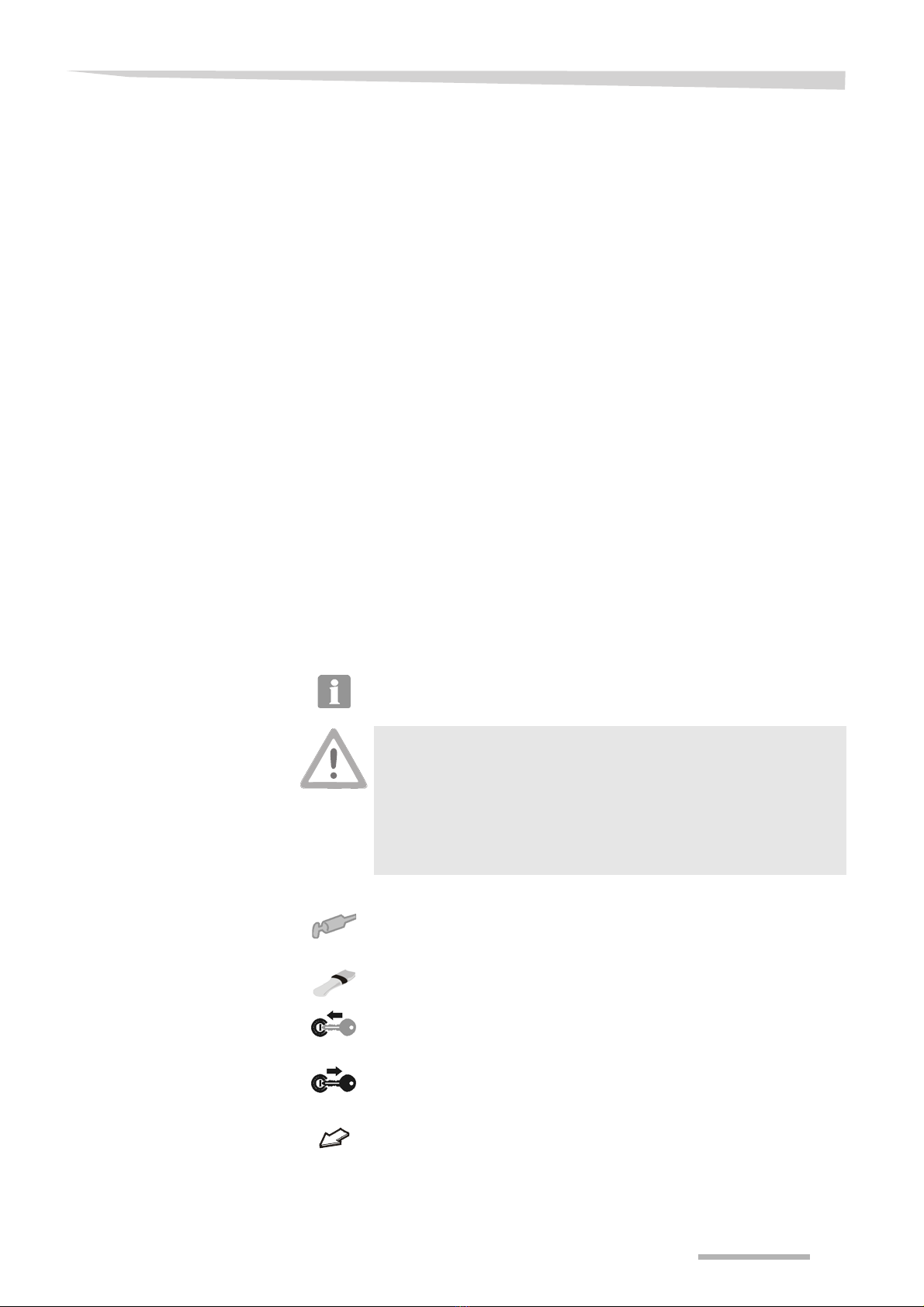

We have also used pictograms to help you find instructions more
quickly:
The "Information" pictogram indicates tips and additional information.
The grease gun indicates lubrication points.
The brush indicates that grease must be applied.
Switch on the tractor.
Switch off the tractor and secure it against rolling away.
The arrow in the diagram shows the direction of travel.
The warning triangle indicates important safety information and
danger. Failure to observe this safety information can result in:
•Serious faults in the correct operation of the machine,
•Damage to the machine,
•Personal injury or accidents.

Safety
6
Safety
For your safety
Please carefully read and observe the safety information in this
chapter prior to assembly. All persons involved in assembling or
setting up this machine must read and pay close attention to the
assembly instructions that follow.
Correct assembly
N.B.: Non-compliance with the following rules amounts to gross
negligence. As a result, the manufacturer cannot be held liable for any
damage caused by negligence. The risk is then borne solely by the
operator.
This machine must only be assembled by trained technicians in
accordance with the current version of the assembly instructions.
Before the implement is coupled to a tractor, transported, or initially
operated, the operating manual and its safety instructions must be
thoroughly read and observed.
It is the responsibility of the operator to ensure that all personnel
involved in the assembly are provided with the relevant accident
prevention regulations, as well as generally applicable health and
safety and road safety regulations. All personnel involved in the
assembly must be aware of these rules and regulations and adhere to
them; they must also be instructed on the potential risks and dangers.
Unauthorised alterations to the machine invalidate any liability of the
manufacturer for resultant damage.
The following rules and regulations must be observed:
•The locally applicable accident prevention regulations,
•Recognised safety regulations, occupational health requirements
and road traffic regulations,
•The functional limits and safety regulations as set out in the
technical operating instructions.
Danger indicators signify the risk of serious injury or death.
Whenever you see this sign in the assembly instructions, please
make sure that you implement all appropriate safety measures.
Moreover, danger indicators warn of damage to machinery as well
as of financial and legal consequences (e.g. invalidation of
warranty, legal liabilities, etc.).
Faulty assembly or misuse results in:
•Risks to life and limb of the operator, third parties, and animals
in the vicinity of the machine.
•Risks for the machine and other property belonging to the
operator or third parties.
•Impairment of the efficient and damage-free operation of the
machine.

Safety
7
General safety and
accident prevention
regulations
•Responsibilities for the various activities on the machine must be
clearly defined and maintained. There must not be any confusion
regarding responsibilities, otherwise the safety of the assembly
personnel is put at risk.
•Before you start work, familiarise yourself with all the fittings and
actuation elements and their functions.
•For all work on the machine, use only appropriate tools and
implements in perfect condition.
•You must only use parts (accessories, lubricants etc.) which
comply with at least the manufacturer's specifications; you must
use them in accordance with instructions (including specified
torques).
•A part conforms to the requirements only if it is an original part or if
it is expressly approved by the manufacturer.
•Wear close-fitting clothes when operating the machine! Wear
sturdy footwear and prescribed protective equipment.
•Support and secure the machine carefully during assembly.
•Particular care must be taken in dealing with energy accumulators
such as springs and hydraulic or compressed-air assemblies.
•Dispose of oils, grease, and filters in accordance with regulations.
•Protective equipment must be properly attached and swung into its
protective position.
•Actuation elements (cords, chains, and rod assemblies) of
remotely controlled equipment must be fitted in such a way that
they cannot cause unintended movement in any transport or work
position.
•Do not leave the engine running in enclosed spaces.
•All remote-powered and all other movable parts (e.g. hydraulics)
have crush or shear points.
•Pay close attention to the markings on reversible connections and
be aware of the risk of installing a part the wrong way round.
•Always disconnect the power supply before working on the
electrical system.
•When carrying out electric welding on the machine, always
disconnect electric cables from the alternator and battery.

Safety
8
Screw and bolt
tightening torques
Note the tightening torques that are shown in the table or specified in
the text. The torque specifications refer to a dry coefficient of friction
(0.12).
Direction and
rotary direction
All directions ("right", "left", "front", "back") are always as viewed in the
direction of travel.
Rotary direction is defined as follows:
•Rotary direction right = clockwise.
•Rotary direction left = anticlockwise.
•Rotation about a vertical axis, viewed from top to bottom.
•Rotation about a horizontal axis, viewed at right angles to the
direction of travel, from left to right.
•The rotation of screws and nuts, etc. is always viewed from the
operating side.
8.8 10.9 12.9
M6 9.9 Nm (7.3 ft.lbs) 14 Nm (10.3 ft.lbs) 17 Nm (12.5 ft.lbs)
M8 24 Nm (17.7 ft.lbs) 34 Nm (25 ft.lbs) 41 Nm (30.3 ft.lbs)
M10 48 Nm (35.4 ft.lbs) 68 Nm (50.2 ft.lbs) 81 Nm (59.8 ft.lbs)
M12 85 Nm (62.7 ft.lbs) 120 Nm (88.6 ft.lbs) 145 Nm (104 ft.lbs)
M14 135 Nm (99.6 ft.lbs) 190 Nm (140 ft.lbs) 230 Nm (166 ft.lbs)
M16 210 Nm (155 ft.lbs) 290 Nm (214 ft.lbs) 350 Nm (258 ft.lbs)
M20 410 Nm (302 ft.lbs) 580 Nm (428 ft.lbs) 690 Nm (509 ft.lbs)
Front
Left
Right
Back
Up
Down
Rotary direction right

Overview
9
Overview

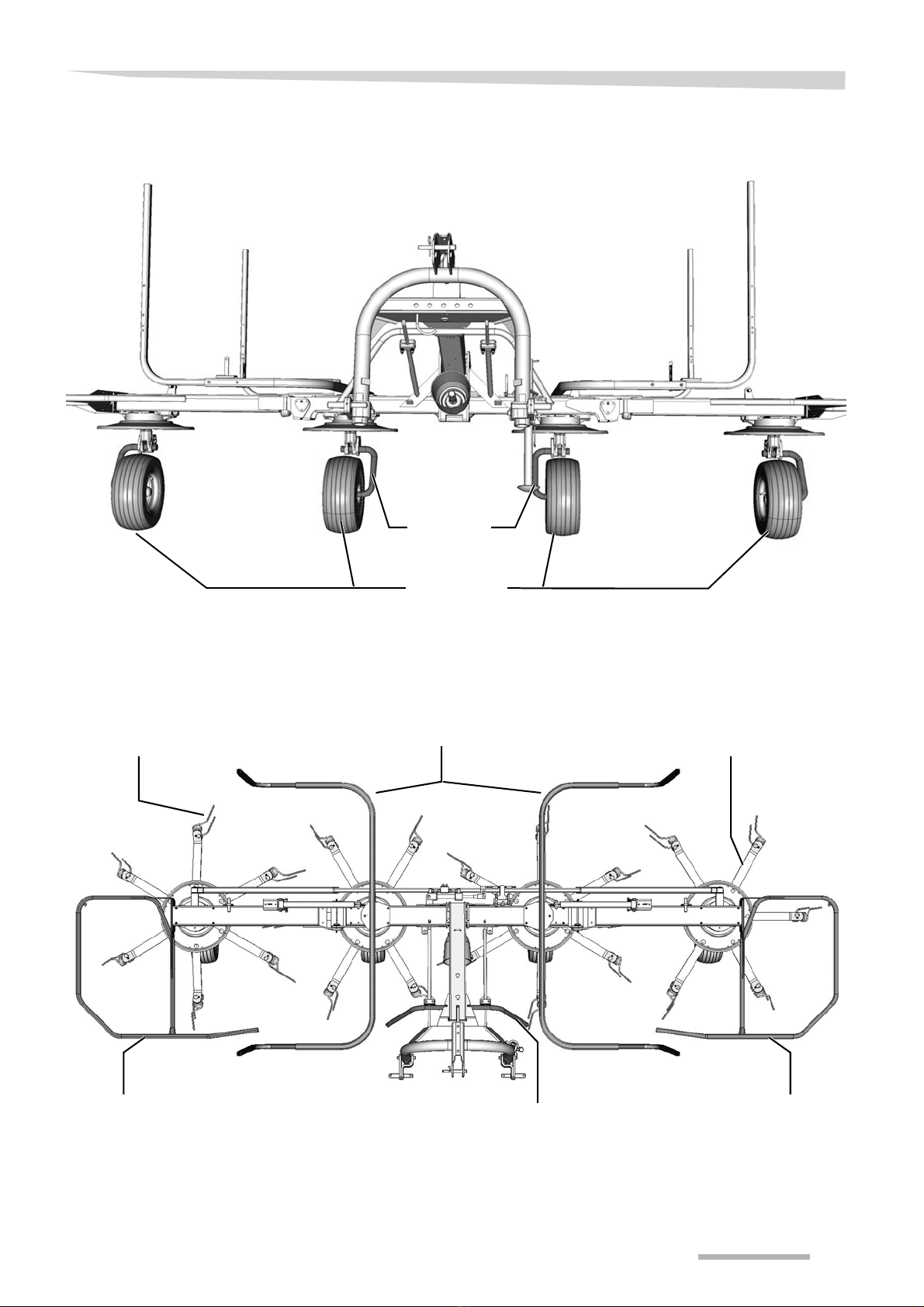

Designation of
components
Tine
rotor,
Running wheel
axle
Running
wheel
Tine supports3 point trestle
Parking
stand
Foldable hydraulic
cylinder
Deflector bar Deflector bar
Outer device Centre device

Crate packaging
10
Crate packaging
Assembly groups in 
crate packaging
Main frame
Protective bracket
Support arm
Centre device
Side device
3 point trestle
Parking stand

Crate packaging
11
Wheels
Deflector bars and

tine supports
Wheels
Wheel axles
Front and rear deflector bars
Outer right-hand 
deflector bar
Outer left-hand 
deflector bar
Protective bracket
Tine Tine supports

Crate packaging
12
Requirements
•Suitable flat surface approx. 10 x 10 m as assembly space.
•Lifting gear with lifting accessories for at least 900 kg.
•Floor conveyor (pallet truck or fork lift) with a fork length of at least
1,800 mm.
•Stands for safely depositing implement parts.
•Spanners for tightening bolts.
Preparations for
assembly
Place the wooden crate on level ground (with the pallet floor at the
bottom) and open it without damaging the parts inside.
Take out loose parts (wheels, axles, boxes etc.).
Clear plenty of space around larger components to make access
easier.
Checking the scope
of delivery
Check that the scope of delivery is complete.
In the event of missing, incorrect or damaged parts, fill in the
"REPORT MISSING PARTS" form and send it to the "ORDER
DESK" in Kerteminde straight away.
Removing the
surface protection
Remove the surface protection (e.g. Tectyl) with which the bare
surfaces (such as tine arms, tine supports and bearing shafts)
have been coated.
Grease the bare surfaces using a brush.
Observe the safety information
Observe the safety information when carrying out all work.
Disregard for safety information can lead to serious or fatal injury.
Ensure that hydraulic connections are correct
Before lowering the implement, you must check that the hydraulic
lines are correctly connected. Wrongly connected hydraulic hoses
can trigger unpredictable movements of the machine. Serious or
fatal injury may be caused as a result.
No persons within the slewing range
There is an acute risk of injury within the slewing range from
machine parts which are slewing or folding. Serious or fatal injury
may be caused as a result.

Crate packaging
13
Basic machine
The basic machine consists of the preassembled centre and side
device combination.
Use suitable lifting accessories to remove the machine elements from
the crate.
Loosen all fastenings (wires, lashing straps).
Use a crane to place the basic machine on stands and secure in
place.
Carefully fold down the outer devices and secure using supports.
No. Quantity Part
1 1 Preassembled basic machine
2Assembly stands
3 Lifting accessories
Outer device
Centre device
Assembly stands

Crate packaging
14
Fitting the support
arm
To fit the support arm:
Bring the support arm to the adapter on the basic machine using
suitable lifting accessories.
Fasten the support arm using 4 bolts.
Support the support arm.
Insert rubber stoppers.
6
23
4
5
No. Quantity Part
1 1 Preassembled basic machine
2 1 Support arm
3 4 M16 x 190 bolts
4 4 M16 nuts
5 8 M16 washers
6 2 Rubber stoppers
4 bolts
Support arm
Basic machine

Crate packaging
15
Fitting the 3 point
trestle
The machine is equipped ex-factory for coupling to the tractor's three-
point lifting pickup.
To fit the 3 point trestle:
Bring the preassembled 3 point trestle to the support arm using
suitable lifting accessories.
Guide the plate on the support arm into the adapter on the 3 point
trestle.
Insert the bush (5) and insert the bolt (3) through the bush.
Secure the bolt (3) with a nut (6).
Insert the pin (7) through the 3 point trestle and the support arm.
Secure the pin with dowel pins on both sides.
Secure the 3 point trestle with a parking stand.
3
4
4
5
6
9
8
7
No. Quantity Part
1 1 Preassembled basic machine with support arm
2 1 Preassembled 3 point trestle
3 1 M16 x 110 bolt
4 2 M16 washers
5 1 Bush for M16 bolt
6 1 M16 nut
71Pin
8 2 Washers
9 2 Dowel pins
3 point trestle
Support arm
Assembly
stand
Parking
stand

Crate packaging
16
Fitting the
protective pot
To fit the protective pot:
Fit the protective pot onto the PTO stub shaft and fasten with a
jubilee clip.
Fitting the
protective bracket
To fit the protective bracket:
Fit the protective bracket to the support arm plate from below.
1 2
No. Quantity Part
1 1 Protective pot
2 1 Jubilee clip
Protective pot PTO stub shaft
12
3
4
3
No. Quantity Part
1 1 Protective bracket
2 2 M12 x 65 bolts
3 4 M12 washers
4 2 M12 nuts
Protective
bracket
Plate
3 point trestle

Crate packaging
17
Fitting the
vibration dampers
The vibration dampers are fitted between the main frame and the 3
point trestle.
To fit the vibration dampers:
Insert the preassembled vibration dampers into the frame and 3
point trestle adapters from below.
Fit the washer (1) and secure with the safety splint (2).
1
1
2
2
No. Quantity Part
1 2 Preassembled vibration dampers
2 2 Washers
3 2 Safety splint
Vibration damper

Crate packaging
18
Fitting the wheels
To fit the wheels to the rotor chassis:
Move the running wheel axle into the correct position.
see illustration below
Fit the running wheel axle and secure with the washer (2) and split
pin (3).
Adjust the rotor pitch.
For each axle, insert the pin (4) and secure with the lynch pin (5).
Grease the fitted wheel axles using the lubricating nipple (X).
There are 3 levels to choose from for the rotor pitch (three adapter
holes). All wheels must be set the same.
Cf. operating instructions, chapter “Adjusting the rotor pitch”.
Parking and
securing the
machine
Remove the assembly stands.
Set the machine down on the wheels and parking stand.
Secure the machine against rolling away.
2
3
5
4
Pin
Lynch pin
X
No. Quantity Part
1 4 Preassembled wheels
2 4 Washers
34Splitpin
4 4 Pin
5 4 Lynch pin

Crate packaging
19
Final assembly
with crate
packaging
The basic machine, support arm and 3 point trestle are connected.
The wheels are fitted. The machine is in the work position.
Now proceed as follows:
»Fitting the deflector bars«, page 24
»Hydraulic« connecting, page 25
»Laying the control cables«, page 26
»Fitting the tine supports«, page 27
»Fitting the deflector frame«, page 28
»Coupling the machine«, page 32
»Adjusting the working depth«, page 35 ff.
»Final tasks«, page 40

Pallet packaging
20
Pallet packaging
Requirements
•Suitable flat surface approx. 10 x 10 m as assembly space.
•Lifting gear with lifting accessories for at least 900 kg.
•Floor conveyor (pallet truck or fork lift) with a fork length of at least
1,800 mm.
•Stands for safely depositing implement parts.
•Spanners for tightening bolts.
Preparations for
assembly
Place the wooden crate on level ground (with the pallet floor at the
bottom) and open it without damaging the parts inside.
Take out loose parts (wheels, axles, boxes etc.).
Clear plenty of space around larger components to make access
easier.
Checking the scope
of delivery
Check that the scope of delivery is complete.
In the event of missing, incorrect or damaged parts, fill in the
"REPORT MISSING PARTS" form and send it to the "ORDER
DESK" in Kerteminde straight away.
Removing the
surface protection
Remove the surface protection (e.g. Tectyl) with which the bare
surfaces (such as tine arms, tine supports and bearing shafts)
have been coated.
Grease the bare surfaces using a brush.
Observe the safety information
Observe the safety information when carrying out all work.
Disregard for safety information can lead to serious or fatal injury.
Ensure that hydraulic connections are correct
Before lowering the implement, you must check that the hydraulic
lines are correctly connected. Wrongly connected hydraulic hoses
can trigger unpredictable movements of the machine. Serious or
fatal injury may be caused as a result.
No persons within the slewing range
There is an acute risk of injury within the slewing range from
machine parts which are slewing or folding. Serious or fatal injury
may be caused as a result.
