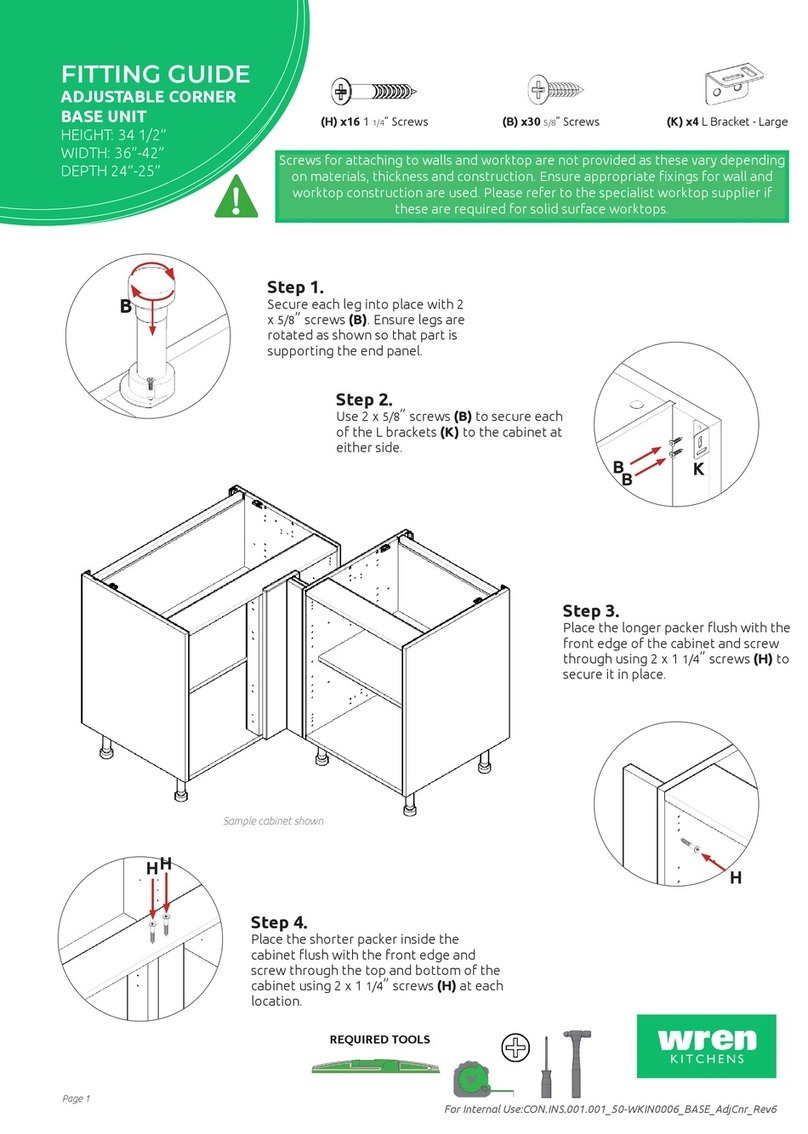

Wren Kitchens BASE 3 Assembly instructions

For Internal Use:CON.INS.001.001_50-WKIN00006_BASE3_ADJ_CNR_FITTING_Guide_Rev3Page 1
ADJUSTABLE
CORNER
BASE CABINET
Fitting
Guide
(H) x16 1 1/4” Screws (B) x30 5/8” Screws (K) x2 L Bracket - Large (U) x2 Space-Plug
Step 1.
Secure each leg into place with
2 x ”screws (B). Ensure legs are
rotated as shown so that part is
supporting the end panel.
B
Screws for attaching to walls and countertop are not provided as these vary
depending on materials, thickness and construction. Ensure appropriate xings for
wall and countertop construction are used. Please refer to the specialist countertop
supplier if these are required for solid surface countertops.
Adjustable Corner
Cabinet
(Cabinet A)
Cabinet B
Packer 2
Adjustable
corner post
part 2
Blanking
panel
Adjustable
Corner post
part 1
Packer 1
FI.PK.FIT.003 - BASE 3

For Internal Use:CON.INS.001.001_50-WKIN00006_BASE3_ADJ_CNR_FITTING_Guide_Rev3 Page 2
ADJUSTABLE
CORNER
BASE CABINET
Fitting
Guide
Step 2.
Cut Blanking panel to
required width (refer to
customer specic plan) and
attach to cabinet face as
shown.
Step 3.
Press packer 1 tightly against the
muntin post and screw through the
top and bottom of the cabinet using
2 x 1 ¼” (H) screws per location to
secure in place.
Blanking
panel
Packer 1
Step 3.
Secure cabinet to the wall using Space-Plugs.
Use a stud nder to locate the studs on the wall, drill pilot holes through
the back brace of the cabinet into the wall at the stud locations. Unwind
the Space-Plug until it contacts both surfaces, insert and tighten an
appropriately sized screw through the back of the cabinet and the Space-
Plug into the wall. (Use appropriate xing for wall construction where a
stud is not available)

For Internal Use:CON.INS.001.001_50-WKIN00006_BASE3_ADJ_CNR_FITTING_Guide_Rev3Page 3
ADJUSTABLE
CORNER
BASE CABINET
Fitting
Guide
Adjustable
Corner post
part 1
Adjustable
corner post
part 2
Rear
face
Front
face
Step 5.
To create your corner post attach
part 1 and part 2 as shown.
Screw through part 1 into part 2 at
4 locations using 4 x appropriately
sized screws.
Corner post size can be adjusted
by cutting part 2 (see step 8), and
also positioning part 2 along part 1
in accordance to customer kitchen
plan.
Required Width
Front Face
Step 6.
Refer to the customer kitchen plan
to calculate the width required for
the adjustable corner post part 2.
Cut adjustable corner post part 2
and packer 2 to the width required.
Measure from the front face, as
not to remove the front prole.
Step 7.
Attach packer 2 to the rear face of
adjustable corner post part 2 using
appropriate screws.
Rear
face
Adjustable
Corner post
part 1
Adjustable
corner post
part 2
Front
face
Packer 2

For Internal Use:CON.INS.001.001_50-WKIN00006_BASE3_ADJ_CNR_FITTING_Guide_Rev3 Page 4
ADJUSTABLE
CORNER
BASE CABINET
Fitting
Guide
Cabinet A
Packer 2
Adjustable
corner post
part 2
Door width + 3/16”
Adjustable
Corner post
part 1
Blanking
panel
Packer 1
Adjustable Corner
Cabinet
(Cabinet A)
Cabinet B
Packer 2
Adjustable
corner post
part 2
Blanking
panel
Adjustable
Corner post
part 1
Packer 1
Step 9.
Secure cabinet B to the corner post
by screwing through the end panel
into packer 2 at the top and bottom
of the cabinet.
Make sure that the front of the
adjustable corner post and the
door are aligned.
Step 11.
Place cover caps over
visable screw heads to
conceal them on the
inside of cabinet B.
Step 10.
Secure cabinet B to the
wall using a Space-Plug
(U), as per instructions on
page 3.
Step 8.
Attach adjustable corner post to cabinet A, by screwing
through packer 1 at four locations, using
4 x 1 ¼” screws (H).
(for location refer to customer kitchen plan)
Make sure that the distance between the front of the
corner post and the external face of the end panel is
the width of the door + 3/16” (4.5mm).
