Yealink MVC940-C5-008 User manual

MVC940-C5-008MVC940-C5-008
For the operation video, please refer to MVC940-C5-008 Unboxing.
Minimum RequirementsMinimum Requirements
An audio (speaker&microphone) system (purchase separately).
A display connected to MCore Pro (not included).
A Microsoft Teams Rooms or Skype® for Business account (not included).
Wired network environment (not included).

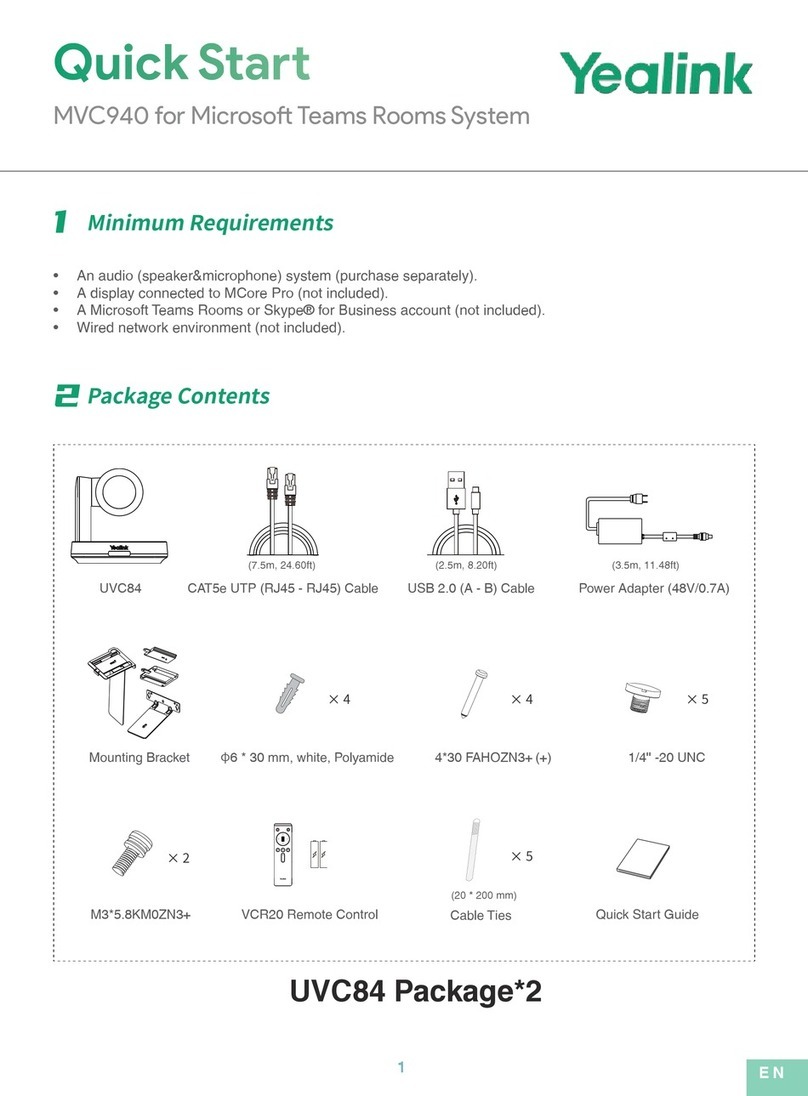

Package ContentsPackage Contents
MVC940-C5-008
1

MVC940-C5-008
2

MVC940-C5-008
3

MVC940-C5-008
4

Install MVC940-C5-008Install MVC940-C5-008
MCore Pro supports: mount on the wall, mount on the TV, stick to the table.
MTouch Plus supports: put on a table, paste on a table, fixed on a table, mount on the wall.
UVC84 supports: put on a flat surface, mount on top of a display, mount on the wall, mount on the ceiling,
mount on the TV mount.
AVHub supports: mount on the wall, stick under the table, put on the desk, mount on the rack.
RoomSensor supports: mount on the ceiling, mount on the wall.
Install and deploy the accessories in the system according to the environment and actual needs. For how to
install and deploy, please refer to the quick start guide of each product.
Connect MVC940-C5-008Connect MVC940-C5-008
MVC940-C5-008
5

NOTENOTE
When starting up the system for the first time, you need to connect a mouse to complete the initial
configuration. We recommend using the wireless mouse and keyboard kit.
When you connect the UVC84/UVC86/MSpeaker II directly to the AVHub, the total number of connections
must be no more than 4 devices. If the total number of connections exceeds 4 devices, you need to connect
a PoE switch (the PoE switch must meet the 802.3 AT (PoE+) standard). We recommend using Yealink
RCH40.
Not included accessories requirements:
Display: Resolution of 1080p or higher and with an HDMI port.
PC: Equipped with HDMI or USB-C (support DP protocol) Port.
Ethernet cable: CAT5e or higher ethernet cable.
HDMI: Standard HDMI cable.
MVC940-C5-008
6

Initial SetupInitial Setup
1. Press the power button on the bottom left of MCore Pro, and the Microsoft Windows 10 IoT Enterprise Edition
operating system will be automatically loaded after starting MCore Pro.
2. Select the check box on the EULAEULA page, and then tap NextNext.
3. Enter the account, the password on the AccountAccount page, and then tap NextNext. Supports Microsoft Teams Rooms or
Skype® for Business accounts.
4. On the AdvancedAdvanced page, configure the domain and tap NextNext.
5. Tap FinishFinish to complete the setup wizard.
FeaturesFeatures
Wireless SharingWireless Sharing
1. Connect the WPP30 to the USB port of the MTouch E2.
When pairing, the LED indicator of WPP30 is orange. When the pairing is successful, the LED indicator turns
green breathing light.
2. Connect the paired WPP30 to the USB-A/USB-C port on your PC.
3. On the WPP30, press the presentation button to share the full screen.
NOTENOTE
When starting up the system for the first time, you need to connect a mouse to complete the initial
configuration. We recommend using the wireless mouse and keyboard kit. After the system is initialized, you
can use MTouch E2 to complete the system login and settings, and the device will automatically start the
Microsoft Teams conference system application and enter the setting page.
MVC940-C5-008
7

Control UVC84 Control UVC84 Camera PositionCamera Position
1. Tap More > to enter the Camera Control page.
Pair with a RoomSensorPair with a RoomSensor
1. Switch the account from Skype to Admin.
2. Open Yealink RoomConnect Software from the Desktop.
3. Go to MTouch PlusMTouch Plus > SensorSensor.
4. Add sensor. Select the right sensor to pair.
Remove the back cover of RoomSensor, and you will see its name on the top. Then select accordingly.
Supported AccessoriesSupported Accessories
For the compatible devices and the maximum number of compatible devices, please refer to Teams Room
Accessories Compatibility Lists.
NOTENOTE
A MTouch Plus can be paired with one RoomSensor at most.
The distance between MTouch Plus and RoomSensor needs to be within 20m.
