Introduction
Thank you for choosing an ALE International phone. We hope it will give you entire satisfaction.
This model offers enhanced ergonomical features for more effective communication.
This manual describes services offered by the 8008 DeskPhone in connection with an OmniPCX
Enterprise system.
The label and icons displayed depend on the type and the skin of the set. The label is not displayed if the
corresponding feature is not configured on your telephone system. All labels are displayed in color and
are italicized. This icon describes a succession of actions or labels you have to do or select: .
This icon describes the consequence of an action: .

8008 DeskPhone
8AL90349ENAAed01
3 /50
1.1 8008 DeskPhone 6
1.2 Phone description 6
1.3 Navigation 6
1.4 Function keys and programmable keys 7
1.5 Alphabetic keypad 8
1.6 Welcome screens 9
1.7 Call management screen 10
1.8 Audio encryption 10
1.9 Status icons 11
1.10 Call icons 11

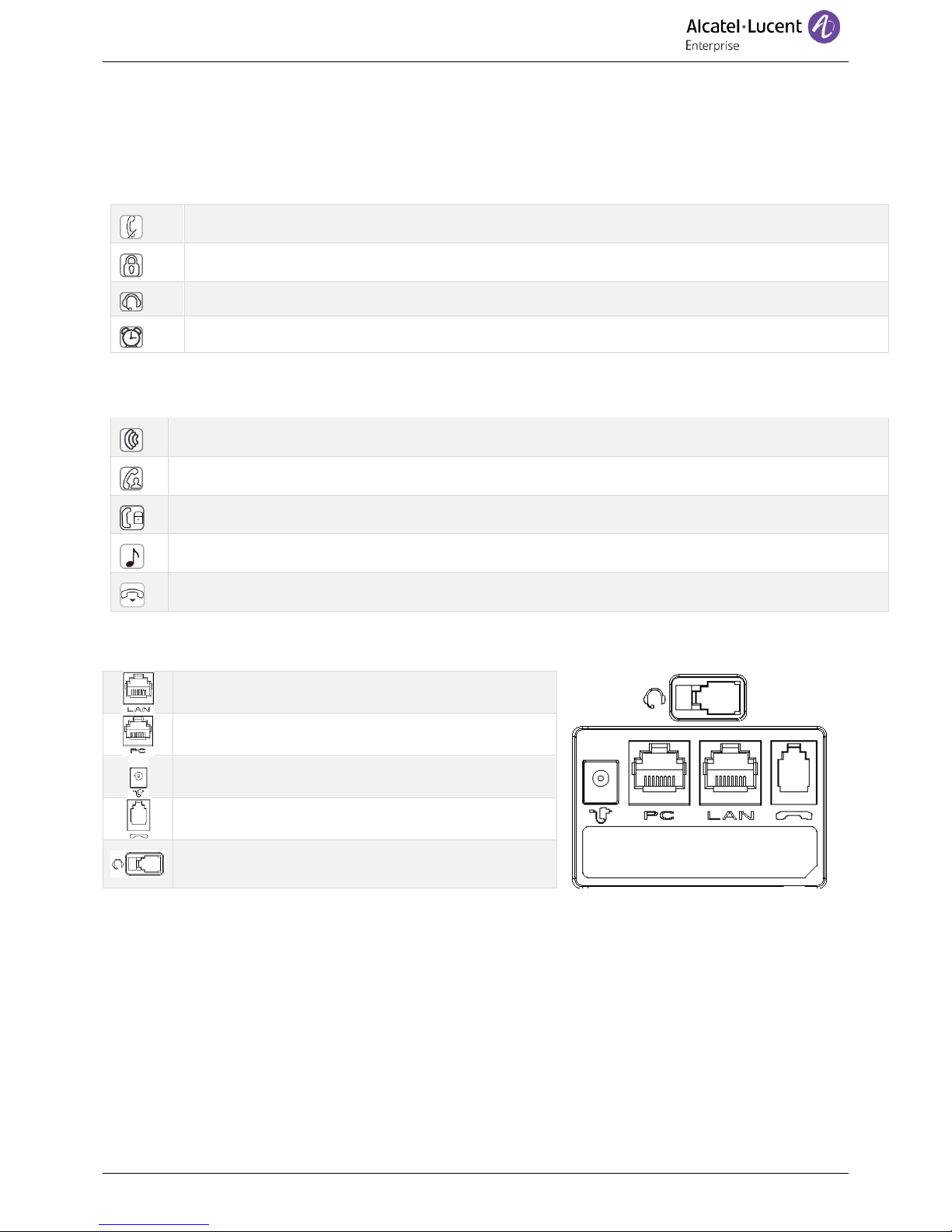

1.11 Description of the connectors 11
2.1 Consulting the call log 12
2.2 Making a call 13
2.3 Receiving a call 13
2.4 Switching between audio modes 14
2.5 Activating the loudspeaker during a conversation (handset lifted) - Loudspeaker. 14
2.6 Make calls by name (company directory) 15
2.7 Make calls via your programmed call keys 15
2.8 Redialing 15
2.9 Callback requests 15
2.10 Call back an unanswered call 16
2.11 Requesting automatic callback if internal number is busy 16
2.12 Receiving interphony calls 17
2.13 Sending DTMF signals 17
2.14 Mute, so that your contact cannot hear you 17
3.1 Making a second call during a conversation 18
3.2 Answering a second call during a conversation 18
3.3 Switching between calls (Broker call) 19
3.4 Transferring a call 19
3.5 Three-way conference with internal and/or external contacts (conference) 19
3.6 Talk simultaneously to more than 2 contacts 19
3.7 Placing a call on hold (hold) 20
3.8 Placing an outside call on hold (parking) 20
3.9 Intrusion into an internal conversation (barge-in) 21
3.10 Signal malicious calls 21
4.1 Initiate a 'Meet me' conference 22
4.2 Join a 'Meet me' conference 22

8008 DeskPhone
8AL90349ENAAed01
4 /50
5.1 Answering the general bell 23
5.2 Manager/Assistant filtering 23
5.3 Call pick-up 23
5.4 Hunting groups 24
5.5 Calling an internal contact on his/her pager 24
5.6 Answering a call on your pager 24
5.7 Calling a contact on his/her loudspeaker 24
5.8 Sending a written message to an internal contact 25
5.9 Consulting written messages 25
5.10 Send a voice message copy 26
5.11 Sending a recorded message to a number or a distribution list 26
5.12 Broadcasting a message on the loudspeakers of a station group 26
6.1 Forwarding calls to another number (immediate forward) 27
6.2 Forwarding calls to your voice message service 27
6.3 When you return, consult recorded messages 27
6.4 Forwarding calls 28
6.5 Do not disturb 28
6.6 Forwarding calls to your pager 28
6.7 Forwarding your calls from the receiving terminal ('Follow me') 29
6.8 Applying a selective forward 29
6.9 Cancelling all forwards 29
6.10 Cancelling a specific forward 29
6.11 Leaving a recorded message for internal callers 30
7.1 Charging your calls directly to business accounts 31
7.2 Finding out the cost of an outside call made for an internal user from your terminal 31
8.1 Initializing your voice mailbox 32
8.2 Customizing your voice greeting 32
8.3 Modify the password for your phone set 32
8.4 Modify the password for your voice mailbox 33
8.5 Adjusting the audio functions 33
8.6 Adjusting the contrast of the display 34
8.7 Selecting the welcome page 34
8.8 Selecting language 34
8.9 Program the keys for the Perso page 35
8.10 Programming direct call keys (F1 and F2 keys) 35
8.11 Modify the programmed key 35
8.12 Delete a programmed key 36
8.13 Programming an appointment reminder 36
8.14 Identify the terminal you are on 36
8.15 Lock / unlock your telephone 37
8.16 Connect a headset 37
8.17 Call the associated set 37
8.18 Forward your calls to the associated number 37

8008 DeskPhone
8AL90349ENAAed01
5 /50
8.19 Modify the associated number 37
8.20 The Tandem configuration 38
8.21 Create, modify or consult your interphony list (max. 10 numbers) 38
8.22 Configure your phone for teleworking 38
8.23 Contacting your administrator (Technical support) 42
8.24 Phone auto test 42
9.1 Making a call 43
9.2 Make a call using the personal phone book 43
9.3 Redialing the last number dialed 44
9.4 Receiving a call 44
9.5 Making a second call during a conversation 44
9.6 Answering a second call during a conversation 45
9.7 Placing a call on hold (hold) 45
9.8 Switching between calls (Broker call) 46
9.9 Transferring a call 46
9.10 Three-way conference with internal and/or external contacts (conference) 46
9.11 Mute, so that your contact cannot hear you 46
9.12 Adjust audio volume 47
9.13 Forwarding calls to another number (immediate forward) 47
9.14 Adjusting the audio functions 47
9.15 Selecting language 48
9.16 Sending DTMF signals 48
10.1 Safety Instructions 49
10.2 Regulatory Statements 50
The information presented is subject to change without notice. ALE International assumes no responsibility
for inaccuracies contained herein. Copyright© ALE International 2017.

8008 DeskPhone
8AL90349ENAAed01
6 /50
Getting to know your telephone
1.1 8008 DeskPhone
This phone is part of the IP phone range. In addition to a clear monochrome display with six dedicated
function keys and an intuitive navigation key, the 8008 DeskPhone provides high audio fidelity for
telephone calls either in hands-free mode or using the comfortable handset. It is compatible with
teleworking. Consequently, it is perfect for use at your office in your enterprise or at home (teleworking).
1.2 Phone description
1
Monochrome screen.
2
LED
Flashing blue: incoming call / Appointment alarm.
3
6 dedicated functions keys.
4
Navigation, ok and cancel keys.
5
3 preprogrammed keys with LEDs: Alpha-numeric key,
F1, F2.
6
Messaging key to access various mail services.
7
Mute and interphony key.
8
Audio feature keys.
9
Redial key.
10
Loudspeaker.
11
Wired handset.
12
Stable foot.
1.3 Navigation
OK key:
•Use this key to validate your choices and options while
programming or configuring.
•Use this key to validate edited text.
Left-right navigator:
•In idle state, use this key to move from one page to another.
•In conversation, use this key to move between tabs of current
calls (call in progress, calls on hold, incoming call).
•In the text edition, use this key to navigate into the text box.
Up-down navigator:
Used to scroll through the content of a page.
Back/Exit/Backspace key:
•Use this key to go back to the previous step.
•Use this key to go back to the homepage (long press).
•Use this key to delete one number or character at a time.

8008 DeskPhone
8AL90349ENAAed01
7 /50
1.4 Function keys and programmable keys
In the document, the associated key is symbolized by its icon. To select the feature, press the feature
key associated with the icon.
123<>abc
•Alpha-numerical keypad (short press)
Use this key to switch between alphabetic keyboard and numeric keyboard.
When activated, the LED corresponding to the key remains lit up. Press the
corresponding key to deactivate it.
•Guide key (long press)
Use to obtain information on the pre-programmed keys or to access the set
programming or configuration.
•Programmable keys (F1 and F2 keys).
A service or a direct call can be associated to these keys. When activated, the
LED corresponding to the key remains lit up. Press the corresponding key to
deactivate it.
•Turn up the volume (ringing or call state).
•Increase the contrast (idle state).
•Pressing this key answers an incoming call in hands-free mode (when activated,
the key is lit blue). When a call is in progress, pressing this key switches from
hands-free mode to headset or handset mode.
•Turn down the volume (ringing or call state).
•Decrease the contrast (idle state).
•Messaging key to access various mail services.
This key flashes when you have a new event (voicemail, text message or
callback request) and stays lit until all events have been acknowledged or
deleted.
•Access the call log.
•Mute and interphony key.
During a call, press this key to stop your contact from hearing you. When idle,
press this key to switch the phone to interphony mode. When you receive a call,
the phone hooks off automatically and you go straight into hands-free mode. This
key lights up blue when activated.
•The redial key is associated with the off hook key when the phone is in idle state.
oLast number redial (short press).
oCall back one of the last 8 numbers dialed (long press).
The hands-free mode can be deactivated by the administrator.

8008 DeskPhone
8AL90349ENAAed01
8 /50
1.5 Alphabetic keypad

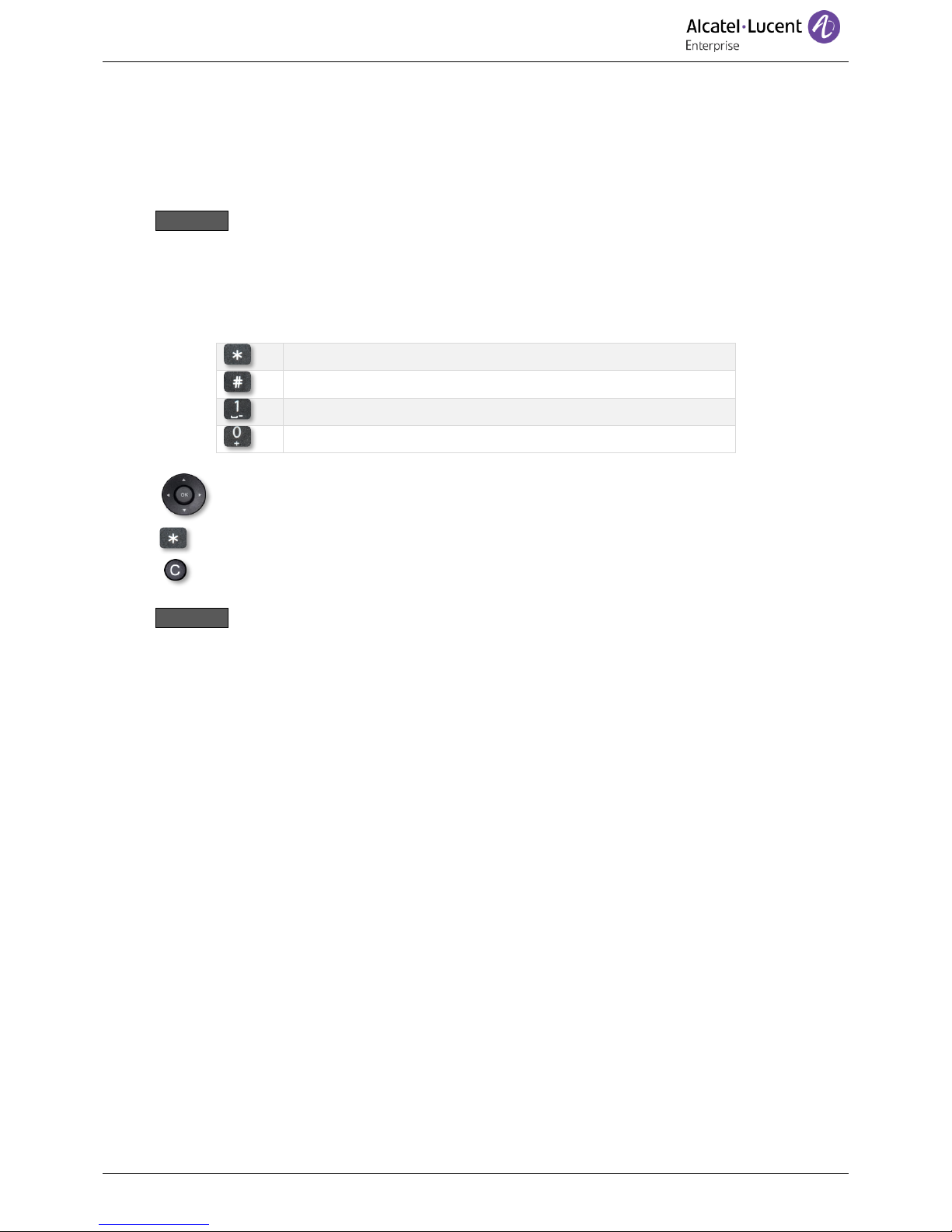

Your phone is equipped with alphanumeric keyboard. You can switch between numeric keyboard to dial
number, and alphabetic keyboard to enter text by pressing the corresponding preprogrammed key
(usually the first preprogrammed key).
•123<>abc Switch the keyboard to the alphabetic mode by selecting the associated
preprogrammed key. When activated, the LED corresponding to the key remains lit up.
•Enter alphabetic characters.
The number pad keys have letters that you can display by successive presses. The number is
the last character in the series. Some special characters can be displayed by successively
pressing the key:
%
$
/
~
&
(
)
[
]
=
*
@
#
space
-
_
1
+
.
,
;
:
/
\
?
!
0
•Use navigation keys to move the cursor into the text.
•Press and hold the '*' key to switch from lowercase to uppercase mode, and vice versa.
•use this key to delete the last entered character. The alphabetic mode remains
activated.
•123<>abc Select the lit preprogrammed key to return to the numeric mode.

8008 DeskPhone
8AL90349ENAAed01
9 /50
1.6 Welcome screens
Date and time
Display the page by selecting
the corresponding tab.
Forward icon.
Softkeys: menus,
programmable softkeys and
actions available depending
on the selected page.
You can access all of your phone's features from these screens. The default display has three pages
that you can access by selecting the corresponding tab at the top of the screen with the navigation keys.
The selected page is highlighted.
•Menu page
Contains all features and applications, which are accessed by pressing the key corresponding to
the desired feature or application. From this page it is possible to adjust the ringer volume,
program the time of an appointment, lock the terminal, define the default page displayed and
access telephone functions such as calling back one of the last numbers or intercepting calls.
•Perso page
Contains call line keys (allowing supervision of calls) and programmable call keys.
•Info page
Contains information on the telephone and the status of its functions: name, telephone number,
number of messages, activation of transfer function, appointment reminder, etc.
•Forward icon
Press the key next to this icon allows you to program or change the transfer function.
1. Stationary white icon: No forwarding activated.
2. Rotating black icon: Forwarding activated.
•Press the key in front of the label to select the corresponding feature.

8008 DeskPhone
8AL90349ENAAed01
10 /50
1.7 Call management screen

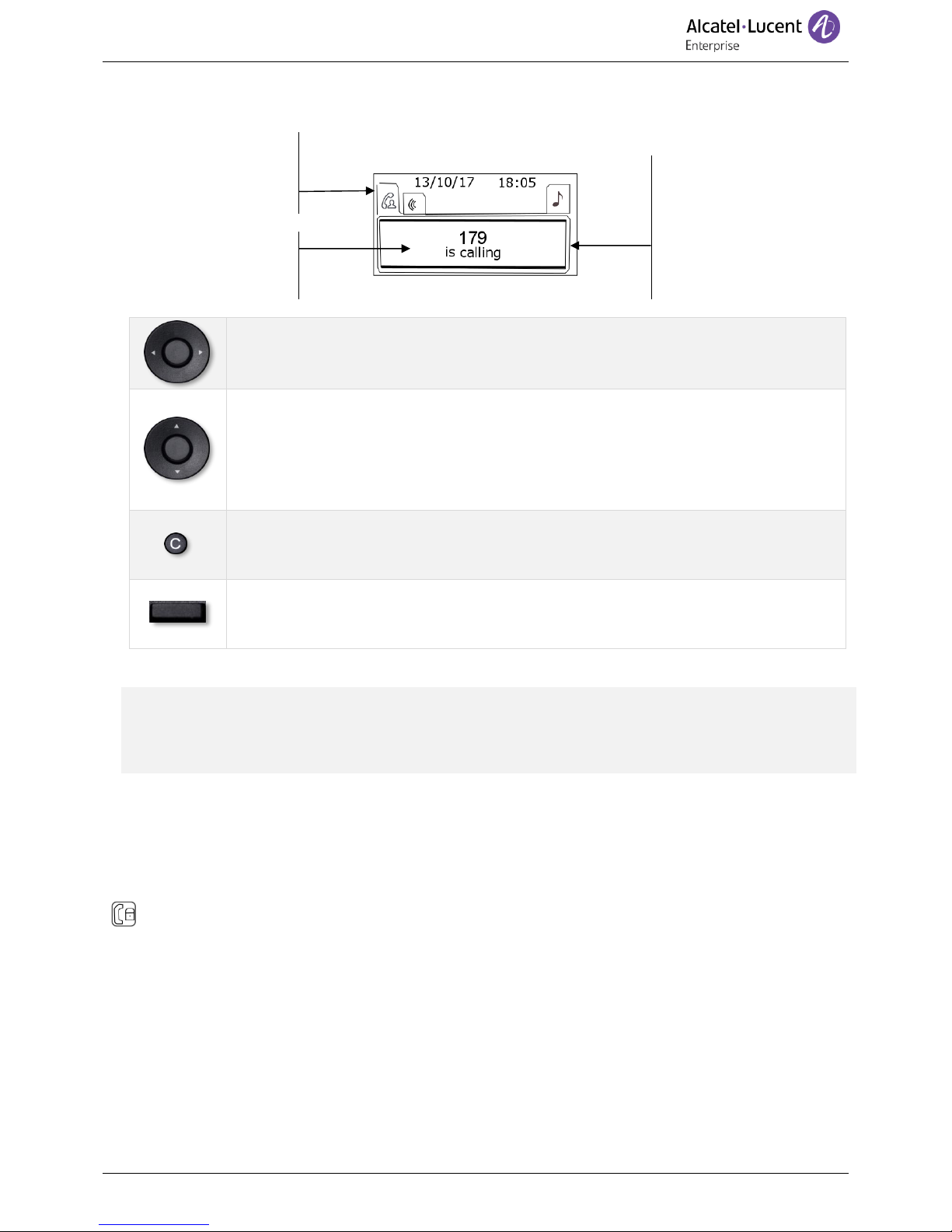

Tabs: Incoming call, Call in
progress, Call on hold, …
Soft keys: actions available
depending on the call status
(when presentation screen is
not displayed)
Notification (popup) of
incoming call
Each tab corresponds to a call, the status of which is symbolized by its icon (in
progress, call on hold, arrival of new call). When a call is in progress, use the left-
right navigator to look at calls on hold or incoming calls.
All features are accessible while the call is displayed on the screen. Use the Up
and Down arrows to move up or down a page. These functions (transfer,
conference, etc.) are directly related to the status of the call consulted. For
example, the transfer function will not be available between a call in progress or on
hold and an incoming call.
Used to switch from the conversation screen to the welcome screen.
Press the key in front of the label to select the corresponding feature.
Calls can also be managed from the Perso page.
While the call is in progress, press the Back/Exit key and display the Perso page. Calls in progress or
waiting calls are displayed on the different line keys. It is then possible to converse with the contact
of your choice by pressing the key associated to the contact.
1.8 Audio encryption
Your deskphone supports telephony encryption. On a secured telephone network (IPTouch Security,
SSM box), voice and signaling are encrypted.
If the communication is encrypted, the following icon is displayed in the communication
screen. The call in progress icon is replaced by this icon.
For more information, contact your installer or administrator.

8008 DeskPhone
8AL90349ENAAed01
11 /50
1.9 Status icons
Icons giving information about some specific configurations of the phone are displayed in the top bar of
the screen. Only two status icons can be displayed simultaneously. Which icons are displayed depends
on their priority. The following icons are listed according to their priority, from the highest to the lowest.
Silent mode.
Telephone locked.
Headset connected.
Appointment programmed.
1.10Call icons
Icons giving information about call status are displayed in the tabs of the communication window.
Incoming call icon.
Call in progress icon.
Call in progress icon with encrypted audio.
Call holding icon.
Your contact ended the conversation.
1.11Description of the connectors
10/100 Fast Ethernet connector (LAN).
10/100 Fast Ethernet connector (PC).
DC power jack for an external power adaptor.
RJ9 connector for the corded handset provided.
RJ9 connector for a corded headset.

8008 DeskPhone
8AL90349ENAAed01
12 /50
Using your telephone
2.1 Consulting the call log
At any time, you can consult all answered and unanswered incoming and outgoing calls.
•
•Press the softkey associated with the call log feature: Call Log.
2.1.1 Consulting all calls
All calls are displayed with an icon giving information on the type of call.
Answered outgoing calls.
Unanswered outgoing calls.
Answered incoming calls.
Unanswered incoming calls.
•Using the up and down navigation key to scroll through the log.
•Display the contact information by pressing the key in front of the name.
Information such as the name, phone number, date and time are displayed on the screen.
You can choose to call the contact or clear the log.
oRecall: Call back the contact.
oDelete: Delete the entry.
oDelete all: Delete the entire log
2.1.2 Delete all call logs
•Use one of the following:
oPress the key associated with the icon: .
oDisplay the contact information by pressing the key in front of the name.
Delete all
•or Yes: Press to confirm (No: to cancel)
All call logs are deleted.

8008 DeskPhone
8AL90349ENAAed01
13 /50
2.2 Making a call
Use one of the following:
•Dial directly the number for your call.
•Unhook the handset Dial the destination number.
•Press the Off-hook key of the headset Dial the destination number. If your headset has no Off-
hook/On-hook key, use the phone keys and switch on the audio on the headset ( ).
•Hands-free Dial the destination number.
•Programmed line key.
•123<>abc Search by name (access the search by name feature by selecting the alphabetic
mode).
•Redialing from the call log.
•Redial last number.
To make an external call, dial the outside line access code before dialing your contact number.
If the internal or outside number does not reply:
•Announce Broadcast a message on the loudspeaker of the free terminal.
•Call back Request callback to a busy terminal.
•Text mail Send a written message.
•Voice mail Leave a voice message.
The hands-free mode can be deactivated by the administrator.
2.3 Receiving a call
Use one of the following:
•Lift the handset to take the call.
•Use the headset to take the call. If your headset has no Off-hook/On-hook key, use the phone
keys and switch on the audio on the headset ( ).
•or or Press the 'take the call', 'loudspeaker' or 'line key' key to take the call in
hands-free mode.
•Take call or Take the call with the headset if connected, or in hands-free mode.
•Press the key associated with the incoming call icon: .
The hands-free mode can be deactivated by the administrator.

8008 DeskPhone
8AL90349ENAAed01
14 /50
2.4 Switching between audio modes
During the conversation, you can switch between different audio modes (handset, loudspeaker, hands-
free or headset, if connected) by pressing the loudspeaker/hands-free key until the desired audio mode
is displayed: . If you are in conversation using the handset, you can take the current call in hands-
free mode or with the headset, and vice versa. The key is lit when the loudspeaker or hands-free mode
is selected.
•Switching to the handset (short press): .
•Switching to the loudspeaker (long press): (The key is lit).
•Switching to the hands-free (short press): (The key is lit).
•Switching to the headset (short press): .
For each audio mode, during the conversation, you can adjust the volume by pressing the volume keys.
The number of levels depends on the audio mode (8 for handset, hands-free, headset; 10 for
loudspeaker). The selected volume, for each audio mode, will be saved for future conversations.
•During a conversation.
•Adjust volume by pressing the volume keys.
The hands-free mode can be deactivated by the administrator.
2.5 Activating the loudspeaker during a conversation (handset lifted) -
Loudspeaker.
Activate or deactivate the loudspeaker when you are in conversation using the handset or the
headset.
•Activate loudspeaker (long press) The key lights up ( ).
•Adjust volume (10 levels).
•Deactivate loudspeaker (long press) The key is no longer lit ( ).
Press and release the loudspeaker key to switch to hands-free mode (light steady).

8008 DeskPhone
8AL90349ENAAed01
15 /50
2.6 Make calls by name (company directory)
•123<>abc Switch the keyboard to the alphabetic mode by selecting the associated
preprogrammed key. When activated, the LED corresponding to the key remains lit up.
•Enter the lastname or initials or the lastname and first name of your contact.
•Select the type of search you want (last name, last name and first name or initials) Display of
all the contacts matching the search criteria.
•Use one of the following:
oDisplay the previous and next names.
oSelect the name of the person you wish to call.
oModify the search.
*Name must be entered in format name / space / first name.
2.7 Make calls via your programmed call keys
•Access the 'Perso' page.
•Find the contact you want to call from the programmed call keys.
•Select the contact.
2.8 Redialing
2.8.1 Redialing the last number dialed (redial)
•(short press) Last number redial.
2.8.2 Call back one of the last 8 numbers dialed
•(long press).
•Select the number to redial from the last 8 dialed number.
: Press the key associated with the trash icon to delete the list of last dialed numbers.
Other method
•Reach the 'Menu' page.
•Redial list
•Select the number to redial from the last 8 dialed number.
2.9 Callback requests
The messaging key flashes when you have a callback request.
•
•Callback / xx Callbacks
•Select a callback request in the list if there is more than one. If there is only one
callback request, it is displayed directly.
•Recall
: Press the key associated with the trash icon to delete the list of callback requests.

8008 DeskPhone
8AL90349ENAAed01
16 /50
2.10Call back an unanswered call
2.10.1 Call back the last caller
•Reach the 'Menu' page.
•Events
•Last caller Call back the last caller.
2.10.2 List of unanswered calls
•Use one of the following:
o
Non replied call / xx Non replied calls
oReach the 'Menu' page.
Events
•Select the type of call:
oNo non replied internal call / xx Non replied internal calls
oNo non replied external call / xx Non replied external calls
•Select a name or a number in the list if there are more than one. If there is only one
name or number, it is displayed directly.
•Recall
•To delete the selected item: Delete
2.10.3 Delete the list of unanswered calls
•Use one of the following:
o
Non replied call / xx Non replied calls
oReach the 'Menu' page.
Events
•Select the type of call:
oNo non replied internal call / xx Non replied internal calls
oNo non replied external call / xx Non replied external calls
•Use one of the following:
oSelect an entry
Delete all
oPress the key associated with the trash icon.
2.11Requesting automatic callback if internal number is busy
•Internal number busy.
•Call back Callback request acknowledged.
•

8008 DeskPhone
8AL90349ENAAed01
17 /50
2.12Receiving interphony calls
You can answer a call without lifting the handset. When you receive a call, you are automatically
connected in hands-free mode. The identity of the caller is displayed on the screen. You are alerted by a
special tone.
To activate - Terminal idle:
•Corresponding LED lights up.
When your caller hangs up, interphony mode remains active.
To deactivate - Terminal idle:
•The corresponding LED goes out.
2.13Sending DTMF signals
During a conversation you sometimes have to send DTMF signals, such as with a voice server, an
automated attendant or a remotely consulted answering machine.
Depending on the system configuration, the DTMF can be activated by default.
If DTMF is not activated by default on your system:
•During a conversation.
•Use one of the following:
oSend DTMF
oPress the star key.
•Enter DTMF code.
The function is automatically cancelled when you hang up.
If DTMF is activated by default on your system:
•During a conversation.
•Enter DTMF code.
If DTMF is activated by default on your system, you have to deactivate DTMF before entering the code
of a feature: Deact DTMF.
2.14Mute, so that your contact cannot hear you
You can hear your contact but he/she cannot hear you:
•During a conversation.
•Disable microphone The key lights up .
•Resume the conversation The key is no longer lit .

8008 DeskPhone
8AL90349ENAAed01
18 /50
During a conversation
3.1 Making a second call during a conversation
•During a conversation.
•New call The first call is on hold.
•Number of second contact.
3.1.1 Other methods for calling a second contact
•Dial directly the number for your call.
•123<>abc Name of second contact.
•Select the 'Redial' function.
•Programmed line key.
3.1.2 To cancel your second call and recover the first
•You are in conversation with the second contact and the first one is on hold.
•Use one of the following:
oEnquiry off
oHang up, your phone is ringing, then answer the call.
•You are on the line with your first contact.
If you make an error, hang up: your telephone will ring and you will recover your first call.
3.2 Answering a second call during a conversation
This feature depends on your system.
•During a conversation, another person is trying to call you Name or no. of the caller displayed
for 3 seconds.
•Use one of the following methods to answer the displayed call (Multiline set).
oPress the key associated with the incoming call icon.
oTake call
•The first call is on hold.
To return to your first contact and end the conversation in progress.
•The second call is ended.
•To return to the first contact, use one of the following
oPress the key associated with the incoming call icon.
o
oUnhook the handset.

8008 DeskPhone
8AL90349ENAAed01
19 /50
3.3 Switching between calls (Broker call)
During a conversation, a second call is on hold.
Use one of the following:
•Press the key associated with the call on hold.
•Select the tab which is displaying the call on hold Retrieve
•Press the Back/Exit key to display the Perso page Select the call on hold.
You are in conversation with the second contact and the first one is on hold.
3.4 Transferring a call
•Calling a second person during a conversation The first call is on hold.
•You can transfer the call immediately or wait for your contact to answer before transferring the
call: Transfer
Transfer between two outside calls is not generally possible (depends on country concerned and system
configuration).
3.5 Three-way conference with internal and/or external contacts (conference)
•During a conversation, a second call is on hold.
•Confer You are in conference mode.
3.5.1 Cancel conference and return to first contact (If conference is active)
•End conf
3.5.2 Hang up on all participants (If conference is active)
•Hang up.
•You exit the conference.
3.5.3 After the conference, to leave your two contacts talking together:
•Transfer
•Hang up.
3.5.4 View information about the other people in the conference
•Navigate between both call in progress tabs involved in the conference.
3.6 Talk simultaneously to more than 2 contacts
This feature depends on the system configuration. If necessary, contact your administrator.
You are in a conference call with 2 contacts. To add another participant to the conference:
•Add
•Dial the number of your contact (dial, directories, last numbers dialed...).
•Your contact answers.
•Insert You are on the line with the additional contact.
During a 3-way conference, you can add up to three additional participants.

8008 DeskPhone
8AL90349ENAAed01
20 /50
3.7 Placing a call on hold (hold)
3.7.1 Exclusive hold
During a conversation, you wish to place the call on hold and recover it later, on the same telephone.
•During a conversation.
•Use one of the following:
oPress the key associated with the call in progress icon.
oPut on hold Your call is placed on hold .
Recover the call on hold:
Use one of the following:
•Hang up, your phone is ringing, then answer the call.
•Press the key associated with the call on hold.
•Select the tab which is displaying the call on hold Retrieve
•Press the Back/Exit key to display the Perso page Select the call on hold.
3.7.2 Common hold
This feature depends on the system configuration. If necessary, contact your administrator.
Common hold allows to all sets in the same pick-up group to resume a call (internal or external) that has
been put on hold by one of the members of that group.
Putting on common hold:
•During a conversation.
•Press the Back/Exit key to display the Perso page.
•Press programmed key: Comm hold (by default).
Recover the call on hold from any sets defined in the same pick-up group (including your set):
•Open the perso page on the set you want to retrieve the call.
•Press programmed key: Comm hold (by default).
3.8 Placing an outside call on hold (parking)
You can place an outside call on hold and recover the call on another telephone:
•During a conversation.
•Park the call
•Enter the number of the parking destination phone.
Retrieve the call from the parking destination phone:
•Reach the 'Menu' page.
•Settings My services Consult Call pick up services Park/retrieve call
Retrieve the call from another phone:
•Reach the 'Menu' page.
•Settings My services Consult Call pick up services Park/retrieve call
•Enter the number of the parking destination phone.
