Profile
PoE Exit Device
Installation Instructions
v.S1

1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/29/11
Warning SARGENT Mfg. Co. v.S Series locksets utilizing a door position switch (DPS) are
not rated for, nor intended for use in life safety applications.
!
1
2
3
4
5
6
7
Table of Contents
Warning ...................................................................................2
General Description.................................................................3
Hardware Specifications .........................................................3
Electronic Specifications.........................................................3
Installation Wiring Overview...................................................3
Installation Wiring ...................................................................4
Parts Breakdown Rim 8877/8878 ...........................................9
Parts Breakdown Mortise 8977/8978 ...................................11
Installation Instructions for Rim 8877/8878.........................13
Installation Instructions for Mortise 8977/8978...................10
Operational Check .................................................................28
8
9
Changes or modifications to this unit not expressly approved by ASSA ABLOY Inc.
could void the user’s authority to operate the equipment.
1Warning
10
FCC:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Industry Canada:
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe A répond à toutes les exigences de l’interférence canadienne causant des
règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer
l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut
causer l’opération peu désirée.

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 3
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Hardware Specifications
General Description
3
2
Profile Series Rim Exit Device
• Latch – 3/4" throw, stainless steel
• Accepts all SARGENT rim cylinders (8877 only)
• Key retracts latch (8877 only)
Profile Series Mortise Exit Device
• Latch – 3/4" throw, anti-friction, brass
• Accepts all SARGENT mortise cylinders
(8977 only)
• Key retracts latch (8977 only)
Installation
Wiring Overview
5
Electronic Specifications
4
• 2400 users per lock; 10,000 event audit trail
• Multiple time zone and holiday
access scheduling
• Centralized lock management
• Real time door status monitoring
• Supports HID®125 kHz prox or 13.56 MHz
iCLASS®credentials (26 - 39 bit); supports CSN
reads for other common 13.56 MHz cards, in-
cluding MiFare, DesFire, and Felica
• First-In unlock configuration, either by time
or by user (selectable)
• Lock down capable
• Input Power: PoE Class 2 Device, as defined
by IEEE 802.3af
The SARGENT Profile Series v.S1 exit device is available with either an HID®125 kHz prox or 13.56 MHz
iCLASS®technology reader. It utilizes existing infrastructure and IEEE 802.3af PoE (Power over Ethernet)
technology as a proven alternative to traditional access control installations. The v.S1 is a self-contained mi-
croprocessor-controlled access control product with non-volatile memory. It uses the existing network cable
to communicate with access control systems. The v.S1 lock holds a total of 2400 unique users per lock.
Using PoE technology coupled with third party software, this v.S1 online exit device offers a complete, inte-
grated access control system.
The Profile Series v.S1 Exit Device may be used for both indoor and exterior applications. A weather-
protective gasket is recommended for exterior applications.
HID and iCLASS are registered trademarks of HID Global Corporation
A. PoE frame harness assembly
B. PoE data hinge from McKinney
(patent pending)
C. PoE door harness* from McKinney
D. DPS: Door Position Switch
(Cylindrical and Exits only)
E. Profile Series v.S1 PoE Lock
* Door width determines length
Network Cable
Network Switch (802.3af)
Surface Mount RJ45
A
B
C
D
E
Supplied by Others
Profile Series Rim and Mortise Exit Devices
• Push bar retracts latch from inside
• Fire stop provided on all lever handle designs
• Profile Series exit devices furnished for
1-3/4” and 1-3/8” doors
• UL Listed
• Available in ET lever handle designs only

4 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
PoE frame harness assembly (From McKinney)
PoE data hinge (Patent Pending) (From McKinney)
PoE door harness* (From McKinney)
Installation Wiring
Cable: CAT 5e or higher
24 AWG shielded with drain wire
4-Pin
Molex-F Molex-F Molex-M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
Wiring to TIA-568-B Standard
RJ45-M
Molex-M
RJ45-F Jack
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
Approved Software
B-Splice
Crimp Connector
Certified Integrator (CI) supplies and terminates
the B-Splice connector and the
Male RJ45 connector from harness to
end user provided facility cable
Supplied by End User
PoE Switch
PoE
Lock
Ceiling
Supplied by CI
Patch Panel
Drain Wire Terminated on Rack
Ground
Ring Terminal
Secured to Lock
Mounting Plate
Drain Wire PoE Switch
Terminated to
Earth Ground
Patch Cable:
Patch Panel to
PoE Switch
4-Pin
DPS: Door Position Switch (cylindrical and exits only)
Profile Series v.S1 Online P1 PoE lock
* Order of installation may vary.
Refer to appropriate sections for instructions.
Frame-
Side
Harness
Assembly
(15' length)
24AWG
Stranded
Wire for
Earth
Ground
inside
15' Frame
Harness
Cable
drain wire
concealed
in shrink
tubing
A
E
D
C
A B
E
D
C
Notes:
• Connectors go on
only one way. They
cannot placed in an
incorrect position.
• Do not force and do
not offset connectors.
• Be sure they are com-
pletely seated (flush).
B
6

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 5
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Frame Harness Installation
Components and wire harness supplied by McKinney: Suggested installation.
RJ45-M
Molex-M
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
B-Splice
Crimp Connector
Ceiling
Supplied by CI
Cut end / ceiling-side PoE harness:
TIA-568-B Standard Wiring
1
2
3
4
5
6
7
8
Pair Number Wire PIN
1 White/Blue White/Blue 5
Blue 4
2 White/Orange White/Orange 1
Orange 2
3 White/Green White/Green 3
Green 6
4 White/Brown White/Brown 7
Brown 8
Do not confuse pair numbers with pin numbers. A pair number is used for refer-
ence only (eg: 10Base-T Ethernet uses pairs 2 & 3). The pin numbers indicate
actual physical locations on the plug and jack.
1. Feed cut end of harness into hole on hinge-side through single access hole.
2. Push one connector back through the hole and feed into the other access hole.
Each of the hinge-side harness connectors should end up threaded through
a different access hole and matched to the same size pin connector from
the door harness:
• 4-pin male molex connector.
• 6-pin male molex connector with ground wire.
Hinge side of PoE harness:
6-pin F
4-pin M
6-pin M
4-pin F
Drain Wire
Frame PoE Hinge (Patent Pending)
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Wire for
Earth
Ground
inside
15' Frame
Harness
Cable
drain wire
concealed
in shrink
tubing
A
PoE Data Hinge
B
Hinge-side harness connectors:
• 4-pin male molex connector
• 6-pin male molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors
Installation Wiring (Continued)

6 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
PoE Door Harness
Order of installation may vary.
Refer to appropriate sections for instructions.
1. Prop door open.
2. Tape the two lock-side 4-pin connectors to the ring terminal.
3. Using the ring terminal, carefully fish the assembly through the door channel to the lock.
4. Remove tape from ring terminal and door harness connectors.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors
C
Installation Wiring (Continued)
Ground
4-Pin
4-Pin
6-pin M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
Ring Terminal Secured
to Lock Mounting Plate
4-pin F
Drain Wire
PoE Lock

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 7
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
1. Prep door according to proper template (Fig. D1).
2. Insert connector end of DPS through the raceway on the latch edge of the door (Fig. D2).
3. Note: Only use collar when installing in a metal door.
4. To insert DPS, push wires through raceway toward lock prep.
5. Push DPS firmly into place by hand.
IMPORTANT: DO NOT TAP SWITCH WITH ANY TOOL.
6. To connect DPS to lock controller per diagram, refer to the wiring instruction sections in the
Installation Instructions section.
Wood Frame Metal Frame
Dim 1 3/8” 3/4”
Horizontal
of Strike
Door Position
Switch Hole
Vertical
of Strike
Dim 2
(See template)
Dim 1
Fig. D1
Strike for Cylindrical Lock
Frame
Fig. D2
Collar is used only
with metal doors.
Door Position
Switch (DPS)
Inside of Door
4-Pin
From Hinge
Ground
Ring Terminal
Inside of Door
Door Position Switch
D
Installation Wiring (Continued)

8 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
PoE Lock Wiring (v.S1)
4-Pin
From Hinge
Ground
Ring Terminal
Inside of Door
E
Controller Board Connectors
(Inside Escutcheon)
Unused
RX COM (WHITE)
Unused Unused
RX NC (GREEN)
Unused
Motor B (BLACK)
Motor A (RED)
TB2
E1 TB1
8 7 6 5 4 3 2 1
Ground Screw to Connector to E1
From
Lock
(+) 9VDC (RED)
(-) (BLACK)
AX/DPS NC (PINK)
AX/DPS COM (VIOLET)
Unused Unused Unused
EGND (GREEN)
DPS
COM (VIOLET)
NC (PINK)
Power
From
Outside
Escutcheon
Controller Board Connectors
(Inside Escutcheon)
J7, J4
4-pin
Connectors
(From Hinge)
Ground Ring Terminal
(From Hinge to Top Left Escutcheon Screw)
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
TB2 E1 TB1
Installation Wiring (Continued)
8 7 6 5 4 3 2 1

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 9
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Profile Series 125 kHz Prox or 13.56 MHz iCLASS® Rim Exit Device
(8877/8878 x ET x Lever Design)

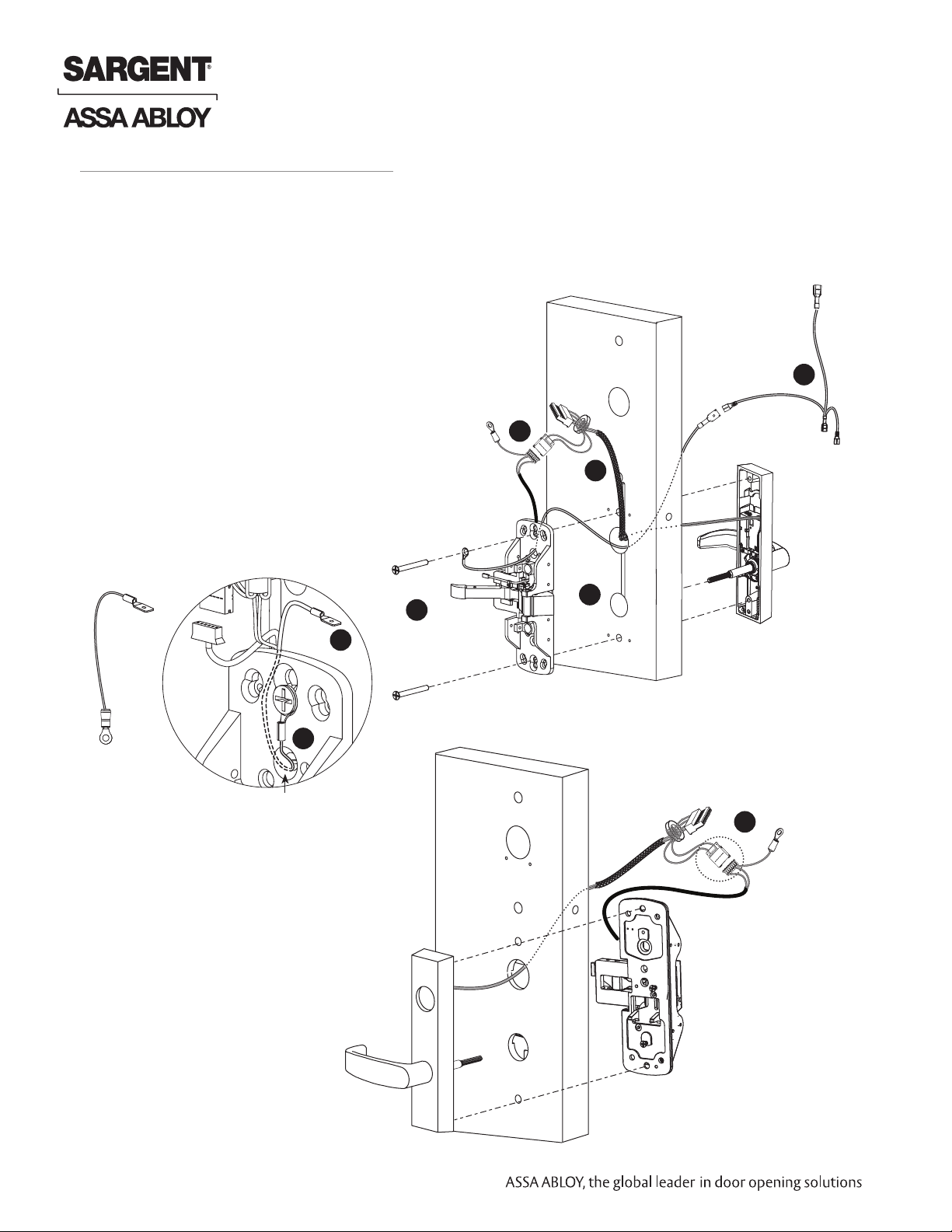

Parts Breakdown
7
5
4
8
8
6
9
3
7
11
1
12
10
13
14
15
2
8
12
14
1a
16

10 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
ITEM PART NO. DESCRIPTION REQ’D
Profile Series 125 kHz Prox or 13.56 MHz iCLASS®Rim Exit Device, Continued
(8877/8878 x ET x Lever Design)
1 S1-777-8-HAND-FINISH ’S’ Series ET Trim - With Cylinder 1
S1-778-8-HAND-FINISH ’S’ Series ET Trim - Without cylinder
1a ET Lever Reference 8800 Series Catalog for Available Levers 1
2 68-1397 Outside Escutcheon 1
3 68-1396 Inside Escutcheon 1
4 52-4494 125 kHz Prox Only Bezel Assembly (S1-PA) 1
52-4495 Keypad & 125 kHz Prox Bezel Assembly (S1-PK)
OR
52-4420 13.56 MHz Prox Only Bezel Assembly (S1-IA)
13.56 mHz reader assembly ships configured for PoE/Hardpower
use.
52-4421 Keypad & 13.56 MHz Prox Bezel Assembly (S1-IK)
13.56 mHz reader assembly ships configured for PoE/Hardpower
use.
5 52-4424 S1 Controller Assembly (Double Pulse) 1
6 52-3855 Battery Cover Assembly 1
7 01-1212 Security Screw 1
8 52-2525 Profile Screw Pack - Specify Finish (Includes: Fire Stop Plate, Trim
Mounting Screws and Security Allen Wrench)
1
9 52-3968 Chassis Grounding Harness 1
10 52-3893 Door Position Switch 1
11 68-0406 Chassis Cover (Standard) 1
68-1014 Chassis Cover (GL)
12 68-3905 Chassis Cover Screw Pack - Specify Finish (Includes: Chassis
Cover Screws)
1
13 68-7255 8800 Chassis Assembly (Standard) 1
68-7256 8800 Chassis Assembly (12-)
68-5836 8800 Chassis Assembly (GL)
68-5837 8800 Chassis Assembly (12-GL)
14 68-3922 Chassis Screw Pack (Includes: Wood and Metal Chassis
Mounting Screws, and Bar Locking Key)
1
15 68-4387 ET Screw pack w/o Cylinder (Includes: ET Mounting Screws) 1
68-4388 ET Screw pack w/ Cylinder (Includes: ET Mounting Screws and
Cylinder Mounting Screws)
1
16 Consult Factory Rim Cylinder 1

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 11
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Profile Series 125 kHz Prox or 13.56 MHz iCLASS®Mortise Exit Device
(8977/8978 x ET x Lever Design)
5
4
8
9
16
3
7
2
10
9
1
12
11
13
18
14
15
8
8
6
1a
17
12
12
11

12 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
Parts Breakdown for Profile Series 13.56 MHz iCLASS®Rim Exit Device (Continued)
(8977/8978 x ET x Lever Design)
ITEM PART NO. DESCRIPTION REQ’D
1 S1-777-HAND-FINISH ’S’ Series ET Trim - With Cylinder 1
S1-778-HAND-FINISH ’S’ Series ET Trim - Without cylinder
1a ET Lever Reference 8900 Series Catalog for Available Levers 1
2 68-1397 Outside Escutcheon 1
3 68-1396 Inside Escutcheon 1
4 52-2431 125 kHz Prox Only Bezel Assembly (PA) 1
52-2432 Keypad & 125 kHz Prox Bezel Assembly (PK)
OR
52-4420 13.56 MHz iCLASS Only Bezel Assembly (S1-IA)
13.56 MHz reader assembly ships configured for PoE/Hardpower
use.
52-4421 Keypad & 13.56 MHz iCLASS Bezel Assembly (S1-IK)
13.56 MHz reader assembly ships configured for PoE/Hardpower
use.
5 52-4424 S1 Controller Assembly (Double Pulse) 1
6 52-3855 Battery Cover Assembly 1
7 01-1212 Security Screw 1
8 52-2525 Profile Screw Pack - Specify Finish (Includes: Fire Stop Plate, Trim
Mounting Screws and Security Allen Wrench)
1
9 52-3968 Chassis Grounding Harness 1
10 52-3893 Door Position Switch 1
11 68-0407 Chassis Cover (Standard) 1
68-3905 Chassis Cover Screw Pack - Specify Finish (Includes: Chassis
Cover Screws)
13 68-7253 8900 Chassis Assembly LHRB 1
68-7254 8900 Chassis Assembly RHRB
14 68-2165 Chassis Screw Pack (Includes: Wood and Metal Chassis Mounting
Screws, and Bar Locking Key)
1
15 68-4387 ET Screw pack w/o Cylinder (Includes: ET Mounting Screws) 1
16 915-Hand-Finish 8900 Lock Body Assembly 1
17 99-2628 Lock body Screw Pack - Specify Finish (Includes: Wood and Metal
Lock body Screws)
1
18 Consult Factory #46 Mortise Cylinder 1

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 13
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Step #1 – Prepare Door
A. Verify Hand and Bevel of Door
• This device is non-handed.
• Door should be fitted and hung.
• Verify box label for size of exit device and function.
B. Door Preparation
If using a mullion, install prior to installing hardware.
Doors should be pre-prepped.
Prep door using the following (see website www.intelligentopenings.com):
• Exit installation instructions A6770
• Field Template A7992 (Wood)
• Door Manufacturer’s Template 4640 (Metal and Wood)
Note: Wood door has additional cutout if installation includes a cylinder.
Inside
Outside
Left Hand
Reverse Bevel
LHRB
Right Hand
Reverse Bevel
RHRB
Fig. 1A
Installation for Profie Series v.S1 With 8877/8878 Rim Exit Device
8
Step #2 - Position Exit Trim (ET)
For exterior applications, use ET gasket (52-0263) to seal
between ET escutcheon and outside door surface (Fig. 2A).
1A. For wood doors: Route ET wire harness through the
cylinder hole and out the other side (Fig. 2A).
1B. For metal doors: Route ET wire harness through the
cylinder hole and door.
2. Place ET trim on door.
3. Connector from ET harness connects
to connector from chassis (next step).
Fig. 2A
Showing Wood Door Template Without Cylinder Hole
ET gasket
(part number
52-0263)
Outside of Door
1
2
3

14 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
1. Route ET harness through wire run channel for wood doors (Fig. 3A)
and through access hole for metal doors (not shown).
Note: Make sure no wires are pinched.
2. Before securing chassis, connect ground wire harness:
a. Spade connector of ground ring terminal wire fits
through the hole (beneath the top screw) in the
chassis and connects to lug on ground
harness (Fig. 3B Detail).
b. Route the ground ring terminal and secure
through the top center hole with the top
1/4-20 x 2-3/8" flat head machine
screw (Fig. 3B Detail).
3. Engage ET spindle in the hub of exit
device chassis.
4. Secure chassis and ET with (2) 1/4-20 x
2-3/8" flat head machine screws.
5. Connect ET harness and connector
from chassis (Fig. 3C).
3 – Secure Inside Trim and Chassis
4
Inside of Door
Fig. 3A
Lug and Spade
Connector
1
3
Ground
Ring
Terminal
Unused
5
Route wires under exits
chassis, and out wire route slot
Fig. 3B Detail
2a
2b
Ground Harness
2
Outside of Door
4
Ground Ring
Terminal
(Unused)
Fig. 3C
Showing Wood Door Template
With Cylinder Hole

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 15
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Fig. 4A
Outside of Door
Fig. 5A
(4) #10 Wood or
#10-24 Machine
Screws
(2) #12-24 x 1-7/8”
Unused
Step #6 – Door Options
A. Fire Stop Plate (P/N 52-0033)
Fire-rated doors require a fire stop plate on
the outside of the door (Fig.6A).
1. If not present, drill (2) 1/8" x 1-1/4" deep
holes in the door.
Refer to template for fire-stop
prep locations.
2. Attach fire stop plate with flap up and out
using (2) #8 x 1/2" self-tapping screws
for wood and metal doors.
Fig. 6A
Correct Incorrect
Fig. 5B
Step #4 – Install Cylinder
For devices without cylinder, skip this step.
1. Insert cylinder into ET trim (Fig. 4A).
2. Mate cylinder tailpiece into hub of exit device chassis.
3. Make sure ET harness is clear of cylinder and cylinder tailpiece.
Step #5 – Secure Chassis
1. Secure cylinder, if used, to exit chassis using
(2) #12-24 x 1-7/8" connecting screws (Fig 4B).
2. Fasten exit chassis to door using:
• (4) #10 wood screws
for wood doors (or)
• (4) #10-24 machine screws
for metal doors.
3. Position cylinder, if used,
so that the SARGENT logo
is right-side up (Fig. 4C).
Inside of Door
Fig. 5A
Inside of Door
Outside of Door
B. Weather Conduit (52-2847)
Install weather conduit on NON FIRE-RATED
exterior doors only (Fig. 6B).
1. Carefully insert the weather conduit into the
ribbon cable hole on the inside of the door.
2. Place the O-ring around the weather conduit
on the outside and up against the door (Fig. 6C)
Outside of
Door
Fig.6B
Ribbon Cable Hole
Fig.6C
O-Ring

16 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
Step #7 – Install Door Position Switch (DPS)
If it is not installed, install the door position switch:
1. Prep door according to proper template (A7992).
2. Insert DPS into the raceway on the latch edge of the
door by pushing wires down raceway towards the lock.
Note: Use collar ONLY when installing in a METAL door.
3. Push DPS firmly in place by hand.
Note: DO NOT TAP SWITCH WITH ANY TOOL.
4. Connect DPS to adapter that plugs into TB2.
Refer to diagrams in the wiring steps, beginning with Step #9.
Fig. 7A
Step #8 – Attach Gasket and Install Outside Escutcheon
For exterior applications, use a gasket (part number 82-0500)
between escutcheon and outside door surface.
To apply weatherseal gasket:
1. Carefully remove the backing from the gasket (Fig. 8A).
2A. For 12- fire rated devices: Feed keypad ribbon cable/connector
from outside of door through gasket and fire stop plate.
2B. For non-12- exit devices: Feed keypad ribbon cable/connector
through the gasket and then through the conduit hole in door.
Note: Install ribbon cable with cable exiting down.
3. Apply gasket to escutcheon:
a. Starting in one place, press the adhesive side
of the gasket firmly against the escutcheon.
b. Work around the escutcheon,
pressing the sticky side of the
gasket firmly against the
escutcheon edge.
c. The gasket should be aligned so
that all edges of the escutcheon
are covered.
4. Place the outside escutcheon against,
while directing mounting posts
through the door.
Gasket 82-0500
Fig. 8A
Fire
Stop
Plate
Weatherseal
Gasket
Fig. 8B
Keypad
Ribbon
Ground
Harness
Antenna

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 17
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Step #9 – Connect and Position Outside Escutcheon Wires
Images shown represent installation without gasket. If gasket is necessary, refer to Step #8.
Before the controller is attached to the door:
1. Attach the outside escutcheon reader assembly ribbon cable to the inside face of the controller assembly
(side that faces towards the door when mounted (P1).
2. iCLASS only: Attach the antenna cable to the inside face of the controller assembly (P2).
3. Attach the ground harness to the bottom of the controller assembly (E1).
Outside Escutcheon
2
1Reader Cable
Ground Wire
Harness
1
Antenna
iCLASS
only)
3
2
Fig. 9A
Antenna
(iCLASS)
Ground
Wire
Harness
Reader Cable
P1
P2
1
2
3
E1
3
1
Fig. 10A
Ground Wire
Harness
Outside of Door Inside of Door
Fig. 5B
Reader Cable
Antenna
(iCLASS only)
2
3
Unused
Step #10 – Connect Ground Wire Harness
Attach the ground harness:
1. Attach one leg of the ground harness to
bottom left screw of the controller assembly.
2. Attach the other leg of the ground harness to
the spade connector that was routed through
the top hole in the chassis in Step 3, #2
(Fig. 3B Detail).
3. There is an unused ground terminal
attached to the harness from the chassis.

18 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
Step #11 – Additional Wiring Connections
Chassis, DPS and raceway wire connections:
1. Connect RX rail connector from ET
to chassis harness.
2. Attach connector from ET
to the controller assembly (TB1).
Tuck ferrite bead under circuit board.
3. Connect DPS from switch to
2-pin connector of the harness
connected to controller
assembly (TB2).
4. Route the two connectors
from the raceway over the
controller assembly, through the
gap between the plastic control-
ler assembly and
the escutcheon, to the front
of the circuit board.
Step #12 – Connect and Position Circuit Board Wires
Raceway cables and ground attach to front of circuit board.
Turn the escutcheon containing the controller assembly over:
1. Route the raceway connectors over the top of the controller assembly
and plug into the front of the circuit board (side that faces out when
mounted (J7, J4; Fig. 12A).
2. Route the 2 ground ring terminals, one from the lock and the other
from the hinge wiring, over the top of the controller assembly and con-
nect both to the top escutcheon screw.
Note: Connectors go on only one way.
Do not offset connectors and make sure they are completely seated.
Ground
Ring
Terminal
Fig. 12A
Front
1
2
Ground Ring Terminal
Inside of Door
Unused
DPS
3
32
1
4
(2) 4-Pin Connectors
From Hinge
2
Fig. 11A
P1
P2
Unused
TB1
Ferrite
Bead

01/31/18
1-800-810-WIRE • www.sargentlock.com • A7765C 19
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Exit Device
Step #13 – Install Inside Escutcheon
1. Insert #8-32 x 1-1/4” screws through
inside escutcheon and thread into
outside escutcheon.
Make sure the topf of the screw routes through
the ground ring terminal.
2. Tuck wires safely under space below
controller assembly.
3. Straighten escutcheons and tighten
securely (Fig. 13A).
Attach rail assembly according to Exit Installation Instructions A6770.
Step #15 – Install Rail Assembly
1. Attach cover to inside escutcheon, making sure to l
ine up tabs with retaining slots in cover. Secure with
the security screw and tool. (Fig. 14A and 14B).
2. Three-pin connector from chassis connects to rail.
Step #14 – Inside Escutcheon Cover
Tabs
Retaining slots
Fig. 14B
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
For the Operational Check, Refer to Section 9
Fig. 13A
Inside of Door
Battery
Cover
Security tool
01-0297 included
Security
screw
Fig. 14A
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
Inside of Door
2
2
1
1

20 1-800-810-WIRE • www.sargentlock.com • A7765C
Copyright © 2018, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/31/18
Profile Series v.S1 PoE Exit Device
Installation for Profie v.S1 With 8977/8978 Mortise Exit Device
9
B. Door Preparation
Prep door using the following (available at www.intelligentopenings.com):
• Exit installation instructions A6705
• Field Template A7790
• Door Manufacturer’s Template 4641 (Metal & Wood).
Note: Wood door has additional
cutout if installation includes a cylinder.
Step #1 - Prepare Door
A. Verify Hand and Bevel of Door
• Check handing of door - this device is not
reversible
• Door should be fitted and hung
• Verify box label for size of exit device, func-
tion and handing
Inside
Outside
Left Hand
Reverse Bevel
LHRB
Right Hand
Reverse Bevel
RHRB
Fig. 1A
Slide mortise lock into door and securely fasten with (2) flat head screws (Fig. 2A).
Step #2 - Install Mortise Lock
1. For exterior applications, use ET gasket (52-0263) to seal
between ET escutcheon and outside door surface (Fig. 3A).
2. Route ET harness through square wire cutout and out
other side of door.
3. Place ET control on door with spindle inserted
through mortise lock (Fig. 3A).
Step #3 - Position Exit Trim
Fig. 2A
Outside of Door
Fig. 3A
Wood Door Template
With Cylinder
Showing Wood Door Template
Without Cylinder
ET gasket
(part number
52-0263)
Outside of Door
1
2
3
