ELRO CZ60RIP11S User manual

CZ60RIP11S Manual Version: V2
CAMERA SECURITY SET
COLOR NIGHT VISION
Home is not a place, it’s a feeling
CZ60RIP11S

- 1 -
Contents
Introduction ....................................................................................................................................- 3 -
Package contents ............................................................................................................................- 3 -
Monitor & symbol overview ...........................................................................................................- 4 -
Overview camera............................................................................................................................- 6 -
Micro SD Card ............................................................................................................................- 6 -
Camera installation.........................................................................................................................- 7 -
Mounting the camera .....................................................................................................................- 7 -
Overview menu screens..................................................................................................................- 7 -
Navigation.......................................................................................................................................- 8 -
1. Lighting settings ..........................................................................................................................- 8 -
1.1 Duration ...............................................................................................................................- 8 -
1.2 Timer....................................................................................................................................- 8 -
1.3 Dimmer ................................................................................................................................- 8 -
2. Alarm volume..............................................................................................................................- 9 -
3. Brightness level...........................................................................................................................- 9 -
4. General settings ..........................................................................................................................- 9 -
4.1.1 Camera setup –Pairing .....................................................................................................- 9 -
4.1.2 Camera setup –on/off ....................................................................................................- 10 -
4.1.3 Camera setup –Resolution .............................................................................................- 10 -
4.2.1 Recording setup –Duration ............................................................................................- 10 -
4.2.2 Recording setup –Planned recordings............................................................................- 11 -
4.2.3 Recording setup –Overwriting a file...............................................................................- 11 -
4.2.4 Recording setup –Audio on/off ......................................................................................- 11 -
4.3.1 System Settings –Date & Time .......................................................................................- 11 -
4.3.2 System Settings –Time zone...........................................................................................- 11 -
4.3.3 System Settings –Language............................................................................................- 11 -
4.4.1 Motion Detection –Sensitivity/area ...............................................................................- 12 -
4.5.1 Network setup –Extensive setup....................................................................................- 12 -
4.5.2 Network setup –Reset password....................................................................................- 12 -

- 2 -
4.5.3 Network setup –Information..........................................................................................- 12 -
4.6 Upgrade..............................................................................................................................- 12 -
5. ELRO Monitoring App................................................................................................................- 13 -
6. Overview app & symbols...........................................................................................................- 14 -
7. App management & settings.....................................................................................................- 15 -
7.1 Edit device...............................................................................................................................- 16 -
7.2 View events.............................................................................................................................- 16 -
7.3 View Snapshots.......................................................................................................................- 17 -
8. FAQ ...........................................................................................................................................- 17 -
9. Specifications ............................................................................................................................- 17 -
9.1 Specifications camera.........................................................................................................- 17 -
9.2 Specifications monitor .......................................................................................................- 18 -
Symbols.........................................................................................................................................- 18 -

- 3 -
Introduction
You can prevent criminality and vandalism with the ELRO CZ60RIP11S CAMERA SECURITY SYSTEM.
You can also monitor your property and belongings.
•Monitor
The set comes with a 9 inch/ 23cm monitor on which you can view the live feed of the
camera. The monitor has a "touch screen". Loop recordings is enabled if you
insert a Micro SD card into the card slot of the monitor. The monitor can be connected to
the internet with the supplied UTP cable. You can use the ELRO Monitoring app to look at
the live feed on a smartphone or tablet. The monitor has two antennas that provide an
extra strong wireless connection to the camera.
•Camera
The camera has 1080P HD resolution for sharp images on which people are recognizable.
Thanks to its IP65 rating, the camera can withstand all types of weather and is very suitable
for outdoor usage. The camera is equipped with a motion detector so that it will only be
activated after motion is detected. What makes this camera so special is that it has Color
Night Vision technology. This technology makes it possible to have color images even in the
dark.
•Accessoires
The set is expandable up to 4 cameras. The additional ELRO CC60RXX security camera is
available separately.
Package contents
•Monitor 9 inch/ 23cm
•Adapter (monitor) 5V DC/ 2.0A/ Cable length 2,4m
•Camera 1080P HD
•Adapter (camera) 9V DC 2.0A/ Cable length 2,4m
•Antenna
•Network cable
•Mounting material
•Quick start guide

- 4 -
Monitor & symbol overview

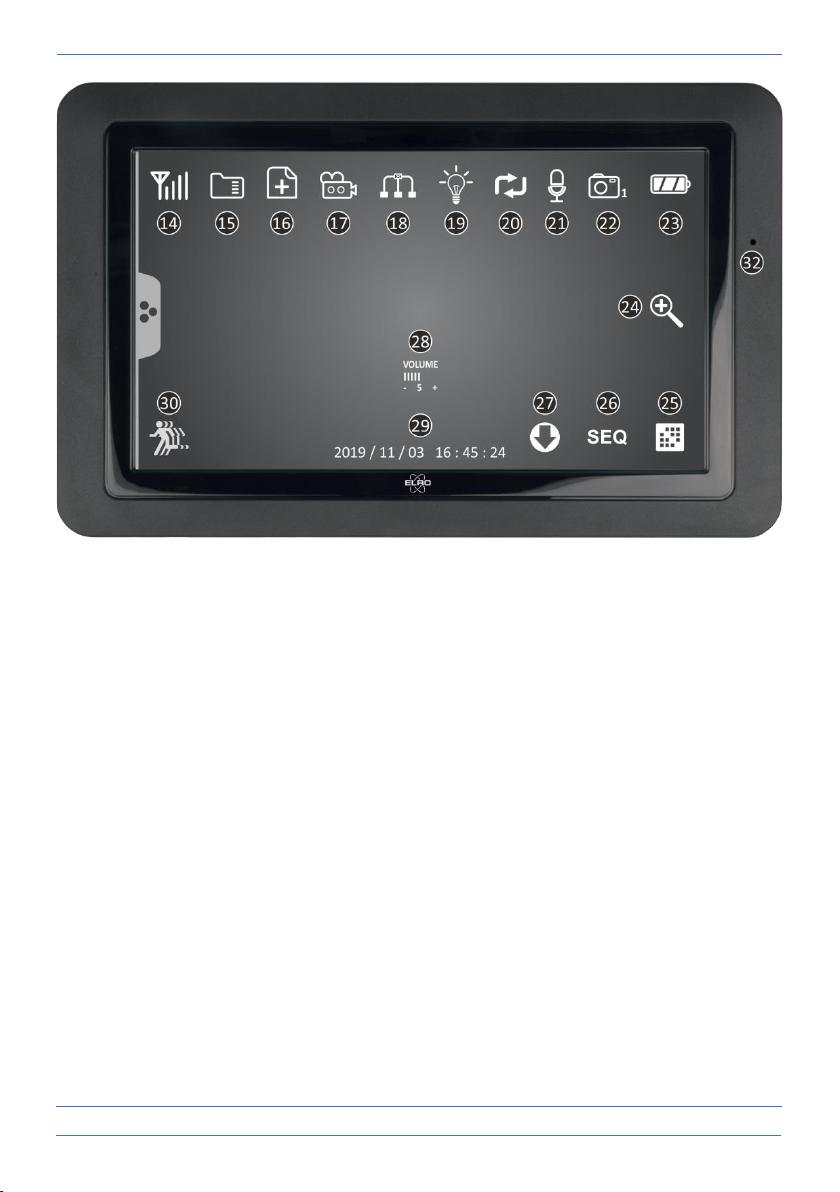

1. Antennas; for optimal wireless reception
2. Power button; press and hold to turn ON or OFF*
*Short press in the ON position to enter the ''Standby'' mode.
3. Table stand
4. Speaker
5. UID number/ QR code; for connection to smartphone/tablet
6. Internet; connect the monitor to your modem/router (Ethernet cable included)
7. Power input
8. Volume control
9. Micro SD card slot (Does not include micro SD card, maximum 128 GB)
10. Mini USB port; for service purposes only
11. Talk; press to talk to a visitor via the camera
12. Reset; system reboot
13. LED; lights up blue when the integrated battery needs to be charged.

- 5 -
14. Signal indicator
15. SD indicator
Visible when an SD card is inserted in the monitor.
Blue; there is recording space available.
Red; the SD card is full.
16. New recording indicator
New recordings are stored on the SD card.
17. Recording indicator
Red blinking; recording is being made.
18. Network status indicator
Green; connection to internet
Yellow; only connection with local network
Red; monitor has no connection to the local network/Internet
19. LED light control indicator
White LED's for "Color Night Vision" are on
20. Transfer SD card
SD card may be overwritten
21. Talk back indicator
Symbol appears when "Talk" (see 11) is pressed.
22. Channel indicator
The live feed of this camera is shown

- 6 -
23. Battery indicator
Flashing red; battery is empty
Continuous blue; battery is full
Flashing blue; battery is charging
24. Zoom indicator
Select 1 of the 5 areas to zoom.
25. Switch channel
Manual switch between channels.
26. Sequence indicator
Automatic channel switching.
27. New download
New firmware version is ready for download.
28. Volume indicator
Symbol appears when "Volume control" see 8 is used.
29. Date & Time (J/M/D - U/M/S)
30. Motion recording indication
Blue; automatic recording when motion is detected is OFF.
Red; automatic recording when motion is detetion is ON.
31. Pop-up menu tab
32. Microphone
Overview camera
1. Microphone 2. 6 x 6W white LEDs 3. Camera Lens
4. IR-LED 5. Status LED 6. Motion detector
7. Speaker 8. Coupling/Pairing 9. Antenna
10. Mounting bracket 11. Adapter connection
Micro SD Card
For the CZ60RIPS, use a Micro SD card with the dimensions 15 x 11 x 1 mm.

- 7 -
Camera installation
Important
•Before mounting, check the signal of the system by viewing the live feed of the camera on the
monitor from the same location/position as where the camera is mounted.
•The location should be free of dust and not in view of a strong light source or direct sunlight.
•Avoid thick walls or obstacles between the camera and the monitor.
•This camera has built-in IR LEDs that allow you to view images under no/low light conditions.
•The 6 x 6 Watt LEDs make it possible to view color images in no/low light conditions; Color
Night Vision technology. The lighting can be switched on manually, with a timer setting and
automatically after motion detection.
Mounting the camera
1. Mark the position of the screw holes using the mounting bracket on the wall.
2. Drill the holes and place the 4 dowels in the holes.
3. Attach the camera, insert the screws through the mounting bracket into the plugs and
tighten them firmly.
4. Now point the camera at the area you want to secure

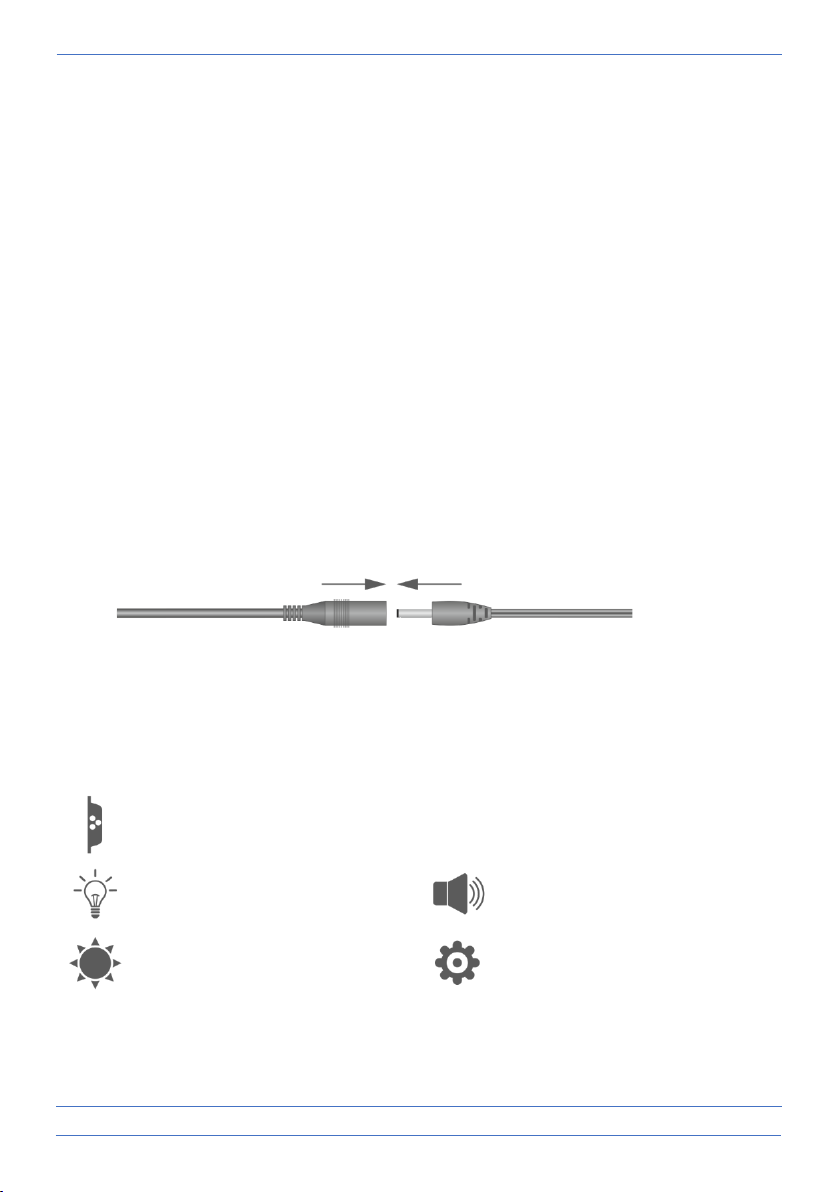

5. Connect the 5V DC/ 2.0A) power adapter (see the bottom of the mounting plate) to the
camera
6. Press the plugs together tightly to prevent moisture from entering.
Note
You can install additional cameras (up to 4 cameras). When you add cameras that were not in the
original box, you must pair the cameras with the monitor. Refer to section 4.1.1 Camera setup -
Pairing about pairing the cameras in this manual.
Overview menu screens
This chapter describes the monitor's pop-up menu screens in detail. Tap this on the
tablet and the following pop-up menus are displayed.

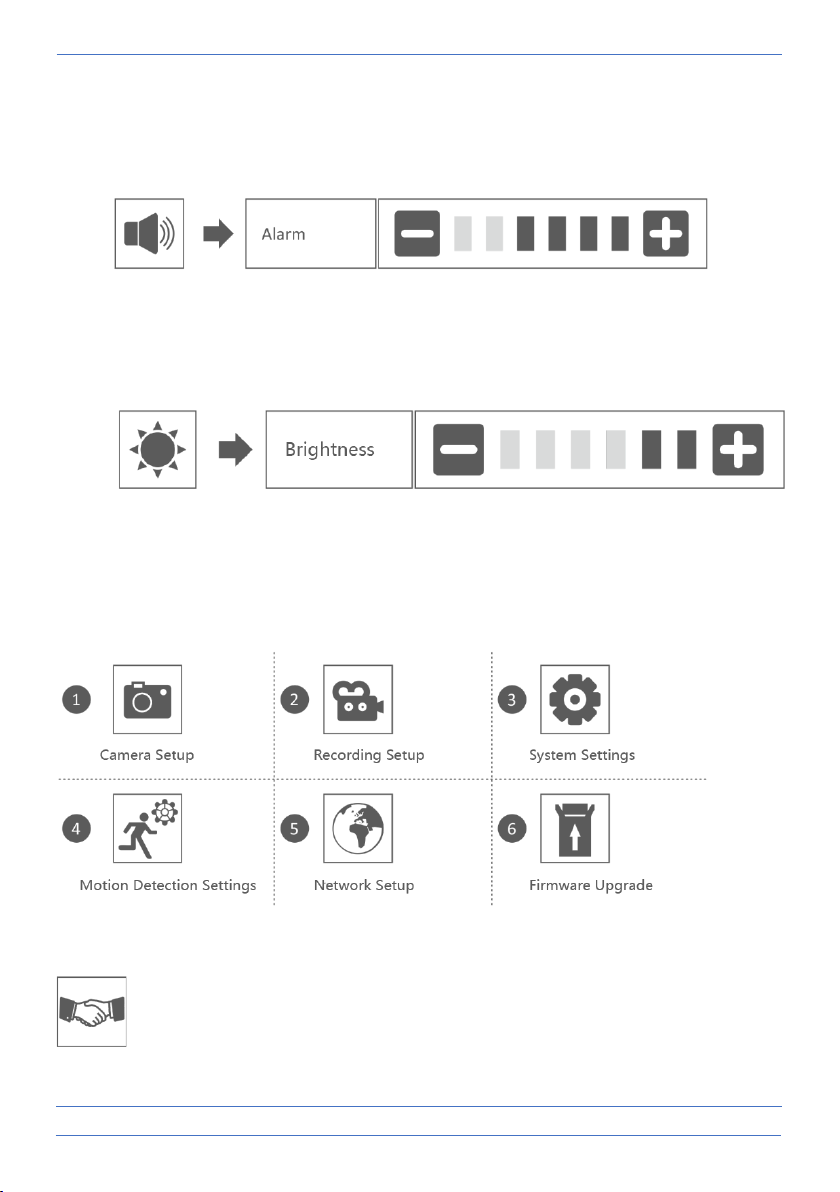

1. Light settings 2. Alarm volume
3. Brightness 4. General Settings

- 8 -
Navigation
Navigating the menu and subsections is very easy with the help of your index finger.
Tapping this will return you to the main screen.
Tapping this will return you to the previous screen.
1. Lighting settings
The 3 lighting settings can be set per camera.
1.1 Duration
Adjusts how long the lights stay on after movement.
1.2 Timer
Using the timer, you can create a schedule where the lights are on continuously. Tap the hours or
minutes to set it.
1.3 Dimmer
The dimmer setting determines how bright the lighting should be. If the light reflects back by a wall
or other object, which adversely affects the image in the monitor, smartphone or tablet, you can
reduce the brightness of the lighting.

- 9 -
2. Alarm volume
If the camera is activated by motion and starts recording the images, the monitor emits an alarm
tone. Here you can set the alarm volume. Tap plus to increase the volume and minus to decrease
the volume of the alarm.
3. Brightness level
This function allows you to set the brightness level for each camera. Make sure that only the
image of the camera whose brightness level you want to set is on the main screen.
4. General settings
The General Settings screen contains 6 subsections, each of which may contain other subsections.
These sub screens allow you to set functions of your system. You can turn cameras on and off, set
up a specific schedule for specific cameras to record, set the date and time, and set the sensitivity
for motion detection. The rest of this chapter provides details on how to use these screens.
4.1.1 Camera setup –Pairing
When you add a new camera to your system, you need to pair the camera to the
monitor. You can also use this procedure to move a camera from one channel to
another.
