Insportline Petyr ET User manual

USER MANUAL –EN
IN 20105 Elliptical trainer inSPORTline Petyr ET

2
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
IMPORTANT NOTES.............................................................................................................................. 3
ASSEMBLY ............................................................................................................................................. 4
CONSOLE............................................................................................................................................. 10
TROUBLESHOOTING .......................................................................................................................... 11
USE OF ELEPTICAL TRAINER............................................................................................................ 11
THE WARM UP PHASE........................................................................................................................ 11
MAINTENANCE .................................................................................................................................... 12
ENVIRONMENT PROTECTION ........................................................................................................... 12

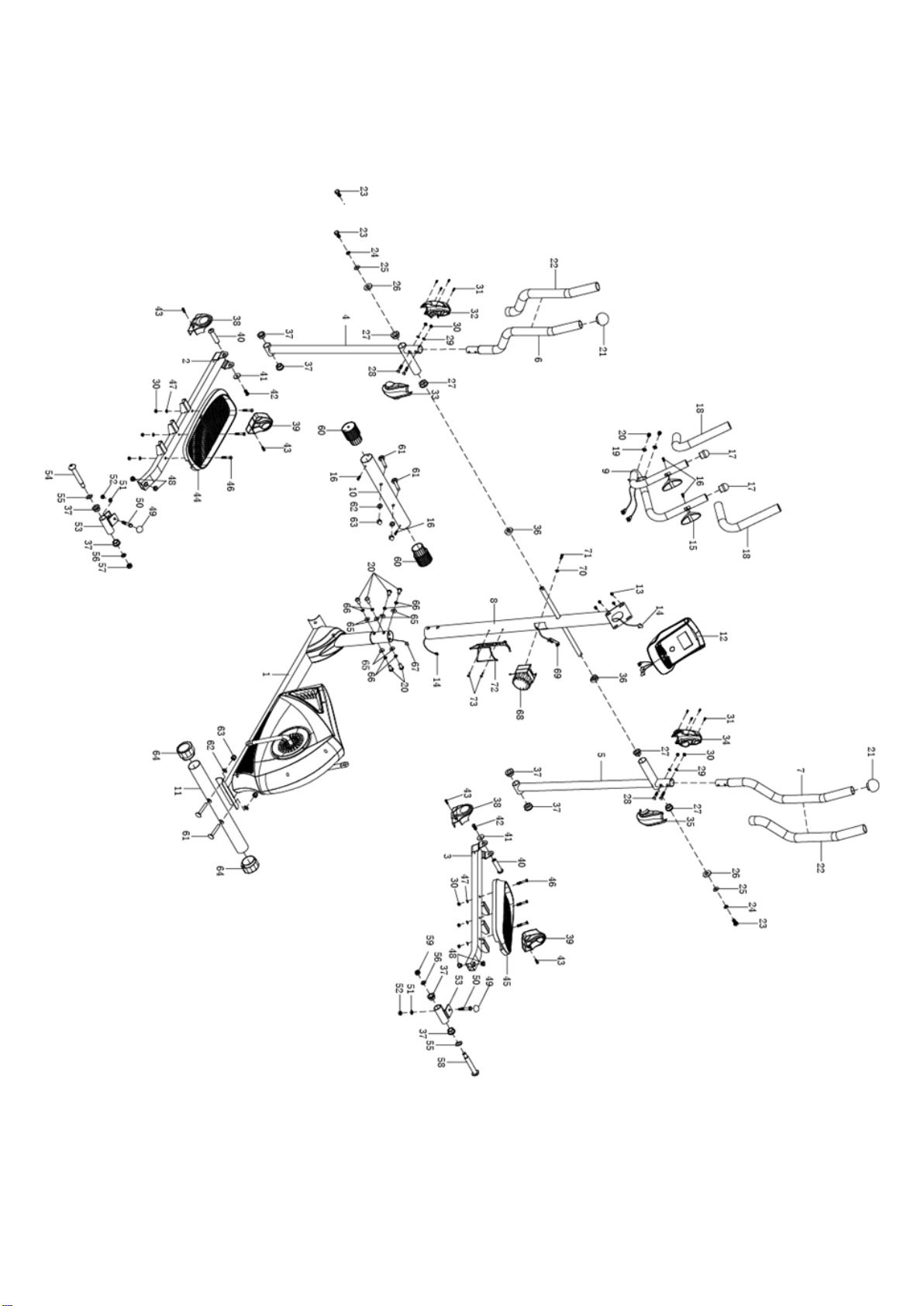

DIAGRAM.............................................................................................................................................. 13
PARTS LIST.......................................................................................................................................... 15
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 16

3
SAFETY INSTRUCTIONS
•Read the manual carefully before first use and keep it for future reference.
•To ensure the best safety of the exerciser, regularly check it on damages and worn parts.
•If you pass on this exerciser to another person or if you allow another person to use it, make
sure that that person is familiar with the content and instructions in these instructions.
•Only one person should use the exerciser at a time.
•Before the first use and regularly make sure that all screws, bolts and other joints are properly
tightened and firmly seated.
•Before you start your work-out, remove all sharp-edged objects around the exerciser.
•Only use the exercise for your work-out if it works flawlessly.
•Any broken, worn or defective part must immediately be replaced and/or the exerciser must no
longer be used until it has been properly maintained and repaired.
•Parents and other supervisory persons should be aware of their responsibility, due to
situations which may arise for which the exerciser has not been designed and which may
occur due to children’s natural play instinct and interest in experimenting.
•If you do allow children to use this exerciser, be sure to take into consideration and assess
their mental and physical condition and development, and above all their temperament.
Children should use the exerciser only under adult supervision and be instructed on the
correct and proper use of the exerciser. The exerciser is not a toy.
•For your own safety, always ensure that there is at least 0.6 meter of free space in all
directions around your product while you are exercising.
•To avoid possible accidents, do not allow children to approach the exerciser without
supervision, since they may use it in a way for which it is not intended due to their natural play
instinct and interest in experimenting.
•Please note that an improper and excessive work-out may be harmful to your health.
•Please note that levers and other adjustment mechanisms are not projecting into the area of
movement during the work-out.
•When setting up the exerciser, please make sure that the exerciser is standing in a stable way
and that any possible unevenness of the floor is evened out.
•Always wear appropriate clothing and shoes which are suitable for your work-out on the
exerciser. The clothes must be designed in a way so that they will not get caught in any part of
the exerciser during the work-out due to their form (for example, length). Be sure to wear
appropriate shoes which are suitable for the work-out, firmly support the feet and which are
provided with a non-slip sole.
•Be sure to consult a physician before you start any exercise program. He may give you proper
hints and advice with respect to the individual intensity of stress for you as well as to your
work-out and sensible eating habits.
•Weight limit: 120 kg
•WARNING! The hart rate monitor may not be accurate. Overloading during training may
cause serious injury or death. If you feel any discomfort, immediately stop the exercise!
•Category: HC for home use (EN957 standard)
IMPORTANT NOTES
•Assemble the exerciser as per assembly instructions and be sure to only use the structural
parts provided with the exerciser and designed for it. Prior to the assembly, make sure the

4
contents of the delivery is complete by referring to the parts list of the assembly and operating
instructions.
•Be sure to set up the exerciser in a dry and even place and always protect it from humidity. If
you wish to protect the place particularly against pressure points, contamination, etc., it is
recommended to put a suitable, non-slip mat under the exerciser.
•The general rule is that exercisers and training devices are no toys. Therefore, they must only
be used by properly informed or instructed persons.
•Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical
symptoms. In case of doubt, consult your physician immediately.
•Children, disabled and handicapped persons should use the exercise only under supervision
and in presence of another person who may give support and useful instructions.
•Be sure that your body parts and those of other persons are never close to any moving parts
of the exerciser during its use.
•When adjusting the adjustable parts, make sure they are adjusted properly and note the
marked, maximum adjusting position, for example of the saddle support, respectively.
•Do not work out immediately after meals!
ASSEMBLY
ASSEMBLY MATERIAL
54. Screw 1/2” –1 pcs
58. Screw 1/2” –1 pcs
55. Wave washer Ø28xØ17x0.3 –1 pcs
55. Wave washer Ø28xØ17x0.3 –1 pcs
56. Spring washer Ø20xØ13 –1 pcs
56. Spring washer Ø20xØ13 –1 pcs
57. Nylon nut 1/2” –1 pcs
59. Nylon nut 1/2” –1 pcs
63. Nut M10 –4 pcs
62. Washer Ø10xØ25x2.0 –4 pcs
28. Screw M6x35 –4 pcs
46. Screw M6x40 –6 pcs
30. Nut M6 –10 pcs
47. Washer Ø6xØ12x1.0 –6 pcs
31. Screw ST2.9x12 –8 pcs
62. Washer Ø6xØ12x1.0 –4 pcs
61. Screw M10x57 –4 pcs
16. Screw ST4.2x20 –4 pcs
49. End cap S13 –2 pcs

5
TOOLS
Allen key S6 –1 pcs
Allen key S8 –1 pcs
Multifunction wrench –1 pcs
Multifunction wrench S10, S13, S14, S15 –1 pcs
STEP 1

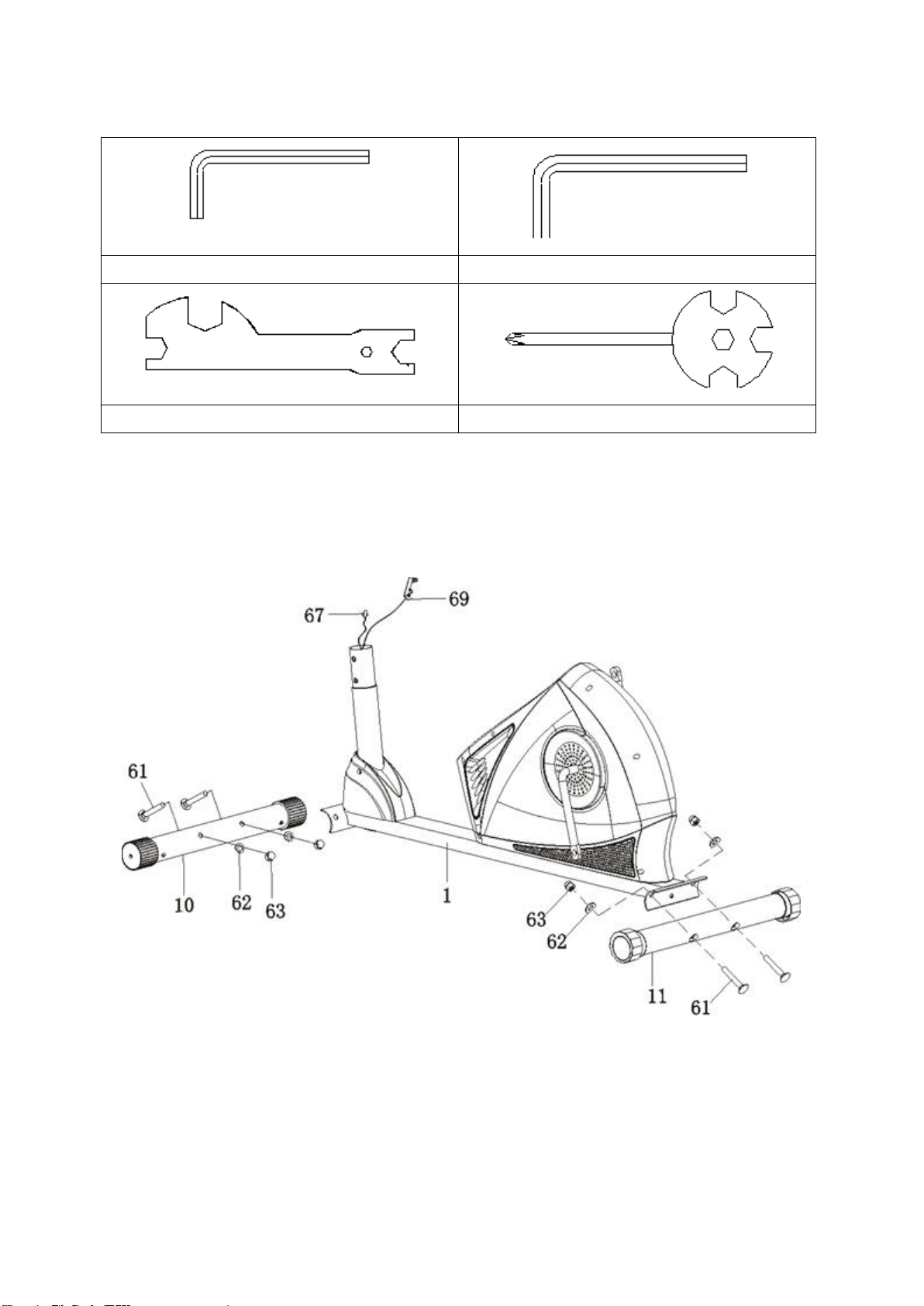

Secure the front stabilizer (10) to the main frame (1) using the 2 screws (61) of 2 washers (62) and 2
nuts (63).
Attach the front stabilizer (11) to the main frame (1) using the 2 screws (61) of 2 washers (62) and 2
nuts (63).

6
STEP 2
Remove the 6 screws (20), 6 washers (66) from the main frame (1). Insert the voltage cable (69)
through the bottom hole of the front pillar (8) and pull it through the top hole of the front post (8).
Connect the sensor cable (67) from the main frame (1) to the sensor cable I (14) from the front post
(8).
Attach the front post (8) to the main frame (1) and secure with 6 screws (20), 6 washers (65), 6
washers (66). Tighten the screws properly.
Remove the washer (70) and bolt (71) from the load screw (68). Hook the load adjustment cables (68
and 69) as shown in Figure A. Then hook the cable as shown in Figure B.
Attach the load adjusting knob (68) to the front post (8) using the large washer (70) and bolt (71) that
you removed.

7
STEP 3
Remove the 2 screws (23), 2 washers (24, 25, and 26) from the right and left sides of the center post
(8).
Attach the left handlebar holder (6) to the left side of the post (8) with the screw (23) and washers (24,
25, 26) that you removed.
Attach the bracket (53) to the left crank using the screw (54), washers (55,56) and nut (57). Attach the
cap (49) to the screw (50).
Attach the left pedal (44) to the left pedal support (4) with 3 nuts (30), 3 washers (47) and 3 screws
(46).
Attach the A / B pedal caps (38,39) to the left pedal support (2) with the screw (43).
Repeat for the right side.
NOTE: The screws (53) are marked L - left, R - right.

8
STEP 4

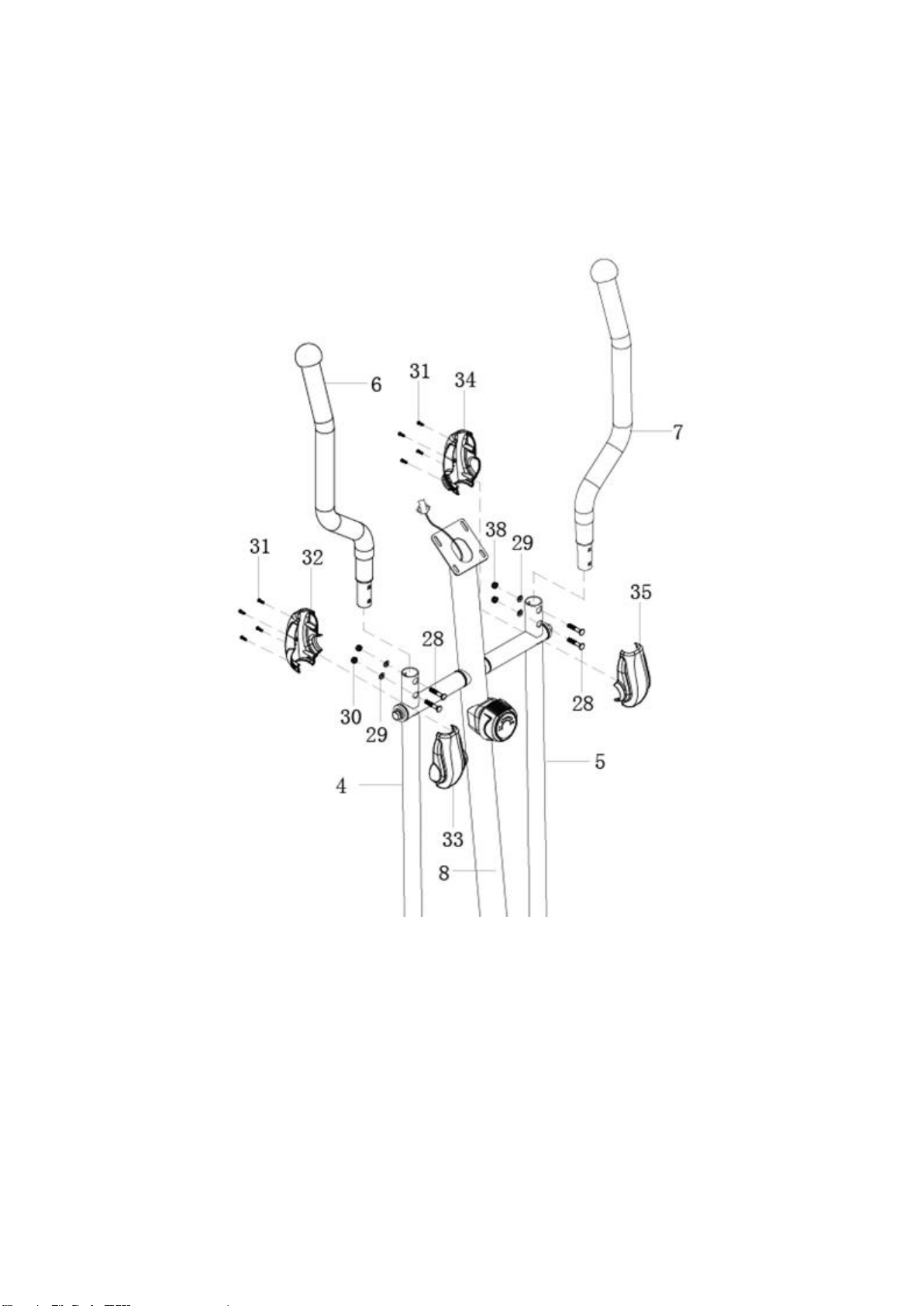

Attach the left / right handle (6, 7) to the left / right handle holder (4, 5) with 4 screws (28), 4 washers
(30).
Attach left handrail cover A (32) and left handrail cover B (33) to left handrail (4) with 4 screws (31).
Attach Right Handle Cover A (34) and Right Handle Cover B (35) to Right Handle (5) with 4 Screws
(31)

9
STEP 5

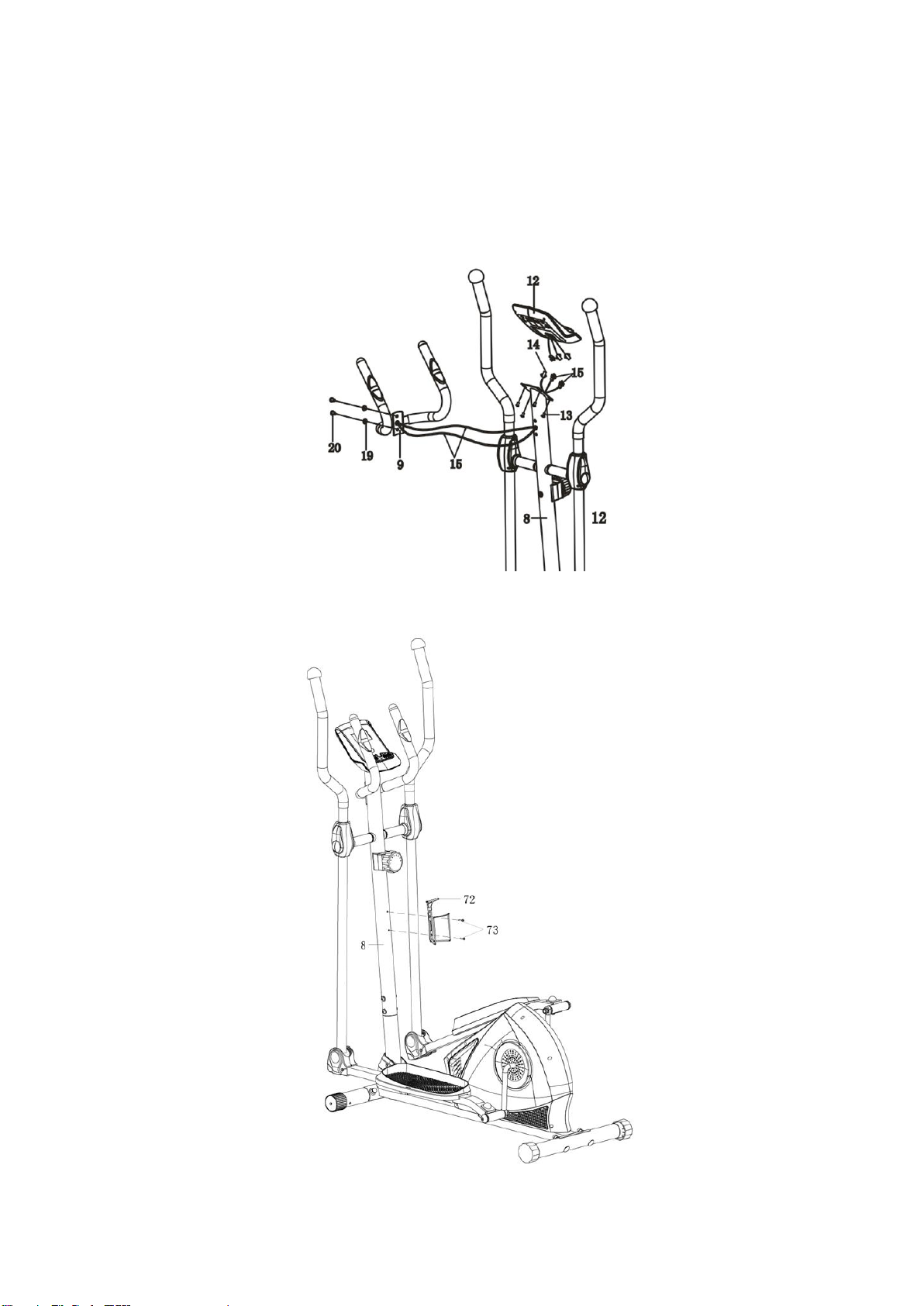

Remove the 4 screws (13) from the back of the console (12). Remove the 2 screws (20) and 2
washers (19) from the front post (8). Insert the sensor cables (15) from the handles (9) into the hole in
the front pillar (8) and pull the top of the post (8). Attach the handles (9) to the front post (8) with 2
screws (20) and 2 washers (19).
Connect sensor I cable (14) and sensor pulse cable (15) from console (12). Attach the console (12) to
the middle post (8) with 4 screws (13).
STEP 6
Attach the bottle holder (72) using the 2 screws (73).

10
CONSOLE

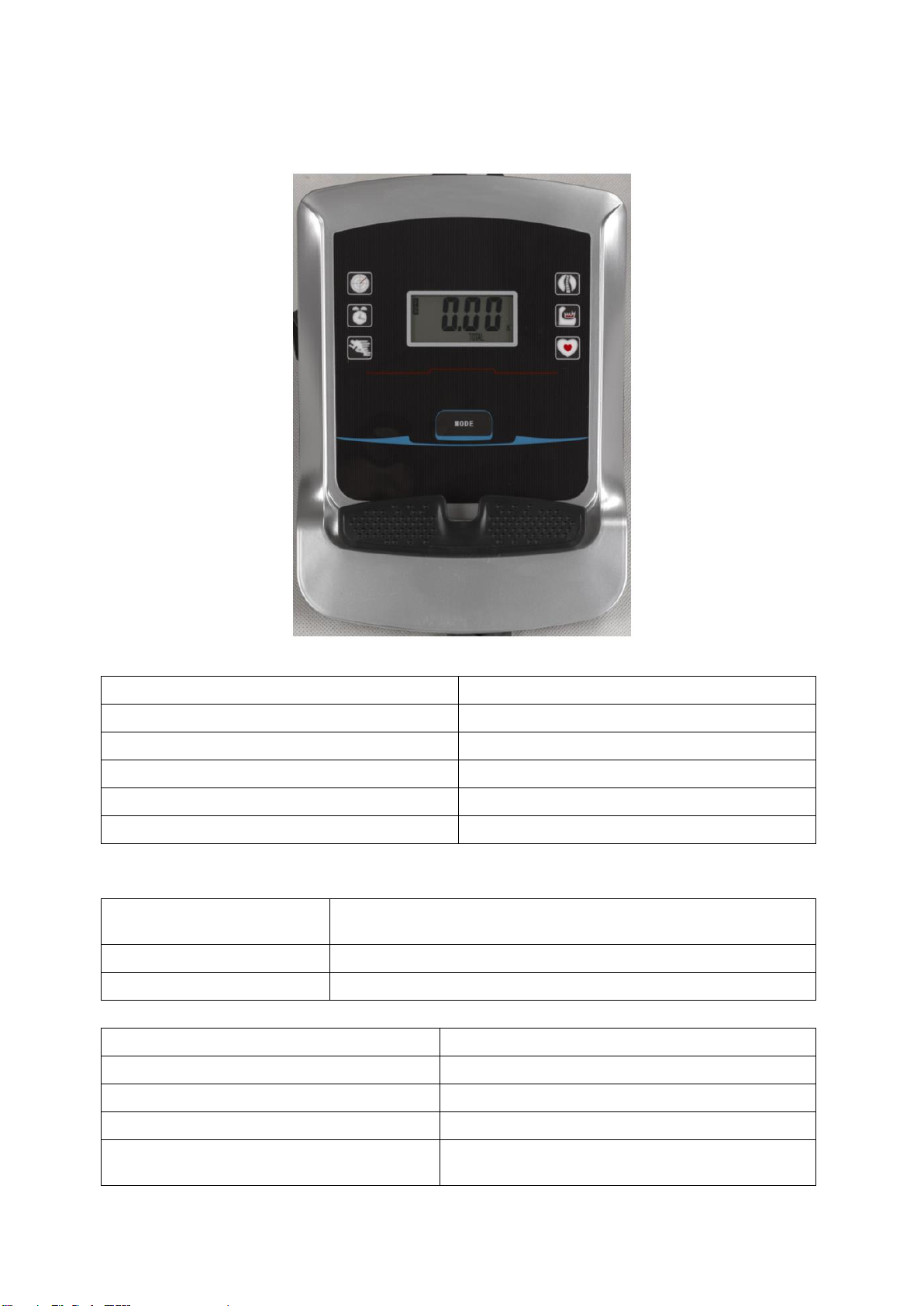

DISPLAY
TIME
00:00 –99:59 min:sec
SPEED
0,0 –999,9 km/h, mil/h
DISTANCE
0,00-99,99 km, mil
CALORIES
0,0-999,9 kcal
ODOMETR if available
0,00-99,99 km, mil
PULSE if available
40-200 beats/min
BUTTONS
MODE / SELECT
Confirm button, hold for 4 seconds to reset all values except
ODOMETR.
SET if available
Set value except ODOMETR.
RESET / CLEAR if available
Reset all values except ODOMETR.
FUNKCE
TIME, TMR
Displays training time
SPEED, SPD
Displays current speed
DISTANCE, DST
Displays distance
CALORIES, CAL
Displays burned calories (only orientation)
ODOMETR if available
Displays total distance traveled, replace battery to
reset

11
PULSE, PUL if available
Display heart rate, the user must hold the pulse
measurement plates
SCAN
Displays functions: TIME, SPEED, DISTANCE,
CALORIES, PULSE, ODOMETR
BATTERY: The console uses two AA batteries, one AAA battery or one 1.5V battery.
TROUBLESHOOTING
Elliptical is not stable
Level the elliptical with the leveling feet
The console does not display data
Check cable condition and connection
Check the battery condition
Replace the batteries
Console doesn't measure heart rate
Make sure the cables are properly connected
Always hold both sensors
Too much pressure on the pulse measurement
plates.
The elliptical creaks in use
Tighten the bolts and nuts, check the
connections
USE OF ELEPTICAL TRAINER
The elliptical trainer is a popular fitness machine, one of the newest and most effective home training
machines.
When you are exercising on an elliptical treadmill, your feet move along the elliptical curve.
The elliptical treadmill is a frequent replacement for exercise bikes and treadmills because it is gentler
for your joints. With the handles, you are also exercising the upper half of your body.
During exercise, you transfer the weight from one foot to the other. Try to maintain an upright and
natural position. Handlers will help you. Find the perfect place to hold the grip and try to move as
naturally as possible.
THE WARM UP PHASE
This stage helps get the blood flowing around the body and the muscles working properly. It will also
reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown
below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles
into a stretch. If it hurts, STOP.
Touching your toes
Slowly bend your back from hips. Keep your back and arms relaxed
while stretching downwards to your toes. Do it as far as you are able
and hold the position for 15 seconds. Bend your knees slightly.
Upper thigh
Lean against a wall with one hand. Reach down and behind you. Lift
up your right or left foot to your buttock as high as possible. Keep for
30 seconds and repeat twice for each leg.

12
Hamstring stretched
Sit and outstretch your right leg. Rest the sole of your left foot against
the inside of your right tight. Stretch out your right arm along your right
leg as far as you can. Hold for 15 seconds and relax. Repeat all with
your left leg and left arm.
Inside upper thigh
Sit on the floor and place your feet together. Knees are pointed
outwards. Pull your feet as close as possible to your groin. Press your
knees carefully downwards. Keep this position for 30-40 seconds if
possible.
Calves and Achilles tendon
Lean against a wall with your left leg in front of the right one and your
arms forward. Stretch out your right leg and keep your left foot on the
floor. Bend your left leg and lean forwards by moving your right hip in
the direction of the wall. Hold for 30-40 seconds. Keep your leg
stretched and repeat exercising with other leg.
MAINTENANCE
•Use only a soft cloth and a mild detergent.
•Do not clean the plastic parts with abrasives or solvents.
•Wipe the sweat after each use.
•Protect the device from moisture and extreme temperatures.
•Protect your device, computer and console from direct sunlight.
•Check the tightening of all bolts and nuts regularly.
•Store in a dry and clean place away from children.
ENVIRONMENT PROTECTION
After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the
local laws and environmentally friendly in the nearest scrapyard.
By proper disposal you will protect the environment and natural sources. Moreover, you can help
protect human health. If you are not sure in correct disposing, ask local authorities to avoid law
violation or sanctions.
Don’t put the batteries among house waste but hand them in to the recycling place.

13
DIAGRAM

14

15
PARTS LIST
No.
Name
Qty.
No.
Name
Qty.
1
Main frame
1
37
Grommet Ø29 x Ø16x14
8
2
Left footrest
1
38
Foot holder cover –B
2
3
Right footrest
1
39
Foot holder cover –A
2
4
Left handlebar support
1
40
Screw Ø15.8x62.5xM8
2
5
Right handlebar support
1
41
Big washer Ø8xØ20x2.0
2
6
Left handlebar
1
42
Screw M8x20
2
7
Right handlebar
1
43
Screw ST4.2*25
10
8
Front pillar
1
44
Left pedal
1
9
Handlebars
1
45
Right pedal
1
10
Rear stabilizer
1
46
Screw M6x40
6
11
Rear stabilizer
1
47
Washer Ø6x12x1.0
6
12
Console
1
48
Plastic case Ø18xØ 8x5
4
13
Screw M5x10
4
49
Nut cap S13
2
14
Sensor cable 1100 mm
1
50
Screw M8x50
2
15
Pulse cable 750 mm
2
51
Washer Ø16x8x1.5
2
16
Screw ST4.2x20
4
52
Nut M8
2
17
Handlebar end cap
2
53
U shaped bracket
2
18
Foam grip
2
54
Left foot holder screw
1
19
Arc washer
2
55
Arc washer Ø28xØ17x0.3
2
20
Screw M8x15
8
56
Spring washer Ø20
2
21
Handlebar cap
2
57
Left nut 1/2”
1
22
Foam grip
2
58
Right foot holder Bolt
1
23
Screw M10x18
2
59
Right nut 1/2”
1
24
Spring washer Ø18x10x2
2
60
Front stabilizer cap
2
25
Big washer Ø10x Ø20x2.0
2
61
Screw M10x57
4
26
Washer Ø28x5.0
2
62
Big washer Ø10
4
27
Axle bushing
4
63
Nut M10
4
28
Screw M6x35
4
64
Rear stabilizer cap
2
29
Arc washer Ø6
4
65
Arc washer Ø8*Ø20*2
6
30
Nut M6
10
66
Spring washer Ø8
6
31
Screw ST2.9*12
8
67
Sensor cable 1800 mm
1
32
Left handle cover A
1
68
Knob
1
33
Left handle cover B
1
69
Tension cable 1600 mm
1
34
Right handle cover A
1
70
Big washer Ø20x5.2
1
35
Right handle cover B
1
71
Screw M5x45
1
36
Grommet Ø32 x Ø16x5
2
72
Bottle holder
1

16
73
Screw ST4.8x15
1
90
Freewheel holder
1
74
Screw ST4.2x25
6
91
Screw M8*10
1
75
Nut 7/8"
2
92
Bearing 6000ZZ
2
76
Washer Ø23xØ34.5x2.5
1
93
Washer Ø6*Ø12*1
1
77
Bearing nut I 7/8"
1
94
Screw M6*10
1
78
Bearing
2
95
Screw M8*30
1
79
Bearing sleeve
2
96
Washer Ø10.2*Ø14*1
2
80
Bearing nut I 15/16"
1
97
Rubber stop
2
81
Washer I Ø24x40x3.0
1
98
Screw ST2.9x12
2
82
Pulley with crank
1
99
Left chain cover
1
83
Belt
1
100
Left crank cover
1
84
Nut M10*1.0*6
2
101
Right chain cover
1
85
Flywheel
1
102
Right crank cover
1
86
Screw M6*36
2
103
Plastic pin
2
87
Bracket
2
104
Left cover
1
88
Spring washer Ø6
2
105
Right cover
1
89
Nut M6
2
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS
General Conditions of Warranty and Definition of Terms
All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim
Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 89/2012 Coll. Civil
Code, and Act No. 634/1992 Coll., Consumer Protection, as amended, also in cases that are not
specified by these Warranty rules.

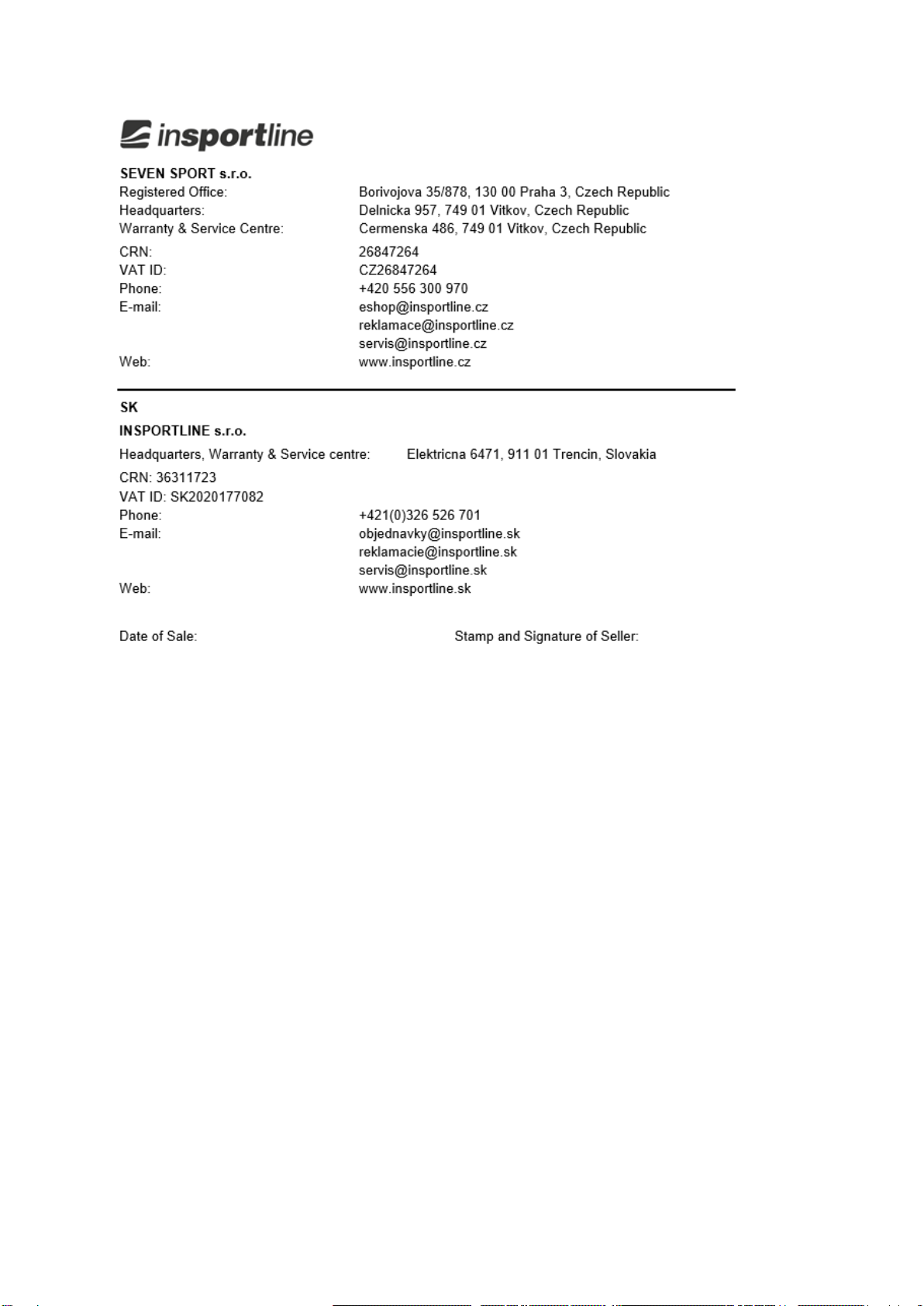

The seller is SEVEN SPORT s.r.o. with its registered office in Borivojova Street 35/878, Prague
13000, Company Registration Number: 26847264, registered in the Trade Register at Regional Court
in Prague, Section C, Insert No. 116888.
According to valid legal regulations it depends whether the Buyer is the End Customer or not.
“The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not
conclude and execute the Contract in order to run or promote his own trade or business activities.
“The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the
purpose of using the Goods or services for his own business activities. The Buyer conforms to the
General Purchase Agreement and business conditions.
These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement
made between the Seller and the Buyer. All Warranty Conditions are valid and binding, unless
otherwise specified in the Purchase Agreement, in the Amendment to this Contract or in another
written agreement.
Warranty Conditions
Warranty Period
The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in
the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal
warranty period provided to the Consumer is not affected.

17
By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a
certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its
regular or contracted features.
The Warranty does not cover defects resulting from (if applicable):
•User’s fault, i.e. product damage caused by unqualified repair work, improper assembly,
insufficient insertion of seat post into frame, insufficient tightening of pedals and cranks
•Improper maintenance
•Mechanical damages
•Regular use (e.g. wearing out of rubber and plastic parts, moving mechanisms, joints, wear of
brake pads/blocks, chain, tires, cassette/multi wheel etc.)
•Unavoidable event, natural disaster
•Adjustments made by unqualified person
•Improper maintenance, improper placement, damages caused by low or high temperature,
water, inappropriate pressure, shocks, intentional changes in design or construction etc.
Warranty Claim Procedure
The Buyer is obliged to check the Goods delivered by the Seller immediately after taking the
responsibility for the Goods and its damages, i.e. immediately after its delivery. The Buyer must check
the Goods so that he discovers all the defects that can be discovered by such check.
When making a Warranty Claim the Buyer is obliged, on request of the Seller, to prove the purchase
and validity of the claim by the Invoice or Bill of Delivery that includes the product’s serial number, or
eventually by the documents without the serial number. If the Buyer does not prove the validity of the
Warranty Claim by these documents, the Seller has the right to reject the Warranty Claim.
If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the
Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller
is eligible to require a compensation for all the costs arising from the repair. The cost shall be
calculated according to the valid price list of services and transport costs.
If the Seller finds out (by testing) that the product is not damaged, the Warranty Claim is not accepted.
The Seller reserves the right to claim a compensation for costs arising from the false Warranty Claim.
In case the Buyer makes a claim about the Goods that is legally covered by the Warranty provided by
the Seller, the Seller shall fix the reported defects by means of repair or by the exchange of the
damaged part or product for a new one. Based on the agreement of the Buyer, the Seller has the right
to exchange the defected Goods for a fully compatible Goods of the same or better technical
characteristics. The Seller is entitled to choose the form of the Warranty Claim Procedures described
in this paragraph.
The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods,
unless a longer period has been agreed upon. The day when the repaired or exchanged Goods is
handed over to the Buyer is considered to be the day of the Warranty Claim settlement. When the
Seller is not able to settle the Warranty Claim within the agreed period due to the specific nature of the
Goods defect, he and the Buyer shall make an agreement about an alternative solution. In case such
agreement is not made, the Seller is obliged to provide the Buyer with a financial compensation in the
form of a refund.

18
