OWNER’SMANUAL
INT-2070 (DECT)
DOCUMENT REVISION 1
Dterm Cordless DECT
DTL-8R-1
®
Dterm Cordless DECT.book Page 1 Friday, December 7, 2007 3:48 PM

Dterm Cordless DECT.book Page 2 Friday, December 7, 2007 3:48 PM

Contents of this manual are subject to change without prior notice at the discretion of NEC
Unified Solutions, Inc. This document has been prepared for the use of employees and
customers of NEC Unified Solutions, Inc. and may not be reproduced without prior written
approval of NEC Unified Solutions, Inc.
Dterm is a registered trademark of NEC Corporation.
Copyright 2007
NEC Infrontia, Inc.
6535 N. State Highway 161
Irving, TX 75039-2402
Technology Development
Dterm Cordless DECT.book Page 1 Friday, December 7, 2007 3:48 PM

Dterm Cordless DECT.book Page 2 Friday, December 7, 2007 3:48 PM

Owner’s Guide i
___________________________________________________________________________________
___________________________________________________________________________________
TABLE OF CONTENTS
Chapter 1 Specifications and Safety Information
Section 1 Specifications ....................................................................................... 1-1
Section 2 Battery Safety ...................................................................................... 1-2
Section 3 Important Safety Instructions.............................................................. 1-3
Section 4 Important Electrical Considerations................................................... 1-4
Chapter 2 About the Dterm Cordless DECT
Section 1 Overview................................................................................................ 2-1
Section 2 Items Included with the Dterm Cordless DECT ................................... 2-2
Section 3 Features of the Cordless Telephone .................................................. 2-3
Section 4 Dterm Controls and Functions.............................................................. 2-4
4.1 Handset ....................................................................................... 2-4
4.2 Base Unit ..................................................................................... 2-6
4.3 Cordless Handset/Desk Phone Switch (Base Key Option) ......... 2-6
4.4 Charger Unit ................................................................................ 2-7
Chapter 3 Installation
Section 1 Selecting a Location............................................................................. 3-1
Section 2 Installation Precautions....................................................................... 3-1
Section 3 Connecting the Telephone Cords ....................................................... 3-1
Section 4 Applying Power to the Charging Unit................................................. 3-3
Dterm Cordless DECT.book Page i Friday, December 7, 2007 3:48 PM

Document Revision 1 Dterm Cordless DECT
___________________________________________________________________________________
ii Table of Contents
___________________________________________________________________________________
Section 5 Wall Installation .................................................................................... 3-4
5.1 Mounting the Base to a Standard Wall Plate ...............................3-4
5.2 Mounting the Base Directly to the Wall ........................................3-6
5.3 Wall Mounting the Charging Unit .................................................3-8
Section 6 Attaching and Removing the Belt Clip ............................................. 3-11
Section 7 Installing the Handset Battery Pack.................................................. 3-12
Section 8 Charging Batteries.............................................................................. 3-13
8.1 Charging the Handset Battery Pack ..........................................3-13
8.2 Charging Spare Battery Packs ..................................................3-14
Section 9 Low Battery Indicator ......................................................................... 3-15
9.1 Low Battery ................................................................................3-15
9.1.1 In Standby Mode ......................................................................3-15
9.1.2 In Talk Mode ............................................................................3-15
9.1.3 In Other Mode (Excluding Standby Mode and Talk Mode) ......3-15
9.2 Battery Status ............................................................................3-15
Section 10 Cleaning the Battery Charger Contacts............................................ 3-16
Chapter 4 Dterm Handset, Base Unit and Charging Unit
Section 1 Handset Controls.................................................................................. 4-1
Section 2 Base Unit Controls ............................................................................... 4-3
Section 3 Charger Unit .......................................................................................... 4-5
Chapter 5 Optional Equipment Installation
Section 1 Optional Accessories and Replacement Parts .................................. 5-1
Section 2 Installing the Optional Headset........................................................... 5-2
Dterm Cordless DECT.book Page ii Friday, December 7, 2007 3:48 PM

Dterm Cordless DECT Document Revision 1
Owner’s Guide - iii
___________________________________________________________________________________
___________________________________________________________________________________
Owner’s Guide iii
___________________________________________________________________________________
Chapter 6 Setup and Operation
Section 1 Setting Up and Programming the DTL-8R-1 ...................................... 6-1
1.1 Programming Mode ................................................................... 6-1
1.1.1 Training Mode (Entry) ................................................................6-1
1.1.2 Training Mode (Volume Down key – Select Item) ......................6-1
1.1.3 Training Mode (Up Key – Change Each Item Setting) ...............6-3
1.1.4 Training Mode (0 Key – No Function) ........................................6-5
1.1.5 Training Mode (TALK Key or Speaker Key – Exit from the
Training Mode) ...........................................................................6-5
Section 2 NEC PBX Operation.............................................................................. 6-5
2.1 Switching Between the Wired Phone and Cordless Phone
(DTL-8R-1 Handset) .................................................................... 6-6
2.2 Making a Call to Another Extension ............................................ 6-7
2.3 Making Call to Outside Line ......................................................... 6-8
2.4 Receiving a Call from an Outside Line
(Depends on PBX Line) ............................................................... 6-9
2.5 Redial (Option) .......................................................................... 6-10
2.6 AutoStandby® ........................................................................... 6-10
2.7 PBX No Service ......................................................................... 6-11
2.8 Out Of Range ............................................................................ 6-11
2.8.1 When in Standby Mode ............................................................6-11
2.8.2 When Establishing an RF Link .................................................6-11
2.8.3 While Talking ...........................................................................6-12
2.9 Low Battery ................................................................................ 6-12
2.9.1 In Standby Mode ......................................................................6-12
2.9.2 In Talk Mode ............................................................................ 6-12
2.9.3 In Other Mode (Excluding Standby Mode and Talk Mode) ......6-12
Dterm Cordless DECT.book Page iii Friday, December 7, 2007 3:48 PM

Document Revision 1 Dterm Cordless DECT
___________________________________________________________________________________
iv Table of Contents
___________________________________________________________________________________
2.10 Battery Status ............................................................................6-12
2.11 Handsfree ..................................................................................6-13
2.12 Headset .....................................................................................6-13
2.13 Volume Setting ..........................................................................6-13
2.14 Ring Volume Setting ..................................................................6-13
2.14.1 Ringer Tone/Volume Selection ................................................6-13
2.15 Ringer Mute ...............................................................................6-14
2.16 Menu Setting Mode ....................................................................6-15
2.17 Changing Ringer Type ...............................................................6-15
2.18 End of Range Alarm ..................................................................6-16
2.19 One Touch Dial Settings (Option) ..............................................6-17
2.19.1 Dial Store Mode .......................................................................6-17
2.20 Exit Menu ...................................................................................6-20
2.21 Dial Out Using One Touch Dial ..................................................6-20
Dterm Cordless DECT.book Page iv Friday, December 7, 2007 3:48 PM

Owner’s Guide v
___________________________________________________________________________________
___________________________________________________________________________________
List of Figures and Tables

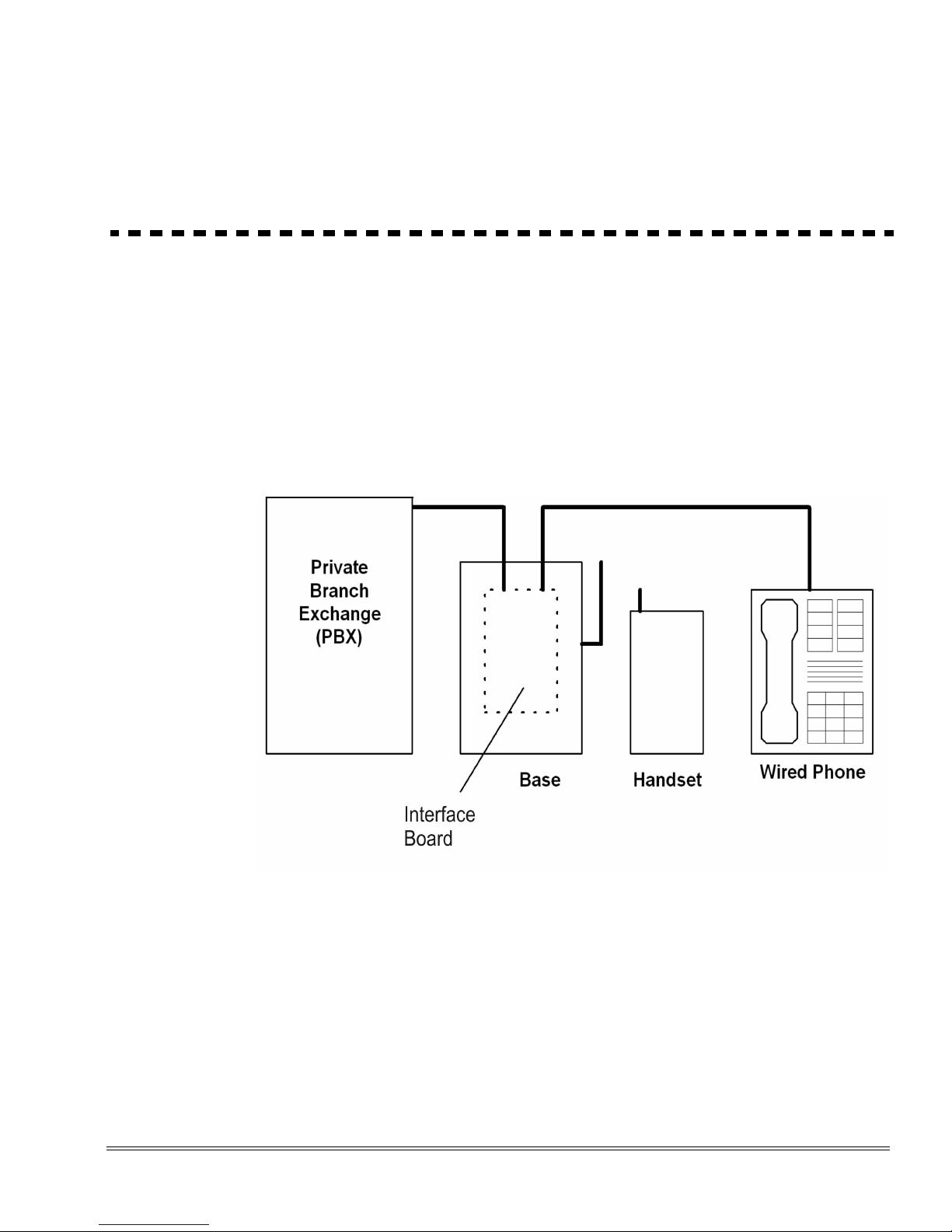

Figure 2-1 System Overview ..........................................................................................................2-1

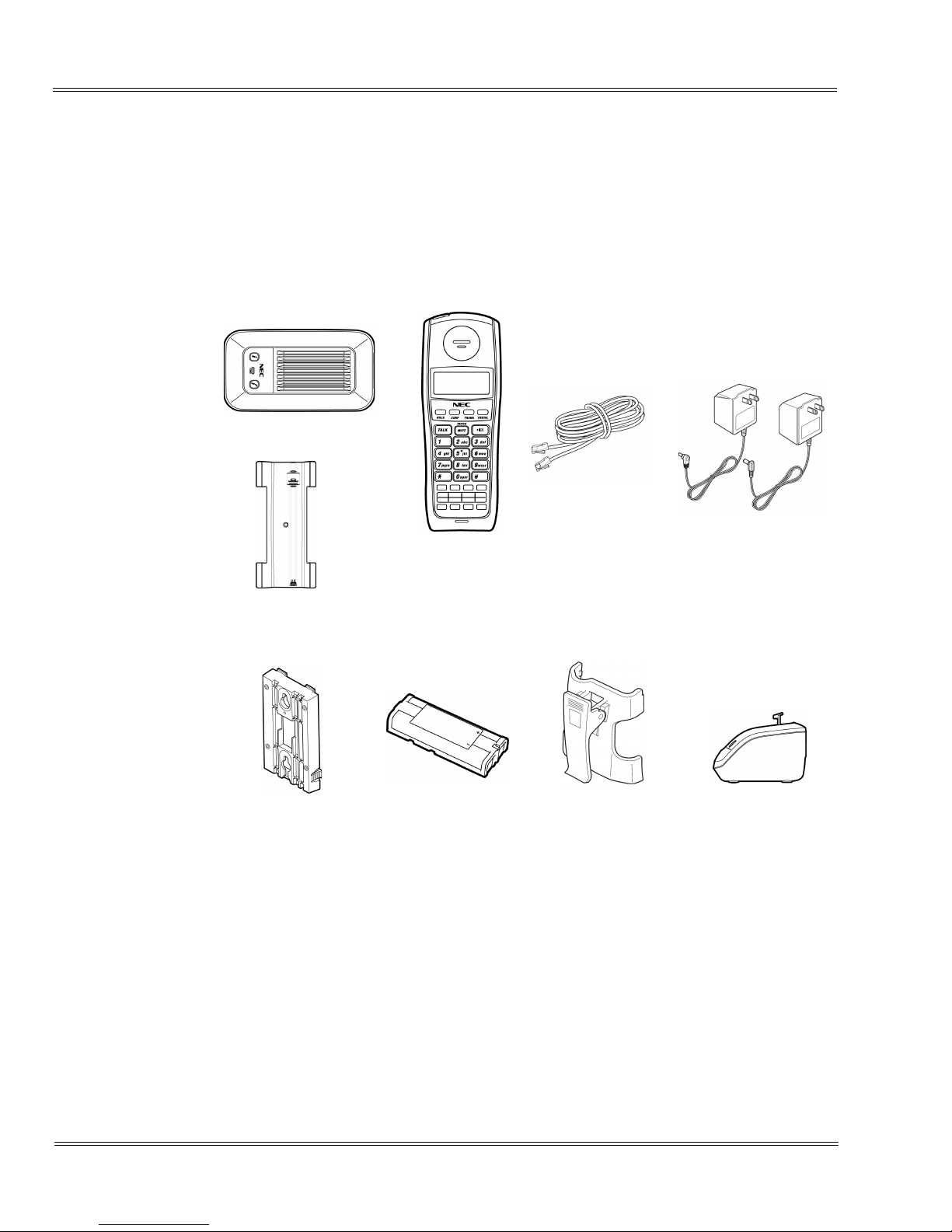

Figure 2-2 Items Included with the Dterm Cordless DECT ..............................................................2-2
Figure 2-3 Handset Controls and Functions ...................................................................................2-5
Figure 2-4 Base Unit Controls and Functions .................................................................................2-6
Figure 2-5 Charging Unit Controls and Functions ..........................................................................2-7
Figure 3-1 Connecting Telephone Cords to the Telephone Jack ...................................................3-2
Figure 3-2 Connecting the Dterm Cordless DECT to the Multiline Terminal ....................................3-2
Figure 3-3 Applying Power to the Charging Unit ............................................................................3-3
Figure 3-4 Polarized Plug ...............................................................................................................3-4
Figure 3-5 Attaching the Wall Mount Stand to the Base Unit .........................................................3-4
Figure 3-6 Placing the AC Adapter Cord Inside the Wall Mount Stand ..........................................3-5
Figure 3-7 Placing the Base Unit on the Posts of the Wall Plate ....................................................3-5
Figure 3-8 Plugging the AC Adapter into the AC Wall Outlet .........................................................3-6
Figure 3-9 Inserting Screws into the Wall for Wall Mounting the Telephone ..................................3-7
Figure 3-10 Placing the Telephone Cords Inside the Wall Mount Stand ..........................................3-7
Figure 3-11 Attaching the Wall Mount Unit to the Wall .....................................................................3-8
Figure 3-12 Inserting Screws for Wall Mounting ...............................................................................3-9
Figure 3-13 Wrapping the AC Adapter Cord Around the Strain Relief .............................................3-9
Figure 3-14 Placing the Charging Unit on the Wall .........................................................................3-10
Figure 3-15 Attaching the Belt Clip to the Handset .........................................................................3-11
Figure 3-16 Removing the Belt Clip ................................................................................................3-11
Figure 3-17 Removing the Battery Cover .......................................................................................3-12
Figure 3-18 Replacing the Battery Pack .........................................................................................3-13
Figure 3-19 Replacing the Battery Cover .......................................................................................3-13
Dterm Cordless DECT.book Page v Friday, December 7, 2007 3:48 PM

vi List of Figures and Tables
___________________________________________________________________________________
___________________________________________________________________________________
Document Revision 1 Dterm Cordless DECT
Figure 3-20 Charging the Battery Pack .......................................................................................... 3-14
Figure 3-21 Cleaning Battery Charger Contacts ............................................................................ 3-16
Figure 4-1 Handset Controls .......................................................................................................... 4-1
Table 4-1 Handset Control Functions ............................................................................................ 4-2
Figure 4-2 Base Unit Controls and Functions ................................................................................. 4-4
Figure 4-3 Charging Unit Controls and Functions .......................................................................... 4-5
Figure 5-1 Optional Accessories and Replacement Parts .............................................................. 5-1
Figure 5-2 Installing the Headset .................................................................................................... 5-2
Dterm Cordless DECT.book Page vi Friday, December 7, 2007 3:48 PM

Owner’s Guide 1 - 1
___________________________________________________________________________________
Chapter 1 Specifications and Safety Information
SECTION 1SPECIFICATIONS
The Dterm Cordless DECT complies with FCC and IC part 15.
General
Base Unit
Handset
RoHs Yes
Frequency 1.9G (1920 ~ 1930 MHz) DECT 6.0
Audio Process Digital (ADPCM)
Operating Temperature 0°~ +50°C (+32°F to +122°F)
Transmission TDMA/TDD
Channels 5
ID # 130,000 combinations
WiFi Friendly Yes
Receive/Transmit Frequency 1920 ~ 1930 MHz
Power Requirements 10 Vdc from supplied AC adapter
Size 58mm (H) x 215mm (D) x 130mm (W)
Weight 410g
Receive/Transmit Frequency 1920 ~ 1930 MHz
Power Requirements Nickel-Metal Hydride battery pack
Size 163mm (H) x 31mm (D) x 55mm (W)
Weight 150g (Handset = 120g + Battery pack = 30g)
Battery Capacity 910 mAh, 2.4V
Talk Mode 16 hours (typical)
Standby Mode 7 days (typical)
Dterm Cordless DECT.book Page 1 Friday, December 7, 2007 3:48 PM

1 - 2 Specifications and Safety Information
___________________________________________________________________________________
___________________________________________________________________________________
Document Revision 1 Dterm Cordless DECT
Battery Charger
SECTION 2BATTERY SAFETY
TThis equipment contains a rechargeable nickel-metal hydride battery.
TDo not short-circuit the battery.
TDo not charge the rechargeable nickel-metal hydride battery used in this
equipment in any charger other than the one designed to charge this battery as
specified in this manual. Using another charger can damage the battery or
cause the battery to explode.
TUse only the appropriate type and size battery pack specified in this manual.
TDo not open or mutilate the battery pack. Released electrolyte is corrosive and
can cause damage to the eyes or skin. It may be toxic if swallowed.
TExercise care in handling the battery in order not to short the battery with
conducting materials such as rings, bracelets, and buttons. The battery or
conductor can overheat and cause burns.
TCharge the battery pack provided with or identified for use with this product only
in accordance with the instructions and limitations specified in the instruction
manual provided for this product.
TObserve proper polarity orientation between the battery pack and battery
charger.
TDo not dispose of the battery pack in a fire, the cell may explode.
TDo not place the batteries in your regular trash. The nickel-metal hydride
battery must be collected, recycled, or disposed of in an environmentally sound
manner. Contact your local waste management officials for other information
regarding the environmentally sound collection, recycling and disposal of the
battery contained in this product.
Power Requirements 9V DC from supplied AC adapter
Size 75mm (H) x 100mm (D) x 87mm (W)
To reduce the risk of fire or injury to persons by the battery, read
and follow these instructions.
Dterm Cordless DECT.book Page 2 Friday, December 7, 2007 3:48 PM

Dterm Cordless DECT Document Revision 1
Owner’s Guide 1 - 3
___________________________________________________________________________________
___________________________________________________________________________________
SECTION 3IMPORTANT SAFETY INSTRUCTIONS
When using the telephone equipment, basic safety precautions should always be
followed to reduce the risk of fire, electrical shock, and injury to persons, including the
following:
TRead and understand all instructions.
TFollow all warnings and instructions marked on the product.
TUnplug this product from the wall outlet before cleaning. Do not used liquid
cleaners or aerosol cleaners. Use a dry cloth for cleaning.
TDo not use this product near water; for example, near a sink or in a wet area.
TDo not place this product on an unstable cart, stand, or table. The telephone
can fall, causing serious damage to the unit.
TTo protect the product from overheating, do not block or cover any slots or
openings in the base unit. This product should never be placed near or over a
radiator or heat register. This product should not be placed in a built-in
installation unless the proper ventilation is provided.
TThis product should be operated only from the type of power source indicated
on the marking label.
TDo not allow anything to rest on the power cord. Do not locate this product
where the cord will be damaged by people walking on it.
TDo not overload wall outlets and extension cords, as this can result in the risk of
fire or electrical shock.
TNever push objects of any kind into this product through the base unit slots, as
they may touch dangerous voltage points or short out parts that could result in a
risk of fire or electrical shock. Never spill liquid of any kind on the product.
TTo reduce the risk of electric shock, do not disassemble this product. Contact
qualified service personnel when some service or repair work is required.
Opening or removing covers may expose you to dangerous voltages or other
risks. Incorrect reassembly can cause electric shock when the appliance is
subsequently used.
TUnplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
PWhen the power supply cord is damaged or frayed.
PIf liquid has been spilled onto the product.
PIf the product has been exposed to water or rain.
PIf the product does not operate normally when following the operating instructions.
Adjust only those controls that are covered by the operating instructions. Improper
adjustment of other controls can result in damage, and will often require extensive
work by a qualified technician to restore the product to normal operation.
PIf the product has been dropped, or the cabinet has been damaged.
Dterm Cordless DECT.book Page 3 Friday, December 7, 2007 3:48 PM

1 - 4 Specifications and Safety Information
___________________________________________________________________________________
___________________________________________________________________________________
Document Revision 1 Dterm Cordless DECT
TIf the product exhibits a distinct change in performance.
TDo not use the telephone to report a gas leak in the vicinity or the leak.
TTo reduce the risk of fire or injury to persons by the battery, read and follow
these instructions.
PUse only the appropriate type and size battery pack specified in the manual.
PExercise care in handling the battery in order not to short the battery with conducting
materials such as rings, bracelets, and buttons. The battery or conductor can
overheat and cause burns.
Privacy
Cordless telephones are radio devices. Communications between the handset and
base of the cordless telephone are accomplished by means of radio waves which are
broadcast over the open airways. Because of the inherent physical properties of
radio waves, communication can be received by radio receiving devices other than
your own telephone unit, consequently, any communications using the cordless
telephone may not be private.
SECTION 4IMPORTANT ELECTRICAL CONSIDERATIONS
Unplug all electrical appliances when you know an electrical storm is approaching.
Lightning can pass through your household wiring and damage any device connected
to it. This telephone is no exception.
Caution:
Do not attempt to unplug any appliance during an electrical storm.
Changes or modifications to this product not expressly approved by
NEC Unified Solutions, Inc., or operation of this product in any way
other than as detailed by this manual, could void your authority to
operate this product.
Dterm Cordless DECT.book Page 4 Friday, December 7, 2007 3:48 PM

Dterm Cordless DECT Document Revision 1
Owner’s Guide 1 - 5
___________________________________________________________________________________
___________________________________________________________________________________
Range
Nominal values of the DECT system are:
T164 feet (50 meters) – Indoor
T984 feet (300 meters) – Outdoor
The telephone is designed to achieve a maximum range of up to 350 feet (depending
upon the environment), by transmitting and receiving according to the highest
specifications set forth by the FCC. We have rated this phone to operate at a
maximum distance with the qualification that the range depends upon the
environment in which the telephone is used. Many factors limit range, and it would be
impossible to include all of the variables in our rating. The maximum range rating of
this telephone is meant to be used as a means of comparison against other range
claims.
Telephone Line Problems
The FCC has granted the telephone company the right to disconnect service in the
event that your telephone causes problems on the telephone line. Also, the
telephone company may make changes in facilities and services which can affect the
operation of your unit. However, your telephone company must give adequate notice
in writing prior to such actions to allow you time for making necessary arrangements
to continue uninterrupted service.
If you are having trouble with your telephone service, you must first disconnect your
telephone to determine if it is the cause of your problem. If you determine that it is the
cause, you must leave it disconnected until the trouble has been corrected.
Radio Interference
Radio interference may occasionally cause buzzing and humming in your cordless
handset, or clicking noises in the base unit. This interference is caused by external
sources such as TV, fluorescent lighting, or electrical storm. Your unit is NOT
DEFECTIVE. If these noises continue and are too distracting, check around your
office to see what appliances may be causing the problem. In addition, we
recommend that the base not be plugged into a circuit that also powers a major
appliance because of the potential of interference. For best performance, ensure that
the antenna on the base unit is fully extended.
In the unlikely event that you consistently hear other voices or distracting
transmissions on your telephone, you may be receiving radio signals for another
cordless telephone or other source of interference.
Dterm Cordless DECT.book Page 5 Friday, December 7, 2007 3:48 PM

1 - 6 Specifications and Safety Information
___________________________________________________________________________________
___________________________________________________________________________________
Document Revision 1 Dterm Cordless DECT
Finally, it should be noted that some cordless telephones operate at frequencies that
may cause interference to nearby TVs and VCRs. To minimize or prevent such
interference, the base of the cordless telephone should not be placed near or on top
of a TV or VCR. If interference is experienced, moving the cordless telephone farther
away from the TV or VCR will often reduce or eliminate the interference.
More than One Cordless Telephone
If you want to use more than one cordless telephone in your office, they must operate
on different channels and more than 20 feet apart.
If more than eight DTL-8R-1s are used in the same area, there is a possibility that the
following problem occurs:
TDifficulty connecting the Handset with the Base Unit
TSome noises can be heard during conversation
The DTL-8R-1 is limited to five RF channels. The RF channel is changed
automatically to find the best channel.
Depending on your environment, the maximum number of cordless devices used
without interference varies.
Multiple base and handset units should not be closer than 20 feet at any time.
Radio interference causes interruptions in conversation. When this happens, your unit
is not defective. When noise continues, move to a different location while you talk.
(You might even need to move the base unit.) When the situation persists, contact the
National Technical Assistance Center (NTAC).
Dterm Cordless DECT.book Page 6 Friday, December 7, 2007 3:48 PM

Owner’s Guide 2 - 1
___________________________________________________________________________________
Chapter 2 About the Dterm Cordless DECT
SECTION 1 OVERVIEW
DTL-8R-1 is a cordless telephone that is adapted for digital NEC PBX (Private Branch
Exchange). It is designed for use in the office environment.
The Cordless Handset and wired phone cannot be used at the same time.
The Handset and Base Station must have the original ID that is written on each unit at the
factory.
Figure 2-1 System Overview
Dterm Cordless DECT.book Page 1 Friday, December 7, 2007 3:48 PM

2 - 2 About the Dterm Cordless DECT
___________________________________________________________________________________
___________________________________________________________________________________
Document Revision 1 Dterm Cordless DECT
SECTION 2 ITEMS INCLUDED WITH THE Dterm CORDLESS DECT
Congratulations on your purchase of the Dterm Cordless DECT. This telephone is
designed and engineered to exacting standards for reliability, long life, and
outstanding performance. To become familiar with the features of the cordless
telephone, read this manual thoroughly.
The Dterm Cordless DECT includes the following items:
Figure 2-2 Items Included with the Dterm Cordless DECT
Base Unit
Handset
Telephone
Cord
2 AC Adapters
Rechargeable
Battery Belt Clip Charging Unit
Base Stand
Wall Plate Adapter
Dterm Cordless DECT.book Page 2 Friday, December 7, 2007 3:48 PM

Dterm Cordless DECT Document Revision 1
Owner’s Guide 2 - 3
___________________________________________________________________________________
___________________________________________________________________________________
SECTION 3 FEATURES OF THE CORDLESS TELEPHONE
The Dterm Cordless DECT provides a variety of features. These features are listed
below.
T1.9G (1920~1930 MHz)
T5 Channels
TDisplay:
P2 lines, 16-digit LCD
T8 Programmable Keys: 4 Programmable Keys and 4 One Touch Keys
THeadset Jack
TMute Control
TAutoStandby ®
TSeparate Charging Stand with Spare Battery Charging Capability
THandset/Headset/Handsfree Volume Control
TAdjustable Ringer Volume Control
T6 Selectable Ring Tones
TVibrating Ringer
TOut of Range Detection and Alarm Tone
TLCD Backlight
TKey Backlight
TAutomatic Channel Selection
TSingle Key Access to: Conference, Hold, Transfer and Redial features
TLow Battery Protection System
TWall Mountable Separate Base Unit
TWall Mountable Separate Charging Unit
TEasy Installation
TCompact Handset Design
TUse with an NEC Digital Multiline Telephone
The Dterm Cordless DECT can be used in conjunction with the Dterm ®DTP, DTU, DTH,
DTR and DTL Multiline Telephones.
Dterm Cordless DECT.book Page 3 Friday, December 7, 2007 3:48 PM

2 - 4 About the Dterm Cordless DECT
___________________________________________________________________________________
___________________________________________________________________________________
Document Revision 1 Dterm Cordless DECT
SECTION 4 D
term
CONTROLS AND FUNCTIONS
The primary components of the Dterm Cordless DECT consist of the handset and the
base unit. Before using the telephone for the first time, you should become familiar
with the controls and functions of the handset and base unit.
4.1 Handset
The handset is used to make/receive calls. The various buttons and LCD
provide access to and provide indication of the various functions and
operations of the phone. Figure 2-3 Handset Controls and Functions on page
2-5 provides a layout of various controls and functions available with the
handset. For a detailed description of the buttons, refer to Chapter 4 Dterm
Handset, Base Unit and Charging Unit, Section 1 Handset Controls on page
4-1.
Dterm Cordless DECT.book Page 4 Friday, December 7, 2007 3:48 PM
