Ofs Edward Jones BOA User manual

Edward Jones BOA assembly

2ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Table of contents
Lateral file pedestal assembly 3
Wing end assembly 4
Worksurface assembly 5
Credenza assembly 6
Assembled credenza view 7
Height adjustable bridge assembly 8
Main worksurface assembly 9
Back and end panel assembly 10
Desk assembly - part 1 11
Desk assembly - part 2: attaching worksurface 12
Transaction counter assembly 13
Privacy panel assembly 14

3ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials
Lateral file pedestal assembly
Unpack and position lateral file pedestal (E5-3022MFC) near final location.
1. Remove red shipping key
2. Install core/key (located inside the pedestal)
3. Locate HK-15 (used later to attach worksurface)
4. Re-install drawer front pulls facing outward
5. Level the pedestal
INSTRUCTIONS
DETAIL A
SCALE 1 : 2
SHIPPING KEY
HK-15, QTY 8 OF #8 X 1.5"
QUAD PAN HEAD SCREWS
UNPACK & POSITION LATERAL FILE PEDESTAL
(E5-3022MFC) NEAR FINAL LOCATION
REMOVE RED SHIPPING KEY. •
INSTALL CORE/KEY (LOCATED INSIDE •
THE PEDESTAL).
LOCATE HK-15 (USED LATER TO ATTACH •
WORKSURFACE).
RE-INSTALL DRAWER FRONT PULLS •
FACING OUTWARD.
LEVEL THE PEDESTAL. •
Rev:
Dwg:
HK-15
#8 x 1.5" Quad pan head screws
Quantity: 8
Shipping key
Detail A

4ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials
Wing end assembly
Unpack both panels of wing end (E5-7224CR).
Note: Wing end panels are to be used together, not as individual end panels.
1. Locate HK-108, will have three of these kits. Only need one of them for the panels.
2. Install mini-fix bolt into pre-drilled locations.
3. Slide panel together and rotate mini-fix cam clockwise to tighten the panels together.
HK-108
Mini-fix bolts
Quantity: 1 of 3
Pre-drilled hole
for mini-fix bolt HK-108, Qty: 3
of mini-fix bolt
Detail B
Detail C
Detail D Mini-fix cam. Triangle on cam must be pointing
towards the mini-fix bolt to put together.
Assembled wing end
for the user right side
Assembled wing end
for the user left side

5ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials
Worksurface assembly
Unpack worksurface (E5-7224CR).
1. Locate the remaining HK-108, you will need two of them.
2. Install mini-fix bolts into pre-drilled holes. The worksurface has holes for a left or right
configuration, so be sure the bolts are in the right set of holes.
HK-108
Mini-fix bolts
Quantity: 2 of 3
HK-108, Qty: 3
of mini-fix bolt
Underside of worksurface where
the wing end is on the user left side
Pre-drilled hole
for mini-fix bolt
Detail E
Detail F

6ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials
Credenza assembly
1. Remove top drawer from pedestal. Drawer has to be extended all the way out first.
2. Position mini-fix bolts on worksurface into the mini-fix cams on wing end. Rotate mini-fix
cam CLOCKWISE to tighten the worksurface to wing end.
3. Secure worksurface to pedestal with screws (HK-15). Screws start from the underside of the
case spacer in the upper section of the pedestal.
4. Re-install the drawer.
Assembled credenza view on page 7.
INSTRUCTIONS
DETAIL A
SCALE 1 : 2
SHIPPING KEY
HK-15, QTY 8 OF #8 X 1.5"
QUAD PAN HEAD SCREWS
UNPACK & POSITION LATERAL FILE PEDESTAL
(E5-3022MFC) NEAR FINAL LOCATION
REMOVE RED SHIPPING KEY. •
INSTALL CORE/KEY (LOCATED INSIDE •
THE PEDESTAL).
LOCATE HK-15 (USED LATER TO ATTACH •
WORKSURFACE).
RE-INSTALL DRAWER FRONT PULLS •
FACING OUTWARD.
LEVEL THE PEDESTAL. •
Rev:
Dwg:
HK-15
#8 x 1.5" Quad pan head screws
Quantity: 8
HK-15 screws go through these
pre-drilled holes to attach the
pedestal to the worksurface.
Mini-fix cam. Triangle on cam
must be pointing towards the
mini-fix bolt to put together.
To remove the drawer you have to push
down (for the right side) and pull up
(for the left side) on the tab at the same
time while continuing to pull the drawer
away from the pedestal.
Case spacer
Detail H
Detail I
Detail G

7ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Assembled credenza view
Right pedestal credenza assembled Left pedestal credenza assembled
2.0625" Overhang
from back of pedestal

8ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials
Height adjustable bridge assembly
(E5-A4824RT)
1. Attach L-brackets (1 short and 2 long per leg) to legs with M6 x 12mm bolts (Qty: 12).
2. Attach feet to legs with M6-1.0 x 16mm button head cap bolts (Qty: 8).
3. Flip worksurface over where the underside is facing up. Attach legs to the worksurface
by aligning the holes in the L-brackets to the pre-drilled holes on the worksurface. Use
screws from HK-71, #12 x 1" truss head screw.
4. Attach control box to the worksurface by aligning the holes on the control box to
the pre-drilled holes on the worksurface. Use screws from HK-11, #8 x .625" quad flat
M6 x 12mm
Bolts
Quantity: 12
M6-1.0 x 16mm
Bolts
Quantity: 8
HK-71, #12 x 1"
Truss head screws
HK-11, #8 x .625"
Quad flat head screws
HK-92, #8 x 2"
Quad pan head screws
Short
L-bracket
Foot
Leg Desk panel
Long
L-bracket
Control
box
THIS PIECE WILL BE BUILT UP - PAGE IS FOR ILLUSTRATION ONLY
head screw.
5. Attach desk panel to the
worksurface by aligning the
holes on the desk panel to
the pre-drilled holes on the
worksurface. Use screws
from HK-92, #8 x 2" quad
pan head screw.
6. Assemble wires together
from control box to legs.
7. Make sure all wires and cords
are secured and not hanging
below the worksurface.

9ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials
Main worksurface assembly
1. Remove top drawer from pedestal. Drawer has to be extended all the way out first.
2. Position mini-fix bolts on worksurface into the mini-fix cams on wing end. Rotate
mini-fix cam CLOCKWISE to tighten the worksurface to wing end.
3. Secure worksurface to pedestal with screws (HK-15). Screws start from the underside
of the case spacer in the upper section of the pedestal.
4. Re-install the drawer.
HK-109
MOD-EZ Bolt
Quantity: 3
P-drilled hole
Routed line
HK-109, Qty: 3 of Mod-EZ bolt
Detail J
Underside of worksurface where the end
panel is on the user right side

10ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials
Back and end panel assembly
1. Locate other HK-109, MOD-EZ bolt (Qty: 3).
2. Install MOD-EZ bolt into the pre-drilled holes on the back panel. There are two dierent sets
of holes, only use one set.
3. Slide end panel onto back panel. The MOD-EZ bolt will slide into the MOD-EZ clips on the
end panel.
HK-109
MOD-EZ Bolt
Quantity: 3
End panel
Assembly of end panel
on the user right side
Back panel
Pre-drilled hole
HK-109, Qty: 3 of Mod-EZ bolt
Detail K

11ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Materials

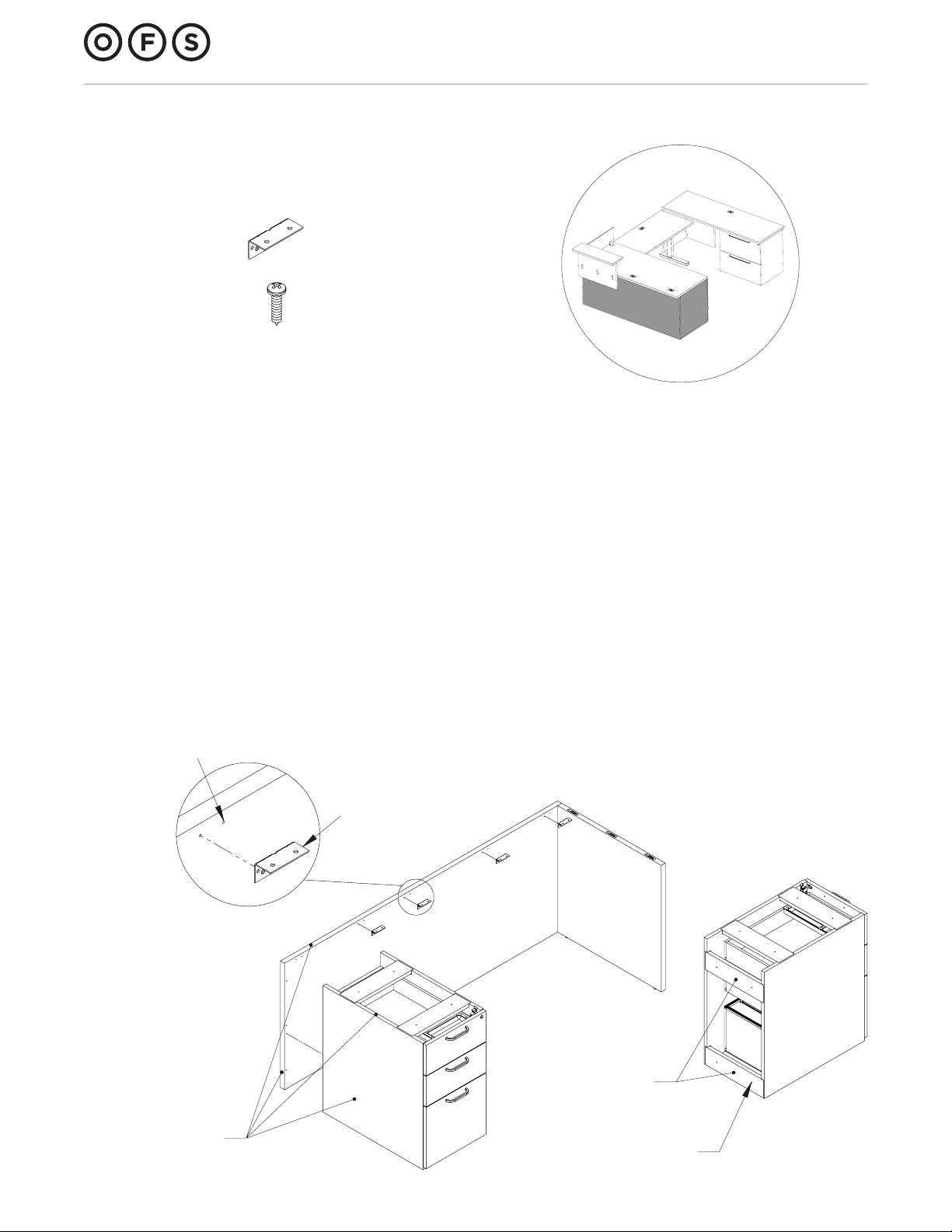

Desk assembly - part 1
(E5-1627BBF)
1. Remove red shipping key.
2. Install core/key (located inside the pedestal).
3. Locate HK-15 (#8 x 1.5" quad pan head screws), used to attach pedestal to back panel
and worksurface.
4. Re-install drawer front pulls facing outward.
5. Level the pedestal.
6. Remove drawers from pedestal to gain access to the case spacer in the back of the
pedestal.
7. Attach pedestal to back panel using HK-15 screws. Make sure back panel and pedestal
is flush on the side and top. Do not put the drawers back in the pedestal. They need to
be out to install the worksurface.
8. Attach HK-10 (L-bracket with screws) to the back panel. Pre-drilled holes are on the
back panel to locate the L-brackets. You will only use 4 sets of the holes - not all 5.
9. Save the left over screws of the HK-10 to attach the L-brackets to the worksurface.
Pre-drilled hole
HK-10, Qty: 4 of L-bracket
Needs to be
flush with
each other
Case spacer
HK-15 screws will go through
these pre-drilled holes to
attach the pedestal to the
back panel and worksurface.
Back view of
E5-1627BBF
Detail L
INSTRUCTIONS
DETAIL A
SCALE 1 : 2
SHIPPING KEY
HK-15, QTY 8 OF #8 X 1.5"
QUAD PAN HEAD SCREWS
UNPACK & POSITION LATERAL FILE PEDESTAL
(E5-3022MFC) NEAR FINAL LOCATION
REMOVE RED SHIPPING KEY. •
INSTALL CORE/KEY (LOCATED INSIDE •
THE PEDESTAL).
LOCATE HK-15 (USED LATER TO ATTACH •
WORKSURFACE).
RE-INSTALL DRAWER FRONT PULLS •
FACING OUTWARD.
LEVEL THE PEDESTAL. •
Rev:
Dwg:
HK-10
L-bracket
Quantity: 4
HK-15
#8 x 1.5" Quad pan head screws
Quantity: 8

12ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Detail M
Detail N
Materials
Desk assembly - part 2: attaching worksurface
1. Align MOD-EZ bolts on the underside of the worksurface with the MOD-EZ clips on the end
panel. Slide the worksurface in place. There should be a 2" overhang on the approach side of
the worksurface.
2. Once the worksurface is in the desired location, attach L-brackets with the left over HK-10
screws. Attach the pedestal to the worksurface with HK-15 screws.
3. Re-install drawers.
4. Put adhesive cam covers over any mini-fix cams once everything is complete.
INSTRUCTIONS
DETAIL A
SCALE 1 : 2
SHIPPING KEY
HK-15, QTY 8 OF #8 X 1.5"
QUAD PAN HEAD SCREWS
UNPACK & POSITION LATERAL FILE PEDESTAL
(E5-3022MFC) NEAR FINAL LOCATION
REMOVE RED SHIPPING KEY. •
INSTALL CORE/KEY (LOCATED INSIDE •
THE PEDESTAL).
LOCATE HK-15 (USED LATER TO ATTACH •
WORKSURFACE).
RE-INSTALL DRAWER FRONT PULLS •
FACING OUTWARD.
LEVEL THE PEDESTAL. •
Rev:
Dwg:
HK-10
L-bracket
HK-15
#8 x 1.5" Quad pan head screws
The worksurface has a routed
line on the underside, which
lines up with this edge on the
back panel. Reference page 8.
HK-15 screws will go through these
pre-drilled holes to attach the pedestal
to the back panel and worksurface.
Mod-EZ clip
Already installed
Side view - 2"
overhang when
assembled
Case spacer

13ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Transaction counter assembly
Step 1
Step 2
E5-TC
Bracket on transaction
counter slides onto the
worksurface
Once transaction counter is in desired
location, tighten the set screw to attach it
to the worksurface. Do not over tighten.
Side view
Detail O
Detail P

14ofs.com imagine a place® 800.521.5381 Assembly instructions
E5 BOA assembly
Privacy panel assembly
E5-PVPA-30/9.5
Must remove film that is over
the suction cup tape before
placing it on the worksurface.
Make sure the worksurface
is clean before placing the
privacy panel.
Privacy panel flipped
upside down
Detail Q
