Ofs Kintra User manual

Kintra assembly instructions

2ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions
Table of contents
Safety instructions 3
One piece top, no shelf assembly 4-5
One piece top, with shelf assembly 6-7
Two piece top, no shelf assembly 8-9
Two piece top, with shelf assembly 10-11

3ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions
Important safety instructions
When using an electrical furnishing, basic precautions should always be followed,
including the following:
This furnishing is made for commercial use only.
Read all instructions before using this furnishing:
DANGER
To reduce the risk of electrical shock:
1. Always unplug this furnishing from the electrical outlet before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from outlet before putting on or taking o parts.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids,
or disabled persons.
3. Use the furnishing only for its intended use as described in these instructions.
Do not use attachments not recommended by the manufacturer.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped in water. Return the furnishing
to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Do not use outdoors.
7. Use only SJT 18 AWG cord.
8. Risk of injury. Maximum load 75 pounds.
To reduce the risk of electric shock, this furnishing has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to
install the proper outlet. Do not change the plug in any way.
Note – servicing is only to be performed by an authorized representative.
Servicing of double-insulated products
In a double-insulated product, two systems of insulation are provided instead of
grounding. No grounding means is provided on a double-insulated product, nor is a
means for grounding to be added to the product. Servicing a double-insulated product
requires extreme care and knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double-insulated product must be identical to
the parts they replace. A double-insulated product is marked with the words “DOUBLE
INSULATION” OR “DOUBLE INSULATED”. The symbol (square within a square) is also
able to be marked on the product.
Save these instructions

4ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions

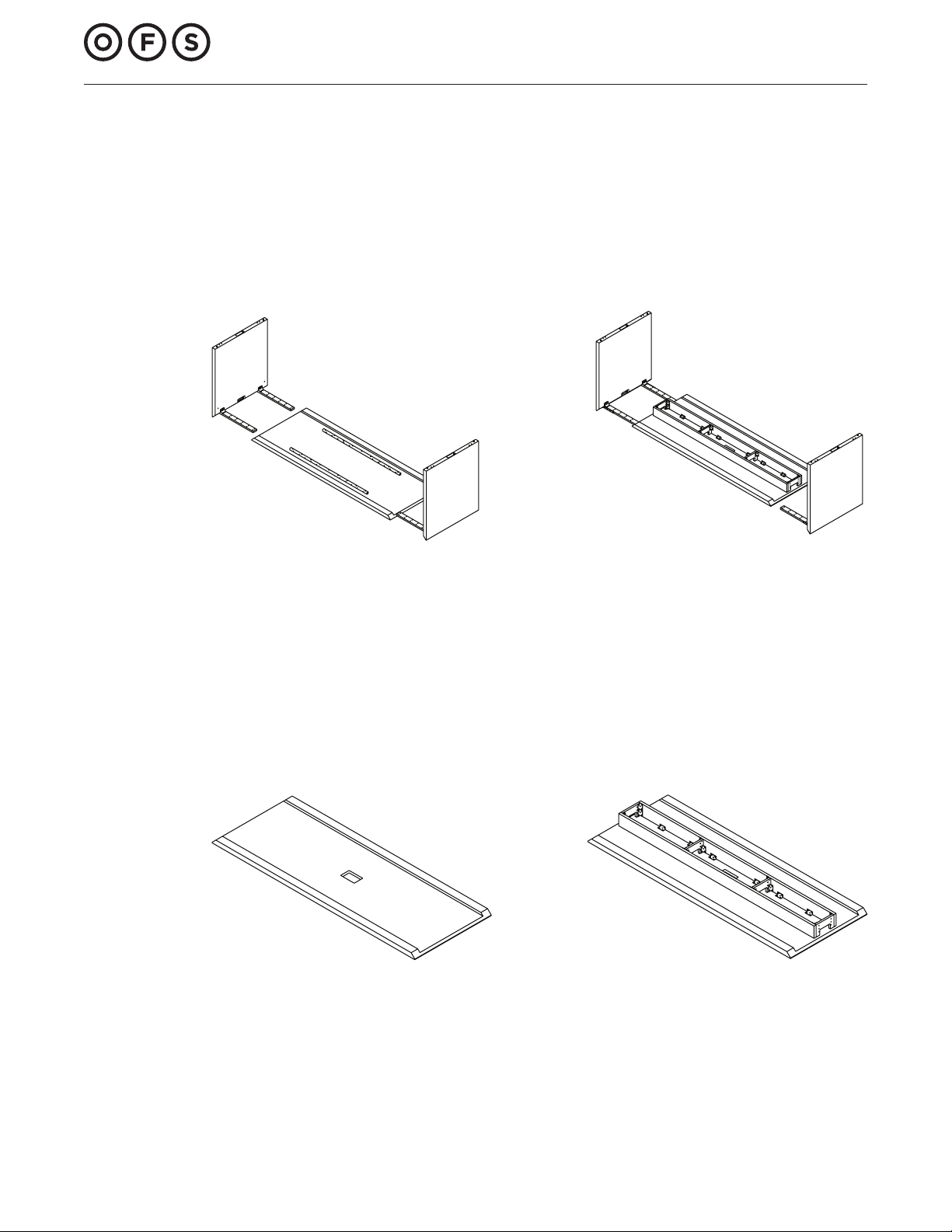

One piece top, no shelf
STEP 1
1. Place top, face side down, on a non marring surface.
non-beam unit beam unit
SHIPPING
1. Images below show how units will be shipped
non-beam unit beam unit

5ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions

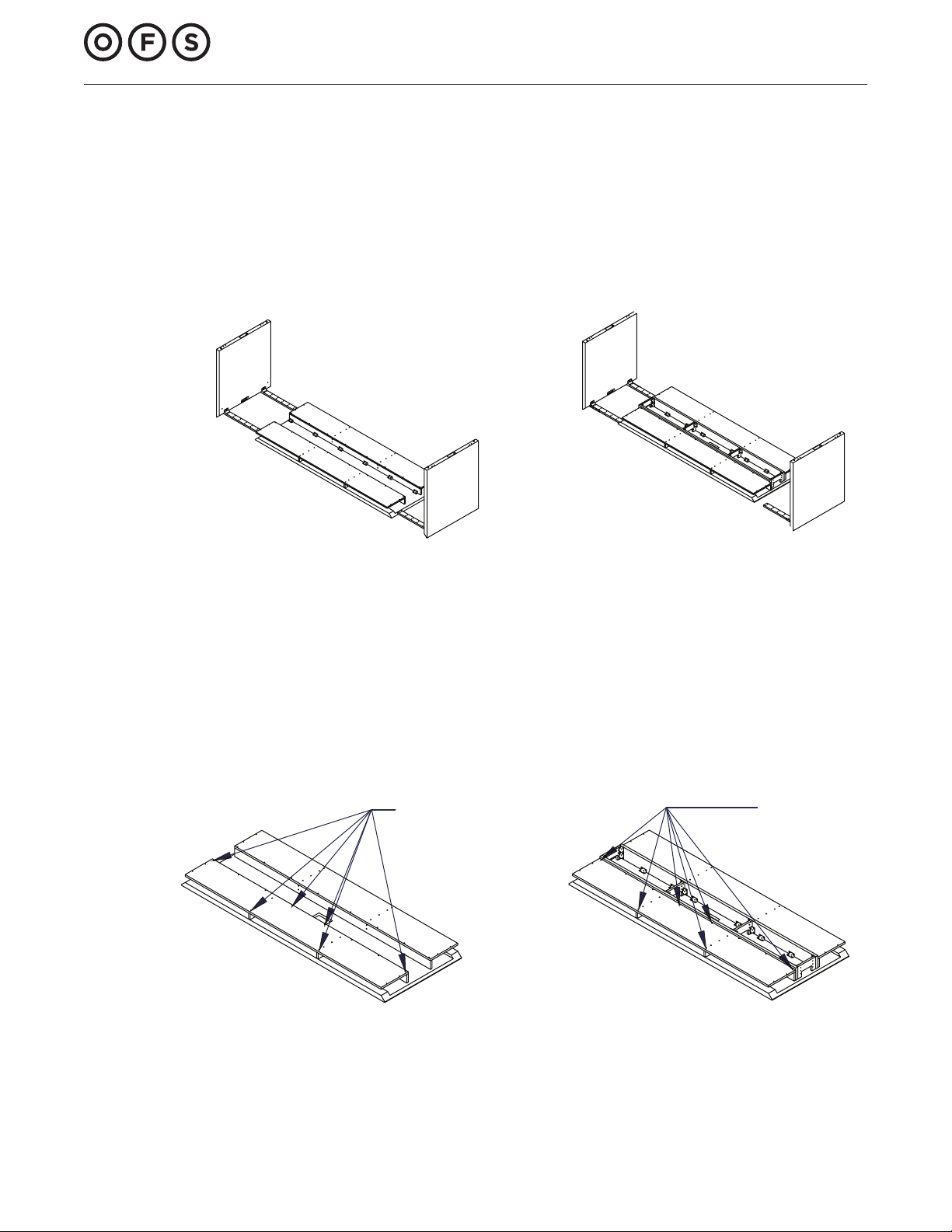

One piece top, no shelf continued
STEP 2
1. Connect end panels to top by pressing mitered edge of end panel to the mitered
edge of top. Ensure that mitered seam is tight and the end panel bottom edge is
aligned along the bottom edge of the miter by using firm pressure when pressing
end panel to surface
2. Use 1 ½” screws from HK-212 to secure the end panel internal leg assemblies to the
top.
3. Non-beam units, move to step 3. For beam units, secure the beam assembly end
panel to the end panel of the unit using 2” screws from HK-102
STEP 3
1. Unit can now be flipped right side up and placed in desired location
Align edge with shelf
Align edge with shelf
HK-102 2" screws
HK-212 1 ½" screws HK-212 1 ½" screws
non-beam unit beam unit
Ensure tight fit when
securing together
Ensure tight fit when
securing together

6ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions
One piece top, with shelf
STEP 1
1. Place top, face side down, on a non marring surface.
2. Remove shipping screws from the shelf bottom and along the back edge,
set to the side.
beam unit with shelf
non-beam unit with shelf
Remove shipping screws
SHIPPING
1. Images below show how units will be shipped
beam unit with shelf
non-beam unit with shelf
Remove shipping
screws

7ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions

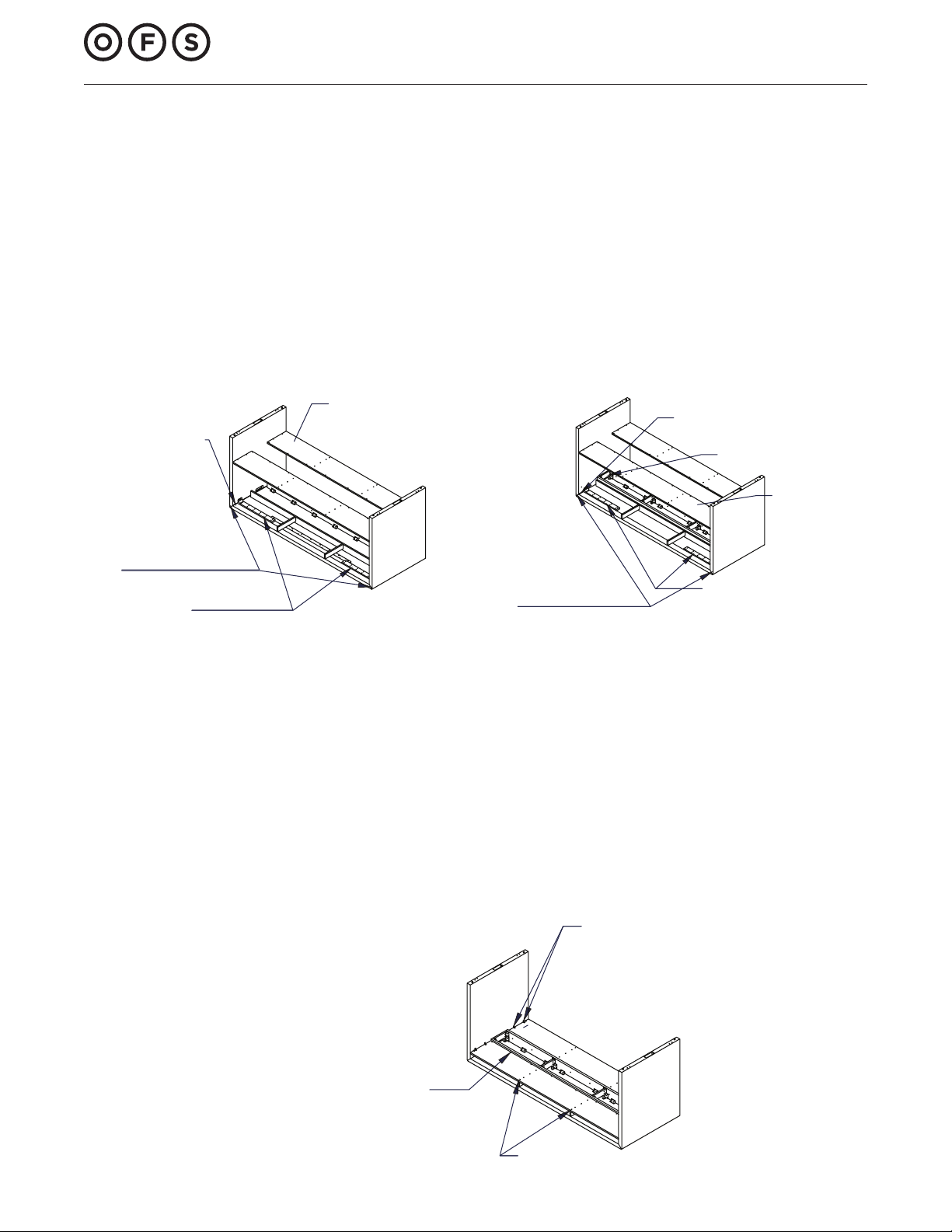

One piece top, with shelf continued
STEP 3
1. Replacing the shelf assembly
a. Remove the 1 ½” outer screws of the divider panels and discard.
b. Replace the shelf bottom onto the dividers. Center the dividers with the
holes in the shelf bottom, use HK-15, 1 ½” screws to re-attach.
c. Install 2” screws into the shelf divider outer holes using HK-92.
d. Using shelf pins from HK-134. Insert pins in pre-drilled hole in end panel of
unit to locate the proper height of the shelf bottom. Using HK-35, secure
end panel to shelf bottom with ½” L-brackets. Shelf bottom will have pre-
drilled location holes showing where to place brackets.
2. Unit can now be flipped right side up and placed in desired location
STEP 2
1. Connect end panels to top by pressing mitered edge of end panel to the mitered
edge of top. Ensure that mitered seam is tight and the end panel bottom edge is
aligned along the bottom edge of the miter by using firm pressure when pressing
end panel to surface
2. Use 1 ½” screws from HK-212 to secure the end panel internal leg assemblies to the
top.
3. Non-beam units, move to step 3. For beam units, secure the beam assembly end
panel to the end panel of the unit using 2” screws from HK-102
beam unit with shelfnon-beam unit with shelf
Shelf bottoms. Set aside
per step 1
Align edge
with shelf HK-102 2" screws
HK-212 1 ½"
screws
Ensure tight fit when
securing together
Align edge with shelf
HK-212 1 ½" screws
Ensure tight fit when
securing together
HK-15 1 ½" screws
HK-92 2" screws
HK-35 L brackets
Shelf bottoms.
Set aside per
step 1

8ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions

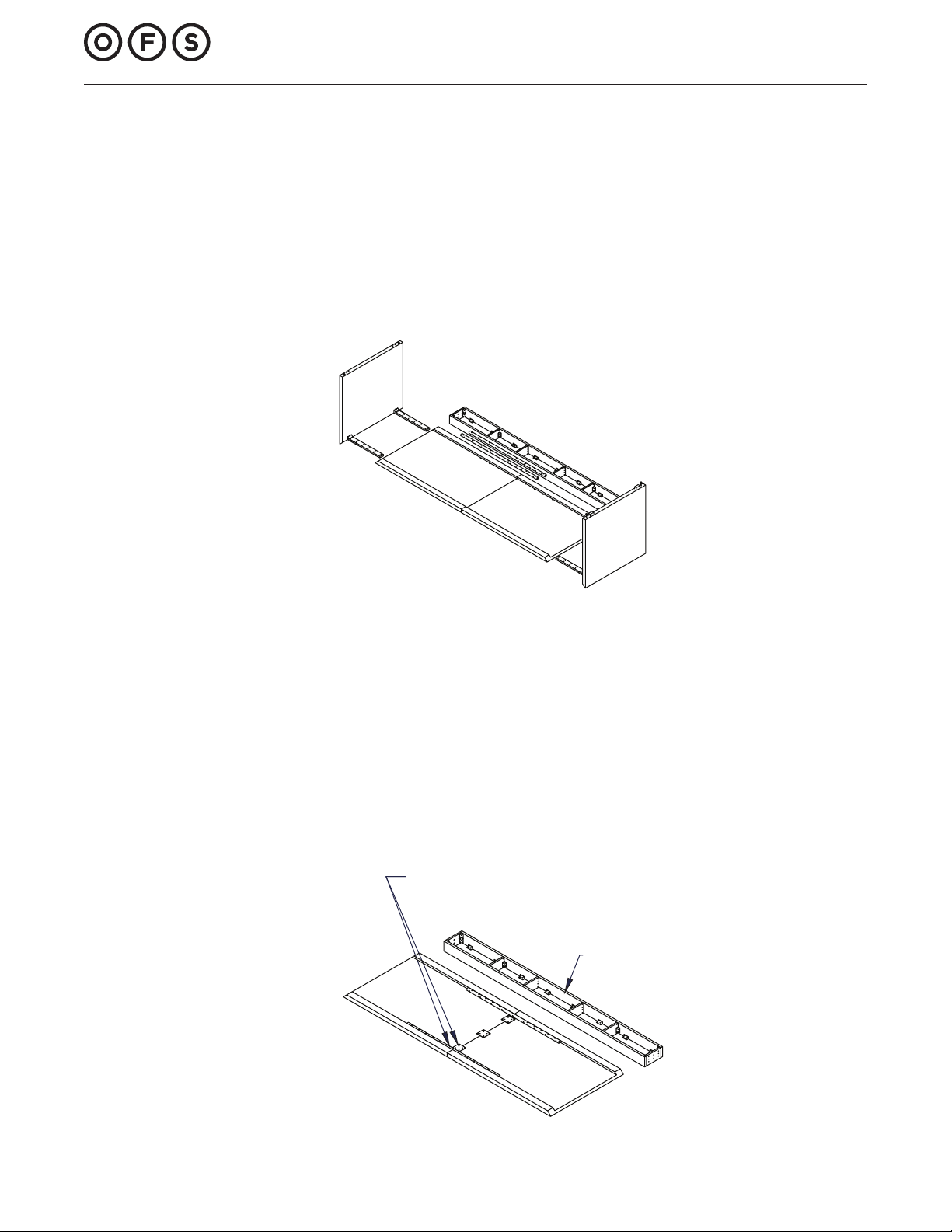

Two piece top, no shelf
STEP 1
1. Place two piece top, face side down, on a non marring surface.
2. Install clamp plates from HK-6. While pulling both sections together making sure
the seam is tight, center the 4x4 plates over the seam and use the screws provided
to attach. Use caution not to locate plates where the long beams of the beam
assembly will sit onto the top.
3. Using ¾" screws from HK-37, attach 1" square tube supports along inside of the
under frame rail of the top. Use pre-drilled location holes to locate.
Install flat plates (HK-6)
and tube supports with
HK-37
Beam assembly is shipped in
seperate carton. Unbox and
set aside
SHIPPING
1. Images below show how unit will be shipped

9ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions
Two piece top, no shelf continued
STEP 2
1. Set the beam assembly onto the top. Do not attach at this time.
2. Connect end panels to top by pressing mitered edge of end panel to the mitered
edge of top. Insure that mitered seam is tight and the end panel bottom edge is
aligned along the bottom edge of the miter.
3. Use 1 ½” screws from HK-212 to secure the end panel internal leg assemblies to the
top.
4. Center the beam unit on the top. Using ¾” screws from HK-37 attach the beam
assembly to the top utilizing the pre attached L-brackets.
5. Secure the beam assembly end panel to the end panel of the unit using 2” screws
from HK-102
STEP 3
1. Unit can now be flipped right side up and placed in desired location
HK-37 3/4" screws to attach
L brackets
Align edge with shelf
Ensure tight fit when
securing together
HK-212 1 ½" screws
HK-102 2" screws

10ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions
Two piece top, with shelf
STEP 1
1. Place top, face side down, on a non marring surface.
2. Install clamp plates from HK-6. While pulling both sections together making sure
seam is tight, center the 4x4 plates over the seam use screws provided to attach.
Use caution not to locate plates where the long beams of the beam assembly will sit
onto the top.
3. Using ¾” screws from HK-37 attach 1” square tube supports along the inside of the
under frame rail of the top. Use pre-drilled location holes to locate.
Install flat plates (HK-6) and
tube supports with HK-37 Beam assembly is shipped in seperate
carton. Unbox and set aside.
Shelves are shipped in seperate
carton. Unbox and set aside.
SHIPPING
1. Images below show how unit will be shipped

11ofs.com imagine a place® 800.521.5381 Assembly instructions
Kintra assembly instructions

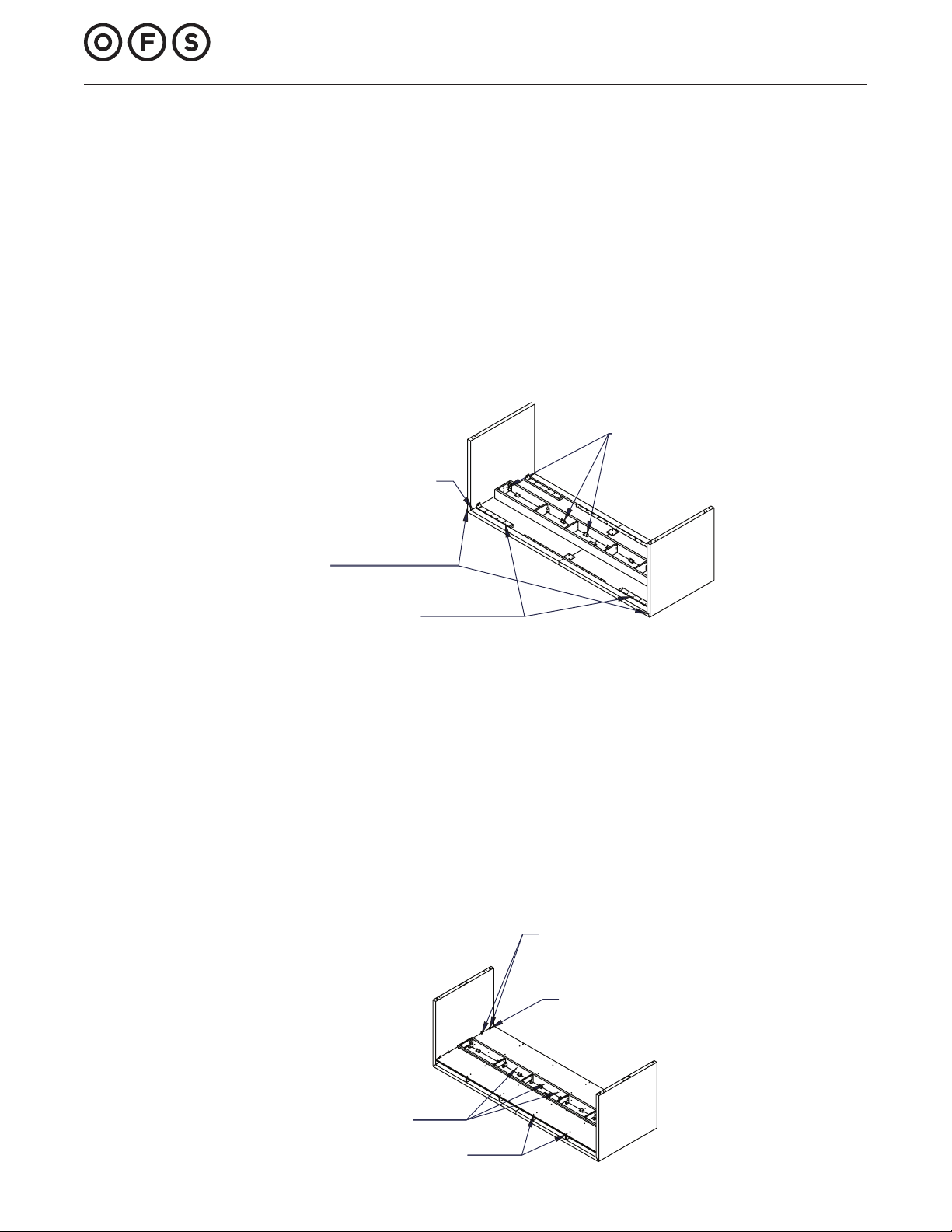

Two piece top, with shelf continued
STEP 2
1. Set the beam assembly onto the top. Do not attach at this time.
2. Connect end panels to top by pressing mitered edge of end panel to the mitered edge of top.
Insure that mitered seam is tight and the end panel bottom edge is aligned along the bottom
edge of the miter.
3. Use 1 ½” screws from HK-212 to secure the end panel internal leg assemblies to the top.
4. Center the beam unit on the top. Using ¾” screws from HK-37 attach the beam assembly to the
top utilizing the pre attached L-brackets.
5. Secure the beam assembly end panel to the end panel of the unit using 2” screws from HK-102
STEP 3
1. Intalling the shelf assemblies
a. The shelf assemblies for 2 pc units are shipped in their own packaging or secured as
separate pieces with the tops and beams.
b. Place a shelf assembly on each side of the beam assembly.
c. Secure the back panel of the shelf assembly to the beam rail using 1 ½” screws from
HK-15 through the pre-drilled holes in the beams into the back of shelf assembly.
d. Install 2” screws into the shelf divider outer holes using HK-92.
e. Using shelf pins from HK-134. Insert pins in pre-drilled hole in end panel of unit to
locate the proper height of the shelf bottom. Using HK-35, secure end panel to shelf
bottom with ½” L-brackets. Shelf bottom will have pre-drilled location holes showing
where to place brackets.
2. Unit can now be flipped right side up and placed in desired location
HK-37 3/4" screws to attach L
brackets. Use HK-102 2" screws for
beam to end panel attachment
Align edge with shelf
Ensure tight fit when
securing together
HK-212 1 ½" screws
HK-15 1 ½" screws
HK-92 2" screws
HK-35 L brackets
HK-134 shelf pins
