Toro 41622 User manual

FormNo.3413-915RevA
ChemicalPre-MixKit
2015andAfterMulti-Pro5800TurfSprayer
ModelNo.41622—SerialNo.400000000andUp
InstallationInstructions
Thiskitisdesignedtoaidinthemixingofchemicalsin
preparationforturfsprayapplicationsonwell-maintained
lawnsinparks,golfcourses,sportselds,andoncommercial
grounds.Itisadedicatedattachmentforaturfspray
applicationvehicleandisintendedtobeusedbyprofessional,
hiredoperatorsincommercialapplications.
ThisproductcomplieswithallrelevantEuropeandirectives;
fordetails,pleaseseetheseparateproductspecicDeclaration
ofConformity(DOC)sheet.
Readthismanualcarefullytolearnhowtooperateand
maintainyourproductproperly.Theinformationinthis
manualcanhelpyouandothersavoidinjuryandproduct
damage.AlthoughTorodesignsandproducessafeproducts,
youareresponsibleforoperatingtheproductproperlyand
safely.
YoumaycontactTorodirectlyatwww.Toro.comforproduct
safetyandoperationtrainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1illustratesthelocationofthe
modelandserialnumbersontheproduct.
g028632
Figure1
1.Modelandserialnumberplate
ModelNo.
SerialNo.
WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Useofthisproductmaycauseexposureto
chemicalsknowntotheStateofCalifornia
tocausecancer,birthdefects,orother
reproductiveharm.
©2017—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3413-915*A

Safety
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafety-alertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
g000502
Figure2
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
WARNING
Chemicalsubstancesusedinthespraysystemmay
behazardousandtoxictoyou,bystanders,animals,
plants,soils,orotherproperty.
•Carefullyreadandfollowthechemical
warninglabelsandmaterialsafetydata
sheets(MSDS)forallchemicalsused,and
protectyourselfaccordingtothechemical
manufacturer'srecommendations.Forexample,
useappropriatepersonalprotectiveequipment
(PPE),includingfaceandeyeprotection,gloves,
orotherequipmenttoguardagainstpersonal
contactwiththechemical.
•Keepinmindthattheremaybemorethan
1chemicalused,andyoushouldassess
informationoneachchemical.
•Refusetooperateorworkonthesprayerifthis
informationisnotavailable!
•Beforeworkingonaspraysystem,makesure
thatthesystemhasbeentriplerinsedand
neutralizedaccordingtotherecommendations
ofthechemicalmanufacturer(s).
•Verifythatthereisanadequatesupplyofclean
waterandsoapnearby,andimmediatelywash
offanychemicalsthatcontactyou.
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedormissing.
decal93-6674
93-6674
1.Crushinghazard,hand—readtheinstructionsbefore
servicingorperformingmaintenance.
decal119-4988
119-4988
1.Lock2.Unlock
2

Installation
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1Nopartsrequired–Preparetoinstallthekit.
Eductorvalvebracket(Thebracketmay
alreadybeinstalledfromapreviouskit
installation)
1
Flange-headbolt(5/16x3/4inch)2
Flangelocknut(5/16inch)2
Washer(5/16inch)2
Eductorvalveassembly1
Flangenut(1/4inch)2
Agitationbypass-hoseassembly25x
305mm(1x12inches)1
Pressurerelief-hose1
2
Supply-hoseassembly1
Installtheeductorvalveandhoses.
Eductormount1
Flangelocknut(5/16inch)1
Backplateassembly1
Rightcradlearm1
Leftcradlearm1
Bushing2
Pivotpin2
Jamnut(3/8inch)2
Handle2
Bolt(3/8x1-1/4inches)2
Setscrew2
Hairpin2
3
Flatwasher2
Assembletheframe.
4Spring2Installthelatchingcomponents.
Handle1
Socket-headscrew(#10-24x1/2inch)2
Latchpost1
Springclip1
Bolt(#10-24x1/2inch)2
Locknut(#10-24)2
Eductor1
Flange-headbolt(5/16x3/4inch)2
Flanged-locknut(5/16inch)2
Latchhandle1
Bolt(3/8x1inch)4
Flanged-serratednut(3/8inch)4
T-ttinganddrainvalve1
Gasket1
5
Flangeclamp1
Installtheeductor.
3

ProcedureDescriptionQty.Use
Bulkheadtting1
Seal1
Lockingring1
Carriagebolt(5/16x1inch)1
Eductorhoseassembly1
Flangelocknut(5/16inch)1
Retainer1
R-clamp(5/16inch)1
Gasket1
6
Flangeclamp1
Installtheforwardhose.
Eductorsupplyhose1
Flangeclamp1
Gasket1
7Retainer1
Installthesupplyhose.
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
1
PreparingtoInstalltheKit
NoPartsRequired
Procedure
1.Cleanthesprayer;refertoCleaningtheSprayerinthe
Operator’sManualforthemachine.
2.Parkthemachineonalevelsurface,engagetheparking
brake,shutofftheengine,andremovethekey;referto
theOperator’sManual.
2
InstallingtheEductorValve
andHoses
Partsneededforthisprocedure:
1Eductorvalvebracket(Thebracketmayalreadybe
installedfromapreviouskitinstallation)
2Flange-headbolt(5/16x3/4inch)
2Flangelocknut(5/16inch)
2Washer(5/16inch)
1Eductorvalveassembly
2Flangenut(1/4inch)
1Agitationbypass-hoseassembly25x305mm(1x
12inches)
1Pressurerelief-hose
1Supply-hoseassembly
RemovingtheHoses
1.Movetotherearofthemachineandlocatethe
valve-mountbracket.
2.Removethe3hosesshowninFigure3.
Note:Retainthehoseclamps,gaskets,andretainers
forinstallationinInstallingtheBracketandEductor
ValveAssembly(page6),InstallingtheAgitation
BypassHose(page7)andInstallingthePressure
Relief-HoseAssembly(page7);discardthe3hoses.
4

g204657
Figure3
1.Hoses
RepositioningthePressureRelief
ValveandUpperT-Fitting
1.Removetheretainerthatsecuresthepressure-relief
valvetotheT-ttingatthesprayerpump,andremove
thereliefvalve(Figure4).
g031627
Figure4
1.Retainer4.Rotatethepressure-relief
valve
2.T-tting5.Down
3.Pressure-reliefvalve
2.RotatethepressurereliefvalveupasshowninFigure4.
Note:Alignoutletofthepressure-reliefvalve
rearward.
3.Insertthepressure-reliefvalveintothetopofthe
T-ttinguntilthevalveisfullyseated(Figure4).
4.Securethepressure-reliefvalvetotheT-ttingwiththe
retainerthatyouremovedinstep1.
5.RotatetheupperT-ttingapproximately45°clockwise
(Figure5).
5

g204682
Figure5
1.UpperT-tting2.LowerT-tting
InstallingtheBracketandEductor
ValveAssembly
1.Assemblethevalvemountbrackettothefrontofthe
valvesupport(Figure6)withthe4ange-headbolts
(5/16x3/4inch),4angelocknuts(5/16inch),and4
washers(5/16inch).
g204705
Figure6
1.Flangelocknut(5/16inch)4.Valvesupport
2.Washer(5/16inch)5.Flange-headbolt(5/16x
3/4inch)
3.Valvemountbracket
2.Aligntheangeofthereduceradapter(eductorvalve)
totheangeofthepressure-lterhead(Figure7)with
thegasketthatyouremovedinstep2ofRemoving
theHoses(page4).
g204708
Figure7
1.Flangelocknut(1/4inch)5.Reduceradapter
2.Valvemountbracket6.Gasket
3.Flange(pressurelter
head)
7.Flangeclamp
4.Stud(eductorvalve)
3.Alignthestudsofthepressure-lterheadthroughthe
holesinthevalvemountbracket(Figure7).
4.Assembletheangeofthereduceradaptertothe
angeofthepressure-lterhead(Figure7)withthe
angeclampthatyouremovedinstep2ofRemoving
theHoses(page4).
5.Securetheeductorvalvetopthevalvemountbracket
withthe2angelocknuts(1/4inch),andtorquethe
nutsto1017to1243N∙cm(90to110in-lb).
6.Tightentheangeclampbyhand.
6

InstallingtheAgitationBypass
Hose
1.Alignthe90°barbedttingofthenewagitation
bypass-hoseassemblywiththeopenportintheupper
T-ttingandinsertthe90°ttinguntilitisseatedin
theT-tting(Figure8).
g206975
Figure8
1.Retainer6.90°barbedtting
2.Port(upperT-tting)7.Hose25x305mm(1
x12inches—agitation
bypass-hoseassembly)
3.Uppersuctionhose
(sprayertank)
8.Straightangetting
4.Gasket9.Flangeclamp
5.Flange(agitationvalve)
2.Securethe90°barbedttingtotheT-ttingwith
theretainer(Figure8)thatyouremovedinstep2of
RemovingtheHoses(page4).
3.Alignthestraightangettingofthenewagitation
bypass-hoseassemblyandthegasketwiththeangeof
thebypassvalve(Figure8).
4.Securethestraightangettingandgaskettothe
bypassvalvewiththeangeclamp(Figure8)thatyou
removedinstep2ofRemovingtheHoses(page4).
InstallingthePressureRelief-Hose
Assembly
1.Alignthe90°ttingofthepressurerelief-hose
assemblywiththeopenportintheupperT-tting
(locatedbelowthepressure-reliefvalve),andinsertthe
90°ttinguntilitisfullyseated(Figure9).
g206976
Figure9
1.UpperT-tting(belowthe
pressure-reliefvalve)
4.LowerT-tting
2.Retainer5.90°barbedtting(
3.UpperT-tting6.Pressurerelief-hose
2.Securethe90°T-ttingwiththeretainer(Figure9)that
youremovedinstep2ofRemovingtheHoses(page4).
3.Aligntheother90°ttingofthepressurerelief-hose
assemblywiththeopenportofthelowerT-tting
(securetothevalvemount)andinsertthe90°tting
untilitisfullyseated(Figure9).
4.Securethe90°ttingtotheupperT-ttingwiththe
retainer(Figure9)thatyouremovedinstep2of
RemovingtheHoses(page4).
7

InstallingtheSupply-Hose
Assembly
1.Aligntheother90°ttingofthesupply-hoseassembly
withtheopenportofthelowerT-ttingatthesprayer
pumpandinsertthe90°ttinguntilitisseated(Figure
10).
g031669
Figure10
1.LowerT-tting(sprayer
pump)
3.90°barbedtting
2.Retainer4.Supply-hoseassembly
2.Securethe90°ttingtotheT-ttingatthesprayer
pumpwiththeretainer(Figure10)thatyouremovedin
step1ofRepositioningthePressureReliefValveand
UpperT-Fitting(page5).
3.Alignthestraight-barbedttingofthepressure-hose
assemblywiththebottomportoftheeductorvalveand
insertthestraightttinguntilitisseated(Figure11).
g204731
Figure11
1.Eductorvalve3.Supply-hoseassembly
2.Retainer
4.Securethestraight-barbedttingtotheeductorvalve
(Figure9)witharetainer.
8

3
AssemblingtheFrame
Partsneededforthisprocedure:
1Eductormount
1Flangelocknut(5/16inch)
1Backplateassembly
1Rightcradlearm
1Leftcradlearm
2Bushing
2Pivotpin
2Jamnut(3/8inch)
2Handle
2Bolt(3/8x1-1/4inches)
2Setscrew
2Hairpin
2Flatwasher
InstallingtheSupportFrameto
theTank
1.Removethe2angelocknutssecuringthetank-lidstop
tothe2carriageboltsattherearstrapofthesprayer
tank,andremovethetank-lidstop(Figure12).
Note:Retainthetank-lidstopandangelocknut.
g204770
Figure12
1.Tank-lidstop3.Carriagebolt
2.Flangelocknut
2.Aligntheslotsintheeductormounttothe2lower
carriageboltsofthereartankstrapasshowninFigure
13.
g204768
Figure13
1.Slots(eductormount)3.Carriagebolt
2.Flangelocknut(5/16inch)
3.Looselyassembletheangelocknut(5/16inch)onto
thelowercarriagebolt(Figure13).
4.Assemblethetank-lidstopand2angelocknutthat
youremovedinstep1ontothe2uppercarriagebolts
(Figure14).
g204769
Figure14
1.Flangelocknut(5/16inch)3.Tank-lidstop
2.Carriagebolt4.Eductormount
5.Torquethe3angelocknutsto1978to2542N∙cm
(175to225in-lb).
9

PreparingtheCradleArms
1.Assemblethepivotpinthroughtheupperholeinthe
cradlearm(Figure15).
g028600
Figure15
1.Cradlearm(left)5.Jamnut(3/8inch)
2.Bolt(3/8x1-1/4inches)6.Handle
3.Upperhole(Cradle
arm—left)
7.Lowerhole(Cradle
arm—left)
4.Pivotpin
2.Applymedium-grade,thread-lockingcompoundtothe
threadsofthebolt(3/8x1-1/4inch).
3.Assemblethebolt(3/8x1-1/4inch)throughthelower
holeinthecradlearmandtheretainerofthepivotpin
(Figure15)withthejamnut(3/8inch),andtightenthe
jamnutto15to17N∙m(11to13ft-lb).
4.Threadthehandleontothebolt(3/8x1-1/4inch)and
tightenthehandleagainstthejamnutandtightenthe
handlebyhand(Figure15).
5.Repeatsteps1through4totheothercradlearm
(Figure15).
AssemblingtheCradleArmsto
theSupportFrame
1.Insertaangedbushing(3/4inchinsidediameter)into
eachendofthepivottubeinthemain-supportframe
(Figure16).
g206977
Figure16
1.Upperpivotpins(1/2inch)6.Cradlearm(left)
2.Flangedbushings(1/2
inchinsidediameter)
7.Hub(leftcradlearm)
3.Hubs(backplate—leftand
right)
8.Flangedbushings(3/4
inchinsidediameter)
4.Washers(1/2inch)9.Pivottube(main-support
frame)
5.Hairpins10.Lowerpivotpin(3/4
inch—rightcradlearm)
2.Insertaangedbushing(1/2inchinsidediameter)into
theleftandrighthubsofthebackplate(Figure16).
Note:Ensurethattheangeofthebushingsare
alignedtotheoutwardsideofthehubs.
3.Assemblethelowerpivotpinoftherightcradlearm
throughtheangedbushingattherightsideofthe
pivottubeandthepivot(Figure16).
Note:Aligntheupperpivotpinofthearmwiththe
righthubofthebackplate.
4.Assembletheupperpivotpinoftherightcradlearm
throughtherighthubofthebackplate(Figure16).
5.Securetheupperpivotpintothebackplatewitha
washers(1/2inch)andhairpin(Figure16).
6.Assemblethehuboftheleftcradlearmovertheend
ofthelowerpivotpinoftherightcradlearmthatis
protrudingtotheleftoftheleftangedbushingin
pivottube(Figure16).
Note:Aligntheupperpivotpinofthearmwiththe
lefthubofthebackplate.
7.Assembletheupperpivotpinoftheleftcradlearm
throughthelefthubofthebackplate(Figure16).
8.Securetheupperpivotpinoftheleftcradlearmto
thebackplatewithawasher(1/2inch)andhairpin
(Figure16).
10

9.Install2setscrewstotheleftarmatthelowerhinge
point(Figure17).
Note:Donottightenthesetscrewatthistimeto
allowforlateradjustmentofthecradlesystem.
g013929
Figure17
1.Cradlearm(left)3.Setscrew
2.Pivottube4.Holesincradlearm
4
InstallingtheLatching
Components
Partsneededforthisprocedure:
2Spring
InstallingtheSprings
1.Installthespringintheholeinthelowerendofthe
angledtabonthesideoftheframeassembly(Figure
18).
G013931
12
3
4
5
g013931
Figure18
1.Angledtab4.Post
2.Holeintab5.Groove
3.Spring
2.Hook1endofthespringintotheholeandtheother
endontothespringpost(Figure18).
3.Makesurethatthespringendisseatedproperlyinthe
grooveinthepost(Figure18).
4.Repeatsteps1through3fortheotherside.
5.Tightenthe2setscrewsintheleftarm.
AdjustingtheTonguePosition
Movethecradleassemblyintotheuppertransportposition
toadjustthetongue.
1.Liftuponthehandlestoraisetheassemblywhile
slightlytippingittowardthetank.
2.Guidethetongueunderthecrossbarwiththewelded
tabintheupperportionoftheframeassembly.
3.Lettheassemblypivotdown,towardthetank.
4.Makingsurethattheplasticstopsareincontactwith
thespringtabs,applyenoughpressureagainsttheback
plateassemblyofthecradletocompressthespring
tabsmidway(Figure19).
11

g013932
Figure19
1.Springtabunderpressure3.Springtab
2.Backplate
5.Whilemaintainingthepressureonthebackplate,slide
thetonguetowardyouuntilthelipofthetongueplate
contactsthecrossbar(Figure20).
g013933
Figure20
1.Tongue-platelip3.Slotinplate
2.Fasteners4.Weldedtab
6.Tightenthefastenersinthetonguetosecureits
position,thenreleasepressureonthebackplate.
Note:Checktoseeifthereisanyplayinthecradle.
Itshouldbeheldsnugtotheframeassembly.Youcan
repeatthisprocedureoncetheeductorisinstalledto
adjustthelockedposition.
5
InstallingtheEductor
Partsneededforthisprocedure:
1Handle
2Socket-headscrew(#10-24x1/2inch)
1Latchpost
1Springclip
2Bolt(#10-24x1/2inch)
2Locknut(#10-24)
1Eductor
2Flange-headbolt(5/16x3/4inch)
2Flanged-locknut(5/16inch)
1Latchhandle
4Bolt(3/8x1inch)
4Flanged-serratednut(3/8inch)
1T-ttinganddrainvalve
1Gasket
1Flangeclamp
AssemblingtheEductorHandle
Note:Youcaninstallthelatchhandleandlatchpostateither
theleftorrightsideoftheeductorhandle.
1.Assemblethelatchposttothehandleoftheeductor
(Figure21)usingthe2socket-headscrews(#10-24x
1/2inch).
12

g028604
Figure21
1.Latchpost7.Springclip
2.Socket-headscrew
(#10-24x1/2inch)
8.Bolt(#10-24x1/2inch)
3.Eductorhandle9.Flange-headbolt(5/16x
3/4inch)
4.Eductorassembly10.Locknut(#10-24)
5.Flangelocknut11.Latchhandle
6.Mountplate(eductor)
2.Assemblethespringcliptothelatchhandle(Figure21)
withthe2bolts(#10-24x1/2inch)and2locknuts
(#10-24).
3.Assemblethehandletothemountplatefortheeductor
(Figure21)with2ange-headbolts(5/16x3/4inch)
andangelocknuts(5/16inch).
4.Lowerthecradleintothedownposition.
AssemblingtheEductortothe
Sprayer
1.Aligntheholesintheeductormountplatewiththe
slotsinthecradlesupportframe(Figure22).
Note:Thefastenersneedtobelooseenoughsothat
theycantravelintheslotwhentheeductorisinitially
raisedupintothetransportposition.Thisallowsyou
toadjustthetravelandalignmentoftheeductor.
g023128
Figure22
1.Bolt(3/8x1inch)4.Eductorassemblymount
hole
2.Backplate5.Eductorassemblymount
3.Flanged-serratednut(3/8
inch)
2.Install4bolts(3/8x1inch)andlocknuts(3/8inch)to
mounttheeductor.
Note:Donottightentheboltsatthistime.
3.Tocarefullyraisetheeductorinthecradleassemblyup
tothetransportposition,dothefollowing:
A.Liftthelowerhandletoraisetheeductorwhile
slightlytippingittowardthetank.
B.Guidethetongueunderthecrossbarwiththe
weldedtabintheupperportionoftheframe
assembly.
C.Thenpivottheassemblytowardthetank,taking
caretolineupthespringclipwiththelargepivot
tubeinthelowerportionoftheframe.
D.Pushuntilthespringclipsnapsoverthepivot
tubeasshowninFigure23.
13

g023129
Figure23
1.Springclip2.Pivottube
4.Checktheeductorheightonthecradlebackplateand
adjustasnecessary.
5.Tightenthefastenerssecuringtheeductortothecradle.
Note:Torquethefastenersto36to45N∙m(27to
33ft-lb).
6.Tightenthe2setscrewsonthelefthandpivotarm,
refertoFigure17inAssemblingtheCradleArmsto
theSupportFrame(page10).
7.Checktheoverallpositionoftheeductorassemblyon
thetankstrap.
Note:Theeductorshouldbeupright,inthetransport
position.Loosenthelowerlocknutontheframe
assemblysecuringittothetank.Donotremovethe
locknut.Adjustthepositionasnecessaryandtighten
thelocknut.Makesurethatthestrapissecuretothe
tank.
AssemblingtheT-ttingandDrain
Valve
1.AligntheangeoftheT-ttingforthedrainvalvewith
theforwardangeoftheeductor(Figure24).
Note:Ensurethatthehandleforthedrainvalveis
locatedoutward.
g205932
Figure24
1.Flange(T-tting—drain
valve)
3.Gasket
2.Flangeclamp4.Forwardange(eductor)
2.AssembletheT-ttingtotheeductorwithagasketand
angeclamp,andtightentheclampbyhand(Figure
24).
6
InstallingtheForwardHose
Partsneededforthisprocedure:
1Bulkheadtting
1Seal
1Lockingring
1Carriagebolt(5/16x1inch)
1Eductorhoseassembly
1Flangelocknut(5/16inch)
1Retainer
1R-clamp(5/16inch)
1Gasket
1Flangeclamp
DrillingtheTank
1.Openthelidofthespraytankandremovethelter
basket(Figure25).
14

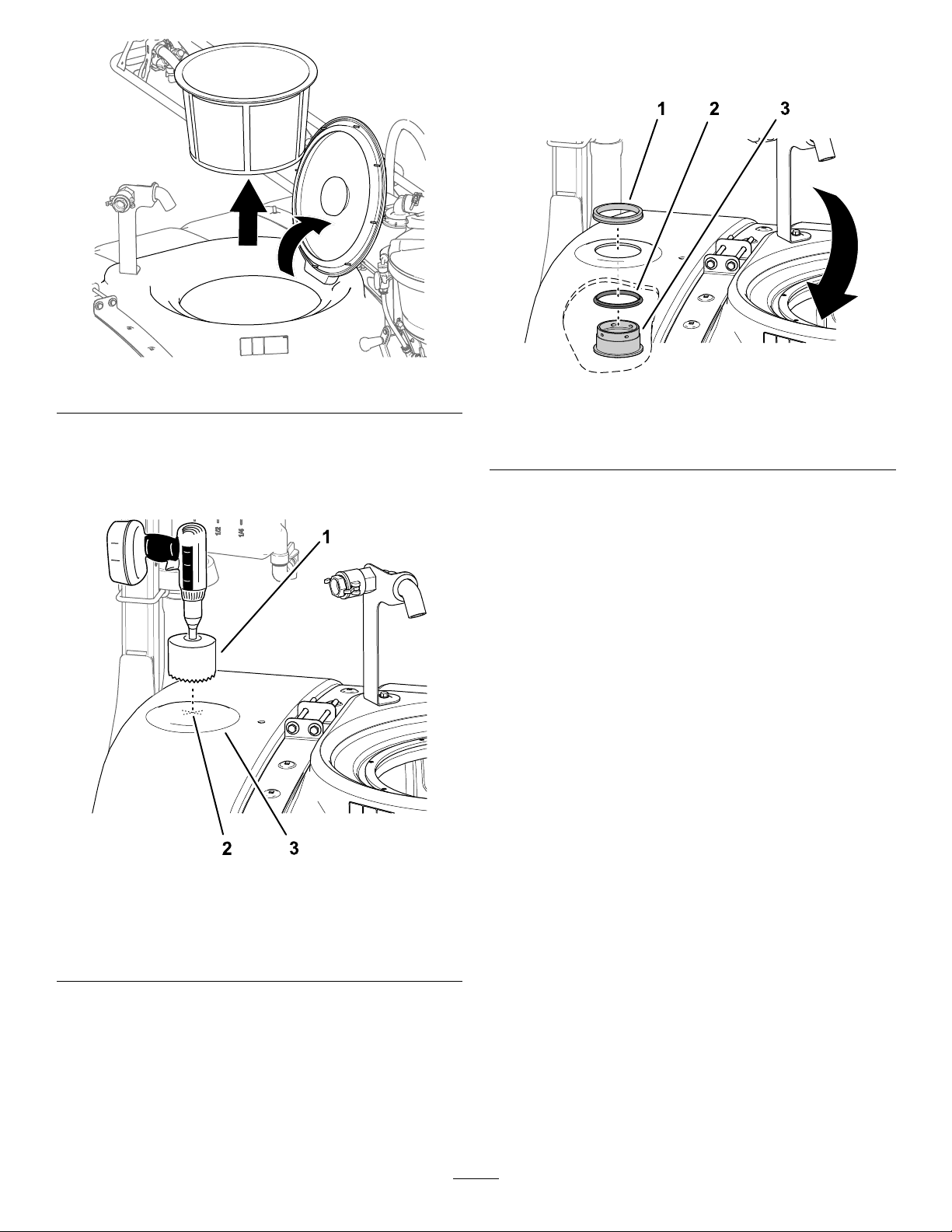

g205920
Figure25
2.Locatetheforwardlocationonthetopofthetankas
showninFigure26.
Note:Locatethedrillmarkinthecenterofthe
moldedcircle.
g205886
Figure26
1.Drillwithholesaw9cm
(3-5/8inch)
3.Moldedcircle
2.Drillatthecenterofthe
moldedcircle
3.Usea9cm(3-5/8inch)holesawtodrillaholeatthe
drillmark(Figure26).
Note:Youwillneedtoincreasethediameterslightly
toaccommodatethebulkhead.
4.Afterdrillingthehole,removeanyroughedgesinthe
cut,andremoveanydebristhatenteredthespraytank
duringthecuttingprocess.
InstallingtheBulkhead
1.Installthesealoverthebulkheadtting(Figure27).
g205887
Figure27
1.Lockingring3.Bulkheadtting
2.Seal
2.Installthebulkheadttingandthesealthroughthe
holethatyoucreatedinDrillingtheTank(page14),
frominsidethetank(Figure27).
3.Securethebulkheadtothetankwiththelockingring
(Figure27).
4.Installthelterbasketandclosethelidofthespray
tank.
15

InstallingtheEductorHose
Assembly
1.Removethe2bolts(3/8x7inches),4washers(3/8
inch),and2locknuts(3/8inch)thatsecurethefront
straphalvesofthespraytank(Figure28).
g205922
Figure28
1.Bolt(3/8x7inches)4.Carriagebolt(5/16x1
inch)
2.Flangelocknut(3/8inch)5.Secondhole—straphalf
(spraytank)
3.Washer(3/8inch)
2.Insertthecarriagebolt(5/16x1inch)intothesecond
holeinthestraphalfasshowninFigure28.
3.Assemblethe2frontstraphalveswiththe2bolts4
washers,and2locknutsthatyouremovedinstep1,
andtightentheboltsandnutsbyhand(Figure28).
4.InstallanR-clampovereductorhoseassembly(Figure
29).
g205925
Figure29
1.90ºbarbedtting5.Bulkheadtting
2.Eductorhoseassembly6.R-clamp(5/16inch)
3.Flangelocknut(5/16inch)7.Carriagebolt(5/16x1
inch)
4.Retainer
5.Assemblethe90ºbarbedttingoftheeductorhose
assemblyintothebulkheadttingandsecurethe
barbedttingtothebulkheadttingaretainer(Figure
29).
6.LooselyassembletheR-clampontothecarriagebolt
andsecuretheclamp(Figure29)withaangelocknut
(5/16inch).
Note:Youwilltightentheangenutaftertheother
endoftheeductorhoseassemblyisinstalled.
7.Attachthestraight-barbttingoftheeductorhose
assemblytotheangeoftheT-ttingfortheeductor
usingagasketandangeclamp,andtightentheclamp
byhand(Figure30).
16

g205926
Figure30
1.Straight-barbtting
(eductorhoseassembly)
3.Gasket
2.Flangeclamp4.Flange(T-tting—eductor
assembly)
8.Raiseandlowerthehandleoftheeductortoensure
thattheeductormovesfreely.
Note:Ifneeded,adjustthepositionoftheR-clampto
aligntheeductorhose(Figure29).
9.Tightentheangelocknut(5/16inch)thatsecuresthe
R-clamptothecarriageboltto1978to2542N∙cm
(175to225in-lb).
7
InstallingtheSupplyHose
Partsneededforthisprocedure:
1Eductorsupplyhose
1Flangeclamp
1Gasket
1Retainer
Procedure
1.Looselyassemblethestraight-barbttingofthe
eductorsupplyhoseontotheangeoftheeductor
withagasketandangeclamp(Figure31).
g205927
Figure31
1.Flange(eductor)3.Flangeclamp
2.Gasket4.Straight-barbtting
(eductorsupplyhose)
2.Routetheotherendoftheeductorsupplyhosepastthe
spraypumpandturntowardtheeductorshutoffvalve.
3.Assemblethe90ºbarbedttingofeductorsupplyhose
intotheopenportoftheeductorshutoffvalve(Figure
32).
17

g205929
Figure32
1.90ºbarbedtting(eductor
supplyhose)
3.Retainer
2.Eductorshutoffvalve
4.Securethebarbedttingtotheshutoffvalvewitha
retainer(Figure32).
5.Tightentheangeclampthatsecureseductorsupply
hosetotheeductorbyhand.
8
FinishingtheInstallation
Partsneededforthisprocedure:
1Suctionlanceandhose(optional)
Procedure
Note:Thesuctionlanceandhoseareoptionalaccessories.
ContactyourAuthorizedToroDistributorformore
information.
Retainthesuctionlanceandhoseforlateruse.Readand
retaintheremainingdocumentationonusingtheChemical
Pre-MixKit.
18

Operation
CAUTION
Chemicalsarehazardousandcancausepersonal
injury.
•Readthedirectionsonthechemicallabels
beforehandlingthechemicalsandfollow
allmanufacturerrecommendationsand
precautions.
•Keepchemicalsawayfromyourskin.Should
contactoccur,washtheaffectedareathoroughly
withsoapandcleanwater.
•Weargogglesandanyotherprotective
equipmentrecommendedbythechemical
manufacturer.
Controls
g023137
Figure33
1.Lid6.Tankhose
2.Supplyhose7.T-valve
3.Hoppervalve8.Upperhandle
4.Transportstrap9.Flushvalve
5.Lowerhandle
Lid
Rotatethelidcounterclockwisetoopenit.Closethelid
completelybeforeturningitclockwisetolockit.Youmust
closethelidandlockitbeforeitisraisedtothetransport
position.
HandlesandTransportStrap
Usetheupperandlowerhandles(Figure33)toraiseand
lowertheeductorandtolockitintothetransportposition.
HopperValve
Usethehoppervalvetointroducechemicalsfromtheeductor
intothehoseleadingtothespraytank.
BottleRinse
Thebottlerinse(Figure34)islocatedinsidetheeductor
tank.Usethebottlerinsetoremovechemicalresiduefrom
theinsideofthecontainer(bottle)inwhichthechemicalis
packaged.Thebottlerinseispressurizedwithsolutionfrom
thespraysystem.Thechemicalcontainer(bottle)isrinsed
withspray-systemsolutiondischargedatthespoutofthe
bottlerinse.
g023149
Figure34
1.Bottlerinse
FlushValve
Theushvalve(Figure33)isusedtorinseresidualchemical
fromtheinsideofthehopperoftheeductor.Theushvalve
pressurizeswithsolutionfromthespraysystem.Rotatingthe
ush-valvehandle90°counterclockwisetorinsethehopper;
rotatingtheush-valvehandle90°clockwisetoclosesthe
valve.
19

LoweringandRaisingthe
Eductor
LoweringtheEducator
1.Grasptheeductorhandleandpullthelatchhandleoff
thelatchpost(Figure35andFigure36).
g029077
Figure35
1.Handles(topofthecradle)3.Latchhandle
2.Eductorhandle
g029076
Figure36
1.Latchpost2.Latchhandle
2.Grasptheeductorhandleatthetopofthecradlein
additiontotheeductorhandleandpulltheeductor
handleoutuntilthespringclipreleasesfromthepivot
tube(Figure35andFigure37).
g029079
Figure37
1.Springclip2.Pivottube
3.Pulltheeductorhandleoutwardanddownuntilthe
hookofthelatchattheinboardsideofthebackplate
isclearofthelatchrodofthemainsupport-frame
assembly(Figure38).
g029078
Figure38
1.Latchrod(main-support
frame)
2.Latch(backplate)
4.Fullylowertheeductorwhileholdingtheeductor
handleoutwardslightly(Figure39).
Note:Youwillneedtotipthebottomofthe
eductoroutwardsothatyoucanalignthehookof
thelatchunderthespringplateatthebottomofthe
main-supportframe.
20
