VENETA 65101-21734-E Instruction sheet

How to install your
Timber Venetian Blind
Need HELP?
Customer Service
1800 836 382
“the best compliment
you can give
is a referral”

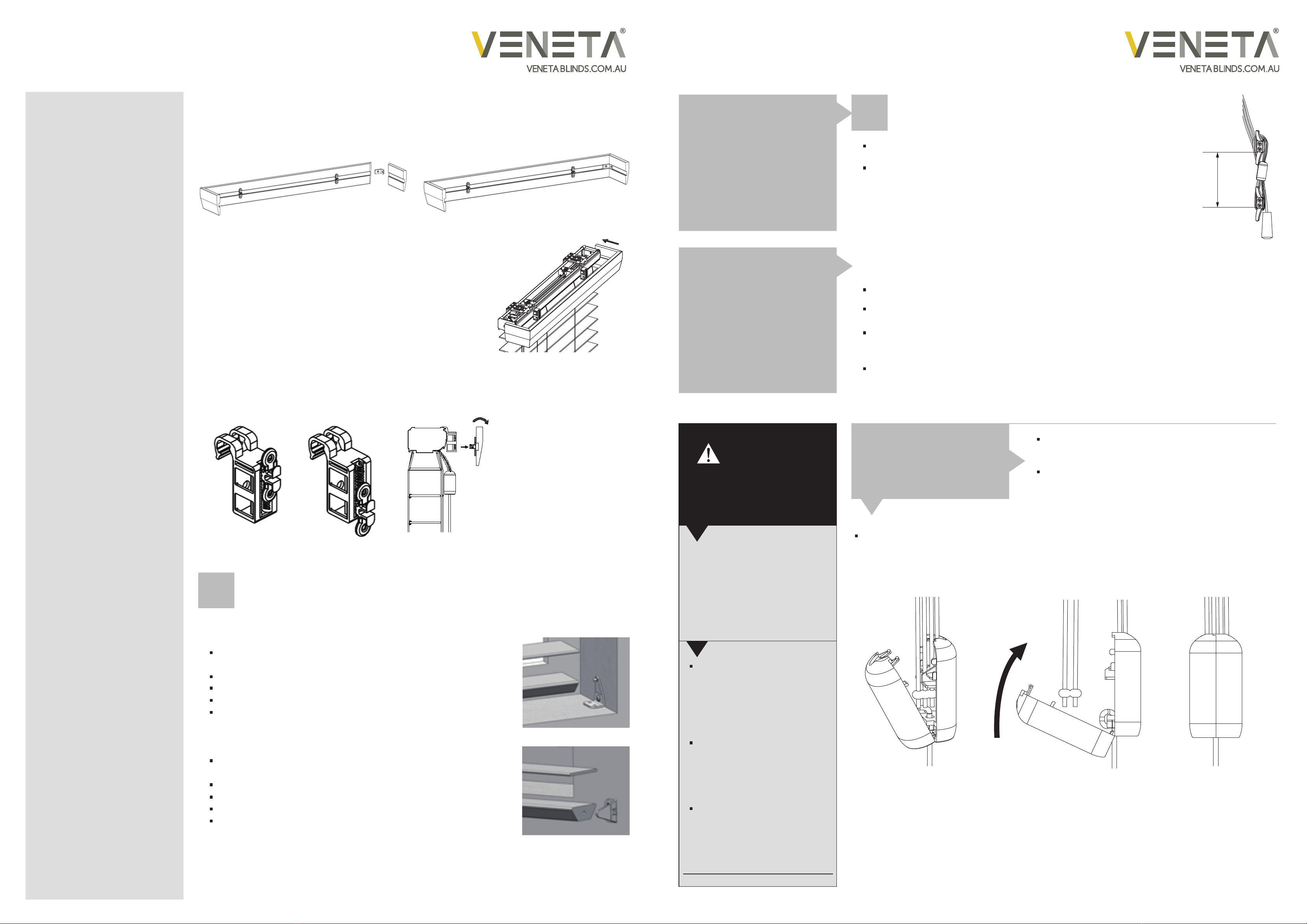

3Install Valance Connector (Optional)
4
The valance is connected as below drawing:
Attach the Valance (Optional)
Hook the adjustable valance clip receptors onto the headrail and space them evenly.
Make sure receptors are not in an obstructive position with the drum support inside the headrail.
Attach the adjustable valance clip plug into the channel on the backside of the valance.
Refer to the receptor position on the headrail to decide where to position on the valance.
Valance Connector is only supplied for connecting spliced valances.
Insert the valance connector into the slot on the back of the valance as below drawing:
#65101-21734-E
2
How to install your
#65101-21734-E
Timber Venetian Blind
Required Tools
Included Hardware
measuring
tape
drill with
2mm bit
phillips bit or
screwdriver
pencil knife
The hardware can be found in
the end of every box.
1Installation Brackets
Installing inside the window frame…
At the top of the window frame measure 85mm in from each side
and measure 68mm back from the front of the window opening;
this is the edge of the back of the bracket.
Place bracket in position and mark where the screws will go.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix brackets into position using 2 long screws.
If more brackets are supplied, space them evenly between the first
two brackets.
Installing outside the window frame…
Measure 85mm in from the top left and top right of where the blind
will be positioned (normally flush with outside of architrave)
and mark the edge of where the brackets will go.
Place the brackets in position and mark where the screws will go.
We recommend using a spirit level to align brackets if not installing
on the architrave.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix brackets into position using 2 long screws.
If more brackets are supplied, space them evenly between the first
two brackets.
Position the top front of the blind under the top front
lip of the brackets.
Push the blind up at the back and click into position
as per diagram.
Ensure the blind has clicked firmly into place.
2Install Blind
Hold Down
Bracket
Child Safety
Cleat
Installation
Bracket
Medium & Long
Screws for Wood
Wall Plugs for Brick
or Cement using
a 6mm Bit
(if requested)
85mm
85mm
68mm
Valance Connector
(Optional)
Clip Plug
(Optional)
Clip Receptor
(Optional)
Valance Return
Connector
(Optional)
Difficulty: ★☆☆☆☆
1
①②③

If the Safety Tassel happens to break apart,simply gather the cords without twisting and place into
the slot as per diagrams to below. Close the cord release door and pull the cords to make sure the
Tassel is closed tightly.
Installation
continued…
Operating your
Blind
Maintaining your
Blind
How to install, operate and maintain your
Timber Venetian Blind
6Child Safety Cleat
Great Job… Enjoy your new Veneta Blinds!
Attach the Child Safety Cleats to the wall at least 1.6metres off the ground
using 2 medium screws for each cleat. Ensure the cleat is fixed firmly.
Tie all the loose lift cord around the Child Safety Cleat at all times.
Dust can be removed using a feather duster or
vacuum with brush attachment on low suction.
Clean your Timber Venetians using a warm damp
cloth. Do not use solvents or chemicals.
To avoid creating a possible
strangulation hazard for children,
the corded or chained internal
window covering must be installed
in such a way that a loose cord
or chain cannot form a loop 220
mm or longer at a height of less
than 1600 mm above floor level.
A cord/chain guide may be
installed lower than 1600mm
above floor level if the
cord/chain is sufficiently
secured or tensioned to
prevent a loop 220 mm or
longer from being formed.
If a cord/chain guide is
installed lower than 1600 mm
above floor level, it must be
designed to prevent a child
from being able to remove the
cord/chain.
If a cleat is used to secure the
cord, it must be at least 1600
mm above floor level because
a child is capable of unwinding
a cord from a cleat.
https://venetablinds.com.au/pages/child-safety
WARNING
ALL WINDOW COVERINGS
WITH CORD OR CHAIN
305mm
Tilt the slats by using the twin cords.
Raise or lower your blind with the lift cord.
Pull the cord straight down and toward the centre of the blind to unlock, then move to the desired
position.
Note: When raising your blind, we recommend tilting the slats to about 45 degrees downwards;
and support bottom rail with your hand while pulling the cord.
#65101-21734-E
4
5Hold Down Brackets
Position hold down bracket vertically inside window frame where the
bottom rail hangs naturally, mark where the 2 screws will go.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix bracket into position using 2 medium screws.
Insert bracket knob into bottom rail.
Repeat for bracket at other end of bottom rail.
Position hold down bracket horizontally outside window frame where
the bottom rail hangs naturally, mark where the 2 screws will go.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix bracket into position using 2 medium screws.
Insert bracket knob into the bottom rail.
Repeat for bracket at other end of the bottom rail.
How to install your
Timber Venetian Blind
Attach the valance return connector if needed
(Outside Mount).
Attach the valance to the headrail by inserting the plugs into
the receptors.
Refer to the right drawing. Slightly move the receptors left or
right along the headrail so the plugs are in alignment with
receptors to ensure right insertion of plug.
If you wish to adjust the valance position vertically, pull out
the valance and reinsert into the desired position. When
removing the valance from the headrail, hold the valance as
shown on the picture and pull it out (do not flip upward).
Installing inside the window frame...
Installing outside the window frame...
#65101-21734-E
3
