Xtool Anyscan A30D User manual

Shenzhen Xtooltech Intelligent Co., LTD
USER MANUAL
Anyscan Wireless Scan Tool
This user manual is applicable to A30/A30D/A30M

I
Please read this user manual carefully before using the Anyscan Wireless Scan
Tool. When reading the manual, please pay attention to the words “Note” or
“Caution” and read them carefully for appropriate operation.
TRADEMARKS
and Anyscan® are the registered trademarks of Shenzhen Xtooltech
Intelligent CO., LTD.
In countries that the trademarks, service marks, domain names, logos, and the
name of the company are not registered, XTOOL claims that it still reserves the
ownership of the unregistered trademarks, service marks, domain names, logos,
and the company name. All other marks for the other products and the company’s
name mentioned in the manual still belong to the original registered company.
You may not use the trademarks, service marks, domain names, logos, and
company name of XTOOL or other companies mentioned without written
permission from the trademark holder.
XTOOL reserves the right to the final interpretation of this manual content.
COPYRIGHT
Without the written consent of Shenzhen Xtooltech Intelligent Co., Ltd., any
company or individual shall not copy or backup this operation manual in any form
(electronic, mechanical, photocopying, recording, or other forms).
DECLARATION
This manual is designed for the usage of the Anyscan Wireless Scan Tool and
provides operating instructions and product descriptions for users of the Anyscan
Wireless Scan Tool.
No part of this manual can be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), without the prior written permission of XTOOL.
Use the device only as described in this manual. XTOOL is not responsible for any

II
consequences of violating the laws and regulations caused by using the product or
its data information
XTOOL shall not be liable for any incidental or consequential damages or for any
economic consequential damages arising from the accidents of individual users
and the third parties, misuse or abuse of the device, unauthorized change or repair
of the device, or the failure made by the user not to use the product according to
the manual.
All information, specifications, and illustrations in this manual are based on the
latest configurations and functions available at the time of printing. XTOOL
reserves the right to make changes at any time without notice.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
Keep the device away from heat or fumes when you are using it.
If the vehicle battery contains acid, please keep your hands and skin or fire
sources away from the battery during testing.
The exhaust gas of the vehicle contains harmful chemicals, please ensure
adequate ventilation.
Do not touch the cooling system components or exhaust manifolds when the
engine is running due to the high temperatures reached.
Make sure the car is securely parked, Neutral is selected or the selector is at P
or N position to prevent the vehicle from moving when the engine starts.
Make sure the (DLC) diagnostic link connector is functioning properly before
starting the test to avoid damage to the Diagnostic Tablet.
Do not switch off the power or unplug the connectors during testing, otherwise,
you may damage the ECU and/or the Diagnostic Tablet.

III
CAUTIONS
Avoid shaking or dismantling the unit as it may damage the internal
components.
Do not use hard or sharp objects to touch the LCD screen;
Do not use excessive force;
Do not expose the screen to strong sunlight for a long period.
Please keep it away from water, moisture, high temperature, or very low
temperature.
If necessary, calibrate the screen before testing to ensure the accuracy of LCD
performance.
Keep the main unit away from strong magnetic fields.
Please keep your device always connected to the Internet. When the device is
off the Internet for 30 days, The diagnosis APP may be locked and you need to
synchronize data with the Internet to activate it.
AFTERSALES-SERVICES
E-Mail: [e-mail]
Tel: [phone] or [phone] (China)
Official Website: www.xtooltech.com
Please provide your device serial number, VIN code, vehicle model, software version, and other
details when seeking technical support.
If there are screenshots or videos, it will better help us locate your problem.

IV
CONTENTS
TRADEMARKS.....................................................................................................I
COPYRIGHT ........................................................................................................I
DECLARATION....................................................................................................I
OPERATION INSTRUCTIONS...........................................................................II
CAUTIONS.........................................................................................................III
AFTERSALES-SERVICES................................................................................III
CONTENTS........................................................................................................IV
1GENERAL INTRODUCTION...........................................................................1
1.1 Function Description.................................................................................1
1.2 Main Menu ...............................................................................................2
1.3 Function Buttons ......................................................................................3
1.4 Technical Specifications ...........................................................................4
1.5 Wireless Communication..........................................................................4
1.6 Power Source...........................................................................................4
2GETTING START............................................................................................5
2.1 Download & Install App ............................................................................5

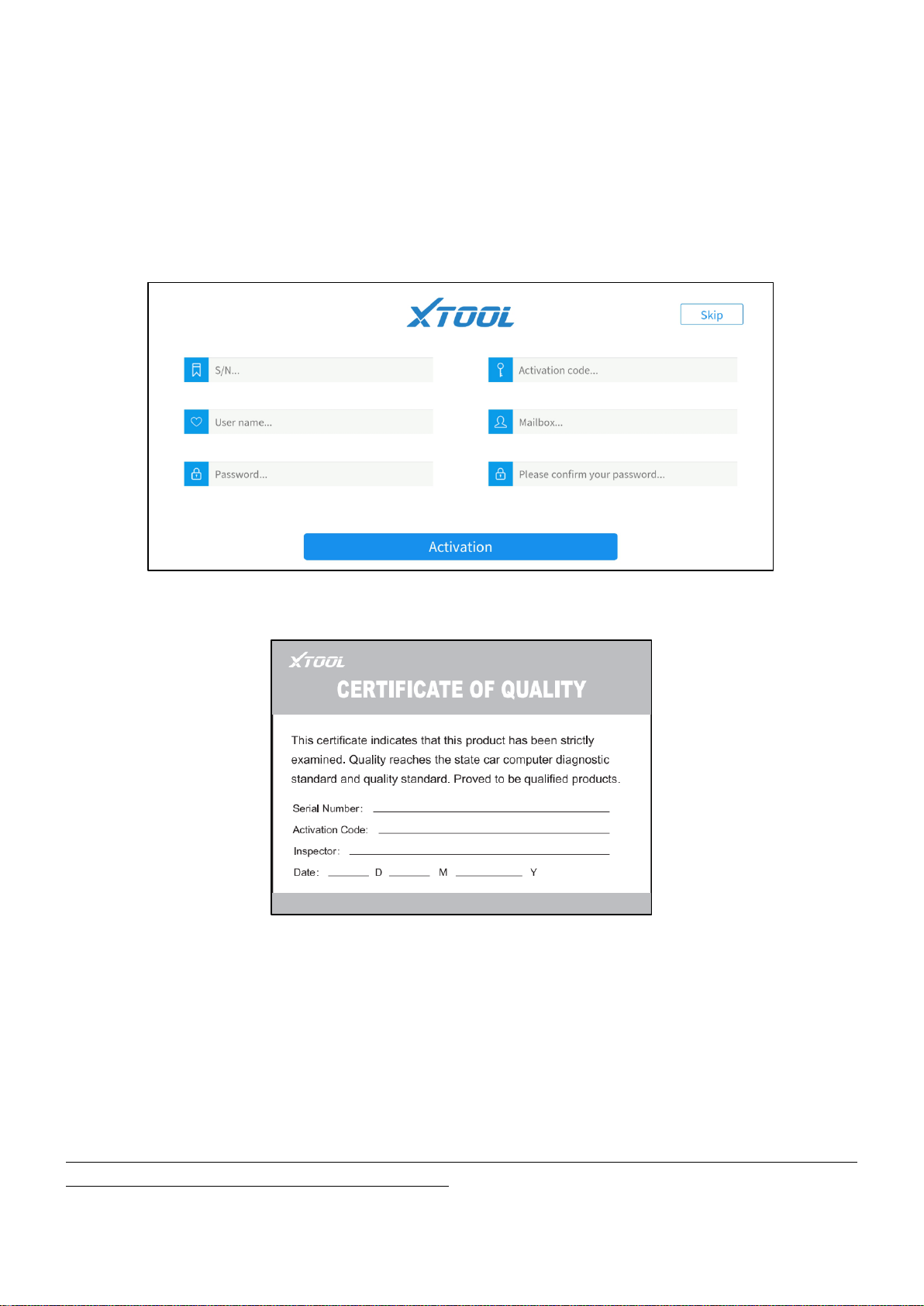

2.2 Registration & Activation...........................................................................6
2.3 Download & Update Software ..................................................................7
2.4 Vehicle Connection...................................................................................8
2.5 Bluetooth Connection...............................................................................8

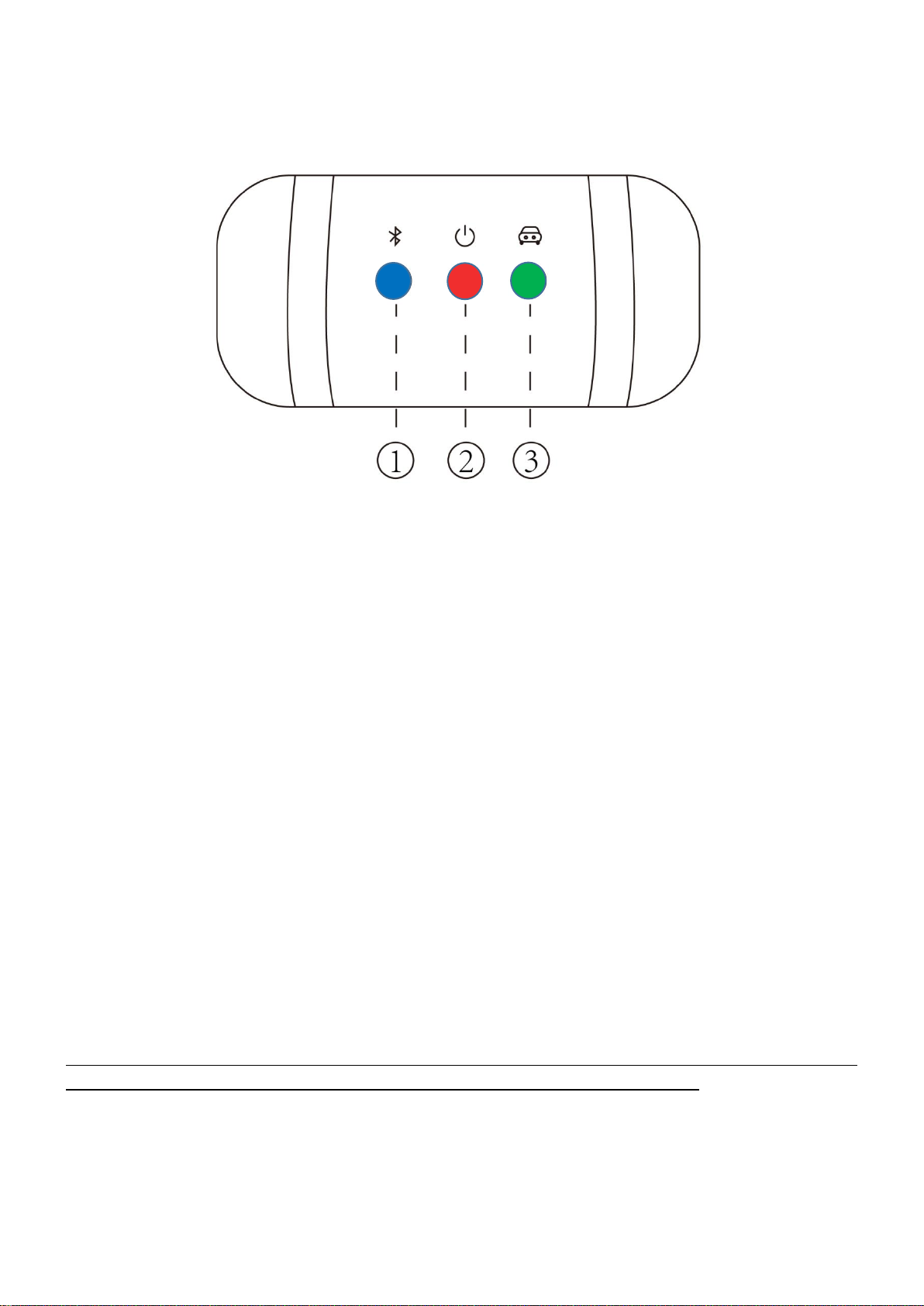

2.6 VCI Status................................................................................................9
2.7 Delete Software......................................................................................10
3DIAGNOSIS................................................................................................... 11
3.1 Auto Scan............................................................................................... 11

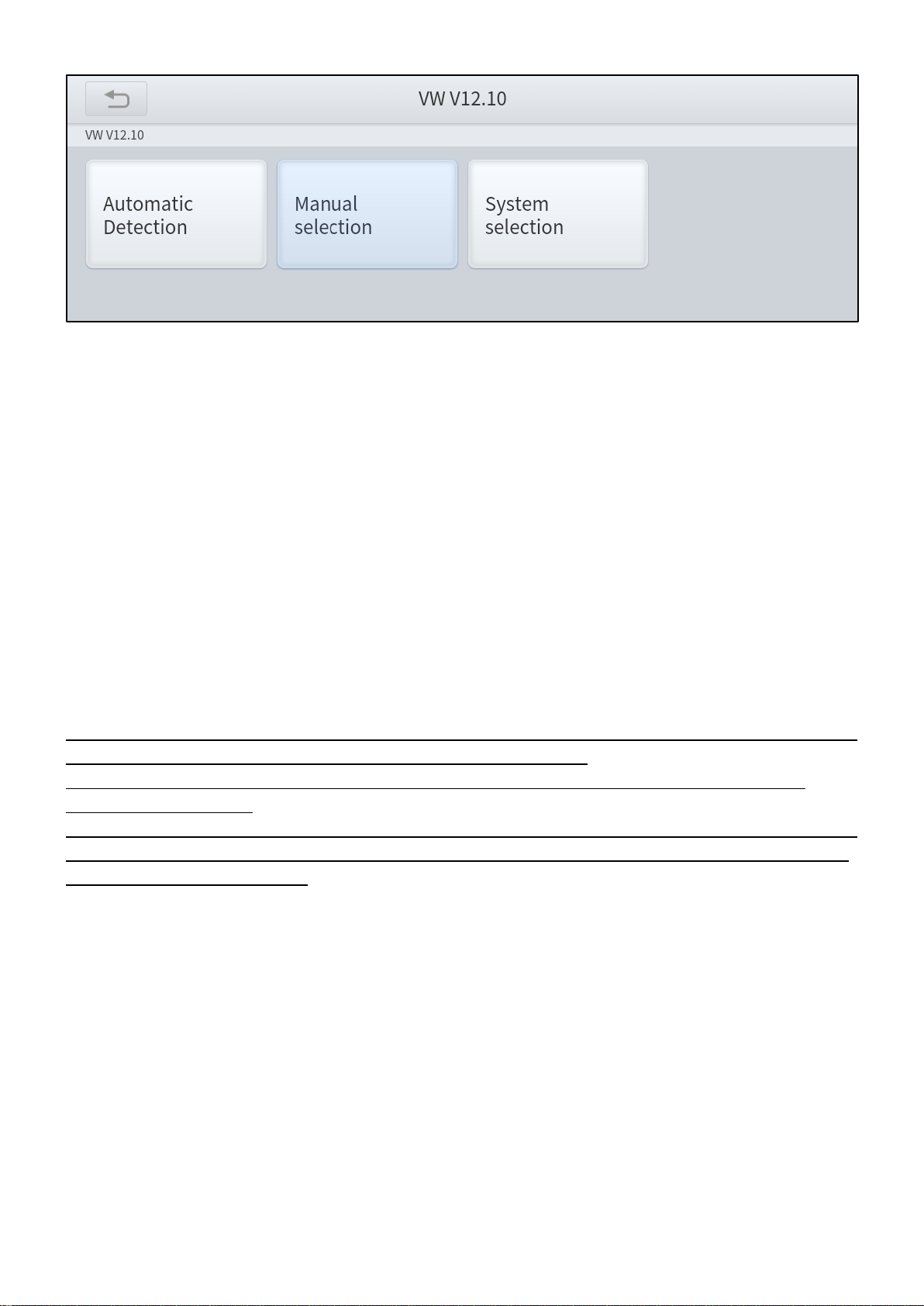

3.2 Diagnosis ...............................................................................................12

V
3.3 Diagnosis Functions...............................................................................14
4OBD II...........................................................................................................21
5SPECIAL FUNCTIONS.................................................................................30
5.1 Oil Reset ................................................................................................31
5.2 EPB........................................................................................................34
5.3 SAS........................................................................................................37
5.4 DPF........................................................................................................41
5.5 BMS Reset.............................................................................................47
5.6 Throttle...................................................................................................50
5.7 Injector Coding.......................................................................................52
5.8 Gearbox Match.......................................................................................56
5.9 Gear Learning........................................................................................57
6REPORTS......................................................................................................60
6.1 Diagnosis Report....................................................................................60
6.2 Data Playback........................................................................................61
7SETTING........................................................................................................63
7.1 Language...............................................................................................64
7.2 Units.......................................................................................................65
7.3 Bluetooth................................................................................................66
7.4 Workshop Information ............................................................................66
7.5 VCI Information......................................................................................67
7.6 About......................................................................................................68
8FAQ...............................................................................................................69
Q1: Bluetooth pairing failed..........................................................................69
Q2: Failed to generate diagnosis report .......................................................69
Q3: Failed to extract files..............................................................................70
Q4: How to upgrade firmware.......................................................................70
Q5: How to generate and upload diagnostic log files....................................70
Q6: How to switch language.........................................................................71
Q7: Failed to diagnose vehicle.....................................................................71

VI
Q8: Failed to activate or register ..................................................................72
9WARRANTY &SERVICES..........................................................................73
APPENDIX.........................................................................................................75
Legal Statement and Privacy Right Policy....................................................75

—1 —
1GENERAL INTRODUCTION
Anyscan is a full system scan tool and easily to carry in your pocket, working
together with mobile phones and tablets. Both iOS and Android platforms are
supported. The Anyscan package includes a Bluetooth OBDII connector and an
Anyscan application. It is a perfect DIY tool for customers to get a quick scan of all
systems and full brands are covered. It also includes numerous special functions,
such as service light reset, DPF regeneration, and EPB reset.
Figure 1-1 Product View
1.1 FUNCTION DESCRIPTION
①Display - shows the operating voltage of the device
②Vehicle Data Connector (OBD-16 pin) - connect the Anyscan to the vehicle’s
16-pin DLC directly
③Bluetooth Indicator - Lights solid blue when the Anyscan is connected to the

—2 —
mobile device through Bluetooth
④Power Indicator - Lights solid red when the Anyscan is properly connected to
the vehicle/power supply
⑤Vehicle Indicator - Lights flash green when the Anyscan is communicating
with the vehicle
⑥Light Bulb - Press either button on both sides of Anyscan to light up the light
bulb installed in the 16-pin connector
1.2 MAIN MENU
Every time you start the app, you will automatically enter the main screen shown
below. Adetailed description of the menu structure can be found in the next section
Function Buttons.
Figure 1-2 Sample of the main menu screen

—3 —
1.3 FUNCTION BUTTONS
The following table briefly describes each function button which can be found in the
main menu.
Icon
Description
Auto Scan for vehicle
Enter vehicle diagnosis menu
Includes various special functions for vehicles
Check the diagnosis report that recorded on your device,
prints it as PDF files, or share it with other devices
Update the diagnosis software through the Internet
Select the language and unit shown in the app, and check
the Bluetooth status, device info, and workshop info
Table 1-1 Description of function button

—4 —
1.4 TECHNICAL SPECIFICATIONS
Item
Description
Display
1 inch
CPU
STM32
Interface
OBD interface
Bluetooth
3.0 / 4.0 compatible, + EDR dual mode
Memory
512KB
LED lights
Bluetooth indicator, power indicator, vehicle diagnostic
light, light indicator
Dimensions
87.00 * 50.00 * 25.00 mm (3.43 * 1.97 * 0.98 inches)
Lighting Power Supply
100mAh
Table 1-2 Specifications
1.5 WIRELESS COMMUNICATION
Anyscan uses Bluetooth communication. It can transmit vehicle data to your
Android or IOS device without a physical connection. The working range for
Bluetooth is around 10 m (32.81 ft.). Signal lost due to moving out of the range will
automatically be restored once the device is brought within transmission range to
the Anyscan connector.
1.6 POWER SOURCE
Anyscan operates on 12-volts vehicle power which it receives through the vehicle
data connection port.And the real-time operating voltage is shown on the display.
The unit powers on whenever it is connected to an OBDII compliant data link
connector (DLC).

—5 —
2GETTING START

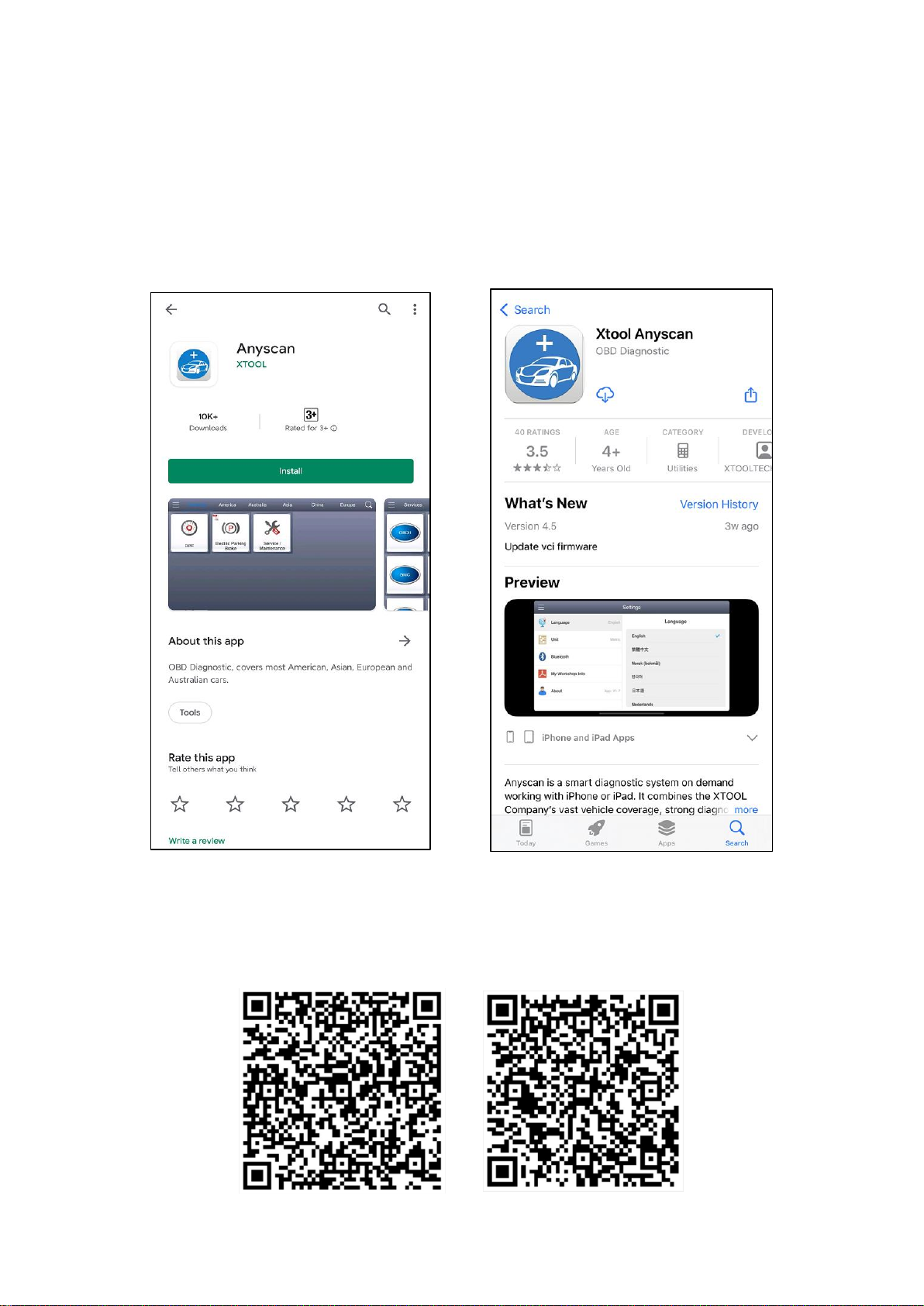

2.1 DOWNLOAD & INSTALL APP
Search for Anyscan Download in the Google Play or App Store to download and
install the app to your device.
Figure 2-1 Sample of APP downloading screens
OR scan the applicable QR codes shown below to download the Anyscan. You
will be directed to the corresponding downloading page like figure 2-1.
Anyscan - Google Play Anyscan - App Store

—6 —
2.2 REGISTRATION & ACTIVATION
Enter the serial number, activation code, username, Email address, and password
into the corresponding input box. And press the Activation button to activate the
app.
Figure 2-2 Sample of activation screen
Figure 2-3 Sample of Certificate of Quality
Serial number - Can be found in the Certificate of Quality, back of the device, and
the outer packaging
Activation code - Can be found in the Certificate of Quality
Each account can be logged in with more than one mobile device, however, the Anyscan can
only connect to one mobile device at one time.

—7 —
2.3 DOWNLOAD & UPDATE SOFTWARE
Click the Updates button to enter the updates interface.
Figure 2-4 Sample of the main menu screen
All the available software is shown on this page. You can choose to download the
specific software individually by pressing the arrow button next to the required
software or choose to upgrade all available software at once by pressing Updates
All.
Figure 2-5 Sample of updates interface

—8 —
2.4 VEHICLE CONNECTION
Insert the Anyscan to the OBD port on the testing vehicle, diagram below shows
the common locations where the OBD port at. The flashlight equipped may help to
locate the OBD port. Red solid light will be shown on the power indicator if the
device is properly connected.
Figure 2-6 locations of OBD port
2.5 BLUETOOTH CONNECTION
Open the Bluetooth setting on your mobile devices, theAnyscan will be discovered
as the ‘serial number’of the Anyscan. Once the Anyscan is connected to any of the
mobile devices, it will be remembered by that device and automatically connected
to it when next time the Anyscan is connected to the vehicle/power supply. Blue
solid light will show on the Bluetooth indicator after the Bluetooth is successfully
connected.
You are only able to connect the Bluetooth after connecting the Anyscan to the vehicle/power
supply.

—9 —
2.6 VCI STATUS
Figure 2-7 LED indicators
From left to right, the LED displays blue, red, and green light respectively, and each
of the LEDs indicate different operating status.
①Bluetooth Indicator -Lights solid blue when the Anyscan is connected to the
mobile device through Bluetooth
②Power Indicator - Lights solid red when the Anyscan is properly connected to
the vehicle/power supply
③Vehicle Indicator - Lights flash green when the Anyscan is communicating
with the vehicle
The vehicle indicator will only light green when the Anyscan is sending or receiving commands
to or from the vehicle. It will not light green throughout the diagnosis process.

—10 —
2.7 DELETE SOFTWARE
Long-press the unwanted software until it has been selected, then click the Delete
button shown on the upper part of the screen. And you can select and delete
multiple software at once.
Figure 2-8 Sample of software deleting screen

—11 —
3DIAGNOSIS
The diagnosis function can read ECU information, read and clear DTC and display
live data and freeze frame. The diagnosis function can also access the electronic
control unit (ECU) of all available vehicle control systems, including the engine,
transmission, anti-lock braking system (ABS), airbag system (SRS), body control
module (BCM), battery management system (BMS), tire pressure monitoring
system (TPMS), steering and suspension system (SAS) and perform various
actuation tests.
Diagnosis can only be performed when the Anyscan is connected to a mobile device through
Bluetooth successfully and the Bluetooth indicator lights solid blue.
3.1 AUTO SCAN
Click the AUTO SCAN button, and the models and information will be scanned.
You have to select the corresponding options and confirm the vehicle information
scanned.
Figure 3-1 Sample of the main menu screen

—12 —
You can choose to enter the Auto Diagnosis menu to get a quick scan of all
systems, the scanning process lasts around 2 to 3 minutes. OR you can enter the
System Diagnosis to test for specific modules or functions.
After clicking the AUTO SCAN, if the required software is not installed, you will be directed to
the updates page of that software.
Automatic Detection does not work on all cars. If ‘Automatic Detection’fails, it does not
necessarily mean that your vehicle or the function is not supported, please navigate manually
and try again.
3.2 DIAGNOSIS
Click the Diagnosis button on the main screen and get into the diagnosis menu. All
the brands will be shown on the screen, you can select the region of your vehicle,
click the correct brand, and start the diagnosis process.
Figure 3-2 Sample of the main menu screen
For some of the vehicle brands (like Volkswagen), when you click on the software,
there are several ways to select the model or system you want to run a diagnosis,
including Automatic Detection, Manual Selection, and System Selection.

—13 —
Figure 3-3 Sample of VW menu screen
Automatic Detection will automatically identify the vehicle’s VIN code, and then
read the information of your target diagnostic vehicle. (Same function as AUTO
SCAN on the main menu) If you choose Manual Selection, then you can continue
to select the vehicle brand, year, and model of the vehicle in the sub-menu to
diagnosis the vehicle. Enter System Selection, you can also diagnosis the vehicle
according to the system or your needs after selecting the models.
OBDII menu supports reading the common fault codes in the PCM. The DTCs may not be the
same when compared with using common diagnosis software.
DEMO is a demonstration program. You can perform basic diagnosis functions without
connecting to the car.
DEMO is only for demonstration purposes, the functions and interface are not necessarily the
same as the actual version of the software/App. Please activate and update your device to use
the latest version of software.
