Xtool H6 EB User manual

Shenzhen Xtooltech Co., Ltd
I
User Manual
---- Xtool H6 EB Diagnosis

Shenzhen Xtooltech Co., Ltd
I
Content
Statement ............................................................................................................................................................. III
1. Overview...................................................................................................................................................... 1
1.1. Introduction ...................................................................................................................................................... 1
1.2. Main host ........................................................................................................................................................... 1
1.2.1. Appearance................................................................................................................................................... 1
1.2.2. Parameter ...................................................................................................................................................... 2
1.2.3. Power ............................................................................................................................................................. 2
1.3. VCI box .............................................................................................................................................................. 3
1.3.1. Appearance................................................................................................................................................... 3
1.4. Accessories ........................................................................................................................................................ 4
1.4.1. Main cable .................................................................................................................................................... 4
1.4.2. Vehicle adapters........................................................................................................................................... 4
1.4.3. Other accessories......................................................................................................................................... 5
2. Activation..................................................................................................................................................... 6
2.1. Activate process and operation .................................................................................................................... 6
2.2. Update first time .............................................................................................................................................. 9
3. Vehicle Connection................................................................................................................................... 11
3.1. Connection procedure .................................................................................................................................. 11
4. Function and diagnosis operation.......................................................................................................... 12
4.1. Interface ........................................................................................................................................................... 12
4.1.1. Tablet OS Interface................................................................................................................................... 12
4.1.2. Xtool Diagnosis APP Interface ..............................................................................................................13
4.2. Setting ............................................................................................................................................................... 16
4.3. Diagnosis .........................................................................................................................................................19
4.3.1. VIN identification .....................................................................................................................................19
4.3.2. Vehicle selection........................................................................................................................................ 20
4.3.3. Function.......................................................................................................................................................27
4.3.4. Service.........................................................................................................................................................33
4.3.5. Operation record and diagnosis report ................................................................................................. 35
4.4. Update .............................................................................................................................................................. 39
4.5. Report ...............................................................................................................................................................40
4.6. Xlcoud .............................................................................................................................................................. 44
4.7. Remote .............................................................................................................................................................. 45
5. Support and service ................................................................................................................................. 46
5.1. Technical support ..........................................................................................................................................46
5.2. Service ..............................................................................................................................................................47
5.3. FAQ ...................................................................................................................................................................47

Shenzhen Xtooltech Co., Ltd
II
6. Warranty ................................................................................................................................................... 49
Contact................................................................................................................................................................ 50

Shenzhen Xtooltech Co., Ltd
III
Statement
Trademark
is the registered trademark of Shenzhen Xtooltech Co., Ltd. In countries that the
trademarks, service marks, domain names, logos and the name of the company are not registered,
Xtool claims that it still reserves the ownership of the unregistered trademarks, service marks,
domain names, logos and the company name. All other marks for the other products and the
company’s name mentioned in the manual still belong to the original registered company.
Copyright
You may not use the trademarks, service marks, domain names, logos and company name of Xtool
or other companies mentioned without written permission from the trademark holder.
Responsibility
Use the device only as described in this manual. The user will be responsible solely for the after-
effects of violating the laws and regulations caused by using the product or its data information,
Xtool will not bear any legal responsibility for that. Xtool shall not be liable for any incidental or
consequential damages or for any economic consequential damages arising from the accidents of
individual users and the third parties, misuse or abuse of the device, unauthorized change or repair
of the device, or the failure made by the user not to use the product according to the manual. All
information, specifications and illustrations in this manual are based on the latest configurations and
functions available at the time of printing. Xtool reserves the right to make changes at any time
without notice.
Safe
➢This product is intended for use by automotive technicians only.
➢When the engine is running, please keep the maintenance area well ventilated, properly connect
the engine and the building's exhaust system. The carbon monoxide generated by the engine
will cause the body to be unresponsive and even cause serious personal injury or death.
➢Wear ANSI-compliant goggles and keep clothing, hair, hands, tools, diagnostics, etc. away from
running or hot engine parts.

Shenzhen Xtooltech Co., Ltd
1
1. Overview
1.1. Introduction
H6 EB is Xtool latest car diagnosis platform made for technicians. It consists of an
tablet, which has 8.0-inch touch screen, 2GB RAM and 64GB on-board memory, a
wireless VCI box, and other related connection parts. It Supports 20 kinds of special
functions, covers more than 80+ car make, and 14 kinds of language. In addition,
There are three ways to update app and system, including OTA, USB, and offline
update. By using Xtool H6 EB, it will make your diagnosis work much easier, quicker,
and more convenient.
1.2. Main host
1.2.1.Appearance
(Front view) (Back view)
(Top view)
(Bottom view)
①
②
③
④⑤⑥⑦⑧
⑨

Shenzhen Xtooltech Co., Ltd
2
○1 : Camera Take photo or video
○2 : Speaker Sound comes out
○3 : Nameplate Tablet model and SN information
○4: USB3.0 interface Data transfer via USB cable
○5: Mini HDMI interface Audio and video transfer
○6: DB15 interface Extended reservation port
○7: DC port Device charging, using 12V power
○8 : Power button Power On/off button
○9: Charger interface A reserved charger interface
1.2.2.Parameter
Item
Description
Operating system
Android
Processor
Quad core processor 1.8GHz
Memory
2GB RAM, 64GB ROM
Screen
8 inch LED, 1024×768 resolution
Camera
Rear camera, 8.0 Megapixel, AF with Flashlight.
Ports
USB3.0, DC charging port, Mini HDMI, DB15 interface
Battery
10000mAh Lithium-polymer battery
Input voltage
12V voltage system
Working temperature
10 to 50℃(50to 122℉)
Relative humidity
<90%
Appearance size
275×183×3 3.9 (mm)
1.2.3.Power
The H6 EB tablet can be powered by following methods:
➢Built-in rechargeable battery
H6 EB tablet has an built-in rechargeable battery, which can power the tablet without
connecting to external power source. For the fully charged battery, it can power the
tablet about 4 hour in continuous operation.
➢AC / DC power
H6 EB tablet can be powered by external power source through DC port with

Shenzhen Xtooltech Co., Ltd
3
recommend AC/DC adapter. In addition, the DC port and adapter are also be used to
charge the built-in battery.
➢Vehicle power
H6 EB tablet can be powered by external power source through DC port from
Cigarette lighter or other power supply device in vehicle. Please make sure the
external power source can supply appropriate working power for tablet.
Caution: Since the tablet contains lithium battery, it is forbidden to use this product
in high temperature and high heat environments.
1.3. VCI box
1.3.1. Appearance
○1 : Display Display voltage
○2 : OBD interface Used to connect vehicle through OBD port
○3 : Light switch Press the button, the lighting will be on, which is convenient for users to
find OBD diagnostic seat or other lighting
④Bluetooth indicator It turns red when Bluetooth is not connected; it turns blue when
Bluetooth is connected successfully
⑤Power indicator It turns red when power is on
⑥Vehicle Indicator It turns green when the VCI Box is connected with vehicle successfully
Function: After inserting the VCI box on vehicle OBD port, it connects with H6 EB
tablet via Bluetooth to do wireless data transmission.
③
①
②
④
⑤
⑥

Shenzhen Xtooltech Co., Ltd
4
1.4. Accessories
1.4.1.Main cable
The main cable is used to connect tablet and vehicle. After successfully building the
communication between tablet and tablet, the vehicle diagnosis data can be
transmitted to tablet.
1.4.2.Vehicle adapters
The adapters are to connected different kind of vehicles. User should choose proper
adapter depend on vehicle OBD port.
Note: some adapters are optional, please contact with Xtool, or local distributor for more details

Shenzhen Xtooltech Co., Ltd
5
1.4.3.Other accessories
Note: some accessories are optional, please contact with Xtool, or local distributor for more details

Shenzhen Xtooltech Co., Ltd
6
2. Activation
2.1. Activate process and operation
The H6 EB tablet needs to be activated online for full function before usage. User
only needs to operate the tablet according to the activation guidance on it.
Note: During the entire activation process, it needs to ensure a good network connection.
Activation steps：
1. Press the power button to turn on H6 EB Tablet;
2. Swipe up and down to select language, and click [ NEXT ];
(Choose language)
3. Select WIFI to connect the tablet with internet. Click [ OK ];

Shenzhen Xtooltech Co., Ltd
7
(Connect WIFI)
4. Tablet will enter activation wizard interface. Click [ START ACTIVATE ].
(Start activate)
5. Enter user personal or company e-mail. Click [ OK ], then tablet will activate
automatically. There will be a notification if activation is successful.

Shenzhen Xtooltech Co., Ltd
8
(Enter email address)
(Activation success)
Note: If activation fails, please contact the Xtool or distributor.

Shenzhen Xtooltech Co., Ltd
9
2.2. Update first time
For the first time use, customer needs to update the content to get some basic function.
Open Xool Diagnosis App, and click [ Update ].
User can select the update content depends on actually needs, or can also update all
the software in once.
(Xtool Diagnosis APP )

Shenzhen Xtooltech Co., Ltd
10

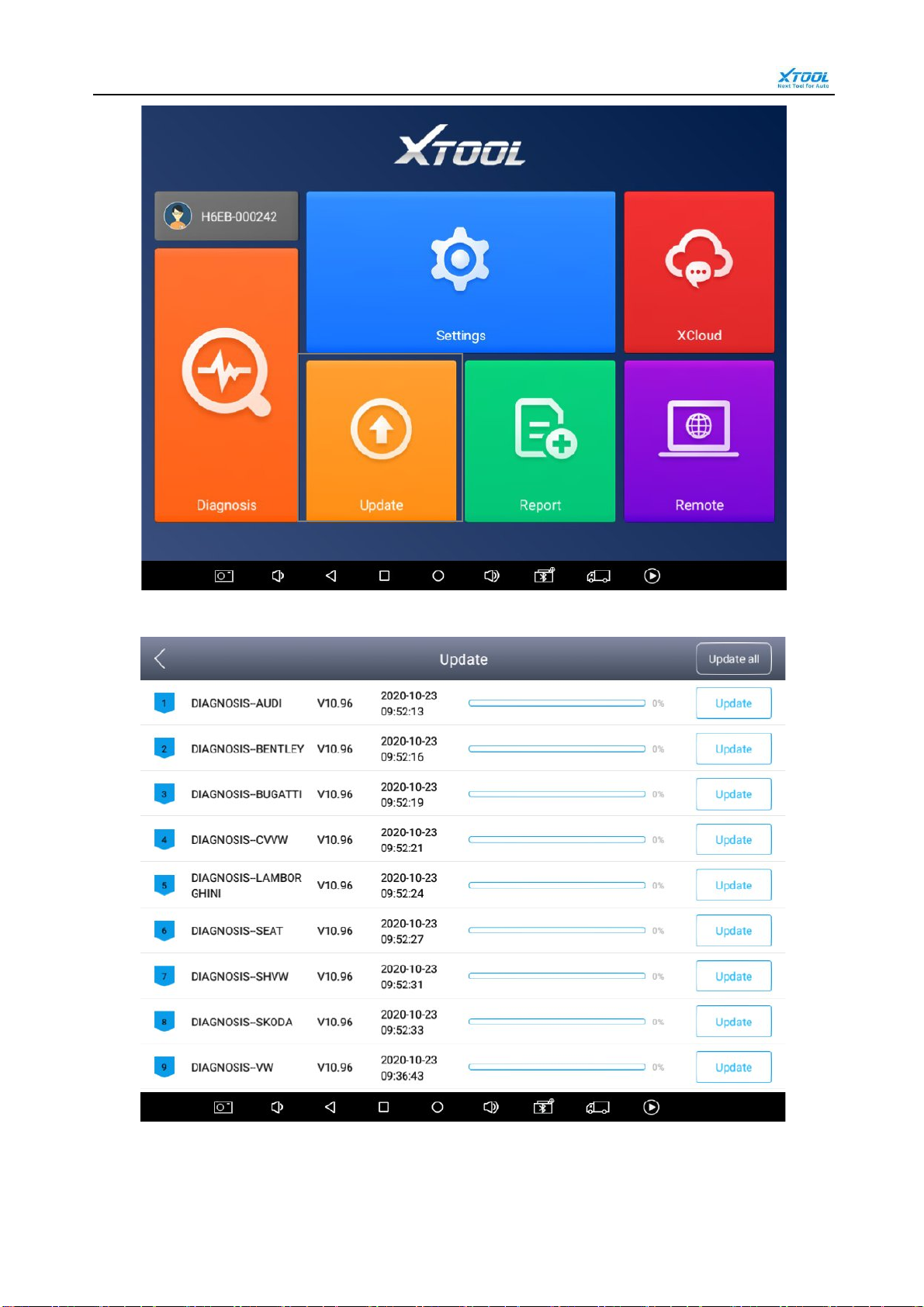

[ Xtool diagnose app main interface ]
[ Update ]

Shenzhen Xtooltech Co., Ltd
11
3. Vehicle Connection
3.1. Connection procedure
To get full and right diagnosis function, user needs to connect the H6 EB tablet and
vehicle properly.
(Vehicle connection diagram)
①: H6 EB Tablet
②: VCI box (communication with the tablet by wire or Bluetooth connection, and connect with
③⑤ components to vehicle OBD-II port)
③: Main cable
④: Diagnosed vehicle
⑤: OBDII-16 Adapter (Select other adapters when the diagnostic port is a non-standard OBDII
16pin connector)
Connection step:
1. Turn on the car ignition switch, and H6 EB Tablet
2. Choose proper OBD II adapter, and connect it with the main cable and
vehicle
3. Connect the VCI diagnostic box to the main cable, and wait for 5 seconds for
Bluetooth to connect the tablet successfully
4. Open diagnosis app, and select the function for vehicle fault diagnosis

Shenzhen Xtooltech Co., Ltd
12
4. Function and diagnosis operation
4.1. Interface
4.1.1.Tablet OS Interface
The H6 EB tablet OS is based on Android OS, so most of the operations are as same
as those on other consumer tablets with Android OS. But to meet with the actual
diagnosis demand, Xtool has also added some special operations on it.
(Tablet OS main interface)
Description of navigation bar:
Button
Description
【Screenshot】
Take a quick screenshot
【Volume decrease】
Decrease speaker volume
Home screen
Navigation bar

Shenzhen Xtooltech Co., Ltd
13
【Return】
Return to the previous interface
【Recently】
Show recently used APP
【Home screen】
Return to the home screen of Android
【Volume increase】
Increase speaker volume
【Bluetooth
connection】
Indicate Bluetooth connection, show blue if properly
connected
【Diagnosis】
Directly back to the diagnosis mode interface
【Screen record】
Record the operations displayed on screen
4.1.2.Xtool Diagnosis APP Interface
Xtool diagnosis APP is the core application of H6 EB tablet, which allows user to
perform diagnosis function, output report, and other related operations.

Shenzhen Xtooltech Co., Ltd
14
(Xtool diagnosis app main interface)
Description of function button:
Button
Description
【Account】
User account information, including name, and SN
【Diagnosis】
Core function used to vehicle diagnosis
【Settings】
Set language, unit, bluetooth
【Xcloud】
Linked to Xtool official website to provide tutorial video or
other technical information

Shenzhen Xtooltech Co., Ltd
15
【Update】
One click update to get latest diagnosis software
【Report】
Check vehicle diagnosis report and video
【Remote】
Solve problem by remote control through internet

Shenzhen Xtooltech Co., Ltd
16
4.2. Setting
This function is used for user to set language, unit, and user information according
to user preference before diagnosis
Language: it will show different depend on version
( [ Settings ] --> [ Language ] )
Unit: user can select Merit or British unit
( [ Settings ] --> [ Unit ] )
