Xtool TP Series User manual

Shenzhen Xtooltech Intelligent Co., LTD
User Manual
TP-series TPMS Diagnostic Tool
Version 3.0
Revise date 2023/07

I
Please read this user manual carefully before using TP-series TPMS Diagnostic Tool, referred to as the “the tool”
throughout this document. When reading the manual, please pay attention to the words “Note” or “Caution” and read them
carefully for appropriate operation. Due to technical updates, software update, etc., some of the pictures shown on the
manual might not be fully accurate. Product images and description only for reference purpose, so please see the subject
produce.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
Keep the device away from heat or fumes when in use.
If the vehicle battery contains acid, please keep your hands and skin or fire sources away from the battery during
testing.
The exhaust gas of the vehicle contains harmful chemicals. Please ensure adequate ventilation.
Do not touch the vehicle cooling system components or exhaust manifolds when the engine is running due to the
high temperatures reached.
Make sure the car is securely parked, Neutral is selected or the selector is at the P or N position to prevent the
vehicle from moving when the engine starts.
Make sure the (DLC) Diagnostic Link Connector is functioning properly before starting the test to avoid damage to
the Diagnostic Computer.
Do not switch off the power or unplug the connectors during testing. Doing so may damage the ECU (Electronic
Control Unit) and/or the Diagnostic Computer.
CAUTIONS!
Avoid shaking, dropping or dismantling the scan tool as it may damage the internal components.
Do not use excessive force;
Do not expose the screen to strong sunlight for a long period.
Please keep the scan tool away from water and moisture.
Store and use the scan tool only within the temperature ranges identified in the Technical Specifications section.
Keep the unit away from strong magnetic fields.
Please use soft and non-abrasive cleaner and soft cotton cloth to clean keyboard and display screen. Do not use
solvent (like alcohol) to clean device.
AFTERSALES-SERVICES
XTOOL strives to provide best-in-class support!
E-Mail: [e-mail]
Tel: [phone] or [phone] (China)
Official Website: www.xtooltech.com

i
CONTENT
OPERATION INSTRUCTIONS ............................................................................................................................. I
CAUTIONS! ........................................................................................................................................................... I
AFTERSALES-SERVICES ................................................................................................................................... I
CONTENT ..............................................................................................................................................................I
1. GENERAL INTRODUCTION ........................................................................................................................... 3
Main Units ..........................................................................................................................................................................3
Vehicle Communication .....................................................................................................................................................4
Sensor Triggering ..............................................................................................................................................................5
Charging the Device .......................................................................................................................................................... 5
2. TPMS FUNCTIONS ..........................................................................................................................................6
Main Menu & Model Selection ...........................................................................................................................................6
Sensor Check & Triggering ............................................................................................................................................... 7
TPMS Diagnostics .............................................................................................................................................................7
Sensor Programming .........................................................................................................................................................8
Auto-create ID ................................................................................................................................................................... 8
Manually input ID ...............................................................................................................................................................9
Copy ID via Activation ....................................................................................................................................................... 9
Copy ID via ECU Info ...................................................................................................................................................... 10
TPMS Relearn .................................................................................................................................................................11
Sensor Information .......................................................................................................................................................... 11
Recent Test ..................................................................................................................................................................... 11
3. SETTINGS ...................................................................................................................................................... 12
WiFi Settings ................................................................................................................................................................... 12
Update ............................................................................................................................................................................. 12
Pressure Unit Settings .....................................................................................................................................................12
Temperature Unit Settings ...............................................................................................................................................12

ii
Sensor ID Format Settings .............................................................................................................................................. 12
District Settings ................................................................................................................................................................12
Auto Power-off Settings ...................................................................................................................................................12
Sound Settings ................................................................................................................................................................ 12
4. UPDATE ......................................................................................................................................................... 13
Wi-Fi Update ....................................................................................................................................................................13
PC Update .......................................................................................................................................................................14
5. WARRANTY & SERVICES ............................................................................................................................15
6. APPENDIX ......................................................................................................................................................16
Trademarks ..................................................................................................................................................................... 16
Copyright ......................................................................................................................................................................... 16

3
1. GENERAL INTRODUCTION
TP-series (TP150/TP200) is a smart TPMS Diagnostic Tool powered by Xtooltech. This product support TPMS DTC code
check & live data for most of the vehicles on the market, 315/433MHz tire-pressure sensor check, read OEM sensor ID
and program it into Xtool universal tire-pressure sensors. This tool can perform such functions:
Check TPMS sensors (read sensor ID / pressure / temperature / battery status)
TPMS diagnostics (DTC check & clear / read sensor ID)
Program Xtool universal tire-pressure sensors
TPMS relearn
Check OEM TPMS sensors
Etc.…
MAIN UNITS
F400
1Power Indicator: This light will turn red when charging.
2Screen: Shows contents on the device.
3Return button: Go back to previous menu or cancel selections.
4Direction buttons: Use these buttons to choose or select functions.
5Activate/Program button: When activate/program sensors, click this button to trigger them.
6DB15 port: Connects to the OBD port for vehicle communications, and also used for charging the device.
7OK button: Confirm selection and start operations.
8Help button: Shows detailed information for operations.

4
9Power button: Turn on & off the device.
10 USB Type-C port: Charge the device or transfer data to PC.
11 Nameplate: Shows vital information of the device.
12 Sensor triggering area: When activating/programming sensors, put them close to this area.
VEHICLE COMMUNICATION

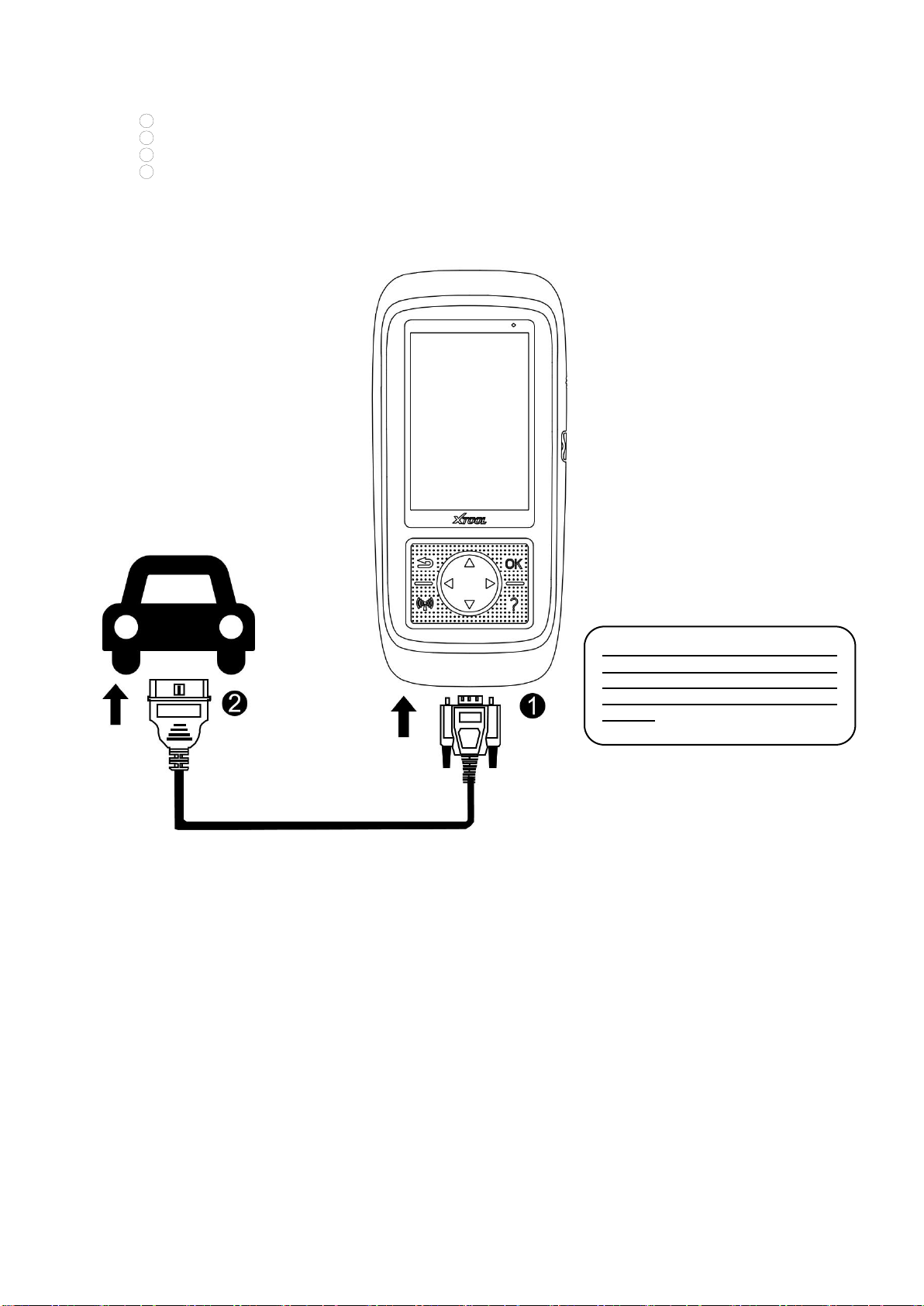

The picture below shows how the device
connects to the vehicle.
1. Turn on the ignition switch of the
vehicle, and turn on the device.
2. Connect the DB15 plug of the
cable to the device.
3. Find the OBD port on the vehicle,
and plug the OBD socket of the cable
inside it.
4. Now you are ready for TPMS
diagnostics.
⚠ Note: The vehicle’s DLC is not
always located under the dash; for
the location of the DLC, please
refer to the vehicle owner’s
manual.
Precautions for Diagnosis
1. The voltage range on the car: +9~+16V DC;
2. The electronic control systems of different models are very complicated. If you encounter situations where it is
impossible to test or a large amount of test data is abnormal, you can search for the ECU of the vehicle and select the
menu for the model on the ECU nameplate;
3. If the vehicle type or electronic control system to be tested is not found in the diagnostic function, please update the
vehicle diagnostic software to the latest version or consult the XTOOL technical service department;
4. Only wiring harnesses provided by XTOOL and designed for the scan tool are permitted to be used with this scan tool to
avoid damage to the vehicle or the tool;

5
5. When running a Diagnostics function, DO NOT shut down the scan tool directly. You should cancel the task before
returning to the main interface and then shutting down the tool.
SENSOR TRIGGERING

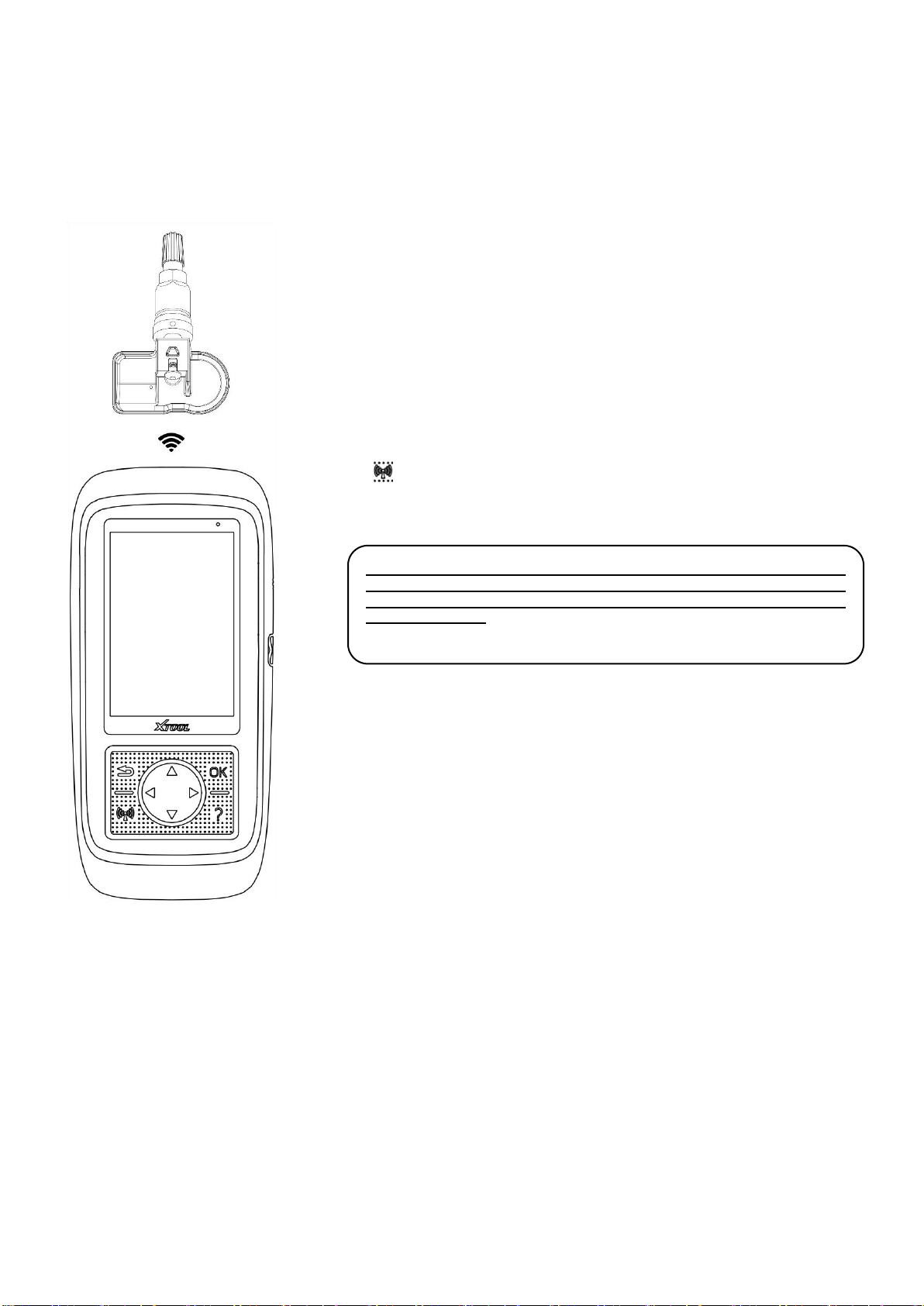

The picture on the left shows how the device can trigger the tire-pressure sensor.
1. Select activation or program menu on the device;
2. Put the device close to the sensor (if the sensor is already installed inside the tire,
close to the valve);
3. Click button to start triggering.
⚠
Note: When triggering sensors, we suggest to put the sensor that
needs to be triggered 10 cm (4 inch) close to the device. And to avoid
interference, please put other sensors 2 meters (7 feet) away from the
device if possible.
CHARGING THE DEVICE
The scan tool may need to be charged before first use. Use the proper power adapter (either 120 VAC North American or
240 VAC European version) and attach it onto the AC/DC charger.
Plug the AC/DC charger into a wall outlet and charging this scan tool by USB Type-C port.
The device can also be charged with PC or OBD connection, and the tool can be used when charging.
In order to keep the device in best performance, please fully charge the battery. We suggest to charge at least 2 hours
before usage for the first time.

6
2. TPMS FUNCTIONS
By selecting the TPMS menu on the main screen, this tool can perform various TPMS-related functions like diagnostics,
check sensors and provide learning instructions.
MAIN MENU & MODEL SELECTION
Select the TPMS menu and get into the vehicle selection page.
Then select the vehicle area. The area is determined by where the manufacturer is founded, like you need to get into
America menu to find Ford.
Then select the manufacturer, the model and the model year.
⚠
Note: Sometimes there are vehicles that are in the same model year, but with different sensors or different
frequencies. You can check the repair manual, or check the OEM sensor itself to get inside the correct menu.
⚠ Note: There are some models that are using indirect TPMS systems. Those models do not have sensors
inside so they are mostly not supported.
When you selected the model, you can choose one of the functions below:
Sensor Check: Check the sensor that has already installed inside the
vehicle.
Diagnostics: Check & clear the fault codes that are inside the system,
and check the sensor IDs saved inside the system.
Programming: Program XTOOL tire-pressure sensors to make them fit
inside the vehicle.
Relearn: After installation, if the ID of the sensor doesn’t match the
sensor ID inside the vehicle, check the relearning steps to match those
IDs.

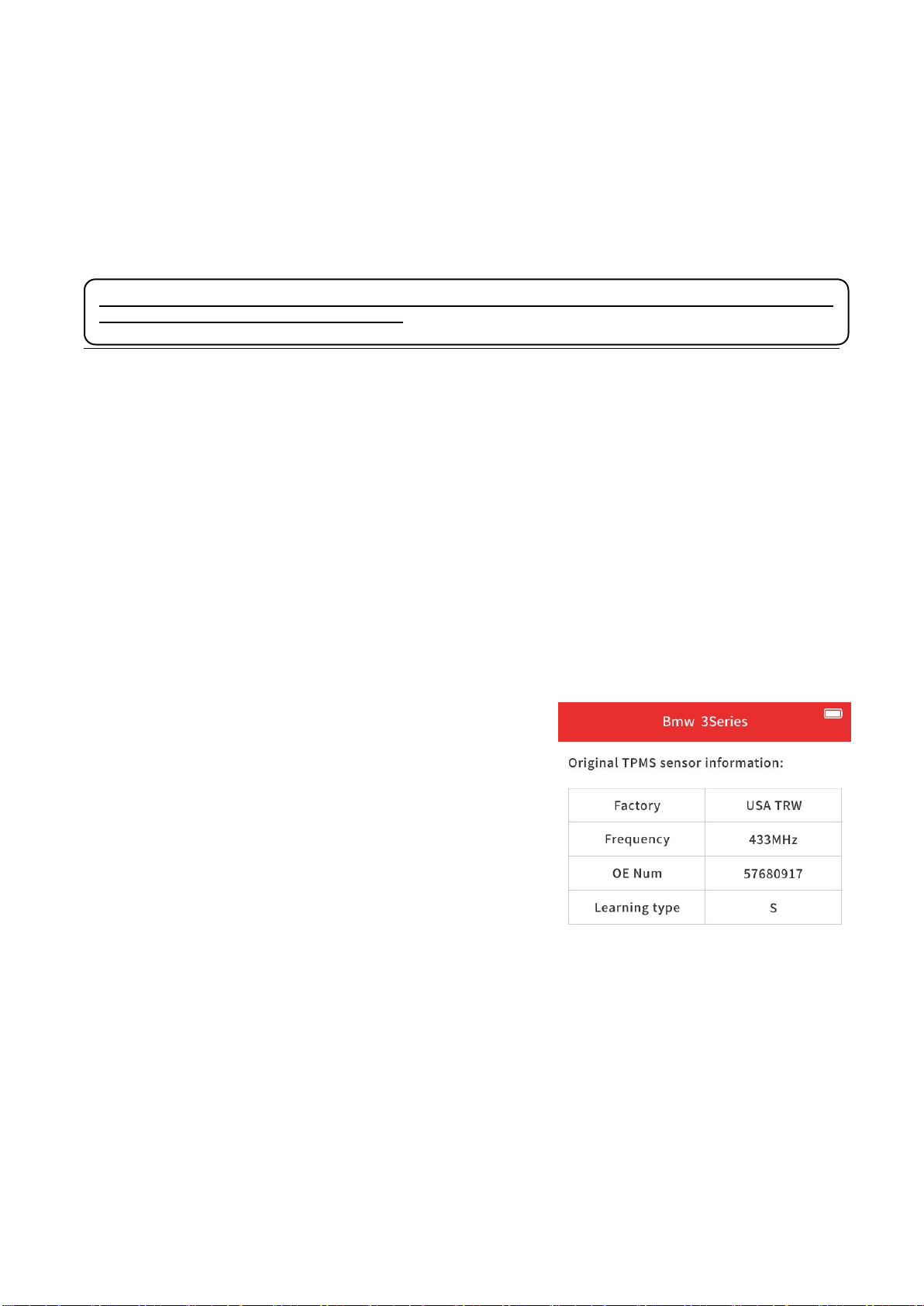

Sensor Information: Check the information on the OEM sensors and
XTOOL sensors.
⚠ Note: Not all the models support all those functions listed
above. Please check the support list on our official website to see
if the tool can perform the functions you need.

7
SENSOR CHECK & TRIGGERING
When checking the sensors, the tool will tell you which tire should be
triggered first, with the tire highlighted on the screen. You can also select
the tire to be triggered using the directions buttons.
When triggering, put the top of the tool close to the sensor (or the valve on
the tire) and click button.
The tool will scan the closest sensor around and show the data from the
sensor when detected.
TPMS DIAGNOSTICS
Before performing diagnostics, please check “Vehicle Communication” and connect the device to the vehicle.

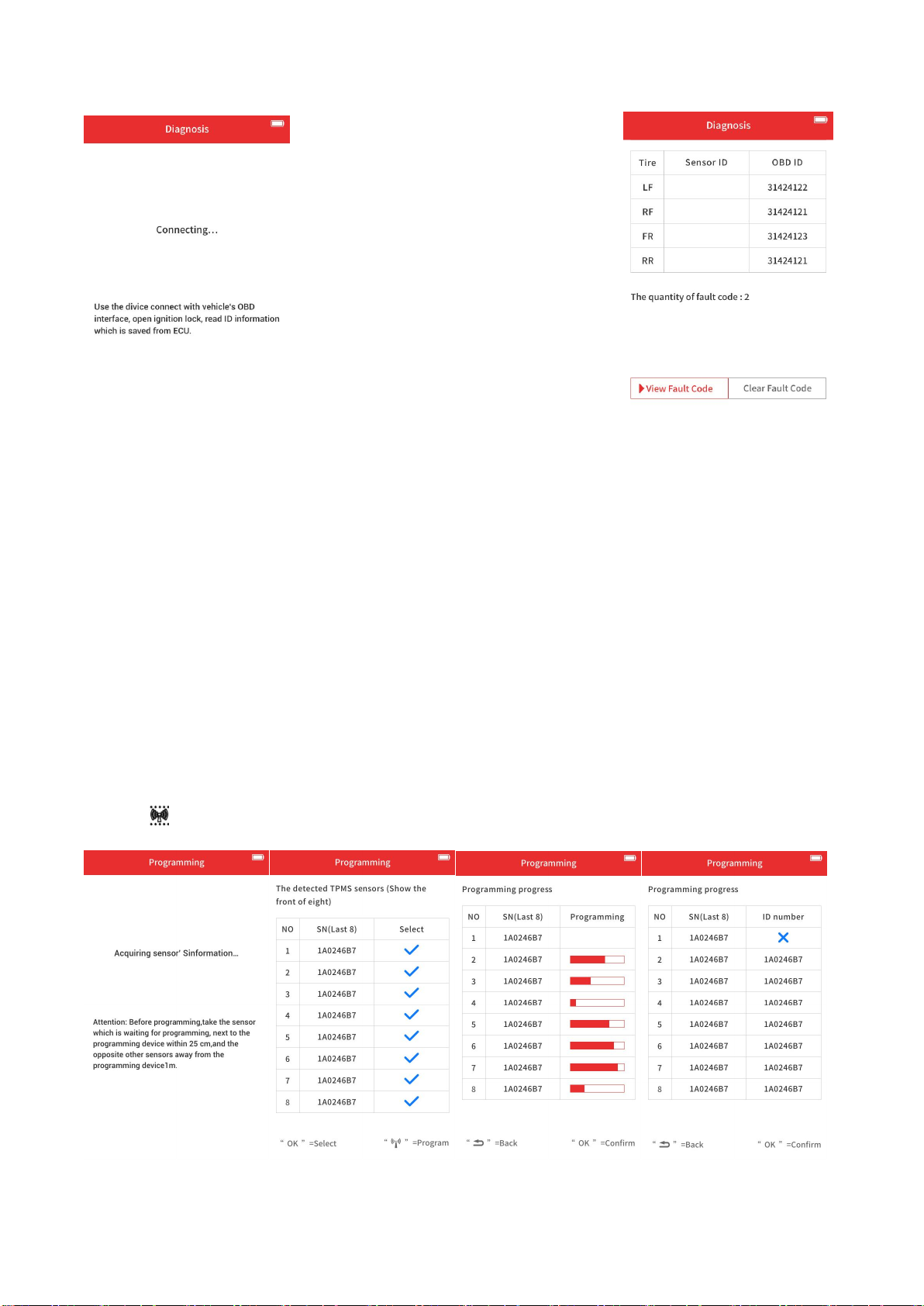

When you click “diagnostics” menu, the device will try to establish connections to the vehicle.
When connected, the tool will check the info from TPMS and show it on the screen.
The screen will also show the fault codes that are present inside the system; click “View Fault Code” to check details, and
click “Clear fault code” to clear them.
⚠ Note: If you checked the sensors before going into diagnostics, the sensor ID will show the IDs that were
found when triggering them.
⚠ Note: Before clearing the fault codes, make sure you have fixed the problem that are described by the
fault codes.

8
SENSOR PROGRAMMING
You can program Xtool sensors by this menu. Programmed sensors can be installed into the tires, replacing the OEM
sensor.
There are 4 ways to program the sensors, and the method will be listed as follows.
AUTO-CREATE ID
This function allows you to program up to 8 sensors at once with random-generated IDs. As the IDs are likely to be
different with the IDs stored inside the vehicle, relearn is needed after the sensor is installed.
To program the sensor(s), select “auto-create ID” on the tool, and put all the sensor(s) you need to program close to the
top of the tool. The tool will automatically scan the sensor(s) around it and show it(them) on the screen.
The screen will show the S/N of the sensor(s) when detected; check iif the S/N is correct.
If so, click button to start programming; if not. Click “Back” button and detect again.
