Simu DMI5 Hz User manual

QMI Security Solutions www.qmiusa.com rev 6/04/2015 Page 1
Instrucciones de
instalación del cortinas
Herramientas y materiales necesarios ………………………………………………………………………………… 2
Instrucciones de instalación pasos 1 - 20…………………………………………………………………………… 3-7
APPENDIX A - Standard 110V Motor ………………………………………………………………… 8-9
APPENDIX B - RTS (Radio) 110V Motor (no override) ………………………………… 10-12
APPENDIX C - RTS (Radio) 110V Motor (con override) ……………………………… 13-15
Mantenimiento de cortinas y manual de instrucciones ………………………………………………………… 16
Tabla de contenidos
Instrucciones - Motor/Crank/Resorte unidad/EZ Drive

Instrucciones de instalación del cortinas
QMI Security Solutions www.qmiusa.com rev 6/04/2015 Page 2
Taladro con punta magnética y punta Phillips
Brocas de sustrato (hormigón, madera, metal)
nivel
Pinzas De Punta De Aguja
cinta Métrica
Herramientas necesarias
La cortinas debe sujetarse a una estructura segura o la cortina podría caer y herir a alguien.
El nipple en la cubierta lateral puede romper!Tenga especial cuidado de no poner ningún peso excesivo
o estrés en el nipple durante la instalación.
Será responsabilidad del instalador para vericar la solidez de la estructura en la que el cortinas se va a
unir para asegurar el anclaje adecuado.
No se hace referencia en estas instrucciones de tubos estructurales y pueden ser requeridos / deseado.
Dimensiones en 1”x2”, 1”x3”, 2”x2”, 2”x4”, y 2”x6” tubo hueco con ⅛” y ¼” de grueso de pared están
disponibles. Normalmente cortinas puertas montadas en tienda necesitarán tubos 2“x4” para librar les
tornillos y un nuevo cierre de la puerta brazo paralelo puede ser requerida.Tubos también puede ser
necesaria para las cuestiones de compensación y opciones disponibles de QMI. Montaje adecuado de
tubos estructurales está sujeta a las condiciones del lugar. Consulte la ingeniería QMI si existen preguntas.
Si usted tiene alguna pregunta o comentario, por favor póngase en contacto con nosotros llamando
gratis al 800.446.2500 - las 24 horas del día.
Gracias por elegir los productos QMI.
Tenga En Cuenta
Los sujetadores adecuados para el sustrato y el uso (huracán o de seguridad)
material necesario
Siga los fabricantes de cableado diagramas incluidos en el interruptor o el relé (s)
para completar la instalación eléctrica.

Instrucciones de instalación del cortinas
QMI Security Solutions www.qmiusa.com rev 6/04/2015 Page 3
Step 4
El aferrarse a los rieles y la caja (sin apretar el
nipple soporte) levantar toda la cortina de pie en los
rieles laterales con los rieles rectos. A continuación,
levante todo la cortinas hasta que este en su lugar
en su contador. * Si en el piso pase a paso # 6.
** Si el ángulo de “L” suministrado para alféizar,
instale ángulo “L” primero y luego montar los rieles
sobre el ángulo.
MARK HOLE
COUNTER
JUNCTION
BOX
WINDOW
Step 3
OREJA DOBLADA HACIA DELANTE
advertencia:Tenga cuidado
del nipple!
Coloque la cubierta de la caja cortinas en el suelo.
Con una persona que sostenga la caja, la segunda
tira/manivelas/opera a cabo 10 “de cortina.
Segunda persona desliza cada riel lateral en el
soporte de nipple nal mientras guía los tornillos
de retención de extremo de la cortina en el canal
en los rieles laterales. Puede que tenga que tocar la
parte inferior de los rieles para conseguirlos a ras
de la caja. Entonces usted puede meter la cortina
hasta la caja.
Motor/Crank/Resorte - tire/operar
10-12 “de la cortina de la caja.
RIEL IZQUIERDO
TIENE UNA
PEQUEÑA
ETIQUETA
ROJA
Step 1 Step 2
Advertencia: El nipple es frágil! Por favor no
ponga ningún peso excesivo o estrés en él o se
romperá.
END CAP NIPPLE
FRENTE
ARRIBA
ESPALDA
ARRIBA
END CAP NIPPLE
PARA LA
ALINEACIÓN
SOLAMENTE
FRENTE
BAJO
BAJO
Revise si el tiene cha (sólo rieles motorizados).
Revise la esquina inferior trasera de la end cap.
Revise la parte trasera de la parte superior del riel.
Si tiene una cha en el riel, tendrá que doblar esa
cha hacia afuera en el paso # 11. NO doblar esta
cha antes del paso # 11 como el nipple no encaja
en el riel lateral después de doblar.
nota: Si el motor
de voltage de línea,
marque la ubicación del
oricio para el conducto
exible y perforar para
acomodar. (Consulte
los pasos # 4-5)
TAB NOTAB
TAB NOTAB
RIEL DERECHO
TIENE UNA
PEQUEÑA
ETIQUETA
BLANCA
Retire la cinta protectora en la parte superior
y posterior de la cubierta del rodillo y rieles
laterales.

Instrucciones de instalación del cortinas
QMI Security Solutions www.qmiusa.com rev 6/04/2015 Page 4
Step 7 Step 8
Medir la distancia de los rieles en la parte de arriba
de la cortinas. Medir la distancia de los rieles en la
parte de abajo de la cortinas y posicionar a la misma
dimensión que la parte superior de los rieles.
MEDIR ARRIBA
ARRIBA - ABAJO
MEDIR ABAJO
Coloque un tornillo en la parte superior del agujero
taladrado. (segunda persona debe mantener la
cortinas contra la pared hasta el segundo tornillo en
el carril contrario este en su lugar)
TORNILLO SIN APRETAR
EN SU LUGAR
Step 5 Step 6 Sólo Motor
Tire del conducto exible a través de la pared y
colocar la cortinas en el lugar requerido.
CONDUCTO
FLEXIBLE
CONECTOR
Conecte el conducto exible al conector en
la cortina.
Sólo Motor

Instrucciones de instalación del cortinas
QMI Security Solutions www.qmiusa.com rev 6/04/2015 Page 5
Step 11 Step 12
Si se determina en el paso # 2 que las pestañas de
riel existe, a continuación, utilizar un desarmador
plano y un martillo y doblar esa pestaña hacia afuera
hasta ras con placa de seguridad galvanizado de
la tapa. Esta guía a los tornillos de retención del
extremo correctamente en el lado canal de retención
de1 riel. No doblar las pestañas puede dar lugar a los
tornillos de retención de la captura de esta cha.
Baja lentamente los listones de la Cortina para
vericar la alincacien inicial de los listones y los
rieles. Nota: Hacer esto lentamente para prevenir
posibles daños a les listones.
BAJE LENTAMENTE EL CORTINAS
COMPROBAR LA
ALINEACIÓN
Motor Rails Only
Step 9 Step 10
Nivelar y aplomar los rieles. Ponga el tornillo en
cada oricio inferior de los rieles.
APRETAR
TORNILLO EN SU LUGAR
NIVEL
Medir de la parte superior de un reil para la parte
inferior de la banda opuesta para comprobar que
los carriles son totalmente cuadrado entre sí y la
cubierta de la cortina.
A = B
MEDIR B
MEDIR A
RAS PESTAÑA CON PLACA
DE SEGURIDAD
PESTAÑA DOBLADA ÉXITO

Instrucciones de instalación del cortinas
QMI Security Solutions www.qmiusa.com rev 6/04/2015 Page 6
Step 15 Step 16
SUJETAR LA
BOBINA VIVIENDA
ESTRUCTURAR
A: Conecte el conducto exible a una caja de
conexiones o conmutador si lo deseas. Conecte
la cortina al control deseado por instrucciones
de cableado del control deseado.
CONECTAR EL
CONDUCTO FLEXIBLE
B: EZ Drive: Corre bajo alambre de motor de voltaje
5 ‘por el canal de sujeción en el carril lateral. A
la altura adecuada, perfore un agujero a través
del canal y por el edicio. Cables de pescado a
través del agujero en el edicio. A continuación,
aplicar el enchufe en las cubiertas de riel. (Vea las
instrucciones proporcionadas con EZ Drive para el
cableado de la placa de pared)
CONECTAR EL CONTROL
A - B
Note: Este es el único paso
en el uso de los pececitos
de yeso es aceptable!
Step 13 Step 14
Ponga botones enchufe decorador en los pozos
de perforación. O, coloque la cubierta de resorte
al reil para ocultar jaciones.
Nota: Si EZ Drive ver paso # 15B primero.
INSERTAR BOTONES
DE ENCHUFE O
INSTALE LA CUBIERTA
A PRESIÓN
Vericar el nivel, la plomada y cuadrado. Fijar el
resto de los tornillos.
APRETAR
TORNILLO EN SU LUGAR
Retire la tapa frontal si todavía unido. Sujete
cubierta a la estructura por poner un tornillo a
través de la cubierta cortinas superior / trasera
por encima o por detrás del rodillo bobina. Ellos
deben tener una separación de no más de 18
“de distancia.

Instrucciones de instalación del cortinas
QMI Security Solutions www.qmiusa.com rev 6/04/2015 Page 7
Step 19 Step 20
Instale la cubierta frontal de la cubierta del
cortinas.
ALOJAMIENTO DE
LA CAJA
Selle el perímetro de la cortinas de solidez a la
intemperie. Nota: Para aplicaciones en exteriores, se
recomienda una tapa de goteo superior (no incluido).
RIEL
PORTADA CALAFATEAR
Step 17 Step 18
Compruebe el funcionamiento del cortinas para
asegurarse de que todo funciona correctamente.
Verique cerraduras funcionan correctamente. Si se
instala en la alfombra, puede necesitar ser ampliado
hacia arriba con una broca o una herramienta
Dremel la mortaja en los carriles laterales.
SUBIRY BAJAR EL CORTINAS
Limpiar las cortinas de la vivienda, rieles y cortina.
La supercie interior de la cortina está expuesto
cuando enrollado para facilitar la limpieza.
SUPERFICIE INTERIOR
LIMPIO
409 OR MILD
DETERGENT

INT T3.5 - T5 - T6 - 230V - 50Hz / 120V - 60Hz
S.A.S. au capital de 5 000 000 !- Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
5006258G
Lire attentivement cette notice avant
toute utilisation.
Read carefully these instructions before any use.
Bitte gründlich vor der Anwendung lesen.
Deze handleiding aandachtig doorlezen alvorens het systeem te gebruiken.
Ler attentamente estas instruções antes de proceder a qualquer utilização.
Leer atentamente este folleto antes de cualquier utilización.
Leggere attentamente queste istruzioni prima dell’uso.
Pfieãtûte si pozornû návod.
Przed ka×dym u×yciem uwa×nie przeczytać t∏ instrukcj∏
Kullanmadan once dikkatlice okuyunuz.
Diabavste prosektikav tiı parouvseı odhgiveı crhvshı prin arcivsete na thn crhsimopoieivte.
Les disse instruksjonene nøye før bruk.
Læs instruktionen grundigt før brug.
T6
120V-60Hz
660-14 • 680-14 • 6100-14
60 673 53
68
T6
230V-50Hz
640-17 • 655-17 • 670-17 • 685-17 • 660-12 • 680-12
6100-12 • 6120-12
60 673 53
68
T5
120V-60Hz
505-35 483
487
510-12
47 526 4,2
503
583
510-35
515-18 • 520-12
525-18 • 535-18 • 530-12 • 540-12 • 550-12
mm
AØBC D
Ø
min.
T3.5
230V-50Hz
354-12
37 377 4,2 8 5,5
433
353-25 • 356-12 • 359-12 • 3513-8
T5
230V-50Hz
506-12 • 506-32 • 508-17• 510-17 • 510-12 • 515-12 483
47 503 526 4,2
515-17
583
515-32 • 520-17 • 525-17 • 530-12 • 530-17 • 535-17 • 540-12 • 550-12
T3.5
120V-60Hz
354-30 • 356-14 • 359-14 37 433 4,2 8 5,5
T6
120V-60Hz
660-14 • 680-14 • 6100-14
60 673 5
T6
230V-50Hz
640-17 • 655-17 • 670-17 • 685-17 • 660-12 • 680-12
6100-12 • 6120-12
60 673 5
T5
120V-60Hz
505-35 483
487
510-12
47 5
503
583
510-35
515-18 • 520-12
525-18 • 535-18 • 530-12 • 540-12 • 550-12
mm
AØ
B
T
min.
T3.5
230V-50Hz
354-12
37 377 4,2
433
353-25 • 356-12 • 359-12 • 3513-8
T5
230V-50Hz
506-12 • 506-32 • 508-17• 510-17 • 510-12 • 515-12 483
47 503 5
515-17
583
515-32 • 520-17 • 525-17 • 530-12 • 530-17 • 535-17 • 540-12 • 550-12
T3.5
120V-60Hz
354-30 • 356-14 • 359-14 37 433 4,2
0,7
PLASTITE
FXS N7\7X12 ZING
T3.5




TAPTITE
FZ M5x12 ZN
T5




T6
T5 : 9910004
T6 : 9910062
T5&T6
www.simu.fr
1/2
Appendix A - Standard 110V Motor
SIMU/Somfy service hotline [phone]

4mm
x 20 : 9000987
x 20 : 9011781
L
N
PE
2/2
Appendix A - Standard 110V Motor
SIMU/Somfy service hotline [phone]

1/3
T5Hz.02+ / T6Hz.02+ MOTORS
Tubular operators with integrated radio for blinds, awnings & roller shutters
S.A.S. au capital de 5 000 000 €- Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
®
5047057A
IMPORTANT - Review instruction throughly before installing Hz motors
USA
- This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
- Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
1ASSEMBLY
1.1 - TUBE PREPARATION
Warning: do not cut or drill the tube with the motor
installed.
- Cut the tube to the required length.
- Remove all burrs from the tube.
- If using a round tube, cut a notch (D wide by C long)
into one end of the tube.
- On round tubes measure length (A) and drill 4 holes
around the tube. For octagonal tubes 1 hole is
sufficient.
1.2 - INSTALLING THE TUBULAR MOTOR
1- Fit the adaptor over the crown. Align the slot in the
adaptor with the raised key and firmly fit the adaptor
over the crown. A crown adaptor is not necessary with
47mm (2”) tubes.
2- Snap the drive wheel onto the drive shaft.
3- Screw on the drive stop if needed (60 Nm+ operators).
4- Slide the tubular motor into the tube. Do not force or
hammer on the head of the motor. If the motor does
not insert smoothly, remove the motor and file smooth
the edge of the tube. On round tubes confirm the
raised key on the crown fits snugly into the cut slot on
the end of the tube.
5- Secure the drive wheel to the tube. For the composite
drive, use four 3/16” dia. steel pop rivets or four 1/4”
dia. screws with steel grade SAE 5 or higher. For the
aluminum drive, use the three 5mm X 6mm cheese
head screws provided.
1.3 - MOUNTING THE TUBULAR MOTOR
The T5Hz02+ / T6Hz02+ motor use standard T5 / T6
accessories.
- Mount the motor as shown using only SIMU
accessories.
- Mount the motor heads at least 8” apart from each
other to prevent RF interference.
- Always install the power cable with a drip loop to
prevent water penetration.
- SIMU motors conform to IP44 requirements and as such
must be protected against direct weather elements such
as rain, sleet, ...etc. Failure to do so could result in
voiding the warranty.
12 TRANSMITTERS MAXIMUM 1ft < d1 < 65ft d2 > 8 inches
WARNING
AØB
D
C
AØB Ø min.
T min.
Ø 3/16
STEEL SAE5 or higher
1.1
Ø 1/4
For Composite Drive
For the Aluminum
Drive use the 5mm X
6mm screws supplied
with the drive
4 X
or
4 X
mm
Ø/T min. A B C D L1 L2
T5Hz 02+
120V/60Hz
505.35 47
47
47
47
60
60
590
590
660
660
713
713
5
5
5
5
5
26
-
26
-
36
-
4.2
-
4.2
-
8
-
603
603
673
673
728
728
623
623
693
693
745
745
510.35 515.18
525.18 530.18
550.12
60.14 80.14
100.14
T6Hz 02+
120V/60Hz
L1
96
Ø64
For the aluminum drive A is 20mm less and L1 and L2 are 11mm less than shown
55
48*
*:35Nm max.
T5Hz.02
T6Hz.02
L2
25Nm max.
9910013
9910014
1
3
2
2
2
1
1
23
5
4
1.2
T5Hz.02
1.3
Appendix B - RTS (Radio) 110V Motor (no override)
SIMU/Somfy service hotline [phone]

2/3
2WIRING
2.1 - Hz.02+ PERMANENT WIRING (shutter, shade or awning)
Warning: All wiring must conform to the National Electric Code and local
codes.
- (1) The motor must be installed with a drip loop to prevent water intrusion.
- (2)Connect the motor to power using a listed junction box with appropriate
cable strain reliefs.
- It is recomended a method of power disconnect for each motor be placed
within sight of the motor to cut power during servicing and facilitate
reprogramming.
- Do not use the motor cable to penetrate building walls. Connect the motor
to power in a listed junction box and from the listed junction box run power
in the manner proscribed by NEC. and local codes.
2.2 - Hz.02+ PLUG-IN WIRING (shade or awning)
Warning: All wiring must conform to the National Electric Code and local
codes.
- (1)The motor must be installed with a drip loop to prevent water intrusion.
- (2) If used outdoors, a GFCI receptacle with an outdoor cover is required.
- Do not use the motor cable to penetrate building walls.
3COMPATIBLE TRANSMITTERS
MOTOR
CABLE
POWER
120VAC
BLACK
WHITE
GREEN
HOT
NEUTRAL
GROUND
2.1
OPERATOR
WIRING CHART
MOTOR
CABLE
POWER
120VAC
BLACK
WHITE
GREEN
HOT
NEUTRAL
GROUND
2.2
OPERATOR
WIRING CHART
Hand Held TransmitterWall switch Transmitter Decorator Wall Switch Hz Timer
single channel five channel single channel five channel
PROGRAM BUTTON
(back of transmitter)
PROGRAM BUTTON
(back of transmitter)
PROGRAM BUTTON
(side of transmitter)
PROGRAM BUTTON
4PROGRAMMING AND SETTING LIMITS
NOTE: The motor will jog up / down after every programming command to
confirm it accepts the command.
4.1 - Power only the motor you wish to program and wake the motor up by
simultaneously pressing the UP and DOWN buttons until the motor jogs.
4.2 - Press UP or DOWN button to check the direction of rotation. If wrong,
press and hold the STOP button for 3+ seconds until the motor jogs. You
must change the direction of rotation (if needed) at this point.
After step 4.3 you can only change the direction of rotation by
returning to factory mode.
4.3 - Run the motor to the exact desired location for the top limit using the
UP and DOWN buttons. Press the STOP and DOWN buttons
simultaneously until the motor starts to run and then release them. Stop
the motor at the desired bottom limit.
4.4 - Use the UP or DOWN buttons to position the motor at the exact desired
bottom limit and press the STOP and UP simultaneously until the motor
starts to run. Press STOP to stop the motor. You can change the limits by
repeating step 4.3 for the up and 4.4 for the down limit. After step 4.5
you can only change the limits by following the process in section 7.
4.5 - With the motor stopped, press and hold the stop button until the motor
jogs. This confirms the limits set in 4.3 and 4.4.
4.6 - Press the programming button on the transmitter. The motor will jog.
You are now in “User Mode”. The UP or DOWN button no long has to
be held for the motor to continue running.
>>>
4.1
ON
ON
>>>
>>> >>>
4.2
GO TO 4.3
OR
3+ sec.
4.3
OR
4.4
OR
4.5
2+ sec.
4.6
Appendix B - RTS (Radio) 110V Motor (no override)
SIMU/Somfy service hotline [phone]

3/3
7.1
OR
7.2
5+ sec.
7.3
OR
7.4
2+ sec.
5ADD OR DELETE ADDITIONNAL TRANSMITTERS
5.1 - To add a transmitter channel to a motor - only the motor you are working on
should be powered. The motor should already be programmed to the first
transmitter as per steps 4.1 trough 4.6.
a - Start with the transmitter that already controls the motor and if it is a multi-channel
transmitter, confirm it is on the channel that controls the motor. Press and hold the
programming button for 3+ seconds until the motor jogs.
b - On the transmitter you want to add, confirm it is on the channel you wish to add
and press the programming button. The motor will jog. Repeat steps aand bfor
every transmitter you wish to add.
5.2 - To delete a transmitter channel from a motor - only the motor you are working on
should be powered. The motor must have 2 or more channels programmed to it.
a - Start with the transmitter you wish to keep and if it is a multi-channel transmitter,
confirm it is on the channel that controls the motor. Press and hold the programming
button for 3+ seconds until the motor jogs.
b - On the transmitter you want to delete, confirm it is on the channel you wish to
delete and press the programming button. The motor will jog. Repeat steps aand b
to delete additionnal transmitters.
5.1a
>>>
3+ sec.
5.1b
>>>
6INTERMEDIATE LIMITS
6.1 - To set an intermediate limit, run the motor to the desired position and stop
it. Then press and hold the STOP button for 5 seconds until the motor jogs.
6.2 - To run the motor to the intermediate limit, start with the motor stopped at
any position. Press the stop button and the motor will automatically run to
the position set in 6.1.
6.3 - To move the intermediate limit, run the motor to the new desired position
and stop it. Then press and hold the STOP button for 5 seconds until the
motor jogs.
7MOVING END LIMITS ON A PROGRAMMED MOTOR
7.1 - Use the transmitter to run the motor to the limit you wish to
change (example shows UP limit).
7.2 - With the motor stopped at the current limit, press and hold the
UP and DOWN buttons for 5 seconds until the motor jogs.
7.3 - Run the motor to the position desired for the new limit.
7.4 - Press and hold the STOP button for 2 seconds until the motor
jogs.
5.2a
>>>
3+ sec.
6.1
5+ sec.
OR
6.2
8RESETTING THE MOTOR (double power cut)
8.1 - Start with the motor connected to power. Cut the power of for 8 seconds.
Turn on the power for 8 seconds. Turn the power off for 8 seconds. Turn the
power on. The motor will start running.
NOTE: If needed repeat the process until the motor runs.
8.2 - Press the programming button on the transmitter for 8+ seconds. The motor
will jog twice.
- If the transmitter was not programmed to the motor, the transmitter will now be
added to the motor and all old transmitters will be cleared from the memory.
- If the transmitter was programmed to the motor, the motor will now be back in
Factory Mode. Go to section 4.1.
NOTE: If you wish to return a motor to Factory Mode and not have a transmitter
that controls the motor follow the procedure 8.1 and 8.2 to add a transmitter and
then repeat steps 8.1 and 8.2 to return the motor to Factory Mode.
8.1
OFF
8s
OFF
8s
5s
5s
8s
ON ON
8.2
>>>
5.2b
>>>
Appendix B - RTS (Radio) 110V Motor (no override)
SIMU/Somfy service hotline [phone]

1/3
DMI5Hz - DMI6Hz MOTORS
Tubular operators with integrated radio and manual override for blinds, awnings & roller shutters
S.A.S. au capital de 5 000 000 €- Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
®
5047058A
IMPORTANT - Review instruction throughly before installing Hz motors
USA
- This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
- Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
1ASSEMBLY
1.1 - TUBE PREPARATION
Warning: do not cut or drill the tube with the motor
installed.
- Cut the tube to the required length.
- Remove all burrs from the tube.
- If using a round tube, cut a notch (D wide by C long)
into one end of the tube.
- On round tubes measure length (A) and drill 4 holes
around the tube. For octagonal tubes 1 hole is
sufficient.
1.2 - INSTALLING THE TUBULAR MOTOR
1- Fit the adaptor over the crown. Align the slot in the
adaptor with the raised key and firmly fit the adaptor
over the crown. A crown adaptor is not necessary with
47mm (2”) tubes.
2- Snap the drive wheel onto the drive shaft. Screw on
the drive stop if needed (60 Nm+ operators).
3- Slide the tubular motor into the tube. Do not force or
hammer on the head of the motor. If the motor does
not insert smoothly, remove the motor and file smooth
the edge of the tube. On round tubes confirm the
raised key on the crown fits snugly into the cut slot on
the end of the tube.
4- Secure the drive wheel to the tube. For the composite
drive, use four 3/16” dia. steel pop rivets or four 1/4”
dia. screws with steel grade SAE 5 or higher. For the
aluminum drive, use the three 5mm X 6mm cheese
head screws provided.

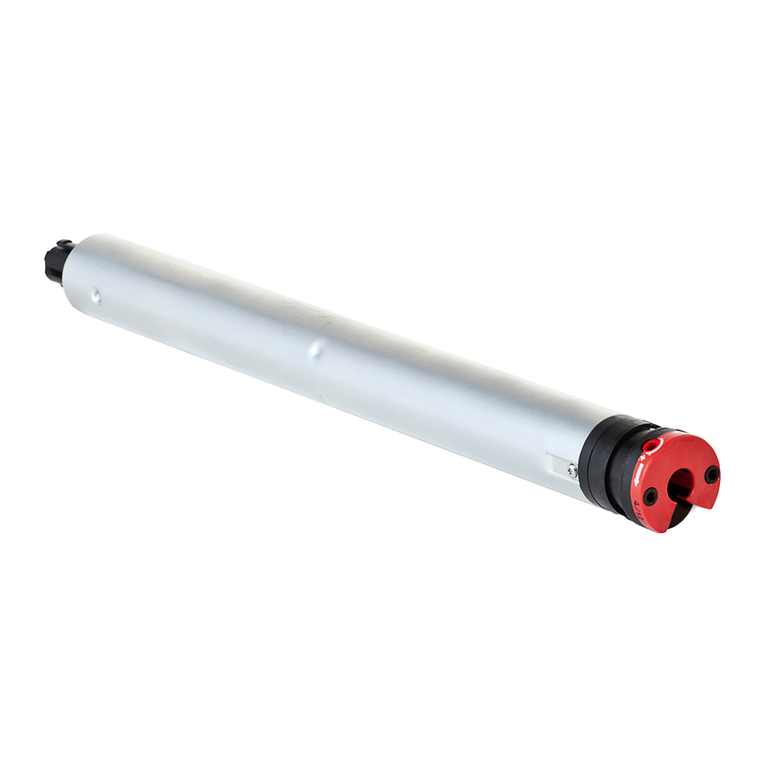

1.3 - MOUNTING THE TUBULAR MOTOR
The Hz DMI motor uses standard DMI accessories.
- Mount the motor as shown using only SIMU
accessories.
- Mount the motor heads at least 8” apart from each
other to prevent RF interference.
- Always install the power cable with a drip loop to
prevent water penetration.
- SIMU motors conform to IP44 requirements and as such
must be protected against direct weather elements such
as rain, sleet, ...etc. Failure to do so could result in
voiding the warranty.
12 TRANSMITTERS MAXIMUM 1ft < d1 < 65ft d2 > 8 inches
WARNING
AØB
D
C
AØB Ø min.
T min.
Ø 3/16
STEEL SAE5 or higher
1.1
Ø 1/4
For Composite Drive
For the Aluminum
Drive use the 5mm X
6mm screws supplied
with the drive
4 X
or
4 X
754
754
For the aluminum drive A is 20mm less than shown
840
840
-
-
26 4.2
-
8
-
36
mm
A BC D
Ø / T min.
5
47
60 5
DMI5Hz
120V / 60Hz
DMI6Hz
120V / 60Hz
12
43
1.2
1.3
Appendix C - RTS (Radio) 110V Motor (with override)
SIMU/Somfy service hotline [phone]

2WIRING
2.1 - DMI Hz PERMANENT WIRING (shutter, shade or awning)
Warning: All wiring must conform to the National Electric Code and local
codes.
- (1) The motor must be installed with a drip loop to prevent water intrusion.
- (2) Connect the motor to power using a listed junction box with appropriate
cable strain reliefs.
- It is recomended a method of power disconnect for each motor be placed
within sight of the motor to cut power during servicing and facilitate
reprogramming.
- Do not use the motor cable to penetrate building walls. Connect the motor
to power in a listed junction box and from the listed junction box run power
in the manner proscribed by NEC. and local codes.
2.2 - DMI Hz PLUG-IN WIRING (shade or awning)
Warning: All wiring must conform to the National Electric Code and local
codes.
- (1) The motor must be installed with a drip loop to prevent water intrusion.
- (2) If used outdoors, a GFCI receptacle with an outdoor cover is required.
- Do not use the motor cable to penetrate building walls.
4PROGRAMMING
3COMPATIBLE TRANSMITTERS
OPERATOR
WIRING CHART
MOTOR
CABLE
POWER
120VAC
BLACK
WHITE
GREEN
HOT
NEUTRAL
GROUND
2.1
MOTOR
CABLE
POWER
120VAC
BLACK
WHITE
GREEN
HOT
NEUTRAL
GROUND
2.2
OPERATOR
WIRING CHART
4.1 - WAKING UP THE MOTOR.
Before programming, changing direction of rotation, setting the limits, etc…you must wake the motor up. If using a multi-channel
transmitter, confirm you are on the desired channel. Press and hold the UP and DOWN together until the motor gives a short up/down
bounce. The motor is now awake.
4.2 - DIRECTION OF ROTATION.
You must check the direction of rotation before programming. If the direction of rotation is not correct, press and hold the STOP Button
until the motor gives a short up/down bounce. Confirm the direction of rotation is now correct.
4.3 - PROGRAMMING A TRANSMITTER CHANNEL TO A MOTOR.
If using a multi-channel transmitter, confirm you are on the desired channel. Press the Program Button and the motor will give a short
up/down bounce. Confirm the transmitter now controls the motor. A short push on the UP of DOWN button should make the motor run
until you stop it or the motor stop at its limits. You should not have to hold the button down.
4.4 - ADDING ADDITIONAL TRANSMITTERS (CHANNELS) TO THE MOTOR.
Use the transmitter that currently controls the motor and confirm it is on the correct channel. Press and hold the Program Button until the
motor gives a short up/down bounce. Confirm transmitter is on the channel you wish to add and press the Program Button. The motor
will give a short up/down bounce. The new channel is now added. Repeat for any additionnal transmitter channels you wish to add.
4.5 - DELETING A TRANSMITTER CHANNEL TO A MOTOR.
Use a transmitter that currently controls the motor and confirm it is on the correct channel to control the motor. Press and hold the
Program Button until the motor gives a short up/down bounce. Press the Program Button of the second transmitter until the motor gives a
short up/down bounce. The second transmitter is now deleted.
4.6 - CLEARING THE MEMORY OF OLD TRANSMITTERS AND ADDING NEW TRANSMITTERS.
If all a motor transmitters are lost or damaged it is possible to clear the old memorized codes from memory and add the new transmitter.
Perform a double power cut in the following sequence:
1- Power off for at least 8 seconds
2- Power on for 8 seconds
3- Power off for at least 8 seconds
4- Power on. The motor will try and run for 5 seconds but will not run past its limits.
The motor is now in a temporary mode for 2 minutes. NOTE: this is not the “factory mode”. Press and hold the Program Button of
any unmemorized transmitter for more than 8 seconds. When the motor gives a short up/down bounce release the button. The memory
of the motor’s receiver is now cleared of the old transmitters and the new transmitter has been added. If a motor or motors are entered
into temporary programing mode by mistake it can be cancelled by pressing for a second on the UP, STOP or DOWN of any transmitter
that motor has memorized. The motor will also return to normal operating mode if left for 2 minutes.
Hand Held TransmitterWall switch Transmitter Decorator Wall Switch Hz Timer
single channel five channel single channel five channel
PROGRAM BUTTON
(back of transmitter)
PROGRAM BUTTON
(back of transmitter)
PROGRAM BUTTON
(side of transmitter)
PROGRAM BUTTON
2/3
Appendix C - RTS (Radio) 110V Motor (with override)
SIMU/Somfy service hotline [phone]

5.1 - Identify which limit adjustment screw controls the up limit and which controls the down limit (see above diagrams). It is important to note
that the arrows by the limits adjustments screws refer to the tube’s rotation. Thus if the material comes off the tube on the back side and
you are adjusting the limits from the side that the motor cable is not on (as per diagrams 2), the limit adjustment screw with the arrow
facing up controls the down limit and vice-versa.
5.2 - Turning an adjustment screw positive (+) will increase the maximum travel in the direction that it controls and turning it negative (-) will
decrease the maximum travel. For the adjustment screws on the side without the motor cable, turning clockwise is positive (+) and
counterclockwise is negative (-). For the adjustment screws on the side with motor cable, turning clockwise is negative (-) and
counterclockwise is positive (+).
5.3 - To set a limit, run the motor in the selected direction.
5.4 - If the motor stops on its own before reaching the desired stop, turn the appropriate limit screw positive (+). Every 2 or 3 turns of the limit
adjustment screw will allow the motor to travel about 1 inch further. After every few turns of the limit adjustment screw use the control
switch to move the motor to the new limit position. If the motor does not stop on its own before reaching the desired stop, go to step 5.6.
5.5 - When you are approximately at the desired stop, use the control switch to run the motor away from the limit 2 or 3 feet and then back. This
will allow you to see precisely where the limit is set. Make small adjustments and repeat.
5.6 - If the motor does not stop on its own at least 6 inches before the desired limit position, stop the motor with the control switch. Then turn
the adjustment screw in the negative (-) direction. Confirm that the motor is stopped at the limit and set the limit as in step 5.4 and 5.5. If
the motor is not stopped at the limit, continue turning the limit adjustment screw (up to 120 turns may be required).
NOTE: The motor has a built-in thermal cut-off. If after several minutes of use the motor will not run in either direction allow the motor to cool
approximately 20 minutes.
3/3
5SETTING THE LIMITS
4.7 - RETURNING TO ORIGINAL FACTORY MODE (deleting all transmitters).
NOTE: When the motor is in factory mode is the only time the direction of rotation can be changed. To return the motor to Factory Mode,
perform a double power cut as described in section 4.6. Press and hold for 8 seconds the Program Button of an already recorded
transmitter. The motor will give a short up/down bounce. Release the Program Button. The motor is now in factory mode. To wake the
motor up press UP & DOWN until the motor gives a short up/down bounce. All transmitters are cleared from memory, the control will be
in a momentary fashion (motor will move only as long as the transmitter button is held down).
NOTE: If you did not use a transmitter that was memorized by the motor, you will have to repeat the process a second time.
4.8 - TROUBLESHOOTING.
- Motor goes up when down is pressed: go to step 4.2 “setting direction of rotation”.
- Can not change the Direction of Rotation: Confirm the motor is in “Factory Mode” (it only runs as long as the transmitter button is held
down). If it is not, go to step 4.7
- Lost transmitter: Go to step 4.6 to clear old transmitters from memory and add new transmitter.
- The motor will not react to any transmitter: Confirm the motor has power to it. Make sure the motor is awake by pressing UP and DOWN
together until the motor gives a short up/domn bounce. IF it does not work, cut power for 3 seconds and try again. If the motor still will not
react to the transmitter, follow the instructions in step 4.6.
- The motor stops responding to the transmitter after a power loss: The motor was still in factory mode. Follow steps 4.1, 4.2 and 4.3 above. If
the Program Button is not pressed as in step 4.3, the motor is not programmed.
- The motor only runs as long as the transmitter button is held down: The motor has not been programmed. Go to step 4.2 and 4.3 above.
DOWN LIMIT ADJUSTMENT SCREW
MATERIAL ROLLS DOWN ON SAME SIDE AS LIMITS
1
UP ADJUSTMENT SCREW
MATERIAL ROLLS DOWN ON OPPOSITE SIDE AS LIMITS
2
UP LIMIT ADJUSTMENT SCREW DOWN LIMIT ADJUSTMENT SCREW
LIMIT ADJUSTMENT SCREWS ON OPPOSITE SIDE FROM MOTOR CABLE
UP LIMIT ADJUSTMENT SCREW
MATERIAL ROLLS DOWN ON SAME SIDE AS LIMITS
DOWN LIMIT ADJUSTMENT SCREW
3
MATERIAL ROLLS DOWN ON OPPOSITE SIDE AS LIMITS
4
DOWN LIMIT ADJUSTMENT SCREW
MOTOR CABLE MOTOR CABLE
UP LIMIT ADJUSTMENT SCREW
MOTOR CABLE MOTOR CABLE
LIMIT ADJUSTMENT SCREWS ON SAME SIDE FROM MOTOR CABLE
Appendix C - RTS (Radio) 110V Motor (with override)
SIMU/Somfy service hotline [phone]

Instrucciones de instalación del cortinas
Su QMI Rolling Shutters debe funcionar tan a menudo como sea posible para garantizar un rendimiento óptimo.
Una vez por semana se recomienda, pero una norma aceptada es mínimamente una vez por mes. Esto sacudirá
perder cualquier sustancia extraña que pueda acumularse en los listones y los rieles.
NO FORZE a su cortinas para abrir o cerrar.
MANTENIMIENTO MENSUAL: Con las cortinas en la posición completamente abierta, utilice un paño húmedo o
una toalla para limpiar el interior de las vías laterales. Rocíe el interior de las pistas laterales con solamente spray
de silicona SECO. no utilice lubricantes a base de aceite, como WD-40. Luego, humedezca un paño con el spray
de silicona y limpie el exterior de las viviendas de la caja, el exterior de las pistas laterales y todo el universal y
el conjunto de empuñadura. Este procedimiento se debe realizar una vez al mes, si es posible, o minimo una vez
cada tres meses.
LIMPIEZA: Si desea lavar los listonas de la cortina, coloque las cortinas en la posición completamente cerrada y
lavar listones usando Fantastic, 409, o equivalente. ENJUAGAR COMPLETAMENTE.
CONDICIONES DE ARENA: Después de un evento de huracán, o si persianas han estado en la posición fuera de
por períodos prolongados, es importante lavar las cortinas ANTES de operar la cubierta de nuevo hacia la carcasa
de la caja. La arena y los desechos pueden acumularse en las bisagras de listón y prohibir buen funcionamiento
de su del cortinas. Comenzando en la parte superior de la cortina, utilizar un sistema de pulverización en una
manguera de agua y rociar a fondo a lo largo de cada segmento de listón para asegurar la arena y los desechos
se eliminan de la zona de cortina. Además, rocíe las aberturas de la pista lateral verticales a partir de la parte
superior, y que trabajan por la apertura de la pista despejar cualquier residuo acumulación. Saturar el carril sentía
para descomponer la sal incrustada y escombros. Lave la cortina y rieles con un limpiador / desengrasante - como
Simple Green con un cepillo de cerdas suaves.
INVIERNO CONDICIONES: Durante los listones de la , garantizar la cortina y pistas laterales están libres de
cualquier acumulación de hielo o nieve antes de levantar el cortinas en la caja. El aumento de la cortinas con
escombros congelado unido a la cortina o carriles podría causar daños en el sistema cortinas. Además, tenga
cuidado de no enrollar una cortina húmeda cuando las condiciones de congelación pueden ser inminente ya que
las temperaturas caen podrían congelar el agua en la cortina enrollada con hielo dentro de la caja. Si el cortinas no
funciona bien en condiciones de congelación, no forzar el cortinas hacia arriba o hacia abajo.
Para operar engranaje y manivela cortinas:
para Elevar: Párese lejos de la pared que sostiene la manivela en un ángulo de 45 °, doble
el mango en los dos codos y girar la manivela hasta que el obturador está en la posición
deseada. NO intente tirar de la cortina hasta el nal en la carcasa de la caja - 2/3 “de listón
DEBE quedar enganchada en los rieles.
Bajar: Mantenga la manivela de la misma manera como se describió anteriormente. Gire la
manivela en la dirección opuesta hasta cortinas está cerrado, y girar no más lejos. no lo fuerce.
Cuando se opera cortinas motorizadas: Asegúrese de que el recorrido cortinas está libre de
obstáculos. Observar visualmente el recorrido cortinas cuando se opera el control remoto o
cambiar a garantizar la cortina no se obstruye durante el funcionamiento. No hay sensores
de marcha atrás en el cortinas y los daños pueden ocurrir a la obturación o el obstáculo. Las
obstrucciones también pueden sacudir el límite superior o inferior se detiene la creación de
la necesidad de reponerlos. Los daños causados o reparaciones necesarias debido al cortinas
obstrucciones no están cubiertos por la garantía.
Cerraduras: Si usted tiene cerraduras de diapositivas, asegurar las cerraduras deslizantes
están completamente arrastrados a la cortina antes de la operación. Para cerraduras de
cilindro, de vez en cuando usar un lubricante a base de película seca de PTFE como Blaster
(que se encuentra en Home Depot) o CRC, en ranura para mantener los desechos clara y para
lubricar vasos de bloqueo.
Mantenimiento de cortinas y manual de instrucciones
QMI Security Solutions
1661 GLENLAKE AVE • ITASCA, IL. 60143
[phone] • International: 00 1 630 529 7111
www.qmiusa.com
Copyright© 2015 QMI Security Solutions, Inc. Not to be
duplicated, altered or reproduced.
QMI INST-RS-V3-000sp
