Steelcase V.I.A. FEIJA2V User manual

Page 1 of 38
939502326 Rev G
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©2017 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

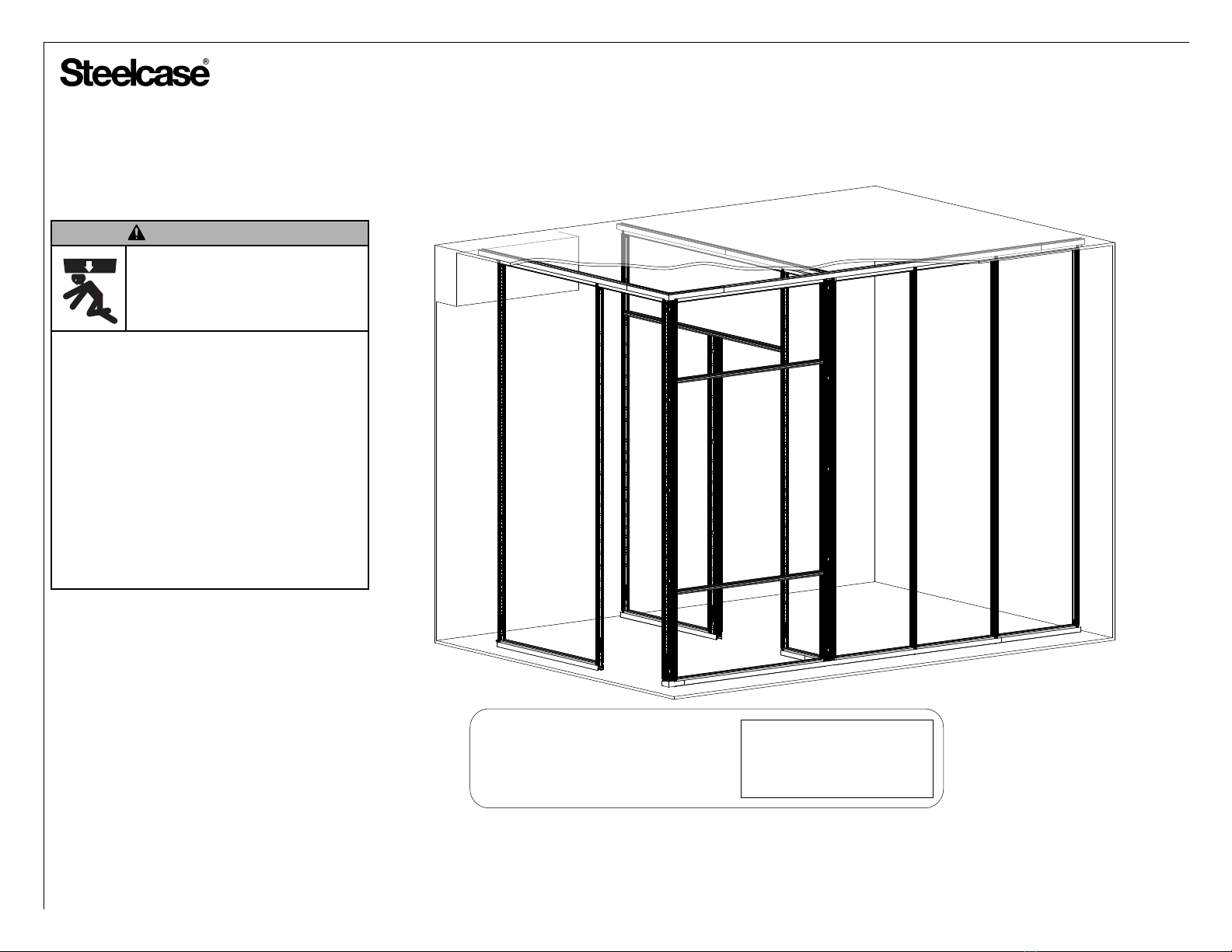

CAUTION
FAILURE TO PROPERLY SECURE
V.I.A. TO THE BUILDING COULD
RESULT IN PERSONAL INJURY.
CRUSH HAZARD!
Read the entire Assembly Directions
before beginning installation.
Building construction varies greatly. The
Building’s Engineer of Record is responsible
for the design of building floors, ceilings
and walls which V.I.A. attaches to and must
verify the adequancy of the mounting
even if provided by Steelcase.
The building owner or designated agent is
responsible for verifying that the
installation is in compliance with all local
codes and regulations.
Non-Seismic Applications*
*The building’s Engineer of Record must be
consulted to determine if there are any
seismic requirements.
V.I.A.™- Frames & Structure
Installation Reference Identification (IRID) Label example shown above.
Many V.I.A. Products have specific locations within the floor plan layout.
These products will be identified with an Installation Reference Identification Label.
The Installation Reference ID Label number will indicate the location of the product
within the floor plan layout. Detailed information can be found on the label
including style/model number, finish, Plan dimensions, Measured dimensions etc....
By Steelcase Inc. Grand Rapids, MI 49501-1967
www.steelcase.com/patents
Model: FEIJA2V
Ship Date: 10/09/13 Athens
Order No.: 05207605-001160
Barcode: 1PN8Z952O
Assembled By: F529602
Finishes 6249
J0DEF
PH: 108.000 MH: 105.618

Page 2 of 38
939502326 Rev G

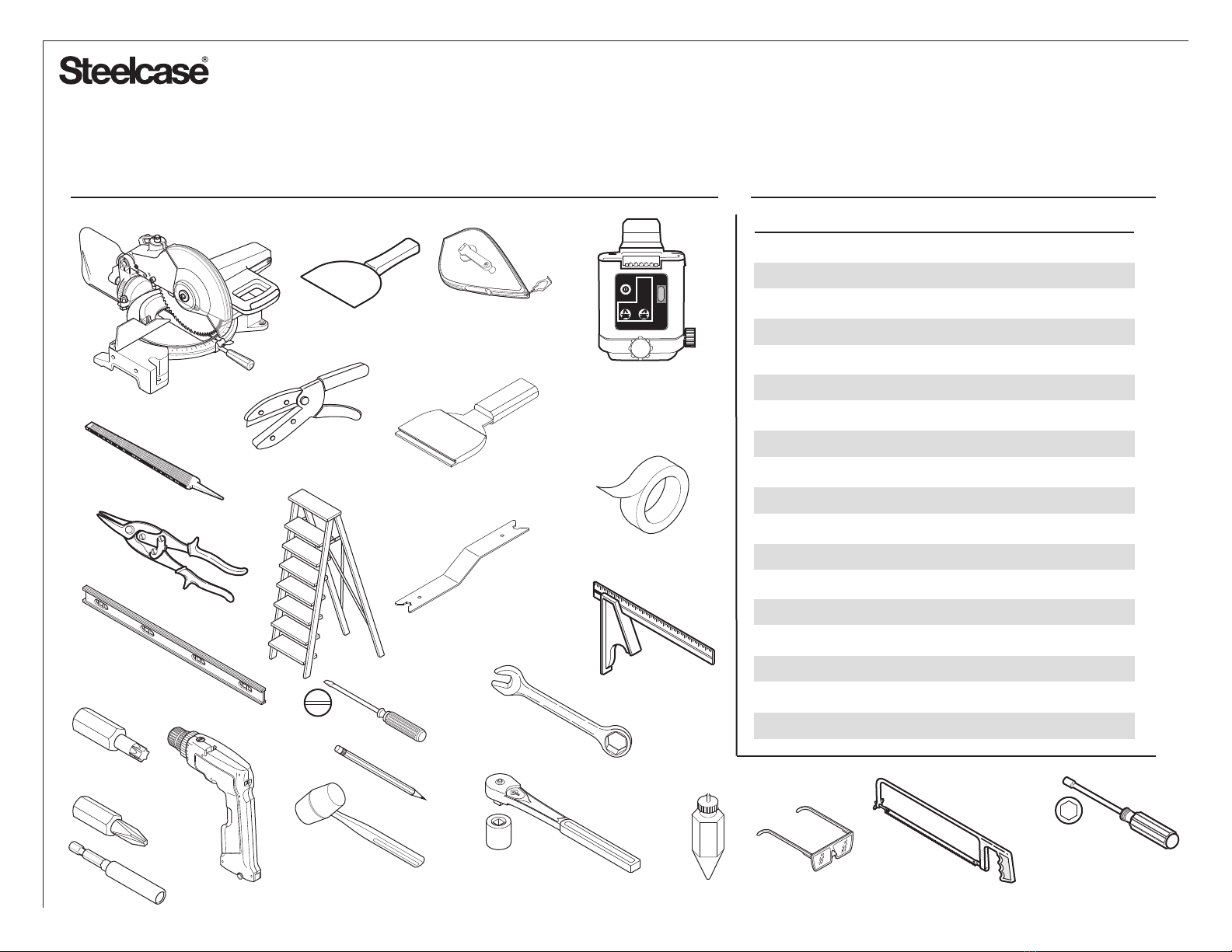

Tools Table of Contents
2" WIDE
MASKING TAPE
PLUMB BOB
FRAMING LEVEL
CHALK LINE
w/ WHITE CHALK
RAYBO
Topic Page
32-TOOTH BLADE
HACKSAW
Layout Drawings & General Information
Installing Ceiling Channels
Installing Ceiling Track
Where to start Installing Structure
Floor Guide
Vertical Post Assembly Features
Installing Full Height Vertical Post Assembly
Junction Assemblies
Floor Track Features & Installation
Structural Horizontal Installation
Intermediate Horizontal Installation
Partial Height Vertical Post Installation
Base Trim Installation
Base Trim Removal Process
Acoustic Block Installation
Assembling a Junction Kit to a Junction
Assembling a Mini End to a Junction
Changing Acoustic Seals
3-4
5-8
9-18
19
20
21-22
23
24-25
26
27
28
29
30-33
34
34
35
36
37-38
7/16” & 1/2”
PUTTY
KNIFE
BASE TRIM
INSTALLATION TOOL
T30
8mm & 10mm
8mm & 10mm
LARGE & SMALL
DEAD BLOW HAMMER
P2
POWER
ROTATE
FAST
SLOW
LASERTRANSIT
LASERTRANSIT
TIP: A 5-point alignment
self leveling laser is the
best tool to plumb, level
& square the product.
GLIDE
ADJUSTMENT
TOOL
HEAVY DUTY
UTILITY SHEAR

Page 3 of 38
939502326 Rev G
®

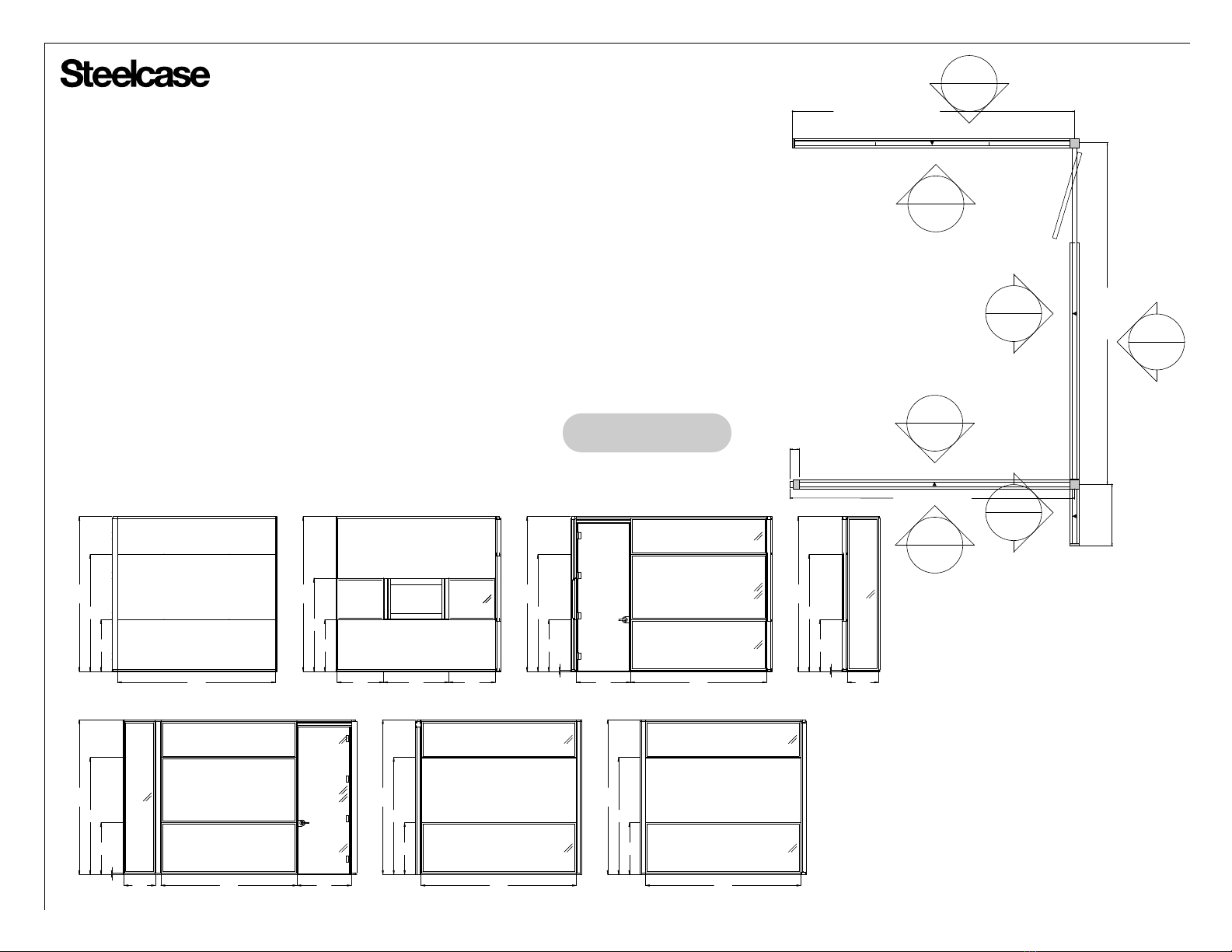

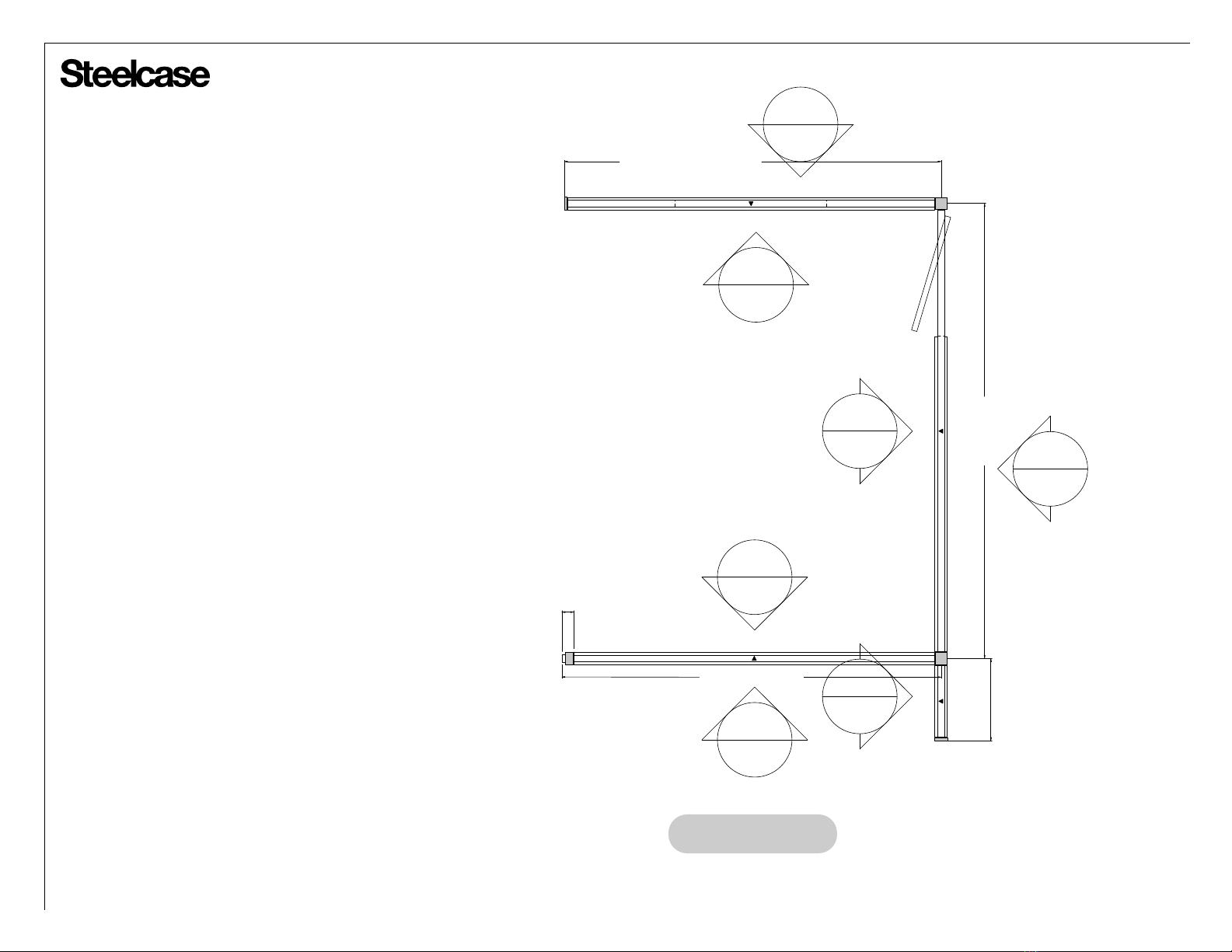

V.I.A. structures - Layout Drawings
Layout drawings give dimensions and details to help
installers determine location of product.
Ceiling track locations are taken from the centerline
dimensions on the plan view.
Locations of vertical components are found on the
plan view designated with individual IRID labels.
Locations of horizontal components are found in the
elevation views designated with individual IRID
labels.
Separate elevations are supplied for Structure, Skin
& Electrical components.
Example only
D
C
E
B
A
F
G
144-1/8"
CL to CL
CL to ME 120"
26"
CL to outside FE
3-3/4"
119-1/4"
CL to outside of FE
38"
86"
Ceiling Height
114"
116"
Elevation A
38"
69"
Ceiling Height
114"
34" 48" 34"
Elevation B
1"
38"
86"
Ceiling Height
114"
40" 100"
Elevation C
1"
38"
86"
Ceiling Height
114"
23"
Elevation D
1"
38"
86"
Ceiling Height
114"
23" 100" 40"
Elevation E
38"
86"
Ceiling Height
114"
114"
Elevation F
38"
86"
Ceiling Height
114"
114"
Elevation G
Automatic Elevations
C5175
G6207
S846AS4EC2
S81F3
5F94
WB6A0
BE4C8
5F94
3062
6582
4242
S1362
BE4C8
G58C9
D30E6
G8EBA
L696F
6500
6582
4242
G2381
SB12D
GF791
6500
4242
7360
7241
GD660
Factory components are shipped with one
acoustic seal color applied. Elevation views
will indicate if a acoustic seal color changes.
See pages 37-38 for instructions on how to
replace acoustic seals.

Page 4 of 38
939502326 Rev G
®
V.I.A. structures - General information
Use the centerline dimensions from the layout
drawing plan view to determine location of ceiling
track centerlines. Several methods can be used to
mark lines on the ceiling, including laser transit,
pencil marks on tape, chalk lines.
See pages 9 through 18 for additional ceiling track
information to determine cutting lengths for common
ceiling track conditions.
Transfer the ceiling centerline to the floor by means
of laser transits or plumb bob.
Make sure that the tape or lines are not visible after
install is complete.
For the best results use a 5-point alignment self
leveling laser to transfer lines, plumb, level and square
to within 1/32 of an inch. The most accurate
feature to reference, while leveling, is the vertical
post system hole shown on page 21 & throughout
various V.I.A. assembly directions.
Example only
D
C
E
B
A
F
G
144-1/8"
CL to CL
CL to ME 120"
26"
CL to outside FE
3-3/4"
119-1/4"
CL to outside of FE
+
_

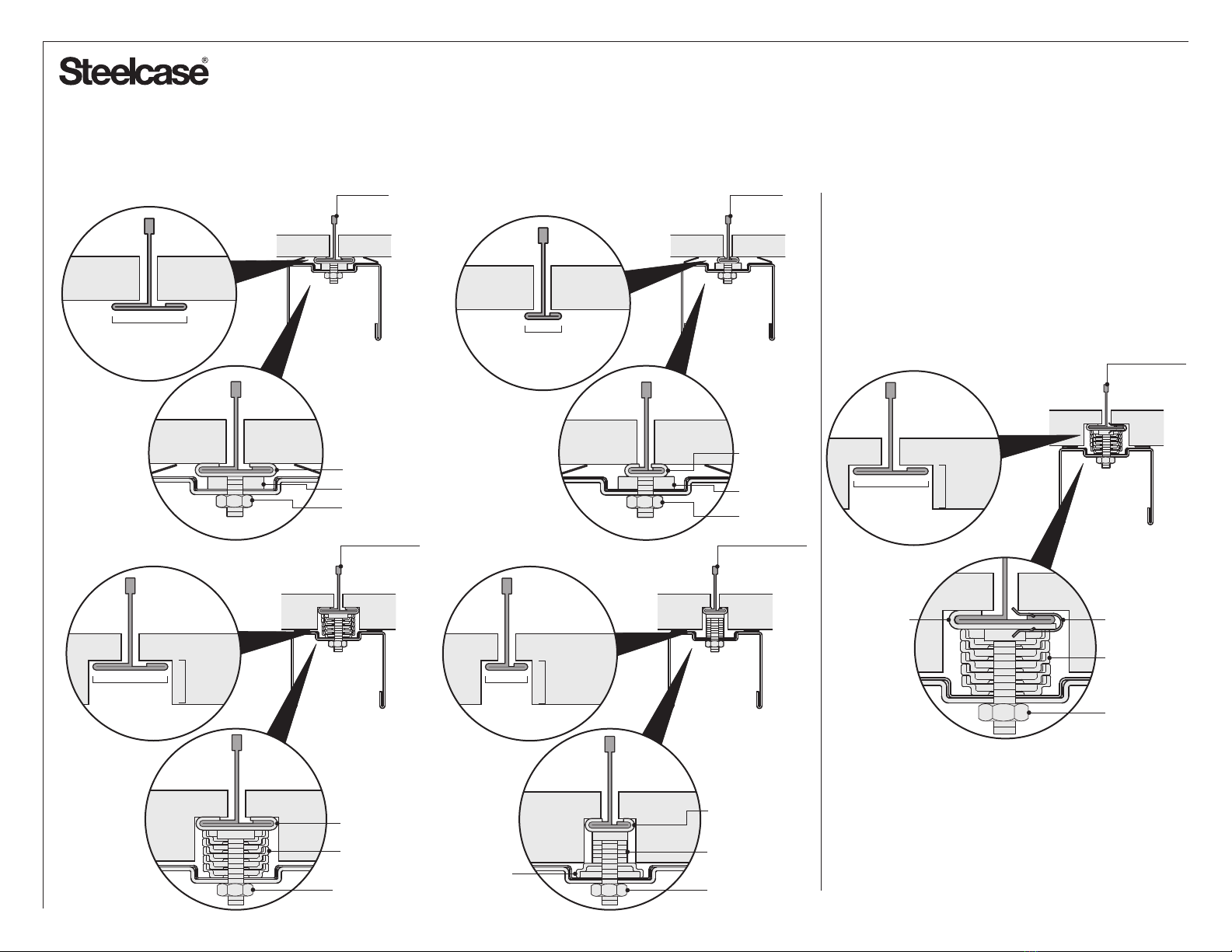

Exposed Tee Grids - V.I.A. Fastener Kits
1" nominal
(24mm)
Exposed
T-clip
Exposed
T-clip
9/16" (14mm)
1/4",
3/8", 1/2",
or 5/8"
1" nominal
(24mm)
1" Tegular Tee
16"
1/4",
or 5/
9/16"
nominal
(14mm)
9/16" Tegular Tee
1/4",
3/8", 1/2",
or 5/8"
1" nominal
(24mm)
Exposed Tee Grids - V.I.A. Fastener Kit
Tinnerman Clip Style (Recessed Version)
1" Tegular Tee
1/4-20 Caddy Clip Assembly
Nylon Washer
1/4-20 Hex Nut
#10-24 Caddy Clip Assembly
#10-24 Hex Nut
1/4-20 Caddy
Clip Assembly
Nylon Washer
1/4-20 Hex Nut
1/4-20 Caddy Clip
Assembly
Nylon Washers
1/4-20 Hex Nut
#10-24 Ceiling
Clip Assembly
Tinnerman Clip
Channel Mounting Options*
*The building’s designated design professional (Architect or Engineer) must verify that the ceiling grid is
adequate to support lateral loads imposed by V.I.A. Local codes may require independent bracing.
Page 5 of 38
939502326 Rev G
#10-24 Hex Nut
Stack Spacers
Stack Spacers
1 Stack Spacer

slot widths
1/8" or 1/4"
9/16" (14mm)
Fineline
channel
9/16" (14mm)
5/16
thread
Fluted runner
Concealed
spline
Metal
ceiling
-18

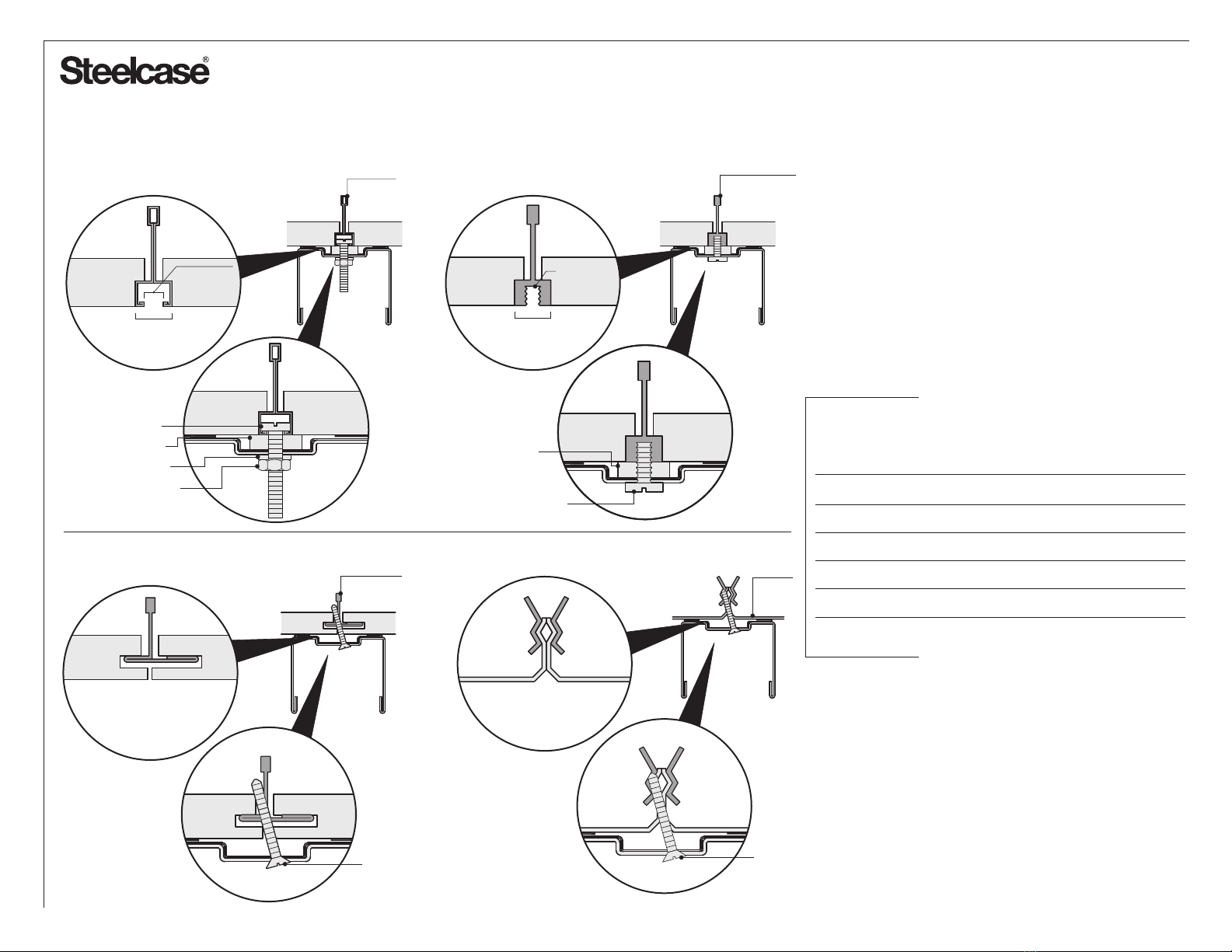

Bolt and Screw Grids - V.I.A. Fastener Kits
Concealed Grids - Field-Purchased Generic Fasteners
For these and other types of ceilings, the following
fasteners can be sourced locally by the installer:
Concealed spline
Drywall
Plaster
Concrete
Metal Pan
#7-17 x 1-5/8" Bugle Head Self-Drilling Screws
#14 - 1" Phillips Head SMS with plastic anchor
1/4-20 Toggle Bolt
Tapcon Anchor x 2"
#7-17 x 1" Bugle Head Self-Drilling Screws
Generic Sheet Metal Screw
Generic Sheet Metal Screw
Nylon Washer
5/16-18 Screw
1/4-20 Donn Bolt
Nylon Washer
1/4-20 Hex Nut
Nylon Washer
Channel Mounting Options (Continued)*
*The building’s designated design professional (Architect or Engineer) must verify that the ceiling grid is
adequate to support lateral loads imposed by V.I.A. Local codes may require independent bracing.
The following hardware is NOT supplied with the
product, but is commonly used for attachment
for common building construction.
NOTE: Mounting hardware must be specified/verified
by the designated design professional or approved by
the AHJ.
Page 6 of 38
939502326 Rev G

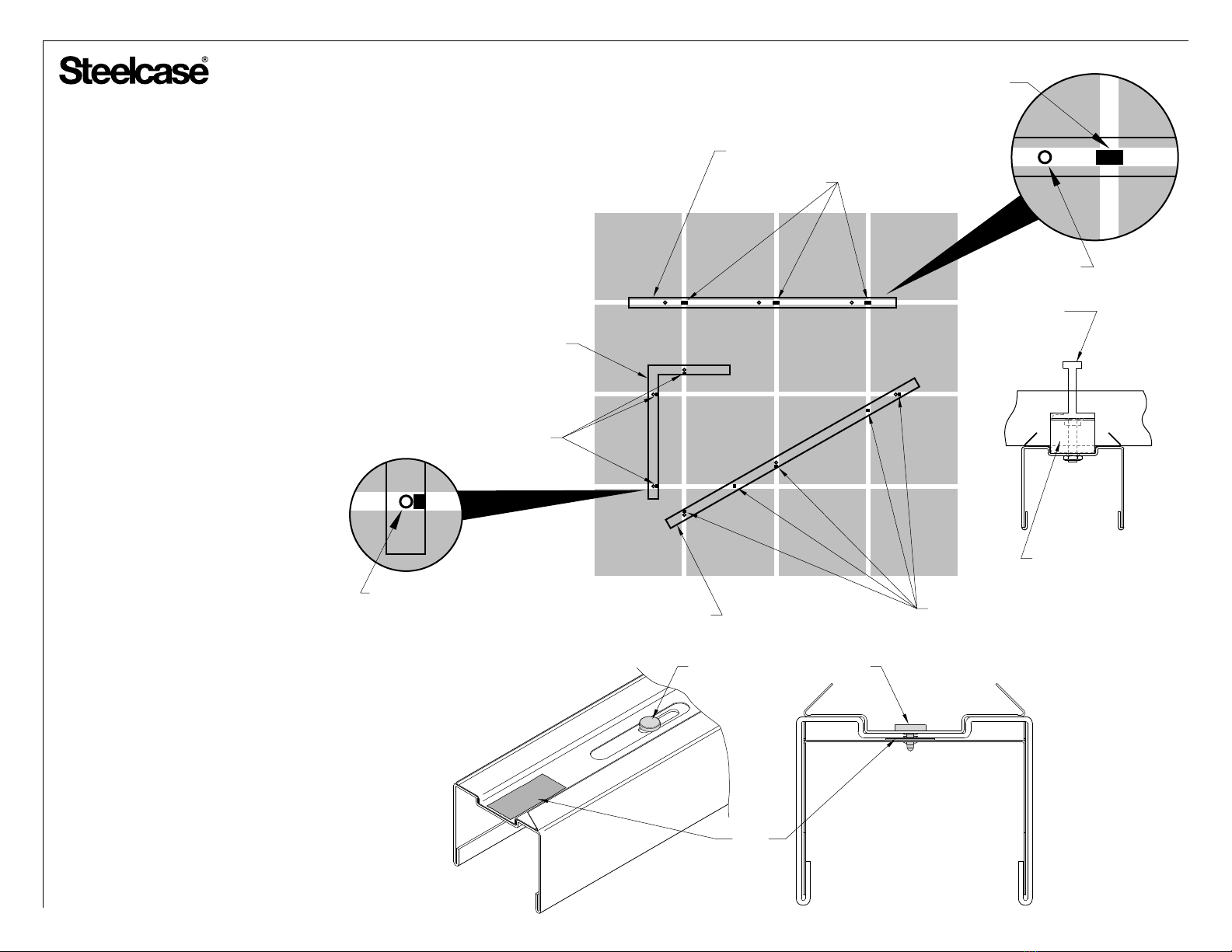

Installing Ceiling Channels
XXX
X
X
X
X
connect within 8" of
any junction
4 feet maximum spacing
between junctions for normal
duty
connect within 8" of
any end-of-run; this
may require building
a spanning structure above
the ceiling
CEILING TILE
CEILING GRID

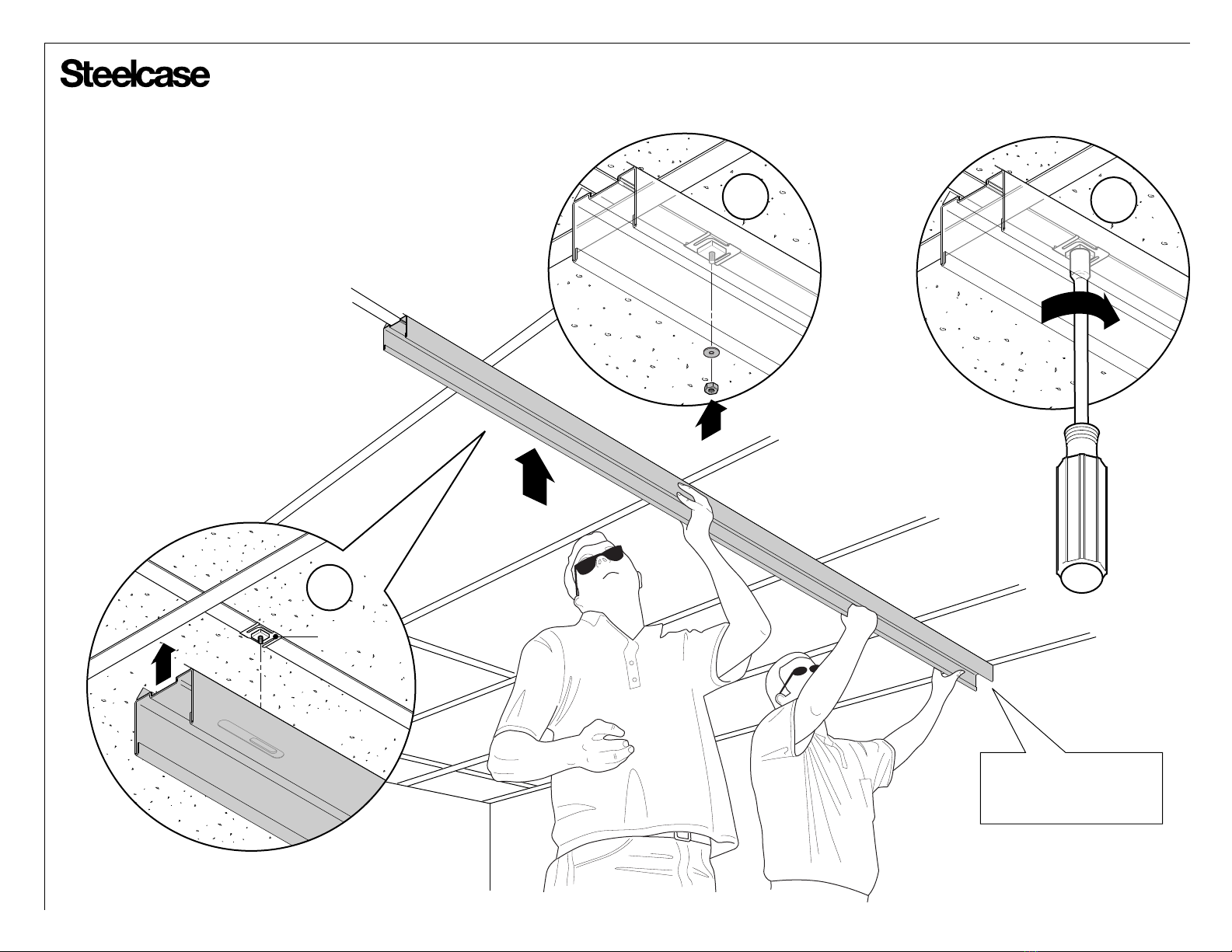

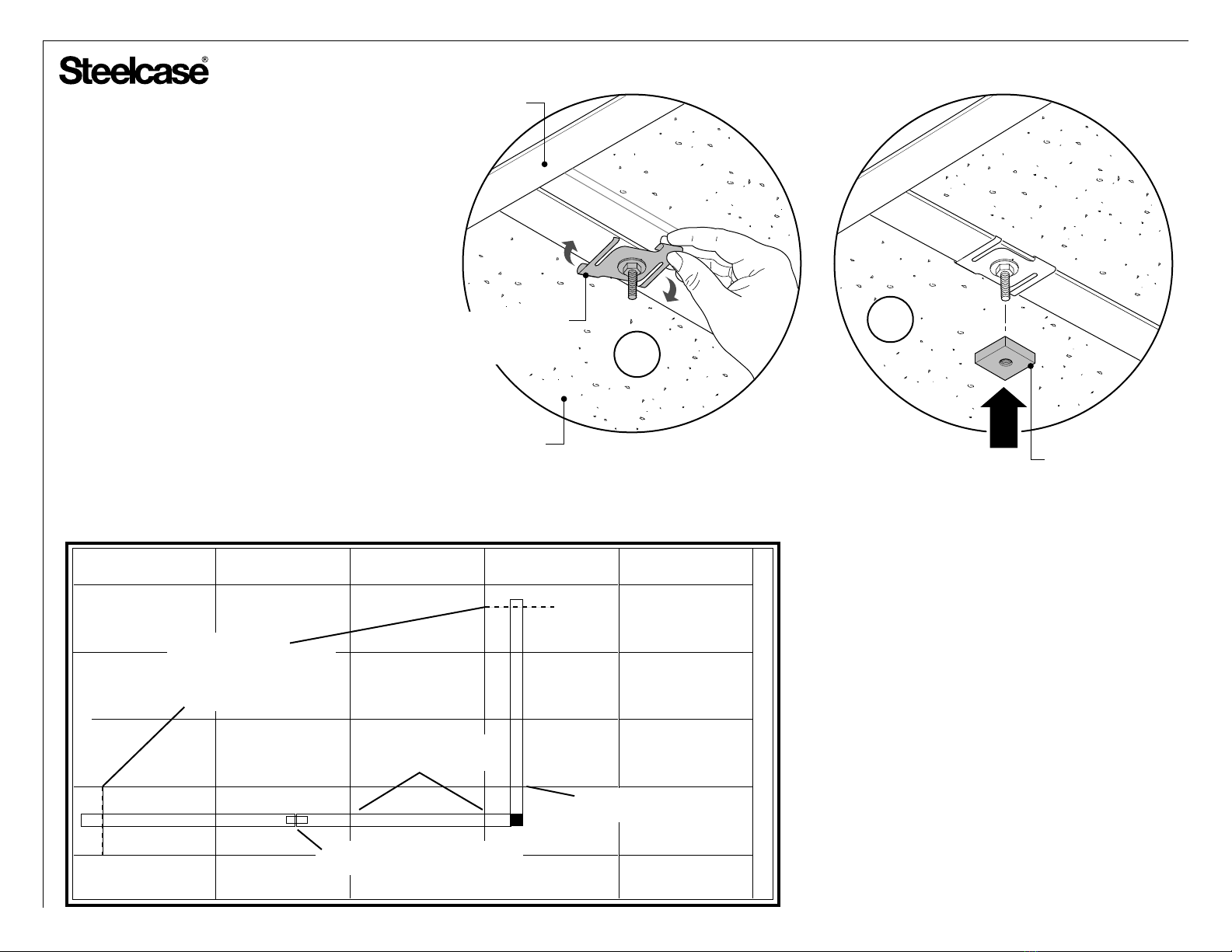

1. Attach the ceiling track to your ceiling in
compliance with local building codes and
common local practice as directed by the
lead installer. See 'channel mounting options'
for typical handling of common ceiling
conditions.
Connections should be made at least every
four feet for normal duty and at least every
two feet for heavy duty and along straight
runs, and within eight inches of the end of
any run. Each off-module connection or
junction should also have a connection
within eight inches of the joint.
1a
1b
splice together ceiling joints
(supplied - one per ceiling channel)
1” EXPOSED CLIP SHOWN
(ONE OF SEVERAL
TYPES OF CLIPS)
SPACER
(ONE OF SEVERAL
TYPES OF SPACERS)
X
Page 7 of 38
939502326 Rev G
NOTE: At this time consider electrical or
communications routing that would need to
be accommodated through the ceiling track.
Field cutting of track may be required.

Installing Sound & Light Seal for
Tegular Ceiling Applications
Page 8 of 38
939502326 Rev G
NOTE: Cut and place pieces of seal
anywhere that sound or light can travel
through the tegular grid.
The Christmas Tree fasteners and tape serve
only as a shipping and assembly aid. They are
not required after the ceiling track is installed.
Move or remove them as needed to accommodate
the ceiling track clips.
If the channel is cut, it may be helpful to add a
piece of tape to one end. This maintains alignment
between the seal and steel channel while attaching
the channel to the ceiling.
SEAL TO ONE SIDE
OF CEILING CLIP
AND WASHER STACK
TEGULAR
CEILING GRID
SEAL
SEAL
SEAL
CEILING
CLIP
CEILING TRACK INLINE WITH GRID
CEILING TRACK PERPENDICULAR TO GRIDS
CEILING TRACK DIAGONALLY ACROSS GRIDS
CEILING CLIP
CUT A SEAL PIECE BIG ENOUGH TO BLOCK
SOUND AND LIGHT IN BOTH DIRECTIONS
Installing Ceiling Channels
CHRISTMAS TREE FASTENER
TAPE

Page 9 of 38
939502326 Rev G
®

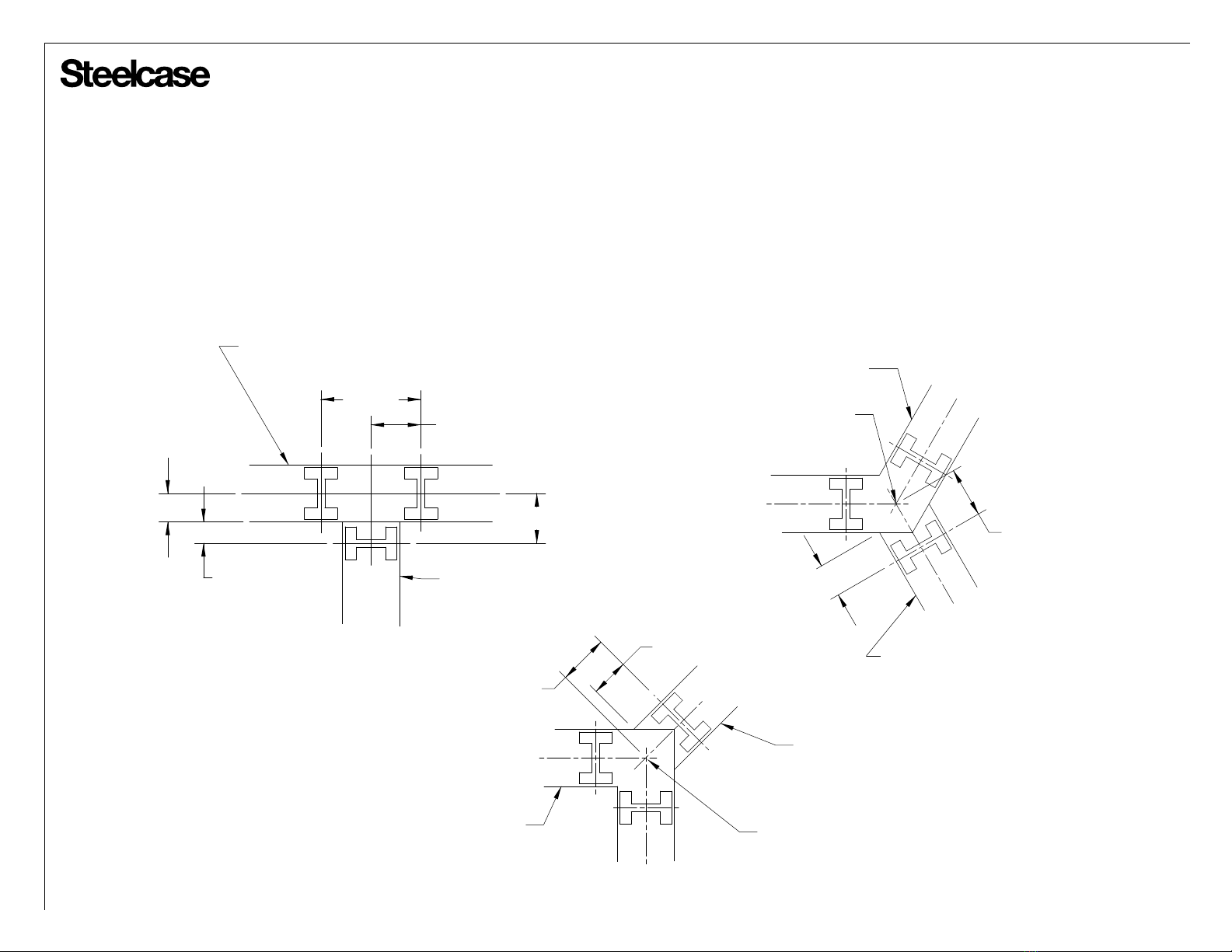

90oCEILING TRACK (SHOWN)
120oCEILING TRACK
135oCEILING TRACK
SPLICE
SPECIFIABLE ANGLE
CEILING TRACK
SPLICE
CEILING TRACK
BRACKET WITH
TWO (2) #6-20 x 3/8”
SELF DRILLING
SCREWS
SPLICE
CEILING TRACK
SEAL
STRAIGHT
CEILING TRACK
SPLICE
CEILING TRACK
INSTALLATION

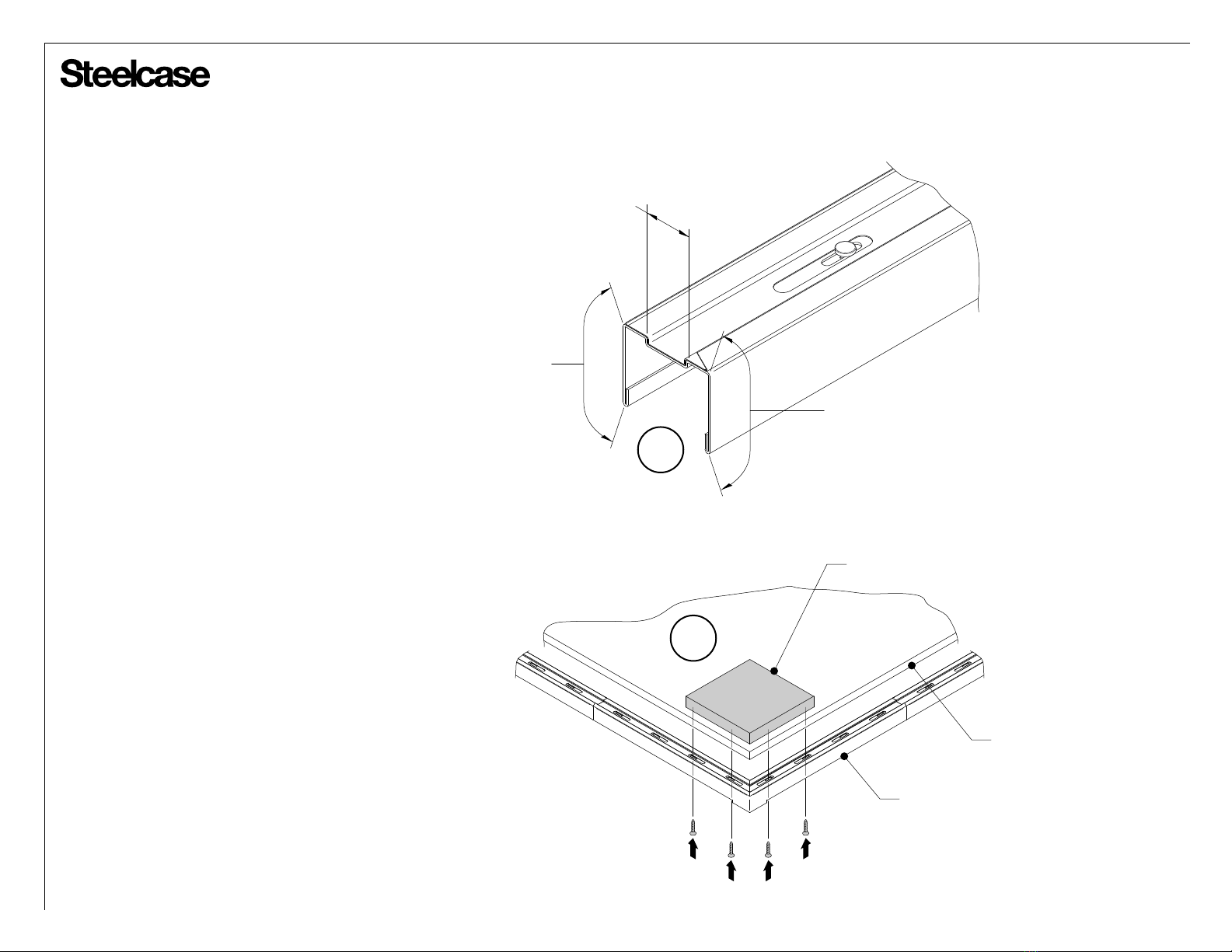

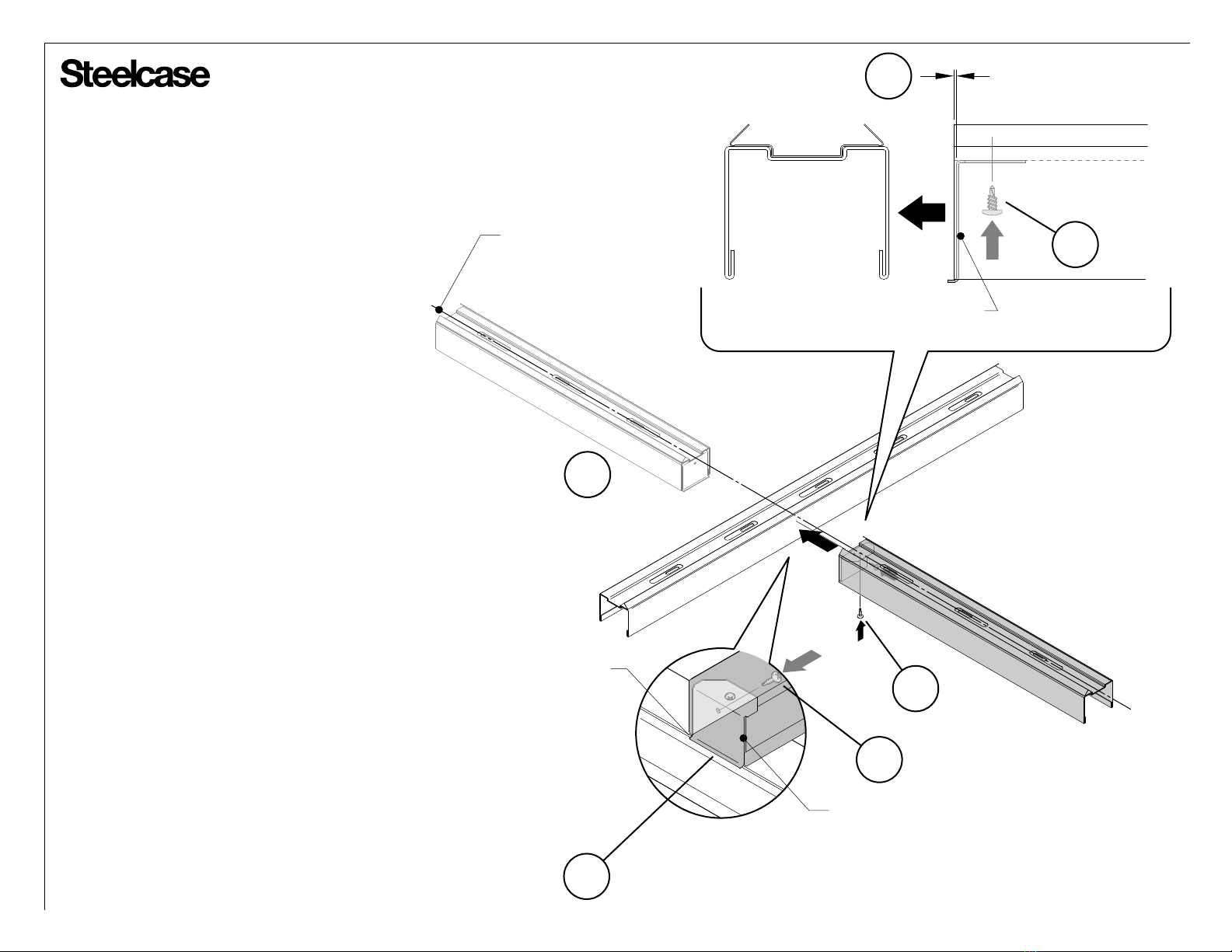

1. Each ceiling track comes with one (1) splice.
When installing ceiling track butt joints, center the
splice as shown.
2. A feature of the straight ceiling track is the
center hole spacing matches most ceiling grids.
3. Two self tapping screws are provided to secure
the splice connection after the ceiling track
1
NOTE: Specifiable angle ceiling track will have an
installation reference ID label placed on it and has a
specific location in the floor plan.
SPLICE
CEILING TRACK CEILING TRACK
WRONG
SELF DRILLING
SCREWS
3TWO (2) #6-20 x 3/8”
SELF DRILLING
SCREWS
is installed.
SELF DRILLING SCREW

Page 10 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)
TIP: Before cutting the ceiling track, consider
locations of pre-punched holes to minimize the
need for additional holes.
3. Use a saw to cut ceiling track when required.
Remove all burrs with a file. Square cuts will
insure best appearence. When routing power or
communication, sheet metal shears can be
used to cut a hole in the top of the ceiling track.
Avoid cutting the side of the ceiling track
because these cuts will be visible.
4. To create a tight fit when a corner ceiling
track lacks structure, a wood block can be
installed above the ceiling tile for reinforcement.
CORNER
CEILING TRACK
4
WOOD BLOCK
CEILING TILE
NO
CUTS
AREA NO
CUTS
AREA
CUT
AREA
3

Page 11 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)
5. Refer to ceiling clip mounting for
information on available ceiling fastener
types and locations (Showing typical
ceiling fastener for general installation
purposes).
6. Take care to insure that the ceiling
track seal seats consistently.
5b
CADDY CLIP
6
5a
Install ceiling track flush
against building wall if
floor plan indicates.

Page 12 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)
7. When a ‘T’ intersection is required,
attach the ceiling track bracket to 1/16”
back from end of ceiling track as shown
(7a) and attach with self-drilling screw
to the ceiling track (7b). Aligning to the
centerline of the floor plan, hook ceiling
track bracket (7c) to the other ceiling
track and attach with self-drilling screw
as shown (7d).
Repeat the process on the other side if
an ‘X’ intersection is required (7e).
7d
7b
7e
FLOOR PLAN
CENTERLINE
CEILING TRACK
BRACKET
HOOK TO
CEILING TRACK
CEILING TRACK
BRACKET
1/16” BACK
7a
7b
7c

Page 13 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)
CENTERLINE OF
CEILING TRACK
ANGLE CAN RANGE
FROM 90oTO 179o

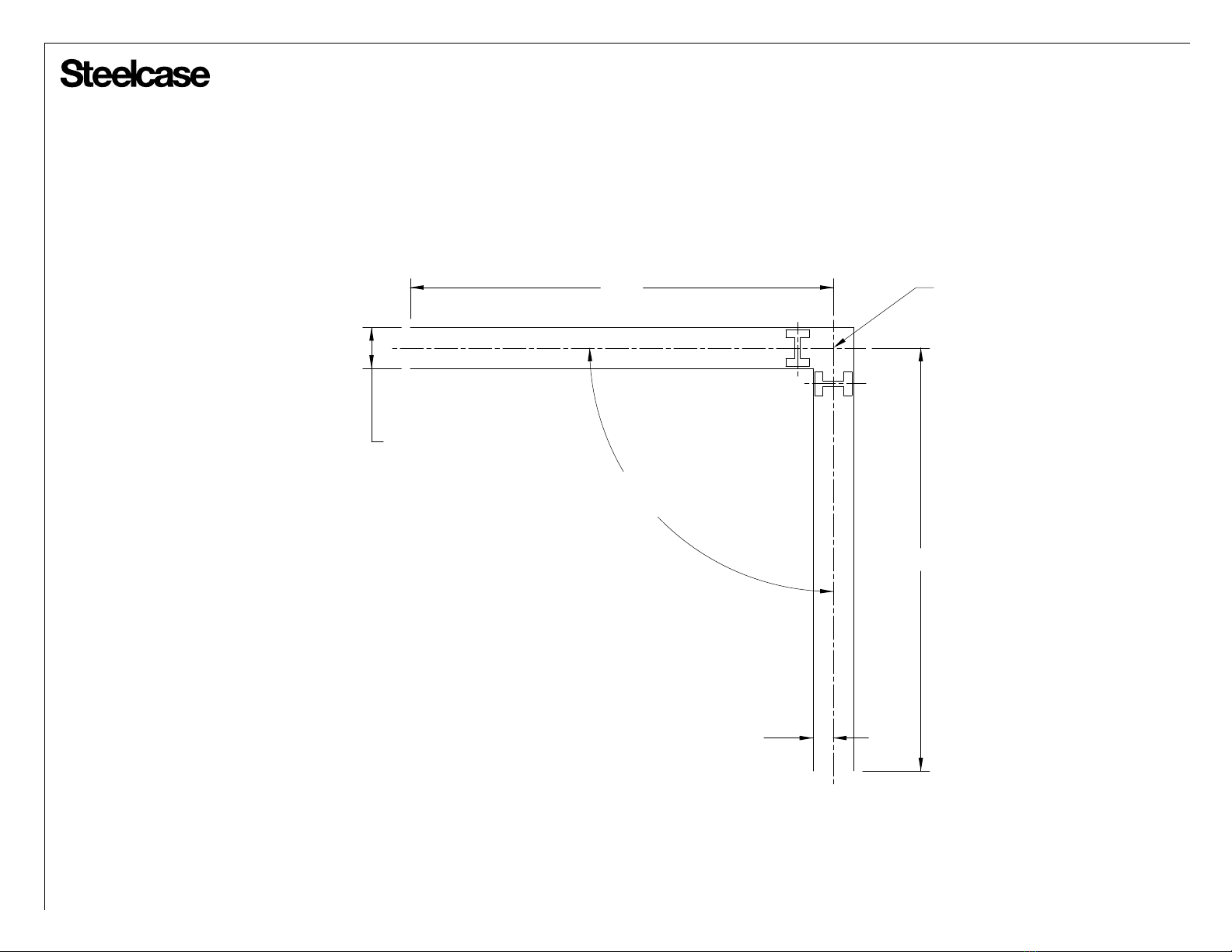

CEILING TRACK CORNERS
24”
24”
2-5/16” WIDE
CEILING TRACK
1-5/32” HALF WIDTH
OF CEILING TRACK

Page 14 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)
ANGLE CAN RANGE
FROM 90oTO 179o

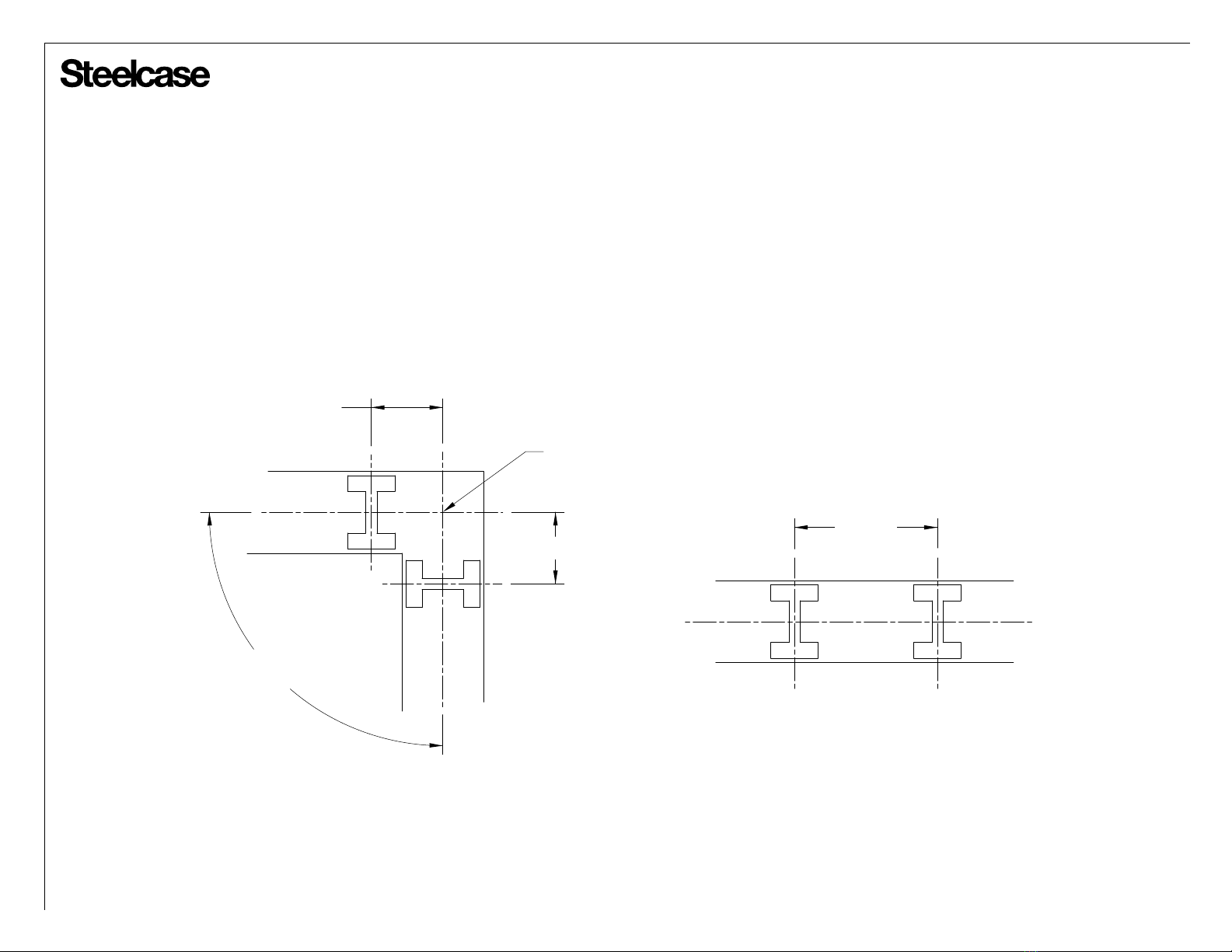

2-WAY JUNCTIONS 90o, 120o, 135o, 180o
AND SPECIFIABLE ANGLES
FROM 91oTHROUGH 179o
2-1/32”
CENTERLINE OF
CEILING TRACK
2-1/32”
4-1/16”
180oINLINE JUNCTION

Page 15 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)

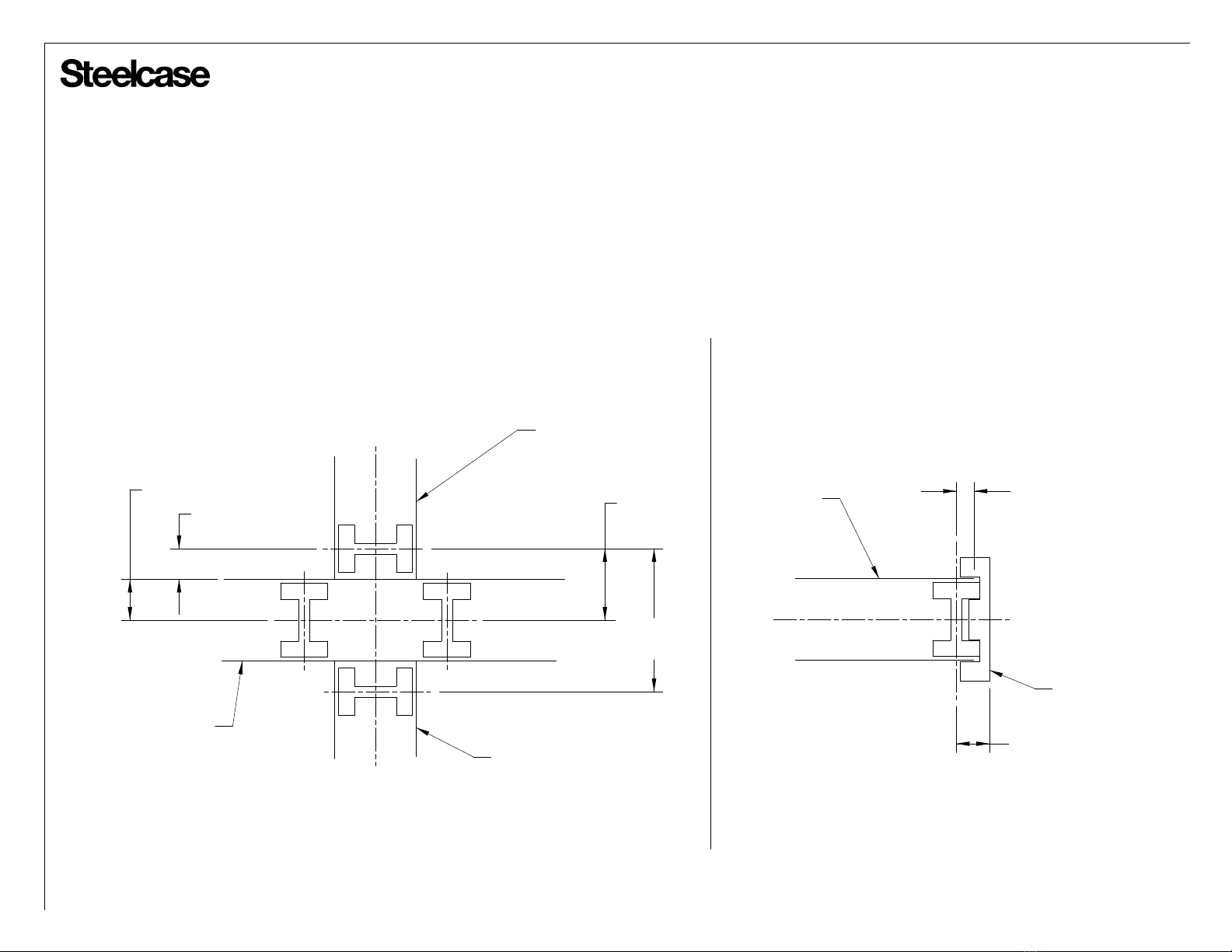

3-WAY JUNCTIONS 90o, 120o& 135o
2-1/32”
BUTT STRAIGHT
CEILING TRACK
2-1/32”
4-1/16”
STRAIGHT
CEILING TRACK
7/8”
1-5/32”
1-11/32”
2-1/32”
TYPICAL
NOTCH AND BUTT
STRAIGHT CEILING
TRACK
CENTERLINE OF
CEILING TRACK
120oCEILING
TRACK CORNER
1-9/16”
2-1/32”
TYPICAL
NOTCH AND BUTT
STRAIGHT CEILING
TRACK
CENTERLINE OF
CEILING TRACK
90oCEILING
TRACK CORNER

Page 16 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)
4-WAY JUNCTION
2-1/32”
TYPICAL
BUTT STRAIGHT
CEILING TRACK
STRAIGHT CEILING
TRACK THROUGH
7/8”
1-5/32”
BUTT STRAIGHT
CEILING TRACK
4-1/16”
TYPICAL
STRAIGHT
CEILING
TRACK
FINISHED
END TRIM
1/2”
CEILING TRACK PAST
THE CENTERLINE OF
THE VERTICAL POST
FINISHED END
1”

Page 17 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)

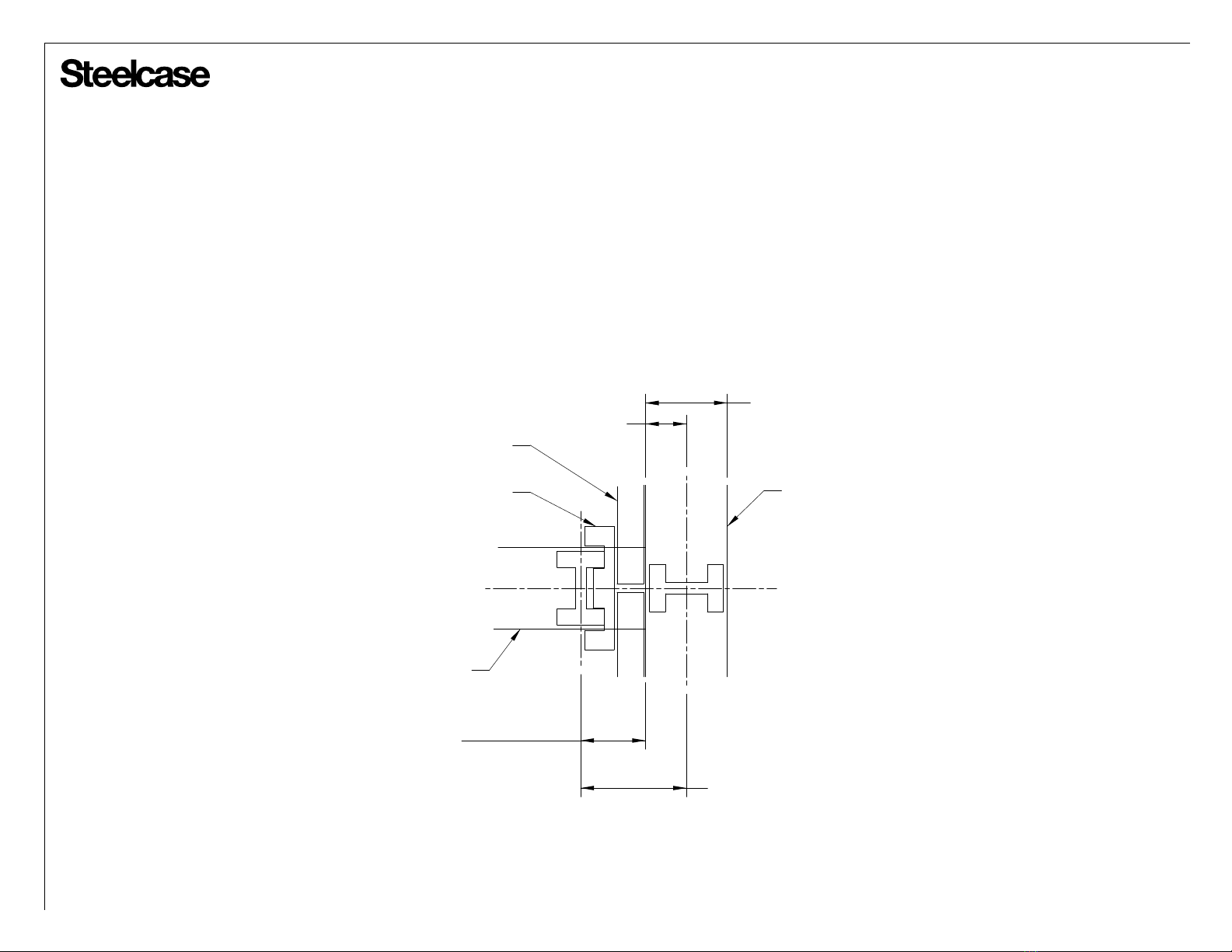

T/X ADAPTOR
NOTCH AND BUTT
STRAIGHT CEILING
TRACK
1-5/32”
2-5/16”
STRAIGHT
CEILING TRACK
TRAPPED SKINS
T ADAPTOR TRIM
1-27/32”
EDGE OF CEILING
TRACK TO
CENTERLINE OF
VERTICAL POST
3”
CENTERLINE OF WALL
TO CENTERLINE OF
VERTICAL POST
NOTE: An X adaptor is two (2)
T adaptors back-to-back.

Page 18 of 38
939502326 Rev G
®
CEILING TRACK
INSTALLATION (cont.)

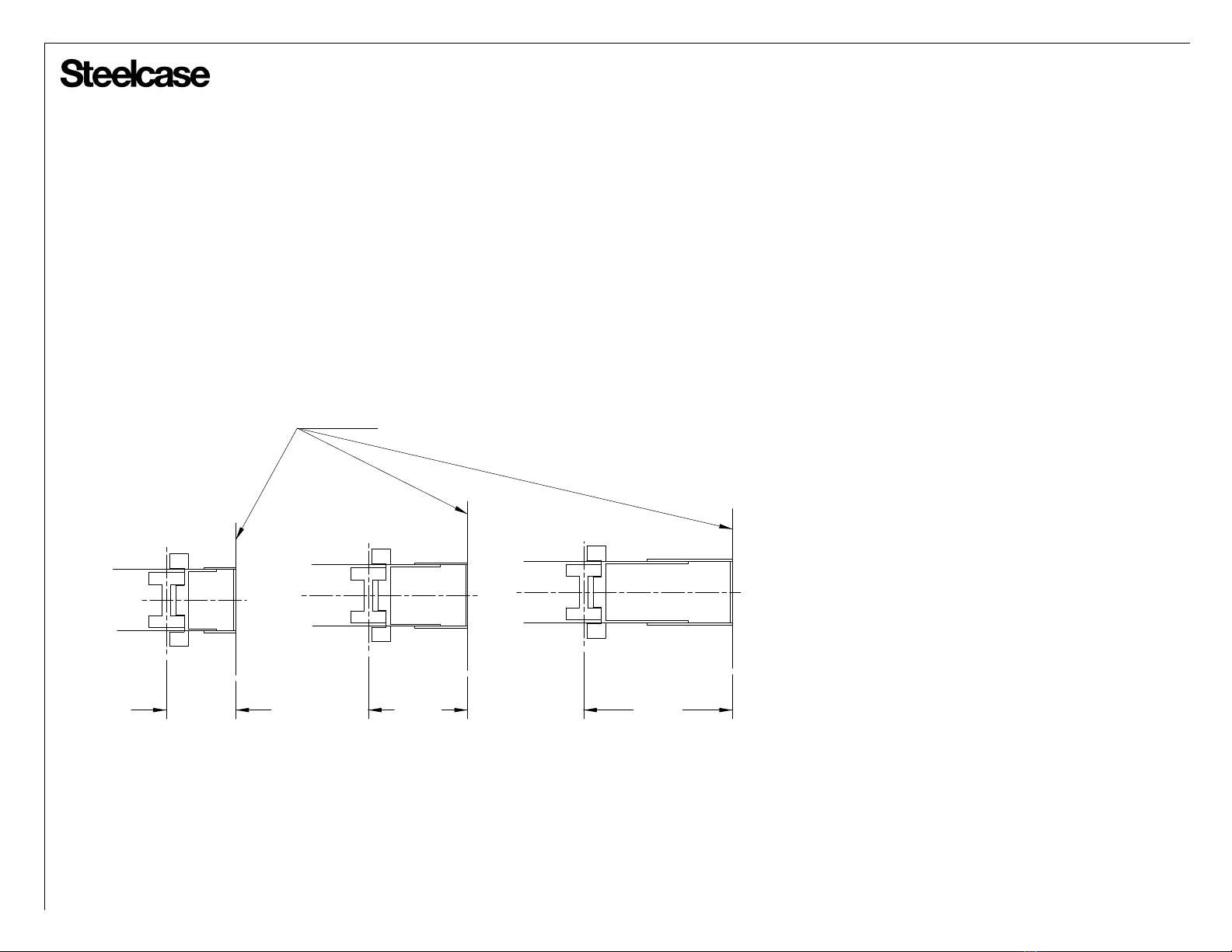

MINI ENDS
(TRIM NOT SHOWN)
CEILING TRACK EXTENDS TO THE WALL
2-5/8”
MID
3-3/4”
MID
5-5/8”
MID
SMALL RANGE
(2-1/4” to 3”)
LARGE RANGE
(4-1/2” to 6-3/4”)
MEDIUM RANGE
(3” to 4-1/2”)
CUTSKIN APPLICATIONS
CEILING TRACK EXTENDS TO THE
BUILDING WALL. REFER TO ASSEMBLY
DIRECTION 939502322 FOR
INSTALLATION PROCESS.

Page 19 of 38
939502326 Rev G
®

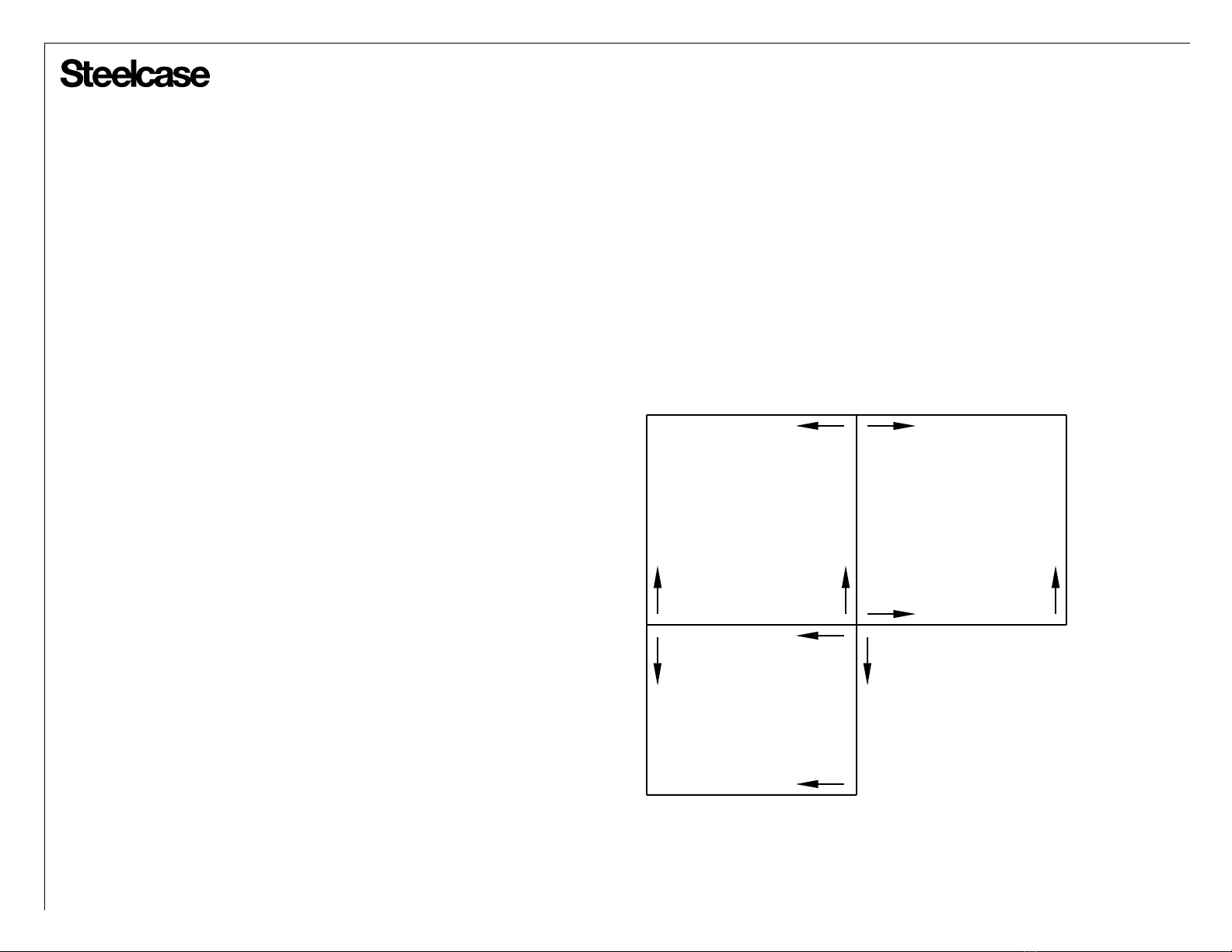

WHERE TO START INSTALLING STRUCTURE
Use the General Rule of 4-3-2.
Because it’s easier to adjust in two directions rather than 3 or 4,
start with the largest junctions in any given layouts.
Using Figure 1 for an example:
Start with the 4-way junction and work toward the 3-way junctions
in all directions, then work toward the 2-way junctions.
4-WAY
3-WAY
3-WAY 2-WAY
2-WAY
FIGURE 1

Page 20 of 38
939502326 Rev G
'L' Configuration
'T' Configuration In-line Configuration
Process for Carpet and Tile Floor tape
application ONLY
•
Floor glide to be cleaned using Acetone soaked cloth prior
to applying pressure sensitive tape or carpet gripper tape.
• Attach pressure sensitive tape for 24 hours prior to loading.
(Confirm application with local building codes)
or
•Attach carpet gripper tape for 24 hours prior to loading.
(Confirm application with local building codes)
CAUTION: When installing Steelcase V.I.A. over Steelcase Low-Profile floor, floor
guide (style number FEFG) MUST be applied to all leveler screws to distribute
wall / applied furniture loading. Failure to consider application and loading
may result in wall disengagement from ceiling track, resulting in personal injury.
NOTE: When the V.I.A. Wall is fully loaded, the wall has the potential to deliver 1,200 pounds per leveler screw to floor
condition. Leveler screws loaded to 1,200 pounds will exert local pressure loading of 11,000 PSI. Floor type / Steelcase
product application must be properly matched in accordance with local building codes and floor condition to avoid flooring
damage and ensure proper performance of Steelcase Wall Systems.
Chalk Line
Floor Guide
Base
Track
Base
Track
Chalk Line
Chalk Line
Floor Guides
Chalk Lines
Floor Guides
Base
Track
Floor Guide
Pressure Sensitive Tape
or Carpet Gripper Tape
Mechanical fastening ONLY
•Consult local building codes.
NOTE: Fasteners shown for
mechanical fastening only.
NOTE: Fasteners shown for
mechanical fastening only.
NOTE: Fasteners shown for
mechanical fastening only.
4" Min.2" Max. 1" Min.
6" Min.
1" Min.
6" Min.
Carpet Application:
Hard Floor
Application:
Structural Fastener
NOTE: Mounting hardware must be specified/verified by the designated design professional by the AHJ.
Floor Guide
NOTE: Floor guides may be needed at vertical posts and junctions when adjacent to a door frame.
