Oxgard Praktika T-01 Instruction sheet

Installation
guidelines
www.oxgard.com
[email protected]
Tel.[phone]
Praktika T-01 turnstile

Installation guidelines 3
Contents
1. Basic specifications.................................................................................. 5
2. Product design.......................................................................................... 6
3. Safety requirements.................................................................................. 8
4. Installation of turnstile ............................................................................. 9
4.1. Required equipment ........................................................................... 9
4.2. Installation of turnstile...................................................................... 10
5. Connecting turnstile ............................................................................... 13
5.1. Connecting power supply................................................................. 14
5.2. Connecting RC panel........................................................................ 15
5.3. Connecting access control system (optional)................................... 16
5.4. Connecting RC panel to ACS controller.......................................... 18

Praktika T-01 turnstile 4
List of abbreviations
PS – power supply
RC – remote control
ACS – access control system
OD – operating device (turnstile)
NC – normally connected
NO – normally opened
Turnstile firmware version FW v1.75

Installation guidelines 5
1. Basic specifications
Table 1 Basic specifications
Description Turnstile RC panel
Dimension (HхWхL), (mm)
- operational state
- collapsed arms
1200х7900х850
1200х200х350 107х107х25
Weight, kg 44 0,5
Temperature range, 0C
- operation
- transportation and storage
+1...+40
+1...+40
+1...+40
+1...+40
Atmosphere relative humidity, no more
than % 80 80
Passage width, mm 500
Throughput, people per minute 30
Lifetime, years 8 8
Table 2 Electrical specifications
Description Turnstile RC panel
Supply voltage, V:
- nominal
- working
12,0
10,8...13,2
12,0
7,5...15
Average current in standby mode * A 0,25
Average current operational mode * A 1,5
Maximal current *A (during “antipanic”
mode activating) 5,0
*- values mentioned at a nominal supply voltage
The manufacturer reserves the right to change the packaging, specifications and appearance
without notice

Praktika T-01 turnstile 6
2. Product design
Turnstile housing
Turnstile housing and arms are made of brushed stainless steel. In the
middle part of the housing there is a removable cover with lock for quick
access to the motherboard where PS, RC and ACS cables are connected. In
the lower part there are holes for cable routing and base cover concealing
the fixation of turnstile to the floor (Fig. 1).
Fig. 1 General view of turnstile

Installation guidelines 7
LED panel
Display panel of the turnstile is made of artificial stone with an
insertion made of acrylic glass. Turnstile operating modes are displayed on
the panel in the form of mnemonic signs depicting authorization and non-
authorization of passage (Fig. 2).
Fig. 2 General view of display panel
Remote Control Panel
The housing of RC is made of polished stainless steel. On the front
side there are control buttons and LED indicators of RC operational modes
(Fig. 3). The standard supplied cable is 5 m long.

Praktika T-01 turnstile 8
Fig. 3 General view of remote control panel
3. Safety requirements
CAUTION! Failure to comply with the safety requirements specified in
this section may result in damage to human life and health, total or partial
loss of workability of products and (or) auxiliary equipment.
CAUTION! The producer disclaims any liability for damage to human life
and health, total or partial loss of workability of products and (or) auxiliary
equipment for non-compliance of the safety requirements specified in this
section, as well as terminate the product warranty.

Installation guidelines 9
IT IS NOT ALLOWED TO:
•Set the power supply inside the turnstile housing as this could lead to
electric shock to persons;
•Set the turnstile other than dry and heated places;
•Impede or accelerate the turnstile arms during on/off “antipanic”
mode;
•Apply chemically aggressive cleaning detergents as pastes and
liquids.
4. Installation of turnstile
CAUTION: The turnstile should be installed securely to avoid swinging
and (or) overthrow during operation. In case of installation on the low
strength floors - take action to strengthen the floor at the installation site.
Before checking operability of the turnstile carefully read this section of
the Guidelines.
4.1. Required equipment
Tools used for turnstile mounting:
•electric perforator;
•20mm diameter carbide drill for drilling holes in the floor for anchors
(recommended anchor - SORMAT PFG LB 12-50);
•S10 wrench for hexagon socket head screws;
•slotted screwdriver;

Praktika T-01 turnstile 10
•plumb line or level;
•steel liner for turnstile alignment
•round file
•side cutters
4.2. Installation of turnstile
CAUTION: When designing the mounting site of the turnstile take into
account that rotation direction of arms will be counter-clockwise during
"antipanic" mode.
4.2.1. Prepare a horizontal surface at the installation site of
turnstile.
4.2.2. Prepare cable channel from the site to the installation
site of PS, RC, as well as, if required, to the point of ACS and fire alarm
connection.
4.2.3. Follow the layout (Fig. 4) prepare and drill 3 holes of 20mm
diameter in the floor for anchors. Location of mounting holes according
to the outer dimensions of the turnstile is shown in Appendix 3 (Fig.
11). Depth of the hole should exceed the length of the anchor for more
than 5mm. Put anchors in the holes.
4.2.4. Cable routing is carried out through a hole 1 (Fig. 4) in the
lower plate of turnstile. Cable conduit shall be prepared.
4.2.5. Open the box and unpack:
•turnstile;

Installation guidelines 11
•remote control panel with cable;
•base cover
•lock keys (2 pcs.).
4.2.6. Route cable of RC panel, cable of PS unit and, if
provided, cables of FA and ACS into cable conduit.

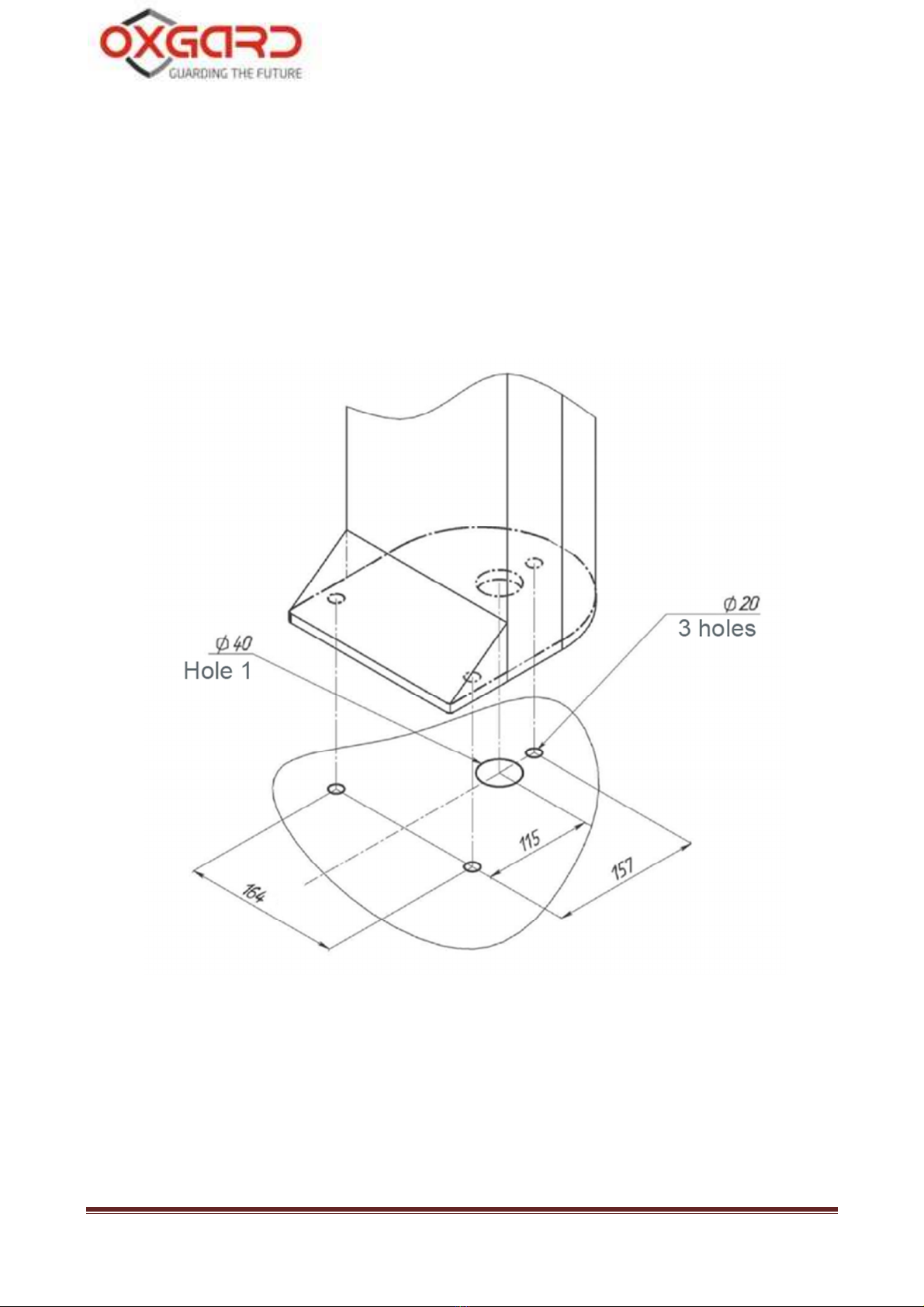

Fig. 4. Installation dimensions
4.2.7. Set the turnstile on the prepared site (Fig. 4). Open the lock
and remove the hatch (1, Fig. 5). Route cables of RC, PS and if
necessary, ASC and FA into the housing. Cable routing shall be
performed via hole 1 in lower plate of the turnstile. Secure cables with
cable ties.

Praktika T-01 turnstile 12
Fig. 5. Installation diagram of turnstile
4.2.8. Align holes in the lower plate of the turnstile together with
anchors in the floor. Check the vertical installation in 2 planes. If
necessary, use appropriate steel underlayers for proper installation of the
turnstile. Fix the housing of the turnstile with 3 screws M12 (2, Fig. 5),
tightening them to the corresponding anchors by using a S10 wrench with
internal hexagon. Set the base cover (4, Fig. 5) and secure it with the screw
M6 included in the delivery set (3, Fig. 5). Install the hatch (1, Fig. 5) at its
original position and close the lock.
4.2.9. Remove protective film from the housing of the turnstile.
Lock

Installation guidelines 13
5. Connecting turnstile
Connection of RC, PS and ACS is performed with the use of motherboard.
In order to do it, open turnstile hatch (1, Fig. 5) with a key. Fig. 6 shows
the location of motherboard in the housing.

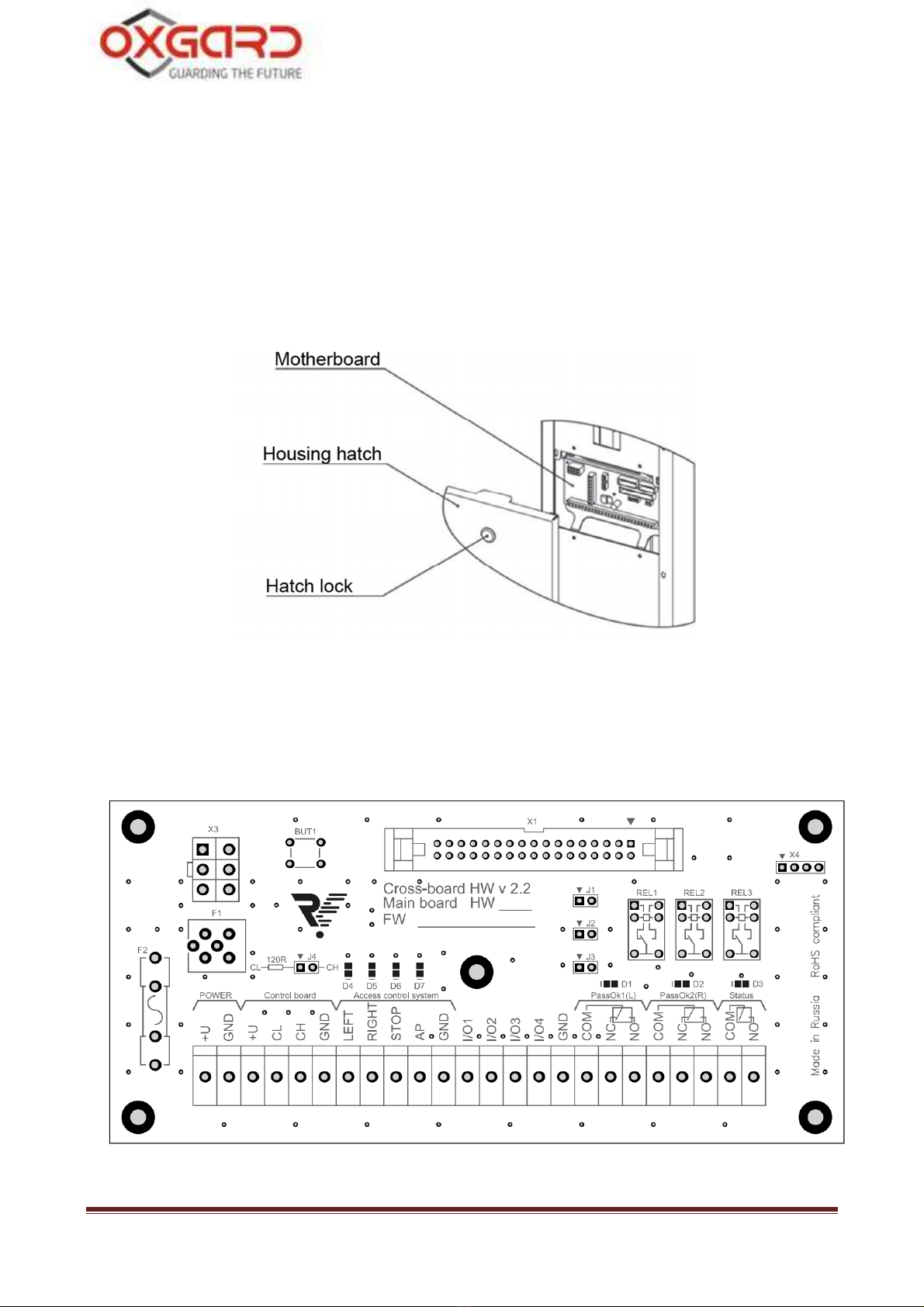

Fig. 6 Location of motherboard
Fig. 7 depicts the motherboard and connectors for PS unit, RC panel,
ACS and FA.
Fig. 7 General view of motherboard

Praktika T-01 turnstile 14
Table 3 Operating modes of turnstile
The position of jumpers Operating mode of turnstile
J1 removed Pulse mode (see Article 5.3.)
J1 installed Potential mode (see Article 5.3).
J2 installed Turnstile does not respond to RC panel
commands. Status of buttons is transmitted to
I / O1 ... I / O4 outputs (see Article 5.4)
J2 removed Turnstile is controlled by remote control
panel. Status of the buttons is transmitted to I /
O1 ... I / O4 outputs (see Article 5.4)
- Jumper J3 is not used
- Jumper J4 is used to establish the normal operation of CAN2.0 bus. See
Appendix 1.
5.1. Connecting power supply
CAUTION! Do not use power supply units
with an output current less than
5A.
Do not install the power supply unit at a distance more than 25 meters
from the turnstile.
CAUTION! Do not use power cable with cross-section less than 1.5 mm
2
for connection. When the length of the power cable is more than 10 m it
is
recommended to use a cable with 2.5 mm
2
cross-section.

Installation guidelines 15
Turnstile is powered by 12V DC voltage. Maximum consumption
(5A) is observed during "antipanic" mode when arms are folding. PS unit
shall be selected on the basis of these parameters. Also note that an
increase in the length of the supplied cable increases the voltage drop.
Install the PS unit in a place with easy access for operator. Connect
the power supply to the POWER contact set on the motherboard. Connect
(+) and (-) contacts of PS unit to (12V) and (GND) terminals respectively.
Make sure the cables are securely connected. Install the hatch and
close the lock.
5.2. Connecting RC panel
RC panel is connected to a Control Board contact set on
motherboard. Marking of contacts: 12V, CL, CH, GND.
Connection is made according to contact marking shown in Table 4.
Table 4 Marking of RC contacts
Contacts marking Wire color
12V Red
CL Yellow
CH Green
GND Blue

Praktika T-01 turnstile 16
5.3. Connecting access control system (optional)
ACS controller is connected to AccessControlSystem contact set on
motherboard. Marking of contacts: LEFT, RIGHT, STOP, AP, GND.
Contact assignment is shown in Table 5
Table 5. ACS contacts assignment
Contacts marking Contacts assignment
LEFT, RIGHT single pass left / right
(lowest priority)
STOP non-authorized pass (mode "Stop")
(medium priority)
AP arms folding ("antipanic")
(highest priority)
GND common contact
Inputs for connecting of ACS differ on priorities:
AP input has the highest priority. As long as this input is closed GND
contact, arms of the turnstile are collapsed and the turnstile does not
respond (!!!) to other signals;
STOP input has the medium priority. When the input is closed on
GND contact the turnstile switches to "Stop" and does not respond to other
effects, except AP.
LEFT and RIGHT inputs have the same low priority and include a
single passage in one direction or another. If both inputs are closed,
passage is allowed in that direction the input which was closed first. If
passage was not performed the turnstile will move to "Stop" mode
automatically within 5 seconds.

Installation guidelines 17
CAUTION (!) In case of closure of one of STOP (or) AP inputs -
commands from the remote cannot be accepted, i.e. ACS has a higher
priority.
AP and STOP inputs operate only in a potential mode, i.e. as long as
the input is closed on GND contact the turnstile operates in the
corresponding mode. After contacts opening - turnstile switches to the
"Stop" mode irrespective to the mode of operated that was used before
ACS operation.
LEFT and RIGHT inputs can operate both in the potential and in
pulse mode (responding upon GND contact closure). Pulse mode is set on
default.
In order to switch to a potential mode set J1 jumper (Fig. 7). In this case
the mode of left / right passage turns on only during the control signal to
LEFT / RIGHT inputs. Mode of free passage can be set by control signals
to both inputs simultaneously. Priorities of LEFT and RIGHT inputs at the
switch to the pulse mode remain unchanged.
Motherboard contains two relay outputs for ACS operating on the
principle of "dry contacts» - Pass Okl and Pass Ok2. NO and COMM -
normally open connection, NC and COMM - normally closed connection.
Activation of one of the contact sets suggests the passage in the
corresponding direction (PassOk1 - right, PassOk2 - left). "Dry contact"
closes / opens when arms rotate at an angle of 60 degrees and return to the
starting position when passage is completed.
Motherboard contains relay output for ACS operating on the principle of
"dry contacts» - Status. NO and COMM - normally open connection, its

Praktika T-01 turnstile 18
contacts close when the turnstile switches to "AP" and D3 LED indicator
lights up.
Also the motherboard contains the following LED indicators:
D4 indicates a signal to the «LEFT» input.
D5 indicates a signal to the «RIGHT» input.
D6 indicates signal to the «STOP» input.
D7 signals a signal to the «AP» input.
Jumper J4 shall be installed. It is used to connect a 120 Ohm resistor to
CAN 2.0 bus to ensure its normal operation.
If using two remote controls J4 shall not be installed, because 120 Ohm
resistors are installed on CL and CH contacts in remote control panels.
5.4. Connecting RC panel to ACS controller
In some cases RC shall be connected directly to the ACS controller
as the passages allowed from the remote (without controller) are regarded
by the system as a "forced entry".
To use this connection pattern of turnstile J2 jumper shall be set on
the motherboards (Fig. 7). When J2 jumper is set the turnstile does not
respond to remote control panel commands but only transmits their status
to contacts of I / O1 ... I / O4 terminal boards (Fig. 7) which are open
collector outputs. Contacts assignment is shown in Table 6. The
numbering of the remote control buttons is shown in Fig. 8. The maximum
output current for this set of contacts is 150 mA, maximum voltage rating
is 24 W.

Installation guidelines 19
Fig. 8 Numbering of RC panel buttons
Table 6. I/O contact set assignment
Contacts
marking Contact assignment
I/O1 "Left" button status (1,0)
I/O2 "Right" button status (3,08)
I/O3 "Stop" button status (2, Fig.8)
I/O4 Button "Antipanic" status (4,0)
I / O1 ... I / O3 outputs show the current state of RC panel buttons, i.e.
transistor is opened by pressing the corresponding button. I / O4 output
changes its state to the opposite every time the "antipanic" button is
pressed.

Praktika T-01 turnstile 20
I / O1 ... I / O4 outputs can be connected both directly to the ACS
controller or via relay. When using the relay it is necessary (!) to connect
diode in parallel with the relay coil (Fig. 9).
Fig. 9 Connection of diode in parallel with the relay coil
Connection of RC panel to ACS controller is shown in Fig. 10. In this case
the controller controls the turnstile via "Left", "Right" and "Stop" contacts,
and the contact "antipanic" is turned on and off with the RC panel. Please
note that when the RC panel is connected via ACS controller it is
impossible to use turnstile modes which are set by the combination of the
RC panel buttons (except for the free passage in the potential control
mode. See section 5.3 of Manual). In this case ACS controls these
operation modes.
