Praktika T-02(К) turnstile

Installation guidelines 3
Contents
1. Basic specifications.................................................................................. 5
2. Product design.......................................................................................... 6
3. Safety requirements................................................................................ 10
4. Installation of turnstile ........................................................................... 11
4.1. Required equipment........................................................................ 11
4.2. Installation of turnstile .................................................................... 12
5. Connecting turnstile ............................................................................... 14
5.1. Connecting power supply................................................................ 17
5.2. Connecting remote control panel.................................................... 18
5.3. Connecting access control system (optional).................................. 18
5.4. Connecting RC panel to ACS controller......................................... 21
6. Connecting card collector ...................................................................... 25
6.1. Card collector description............................................................... 25
6.2. Connecting power supply................................................................ 26
6.4. Connecting ACS controller............................................................. 28
6.5. Installation of proximity card reader............................................... 31

Praktika T-02(K) turnstile 4
List of abbreviations
PS – power supply
FA – fire alarm
RC – remote control
ACS – access control system
OD – operating device (turnstile)
NC – normally connected
NO – normally opened
Turnstile firmware version FW v1.76
Card collector firmware version FW v1.52

Installation guidelines 5
1. Basic specifications
Table 1 Basic specifications
Description Turnstile RC panel
Dimension (HхWхL), (mm)
- operational state
- collapsed arms
1100х1050х840
1100х1050х340
107х107х25
Weight, kg 66,0 0,5
Temperature range, 0C
- operation
- transportation and storage
+1...+40
+1...+40
+1...+40
+1...+40
Atmosphere relative humidity, no more than
% 80 80
Passage width, mm 500
Throughput, people per minute 30
Card collector capacity (pcs.) ** More than 500
Max. number of connected RC panels, pcs 2
Lifetime, years 8 8

Praktika T-02(K) turnstile 6
Table 2 Electrical specifications
Description Turnstile Card collector** Console
Supply voltage, V:
- nominal
- working
12,0
10,8...13,2
12,0
8…18,0
12,0
7,5...15,0
Average current
in standby
mode * A 0,4 0,2
Average current operational
mode * A 1,5
Maximal current * A 5,0 1,5
*- values mentioned at a nominal supply voltage
**-optional
The manufacturer reserves the right to change the packaging, specifications and appearance
without notice
2. Product design
Turnstile housing
Turnstile housing and arms are made of brushed stainless steel. The
turnstile can be equipped with an integrated card collector. In this case a
turnstile is marked PRAKTIKA T-02- (R). If the turnstile is not equipped
with card collector the turnstile is marked PRAKTIKA T-02. Proximity
card readers can be installed on both variants. In the upper part of the
housing there is a removable cover with lock for quick access to the
motherboard where PS, RC and ACS cables are connected. In the stands
there are holes for cable routing (Fig. 1).

Installation guidelines 7

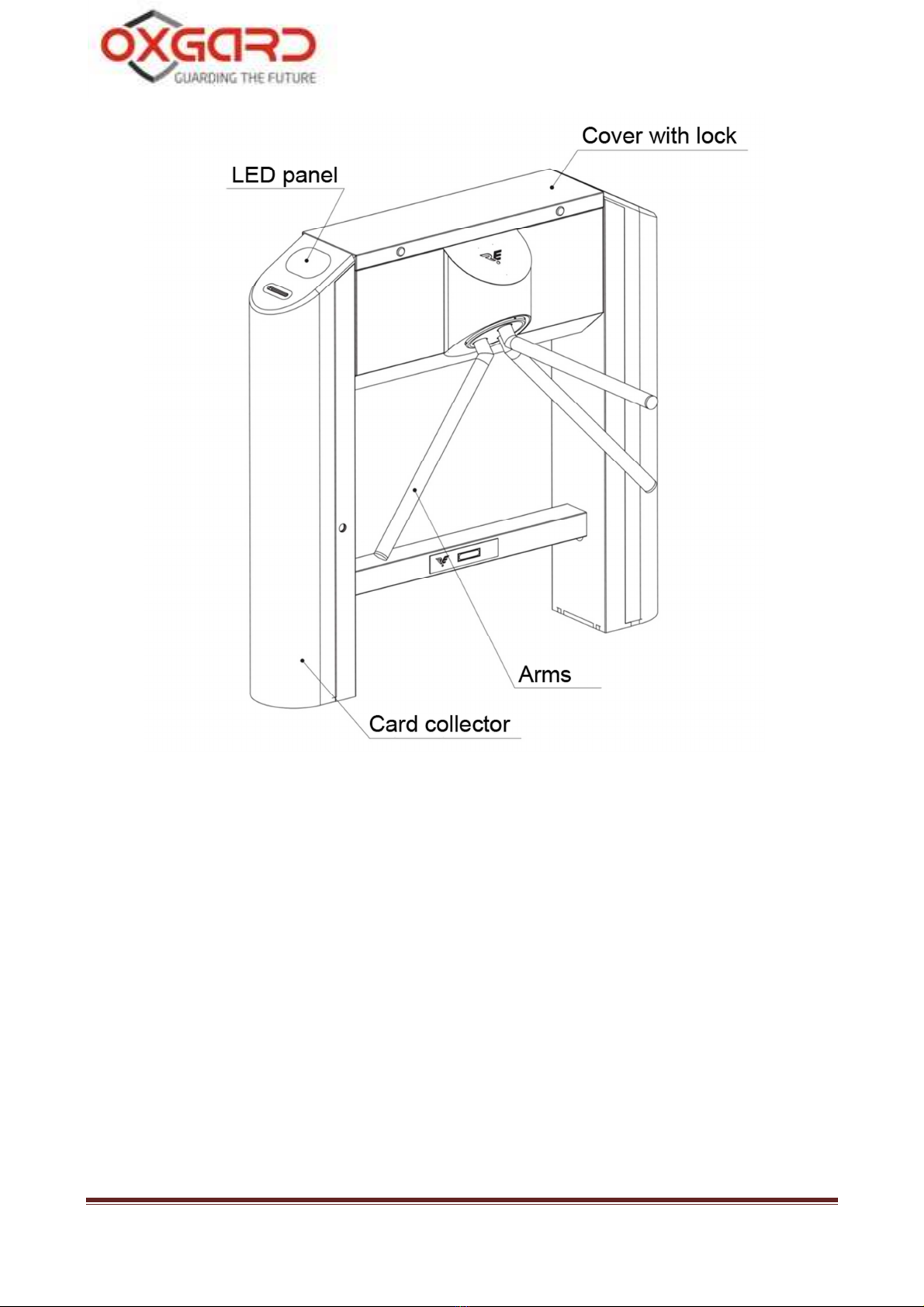

Fig. 1 General view of turnstile
Dimensions are shown on Fig. 2.

Praktika T-02(K) turnstile 8

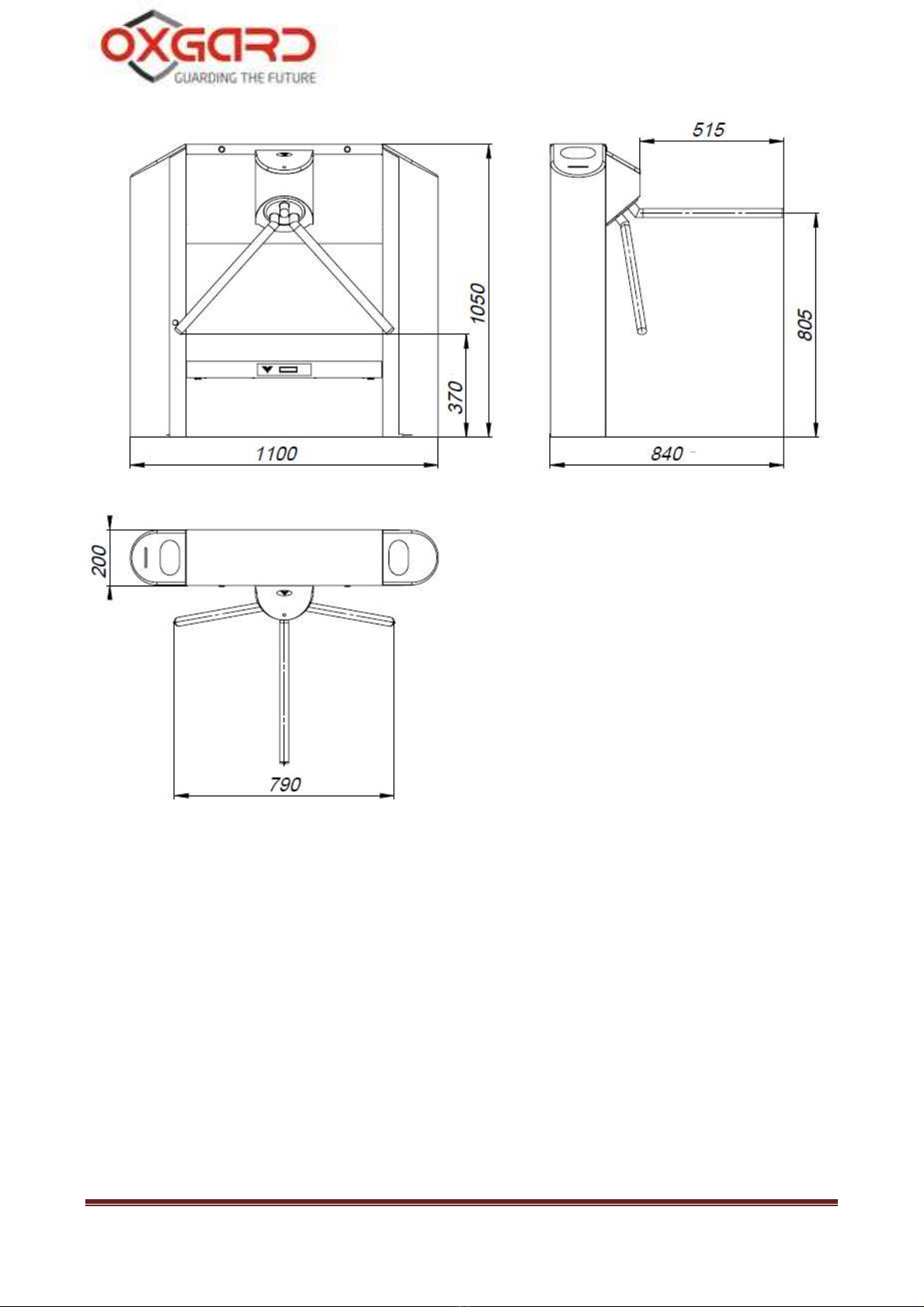

Fig. 2 Dimensions of turnstile
Display system
Display system of turnstile consists of two LED panels. The panels are
made of artificial stone with an insertion made of acrylic glass. Turnstile
operating modes are displayed on the panel in the form of mnemonic signs
depicting authorization and non-authorization of passage (Fig. 3).

Installation guidelines 9
Fig. 3 General view LED panel display
Remote Control Panel
The housing of RC is made of polished stainless steel. On the front
side there are control buttons 1-4 and LED indicators of RC operational
modes (Fig. 4). The standard supplied cable is 5 meters long.
Fig. 4 General view of remote control

Praktika T-02(K) turnstile 10
3. Safety requirements
CAUTION! Failure to comply with the safety requirements specified in
this section may result in damage to human life and health, total or partial
loss of workability of products and (or) auxiliary equipment.
CAUTION! The producer disclaims any liability for damage to human life
and health, total or partial loss of workability of products and (or) auxiliary
equipment for non-compliance of the safety requirements specified in this
section, as well as terminate the product warranty.
IT IS NOT ALLOWED TO:
•Set the power supply inside the turnstile housing as this could lead to
electric shock to persons;
•Set the turnstile other than dry and heated places;
•Impede or accelerate the turnstile arms during on/off “antipanic”
mode;
Apply chemically aggressive cleaning detergents as pastes and
liquids.

Installation guidelines 11
4. Installation of turnstile
CAUTION: The turnstile should be installed securely to avoid swinging
and (or) overthrow during operation. In case of installation on the low
strength floors - take action to strengthen the floor at the installation site.
Before checking operability of the turnstile carefully read this section of
the Regulations.
4.1. Required equipment
Tools used for turnstile mounting:
•Electric perforator;
•20mm diameter carbide drill for drilling holes in the floor for anchors
(recommended anchor - SORMAT PFG LB 12-50);
•S10 wrench for hexagon socket head screws;
•slotted screwdriver;
•plumb line or level;
•steel liner for turnstile alignment
•round file
•side cutters

Praktika T-02(K) turnstile 12
4.2. Installation of turnstile
CAUTION: When designing the mounting site of the turnstile
take into
account that rotation direction of arms will be counter-clockwise
during
"antipanic" mode.
4.2.1. Prepare a horizontal surface at the installation site of
turnstile.
4.2.2. Prepare cable conduits from the site to the installation
site of PU, RC, as well as, if required, to the point of ACS and FA
connection.

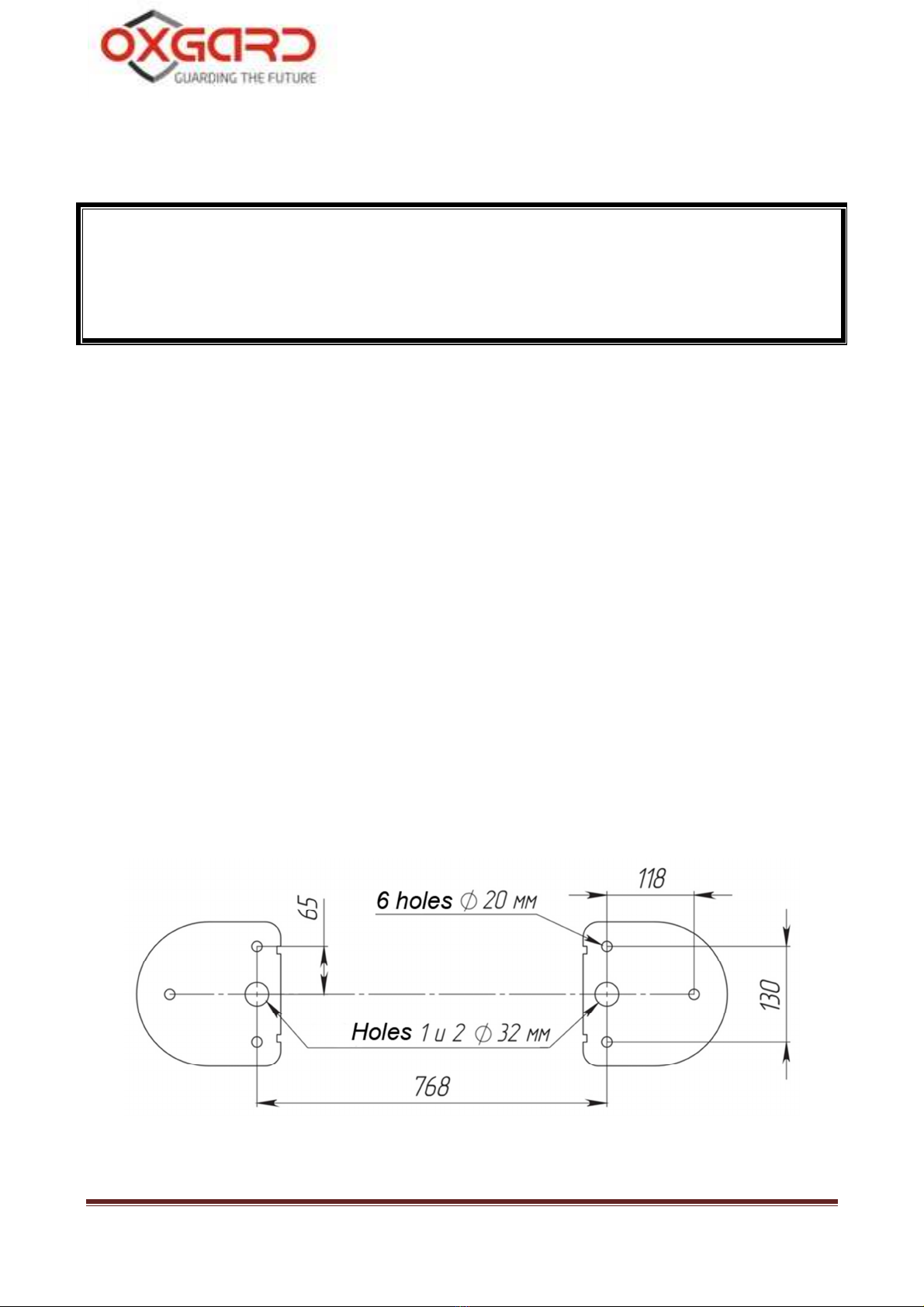

4.2.3. Follow the layout (Fig. 5) and drill 6 holes of 20mm
diameter in the floor anchors. Location of mounting holes according to
the outer dimensions of the turnstile is shown in Appendix 4. Depth of
the hole should exceed the length of the anchor for more than 5mm. Put
anchors into the holes.
4.2.4. Cable routing is carried out through a holes 1 or 2 (Fig. 5) in
the lower plate of turnstile.
Fig. 5 Linkage dimension

Installation guidelines 13
4.2.5. Open the box and unpack:
•turnstile;
•remote control panel with cable;
•lock keys (8 pcs.).
4.2.6. Route cable of RC panel, cable of PS unit and, if
provided, cables of FA and ACS into cable conduit.
4.2.7. Set the turnstile on the prepared site (Fig. 5). Open the lock
(2, Fig. 6) and remove upper cover (1, Fig. 6). Open stand lock (4, Fig.
6) and open the hatch (3, Fig. 6)

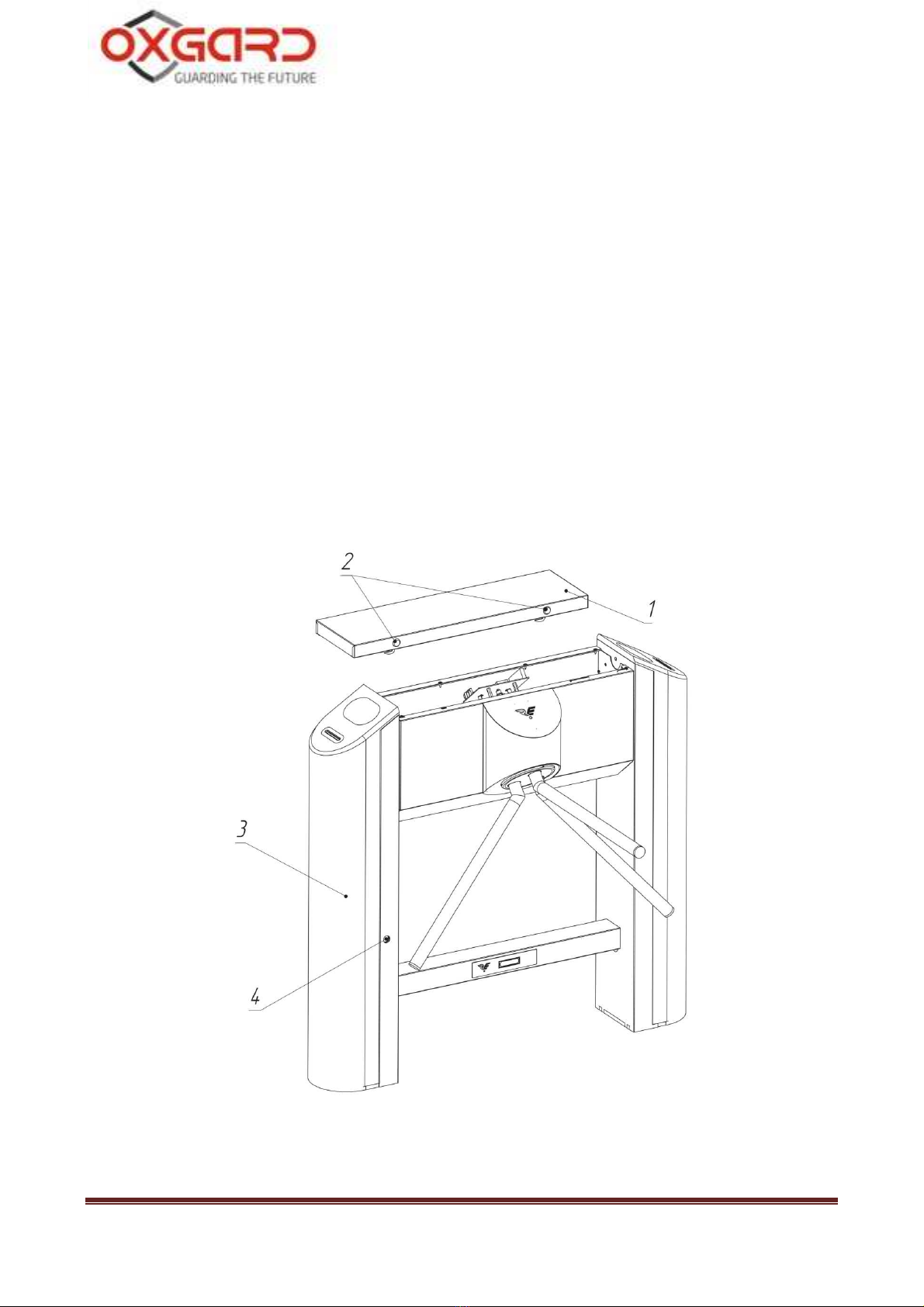

Fig. 6 Preparing for installation

Praktika T-02(K) turnstile 14
4.2.8. Route RC, PS cables and, if necessary, cables of FA and
ACS inside the housing. Cable routing shall be performed through holes 1
or 2 made in the bottom plate of turnstile. In the upper part - through a
hole of 32 mm diameter as shown in (Fig. 5). Secure cables with cable
ties.
4.2.9. Align holes in the lower plate of the turnstile together
with anchors in the floor. Check the vertical installation in 2 planes. If
necessary, use appropriate steel underlayers for proper installation of the
turnstile. Fix the housing of the turnstile with 6 screws M12, tightening
them to the corresponding anchors by using a S10 wrench with internal
hexagon.
4.2.10. Connect the required cables (see Section 5), secure them with
cable ties. Place opened and removed parts of the turnstile back in the
initial position.
4.2.11. Remove the protective film from the housing of the turnstile.
5. Connecting turnstile
Connection of RC, PS and ACS is performed with the use of
motherboard. In order to do it, remove the housing cover (1, Fig. 6) with a
key. Fig. 7 shows the location of motherboard in the turnstile.

Installation guidelines 15
Fig. 7 Location of motherboard

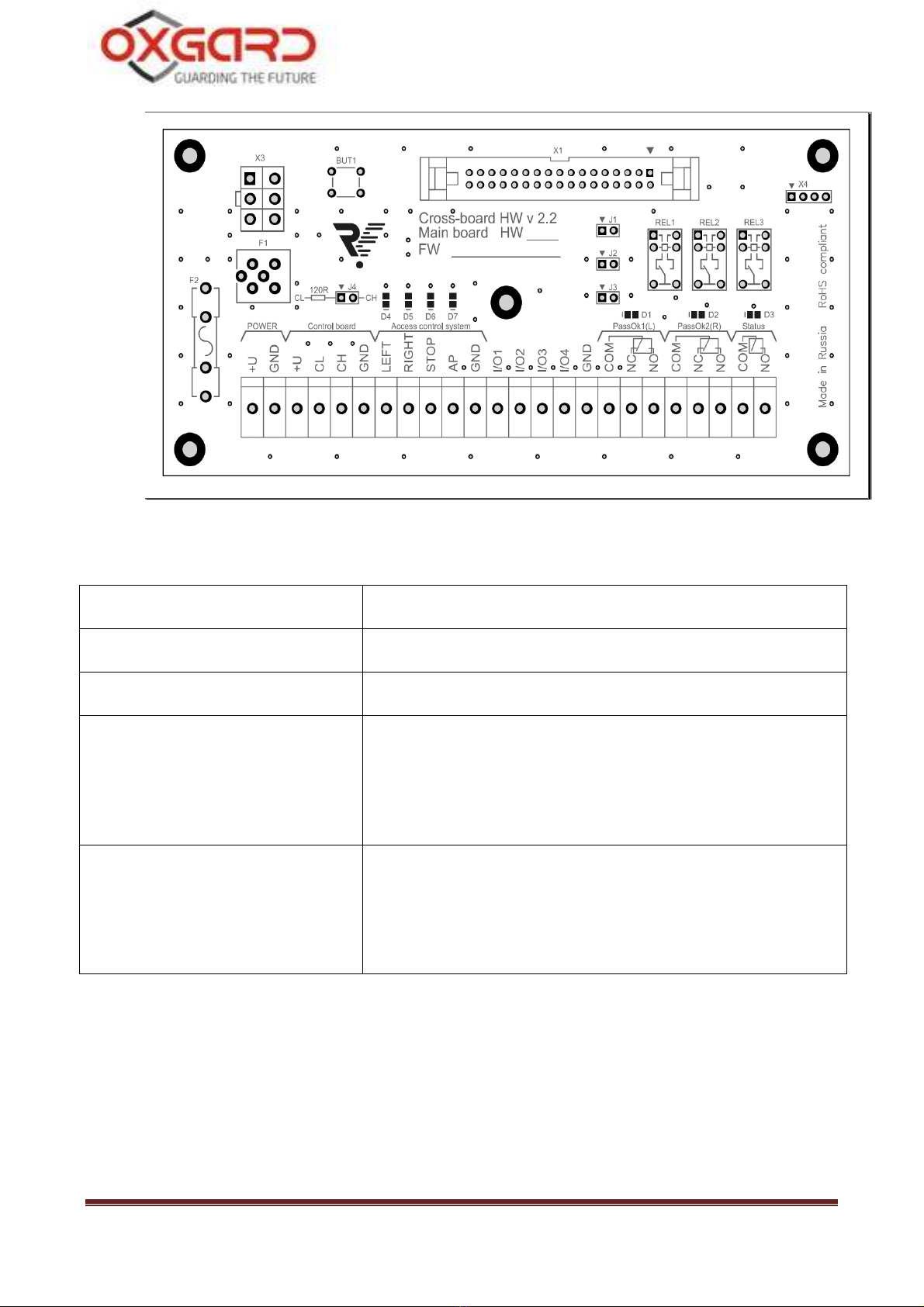

Fig. 8 shows the appearance of motherboard and connectors for PS, RC,
ACS and FA cables.

Praktika T-02(K) turnstile 16
Fig. 8 General view of motherboard
Table 3 Operating modes of turnstile
The position of jumpers Operating mode of turnstile
J1 removed Pulse mode (see p .5.3.)
J1 installed Potential mode (see p 5.3).
J2 installed Turnstile does not respond to RC panel
commands. Status of the buttons is transmitted
to I / O1 ... I / O4 outputs (see 5.4)
J2 removed Turnstile is controlled by remote control
panel. Status of the buttons is transmitted to I /
O1 ... I / O4 outputs (see. 5.4)
- Jumper J3 is not used
- Jumper J4 is used to establish the normal operation of CAN2.0 bus. See
Appendix 1.

Installation guidelines 17
5.1. Connecting power supply
CAUTION
! Do not use power supplies with an output current less than
5A.
Do not install the power supply at a
distance more than 25 meters from the
turnstile.
CAUTION! Do not use power cable with cross-section less than 1.5 mm
2
for connection. When the length of the power cable is more than 10 m it
is
recommended to use a cable with 2.5 mm
2
cross-section.
Turnstile is powered by 12V DC voltage. Maximum consumption
(5A) is observed during "antipanic" mode when arms are folding. PS unit
shall be selected on the basis of these parameters. Also note that an
increase in the length of the supplied cable increases the voltage drop.
Install the PS unit in a place with easy access for operator. Connect
the power supply to the POWER contact set on the motherboard. Connect
(+) and (-) contacts of PS unit to (12V) and (GND) terminals respectively.
Make sure the cables are securely connected.

Praktika T-02(K) turnstile 18
5.2. Connecting remote control panel
RC panel is connected to a Control Board contact set on
motherboard. Marking of contacts: 12V, CL, CH, GND.
Connection is made according to contact marking shown in Table 4.
Table 4 Marking of RC contacts
Contacts marking Wire color
12V Red
CL Yellow
CH Green
GND Blue
5.3. Connecting access control system (optional)
ACS controller is connected to AccessControlSystem contact set on
motherboard. Marking of contacts: LEFT, RIGHT, STOP, AP, GND.
Contact assignment is shown in Table 5.

Installation guidelines 19
Table 5. ACS contacts assignment
Contacts marking Contacts assignment
LEFT, RIGHT single pass left / right
(lowest priority)
STOP non-authorized (mode "Stop")
(medium priority)
AP arms folding ("antipanic")
(highest priority)
GND common contact
Inputs for connecting of ACS differ on priorities:
AP input has the highest priority. As long as this input is closed GND
contact, arms of the turnstile are collapsed and the turnstile does not
respond (!!!) to other signals;
STOP input has the medium priority. When the input is closed on
GND contact the turnstile switches to "Stop" and does not respond to other
effects, except AP.
LEFT and RIGHT inputs have the same low priority and include a
single passage in one direction or another. If both inputs are closed,
passage is allowed in that direction the input which was closed first. If
passage was not performed the turnstile will move to "Stop" mode
automatically within 5 seconds.
CAUTION (!) In case of closure of one of STOP (or) AP inputs -
commands from the remote cannot be accepted, i.e. ACS has a higher
priority.

Praktika T-02(K) turnstile 20
AP and STOP inputs operate only in a potential mode, i.e. as long as
the input is closed on GND contact the turnstile operates in the
corresponding mode. After contacts opening - turnstile switches to the
"Stop" mode irrespective to the mode of operated that was used before
ACS operation.
LEFT and RIGHT inputs can operate both in the potential and in
pulse mode (responding upon GND contact closure). Pulse mode is set on
default.
In order to switch to a potential mode set J1 jumper (Fig. 8). In this case
the mode of left / right passage turns on only during the control signal to
LEFT / RIGHT inputs. Mode of free passage can be set by control signals
to both inputs simultaneously. Priorities of LEFT and RIGHT inputs at the
switch to the pulse mode remain unchanged.
Motherboard contains two relay outputs for ACS operating on the
principle of "dry contacts» - Pass Okl and Pass Ok2. NO and COMM -
normally open connection, NC and COMM - normally closed connection.
Activation of one of the contact sets suggests the passage in the
corresponding direction (PassOk1 - right, PassOk2 - left). "Dry contact"
closes / opens when arms rotate at an angle of 60 degrees and return to the
starting position when passage is completed.
Motherboard contains relay output for ACS operating on the principle of
"dry contacts» - Status. NO and COMM - normally open connection, its
contacts close when the turnstile switches to "AP" and D3 LED indicator
lights up.
Also the motherboard contains the following LED indicators:
