Praktika T-03-M(K) turnstile

Installation guidelines 3
Contents
1. Basic specifications......................................................................................5
2. Product design..............................................................................................6
4. Installation of turnstile ...............................................................................10
4.1. Required equipment ............................................................................ 10
4.2. Installation of turnstile ........................................................................ 11
5. Connecting turnstile ...................................................................................15
5.1. Connecting power supply.................................................................... 19
5.2. Connecting remote control panel........................................................ 19
5.3. Connecting access control system (optional)...................................... 20
5.4. Connecting remote control panel to ACS controller .......................... 23
6. Connecting card collector ..........................................................................26
6.1. Card collector description................................................................... 26
6.2. Connecting power supply.................................................................... 28
6.4. Connecting ACS controller................................................................. 29
6.5. Installation of proximity card reader................................................... 32

Praktika T-03-M(K) turnstile 4
List of abbreviations
PS – power supply
FA – fire alarm
RC – remote control
ACS – access control system
OD – operating device (turnstile)
NC – normally connected
NO – normally opened
Turnstile firmware version FW v1.76
Card collector firmware version FW v1.52

Installation guidelines 5
1. Basic specifications
Table 1 Basic specifications
Description Turnstile RC panel
Dimension (HхWхL), (mm)
- operational state
- collapsed arms
1505х1200х1730
1505х1200х730
107х107х25
Weight, kg 176,0 0,5
Temperature range, 0C
- operation
- transportation and storage
+1...+40
+1...+40
+1...+40
+1...+40
Atmosphere relative humidity, no more than
% 80 80
Passage width, mm 2x500
Throughput, people per minute 2х30
Card collector capacity (pcs.) ** More than 500
Max. number of connected consoles, pcs 2х2
Lifetime, years 8 8

Praktika T-03-M(K) turnstile 6
Table 2 Electrical specifications of one tripod
Description Turnstile
(each
tripod)
Card collector** RC panel
Supply voltage, V:
- nominal
- working
12,0
10,8...13,2
12,0
8…18,0
12,0
7,5...15,0
Average current
in standby
mode * A 0,4 0,2
Average current operational
mode * A 1,5
Maximal current * A 5,0 1,5
*- values mentioned at a nominal supply voltage
**-optional
The manufacturer reserves the right to change the packaging, specifications and appearance
without notice
2. Product design
Turnstile housing
Turnstile housing and arms are made of brushed stainless steel.
Panels are made of tempered glass. The design of the turnstile can be
equipped with a card collector and has 2 tripods. In the middle part of the
housing there is a removable cover with lock for quick access to the
motherboard where PS, RC and ACS cables are connected. In the lower
part there are holes for cable routing and base cover concealing the
fixation of turnstile to the floor (Fig. 1).

Installation guidelines 7
Fig. 1 General view of turnstile
Display system
Display system of turnstile consists of four LED panels. The panels are
made of artificial stone with insertions made of acrylic glass. Turnstile
operating modes are displayed on the panel in the form of mnemonic signs
depicting authorization and non-authorization of passage (Fig. 2 and Fig.
3).

Praktika T-03-M(K) turnstile 8
Fig. 2 General view LED panel display
Fig. 3 General view of display panel
Remote Control Panel
The housing of RC is made of polished stainless steel. On the front
side there are control buttons and LED indicators of RC operational modes
(Fig. 4). The standard supplied cable is 5 meters long.

Installation guidelines 9
Fig. 4 General view of remote control
3. Safety requirements
CAUTION! Failure to comply with the safety requirements specified in
this section may result in damage to human life and health, total or partial
loss of workability of products and (or) auxiliary equipment.
CAUTION! Installation of turnstile must be carried out by qualified
personnel according to the instructions.
CAUTION! The producer disclaims any liability for damage to human life
and health, total or partial loss of workability of products and (or) auxiliary
equipment for non-compliance of the safety requirements specified in this
section, as well as terminate the product warranty.

Praktika T-03-M(K) turnstile 10
IT IS NOT ALLOWED TO:
•Set the power supply inside the turnstile housing as this could lead to
electric shock to persons;
•Set the turnstile other than dry and heated places;
•Impede or accelerate the turnstile arms during on/off “antipanic”
mode;
•Apply chemically aggressive cleaning detergents as pastes and
liquids.
4. Installation of turnstile
CAUTION: The turnstile should be installed securely to avoid swinging
and (or) overthrow during operation. In case of installation on the low
strength floors - take action to strengthen the floor at the installation site.
Before checking operability of the turnstile carefully read this section of
the Guidelines.
4.1. Required equipment
Tools used for turnstile mounting:
•electric perforator;
•20mm diameter carbide drill for drilling holes in the floor for anchors
(recommended anchor - SORMAT PFG LB 12-50);
•S10 wrench for hexagon socket head screws;
•slotted screwdriver;

Installation guidelines 11
•plumb line or level;
•steel liner for turnstile alignment
•round file
•side cutters
4.2. Installation of turnstile
CAUTION: When designing the mounting site of the turnstile take into
account that rotation direction of arms will be counter-
clockwise during
"antipanic" mode.
4.2.1. Prepare a horizontal surface at the installation site of
turnstile.
4.2.2. Prepare cable channel from the site to the installation
site of PS, RC, as well as, if required, to the point of ACS and fire alarm
connection.
4.2.3. Follow the layout (Fig. 5) prepare and drill 12 holes of
20mm diameter in the floor for anchors. Location of mounting holes
according to the outer dimensions of the turnstile is shown in Appendix
3. Depth of the hole should exceed the length of the anchor for more than
5mm. Put anchors in the holes.
4.2.4. Cable routing is carried out through holes of 40 mm and 32
mm diameter (Fig. 5) in the lower plate of turnstile. Cable conduit
shall be prepared.

Praktika T-03-M(K) turnstile 12

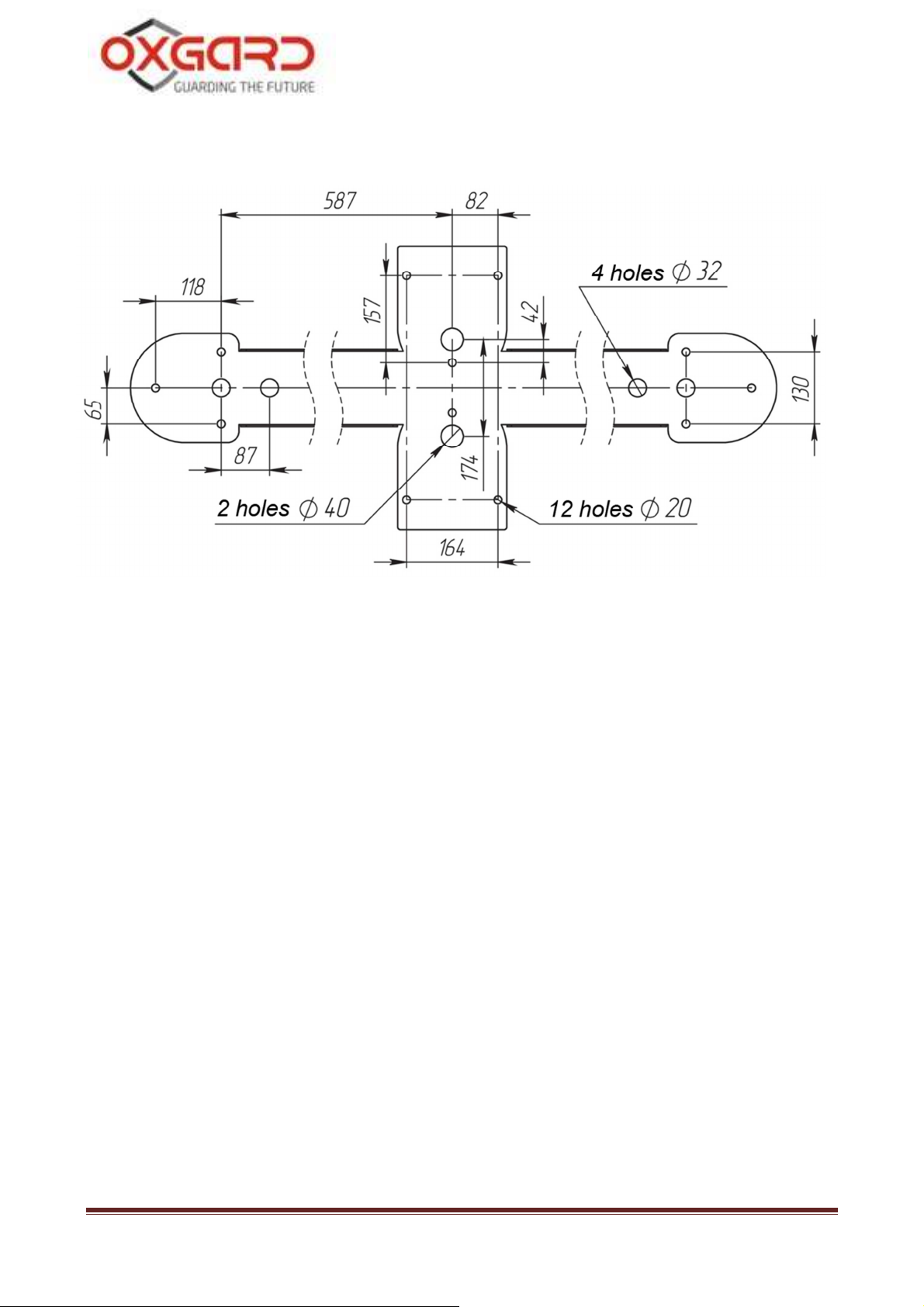

Fig. 5. Linkage dimension
4.2.5. Open the box and unpack:
•side units;
•remote control panel with cable (2 pcs);
•lock keys (8 pcs.).
4.2.6. Route cable of RC panel, cable of PS unit and, if
provided, cables of FA and ACS into cable conduit.
4.2.7. Set the turnstile on a prepared site (Fig. 5). Open the lock
and remove the hatch (1, Fig. 6). Undo M6 screw (2, Fig. 6) and remove
the base cover of the central stand (3, Fig. 6)
4.2.8. In order to route cables into the side stand with card collector,
undo four self-tapping screws (5, Fig. 6), and lift the base housing (4, Fig.

Installation guidelines 13
6). Unblock the lock of card collector housing (6, Fig. 6) and open the
hatch (7, Fig. 6).
4.2.9. Route into turnstile housing RC and PC cables and, if
necessary, FA and ACS cables. Cable routing shall be performed via
holes of 40 mm and 32 mm diameter in the lower plate of turnstile (Fig. 5).
Secure cables with cable ties.
4.2.10. Align holes in the lower plate of the turnstile together
with anchors in the floor. Check the vertical installation in 2 planes. If
necessary, use appropriate steel underlayers for proper installation of the
turnstile. Fix the housing of the turnstile with 12 screws M12, tightening
them to the corresponding anchors by using a S10 wrench with internal
hexagon.
4.2.11. Connect the required cables (see Article 5), secure them with
cable ties. Place opened and removed parts of the turnstile back in the
initial position.
4.2.12. Remove protective film from the housing of the turnstile.

Praktika T-03-M(K) turnstile 14
Fig. 6 Installation diagram of turnstile

Installation guidelines 15
5. Connecting turnstile
Connection of RC, PS and ACS is performed with the use of
motherboard. Both tripods must be connected. In order to do it, open
turnstile hatch (1, Fig. 6) with a key. Fig. 7 shows the location of
motherboard in the housing.
Fig. 7 Location of motherboard
The turnstile can be configured in two ways:
1. Location of the card reader for the right-hand use.
2. Location of the card reader for the left-hand use.

Praktika T-03-M(K) turnstile 16
Indication bus lines are installed at the factory, according to customer
requirements, but can be remounted.
In the first case the indication bus lines are routed as shown in Fig. 8
Fig. 8 Mounting of indication bus lines for the right-hand use of reader.
In the second case, the indication bus lines are routed as shown in Fig. 9.
Indication bus lines are routed inside central turnstile’s housing, on the
horizontal base and sides stands of the turnstile.

Installation guidelines 17
Fig. 9 Mounting of indication bus lines for the left-hand use of reader.
Fig. 10 shows the appearance of motherboard and connectors
for PS unit, RC panel, ACS and FA.

Praktika T-03-M(K) turnstile 18
Fig. 10 General view of motherboard
Table 3 Operating mode of turnstile
The position of jumpers Operating mode of turnstile
J1 removed Pulse mode (see p .5.3.)
J1 installed Potential mode (see p 5.3).
J2 installed Turnstile does not respond to the remote
commands. Status of the buttons is transmitted
to the outputs I / O1 ... I / O4 (see 5.4)
J2 removed Turnstile is controlled by remote control.
Status of the buttons is transmitted to the
outputs I / O1 ... I / O4 (see. 5.4)
- Jumper J3 is not used
- Jumper J4 is used to establish the normal operation of CAN2.0 bus. See
Appendix 1.

Installation guidelines 19
5.1. Connecting power supply
CAUTION! Do not use power
supplies with an output current less than
5A.
Do not install the power supply at a distance more than 25 meters from the
turnstile.
CAUTION! Do not use power cable with cross-section less than 1.5 mm
2
for connection. When the length of the power cable
is more than 10 m it is
recommended to use a cable with 2.5 mm
2
cross-section.
Turnstile is powered by 12V DC voltage. Maximum consumption
(5A) is observed during "antipanic" mode when arms are folding. PS unit
shall be selected on the basis of these parameters. Also note that an
increase in the length of the supplied cable increases the voltage drop.
Install the PS unit in a place with easy access for operator. Connect
the power supply to the POWER contact set on the motherboard. Connect
(+) and (-) contacts of PS unit to (12V) and (GND) terminals respectively.
Make sure the cables are securely connected.
5.2. Connecting remote control panel
Each tripod is connected to its own RC panel. RC panel is connected
to a Control Board contact set on motherboard. Marking of contacts: 12V,
CL, CH, GND.
Connection is made according to contacts marking shown in Table 4.

Praktika T-03-M(K) turnstile 20
Table 4 Marking of RS contacts
Contacts marking Wire color
12V Red
CL Yellow
CH Green
GND Blue
5.3. Connecting access control system (optional)
ACS controller is connected to the contact set AccessControlSystem
on motherboard. Marking of contacts: LEFT, RIGHT, STOP, AP, GND.
Contact assignment shown in Table 5.
Table 5. ACS contacts assignment
Contacts marking Contacts assignment
LEFT, RIGHT single pass left / right
(lowest priority)
STOP non-authorized pass (mode "Stop")
(medium priority)
AP arms folding ("antipanic")
(highest priority)
GND Common contact
Inputs for connecting of ACS differ on priorities:
AP input has the highest priority. As long as this input is closed GND
contact, arms of the turnstile are collapsed and the turnstile does not
respond (!!!) to other signals;
