Wren Kitchens INFINITY PLUS Standard Drawer User manual

For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1

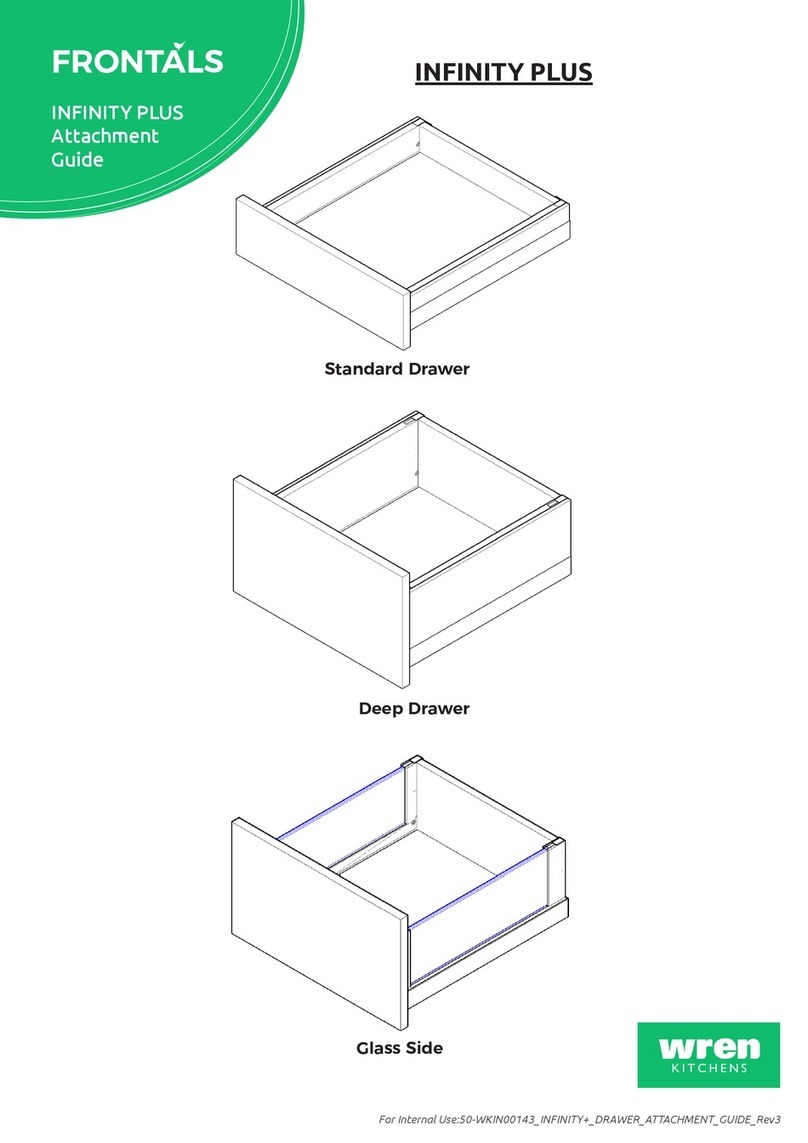

FRONTALS
INFINITY PLUS
Attachment
Guide
Glass Side
Deep Drawer
Standard Drawer
INFINITY PLUS

For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1Page 1
FRONTALS
INFINITY PLUS
Attachment
Guide
Frontal Fixings
Step 1.
Attach the frontal xings to the draw front
using 3 x 5/8” screws (B) per bracket using
the spiked positions.
4 ⁄“ 4 ⁄“
2 ⁄“
2 ⁄“
2 ⁄“
2 ⁄“
Standard
Drawer
1 ⁄“1 ⁄“
Step 2.
Attach the draw front by pushing the
frontal onto the sides, aligning the
mechanism with the xings.
DRAWER FRONTAL
ADJUSTMENT
DRAWER REAR
ADJUSTMENT
B
B
B
Loosen top screw.
Turn bottom screw
to adjust drawer
frontal height, once
in desired position
re-tighten the top
screw.
Turn screw to adjust
rear elevation of
drawer.
STANDARD DRAWER
STANDARD DRAWER

For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1 Page 2
FRONTALS
INFINITY PLUS
Attachment
Guide
DRAWER FRONTAL
ADJUSTMENT
DRAWER REAR
ADJUSTMENT
Frontal Fixings
Step 1.
Attach the frontal xings to the draw front using 3 x 5/8”
screws (B) per bottom bracket and 2 x 5/8” screws (B) per top
bracket using the spiked positions.
Step 2.
Attach the draw front by pushing the
frontal onto the sides, aligning the
mechanism with the xings.
B
B
B
B
B
Deep Drawer
7 ⁄“
6 ⁄“
7 ⁄“
6 ⁄“
4 ⁄“
2 ⁄“
2 ⁄“
1 ⁄“
1 ⁄“
2 ⁄“
2 ⁄“
4 ⁄“
Loosen top 2
screws. Turn
bottom screw
to adjust drawer
frontal height, once
in desired position
re-tighten
the top 2
screws.
Turn screw to adjust
rear elevation of
drawer.
DEEP DRAWER

For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1Page 3
FRONTALS
INFINITY PLUS
Attachment
Guide
Frontal Fixings
Step 1.
Attach the frontal xings to the draw front using 3 x 5/8”
screws (B) per bottom bracket and 2 x 5/8” screws (B) per top
bracket using the spiked positions.
Step 2.
Attach the draw front by pushing the
frontal onto the sides, aligning the
mechanism with the xings.
DRAWER FRONTAL
ADJUSTMENT
DRAWER REAR
ADJUSTMENT
B
B
B
B
B
Glass sided
Drawer
Loosen top 2
screws. Turn
bottom screw
to adjust drawer
frontal height, once
in desired position
re-tighten the top
screws.
Turn screw to adjust
rear elevation of
drawer.
DEEP DRAWER
7 ⁄“
6 ⁄“
7 ⁄“
6 ⁄“
4 ⁄“
2 ⁄“
2 ⁄“
1 ⁄“
1 ⁄“
2 ⁄“
2 ⁄“
4 ⁄“

For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1 Page 4
FRONTALS
INFINITY PLUS
Attachment
Guide
GLASS OUT
Step 3.
Slide the glass forward into the front slot of the drawer
side, so that both ends of the glass are encapsulated
within the side panel.
Step 2.
Insert the glass into the rear slot of
the side panel and rotate the glass
parallel to the side of the drawer.
CLICK
A CLICK will be heard once the glass is
correctly located within the side panel
of the drawer.
GLASS REMOVAL:
To remove the glass, reverse the
installation process. Press the rear
xing clip in, then slide the glass
backwards, towards the rear of the
drawer. Once fully back the glass will
be free to slide out on an angle from
the side panel.
Step 1.
Fully press the rear xing clip in.
GLASS
REPLACEMENT

For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1Page 5
FRONTALS
INFINITY PLUS
Attachment
Guide

For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1 Page 6
FRONTALS
INFINITY PLUS
Attachment
Guide
