Congratulations!
You have selected a LOOK accessory.
We thank you for your confidence in our products.
By choosing this LOOK accessory, you get a high-tech product, designed in France. Like the
vast majority of LOOK products, it is identical to those supplied to major professional teams,
and undergoes regular quality-control checks throughout its manufacturing process to assure
your total satisfaction.
Our products comply with current and various European and international standards.
LOOK products are protected by industrial property rights. For more information, go to:
www.lookcycle.com/patents
Warning:
- This LOOK product is designed and optimized to be used by cyclists not exceeding
100 kg (220.5 lbs.)
- If you weigh more than 85 kg (187 lbs.), you must be especially vigilant and have it
inspected more frequently (than someone weighing less than 85 kg/187 lbs.) to search for
any cracks, deformations, or any other signs of fatigue or stress.
14

EN
The life span of LOOK components depends on many factors, such as how it is used and the
morphology of the cyclist. Impacts, falls, improper use, or any sudden impact in general, may
compromise the structural integrity of the components and significantly reduce their life
expectancy.
Some components are also subject to wear over time. Have your bicycle inspected regularly
by an authorized LOOK retailer to verify the absence of cracks, deformations of any kind, and/
or signs of fatigue or wear. If an inspection reveals any deformations, cracks, signs of impact
or stress marks, even minor in appearance, immediately replace the component in question;
components that have experienced excessive wear must also be immediately replaced. The
frequency of inspection depends on many factors. See your authorized LOOK dealer. The
components to be replaced must be done so by an authorized LOOK retailer.
The list of replaceable components is available at any authorized LOOK retailer.
LIFE SPAN - WEAR - INSPECTION REQUIRED
Cycling is a dangerous activity by nature. To reduce the risk of injury, be sure to maintain your
bicycle properly, and install and adjust all components correctly. While practicing the sport
of cycling, always wear a helmet and know and respect the rules of the road. Beware of the
dangers of the road and traffic. Learn about the laws currently in force in the country where you
are located. If you ride at night, it is not enough to see, but vital to be seen by others. Standard
reflectors are not sufficient and cannot replace quality front and rear lights. Wearing reflective
clothing is strongly recommended and potentially mandatory in some areas or countries.
PLEASE READ CAREFULLY BEFORE USING!
15

Before use, read the instructions thoroughly, and follow the advice given, in order to take full
advantage of the features of this high-quality product.
LOOK reserves the right to change product specifications without prior notice for the
purposes of improving it.
EN
The E-Post is the concept of an integrated seat post, patented by LOOK, that allows the seat
post to be supported by the seat tube of the frame. There is, therefore, no risk of the post
slipping into the frame. Anti-rotation is ensured by the non-circular shape of the post and seat
tube.
The concept incorporates an elastomer sleeve that ensures the filtration of vibrations,
increasing comfort when riding the bicycle.
The E-Post 2 EVO offers a setback of -15 mm. This model is not reversible. It is compatible with
the standard Selle Italia Monolink® saddle via an optional adapter kit.
The E-Post 2 EVO is only compatible with the LOOK 795 bicycle.
PRODUCT OVERVIEW
EXPLODED VIEW OF THE E-POST 2 EVO SEATPOST
1: The E-POST 2 - carbon body
2: Screw fixation shell
3. Set Screw
4: Elastomer sleeve support ring
5: Shock absorbing elastomer sleeve
6. Clamping Rail (integrated securing
-*screws for Shimano Di2 battery)
7. Seat clamp
8: Cylindrical nut
9: Height adjustment spacer kit
10: Seat clamps for double railed saddles
(10a: upper bracket for round rails / 10b: upper
bracket for oval rails / 10c: lower bracket)
11: Lower saddle mounting brackets
12: Optional kit: brackets for Monolink saddles
16

EN
5
4
2
3
1
7
6
8
11
10
9
12
10a
10b
10c
17

1. Position the saddle on the E-Post 2 EVO,
the rails on the outside of the seatpost.
(Fig.1)
2. Insert the upper support (10) indicated in
Fig 5.1 if you want to use a seatpost with
round rails Ø7mm and the support (10b)
indicated in Fig 5.2 for a saddle with oval
rails. (Fig.2)
3. Then insert the lower support (10c)
under the saddle rails. (Fig.3)
4. Put both lower brackets (11) in place and
tighten the previously greased set screw
to the specified torque of 8Nm once your
seat is properly positioned. (Fig.4)
INSTALLING A DOUBLE OR AN OVAL RAILED SADDLE
Fig 1
Fig 5.1
Fig 5.2
Fig 2
Fig 3
Fig 4
Ø 7
Ø OVERSIZE
Warning:
The E-POST 2 EVO is not compatible
with oval railed saddles with a rail
height greater than 9.6 mm.
EN
18

1. Grease the screws (7)
2. Position the Monolink® saddle on the
E-Post 2 EVO (Fig.6)
3. Put both upper brackets (12) in place and
loosely tighten the screw. (Fig.7)
4. Then fix the two lower brackets (11) in
place and loosely tighten the screw.
(Fig.8)
5. Adjust your saddle as necessary. First
block the fore and aft movement by hand
tightening the upper screw, then do the
same with the lower screw once the
desired angle is determined. Tighten the
two screws to the torque of 8Nm. (Fig. 9)
INSTALLING A MONOLINK® SADDLE (requires optional adapter kit)
Fig 6
Fig 7
Fig 8
Fig 9
EN
19

EN
To remove your saddle, or adjust its position, loosen the screw, a few turns, that holds the upper
brackets in place (11).
Gently apply force, alternating between the front and back of the saddle, to loosen the seat
brackets. If they do not come free, due to over tightening, use a small headed mallet and tap
lightly on the screw head, still bound by a few threads, at various angles in order to free the
opposite side.
The tightening of the E-Post 2 EVO is done with a single screw.
REMOVING THE SADDLE
INSTALLATION/REMOVAL OF THE E-POST 2 EVO
20
1. Insert the seatpost in the frame.
2. Tighten the screws to 4Nm using a torque wrench and a 4mm hex or Allen key.
Fig 10

EN

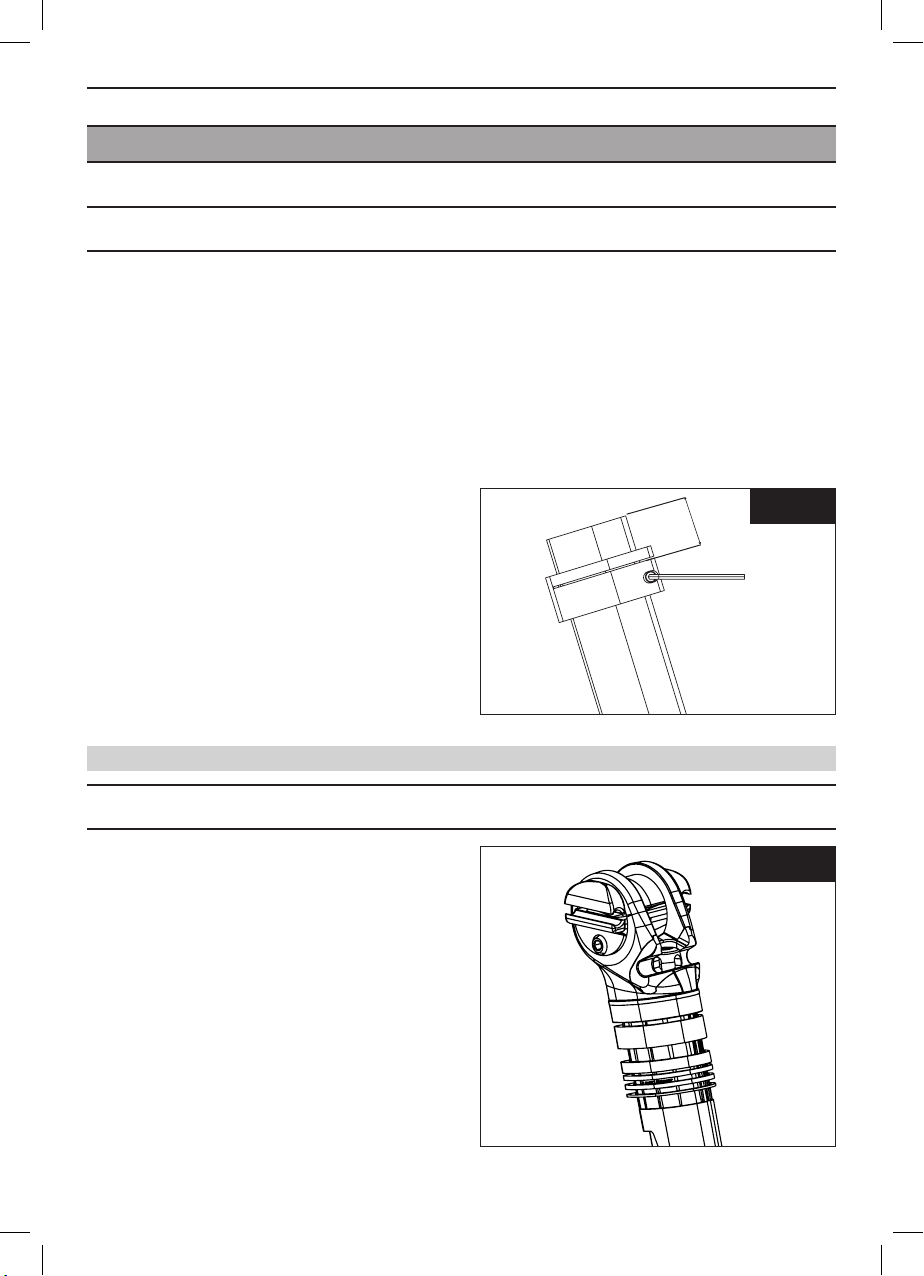

The E-POST 2 EVO has an integrated
mounting system for the Shimano batteries
SM-BTR2 or BT-DN110.
To mount your battery, secure it to the battery
support (6).
MOUNTING A SHIMANO BATTERY
21

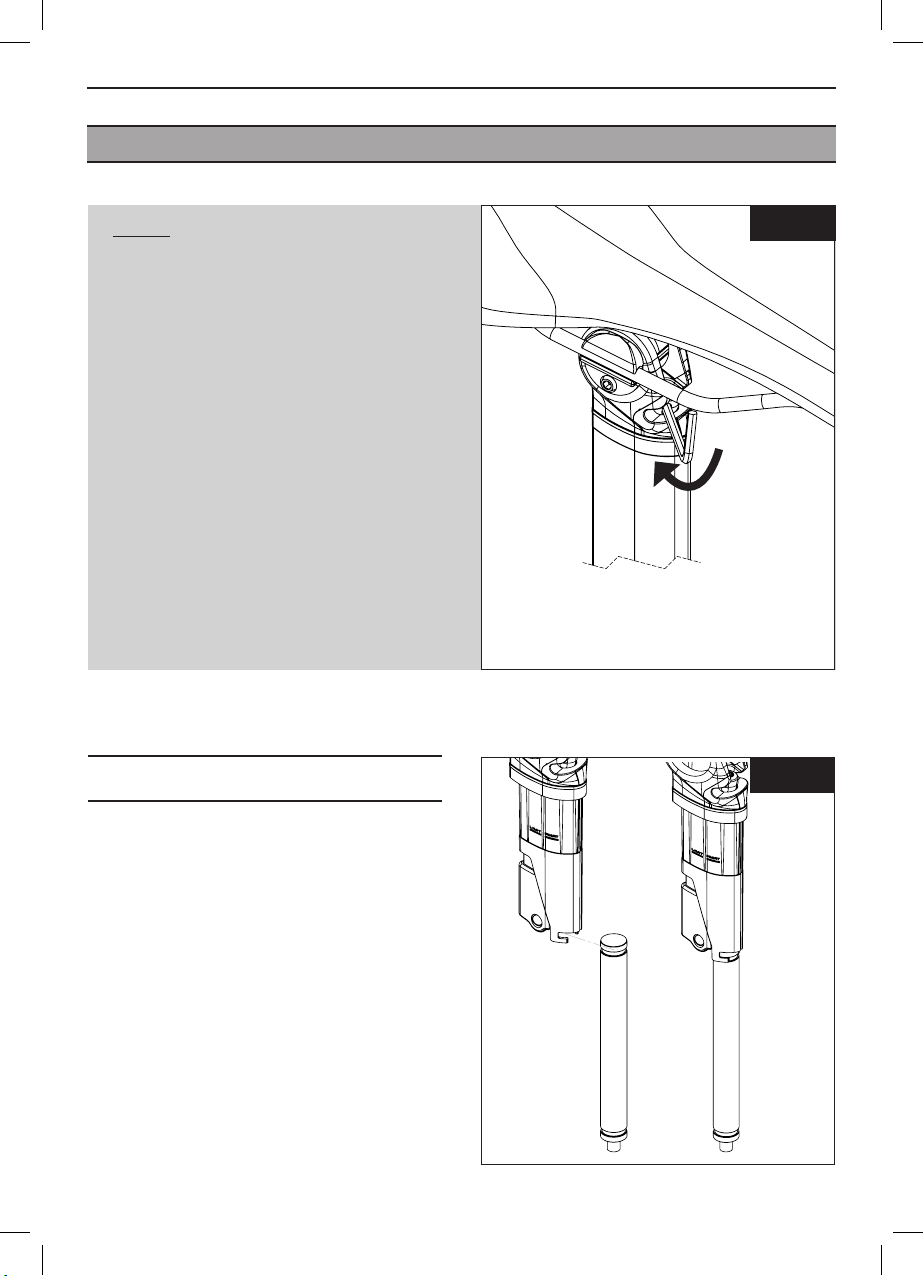

Notes :
• When a saddle is already installed
on the bicycle, you cannot use a torque
wrench. However, it is still possible to
tighten/loosen the seatpost. To do this,
use a 4mm hex or Allen key by inserting
it into the opening of the screw head.
Tighten moderately so as to not exceed
4Nm.
• To remove your seatpost, loosen the
screw as needed. THE E-POST 2 EVO
should easily come free. If it does not,
loosen the screw some more.
Fig 11
Fig 12

EN
Your new bicycle requires that the seat tube be cut to fit your personal seat height. For this operation,
it is best that you contact your authorized LOOK retailer.
1. Introduce the seatpost into the frame and adjust the horizontal position of the saddle.
2. Before cutting, measure the saddle height of the new bicycle with the saddle in place.
3. Calculate the length “L” to be cut using the following formula: L = seat height on the new bike -
personal seat height
4. Remove the seat post.
5. Place a strip of adhesive tape, centered on the length “L”, in order to protect the post while cutting
6. Install the cutting tool as necessary and
according to the “L” position and tighten to 3
Nm. (Fig.13)
7. Cut the tube using a saw (24 or 32 teeth/inch)
inserted into the tool’s sawing slot. Position the
bicycle in the stand in such a way as to saw in
a vertical position.
8. Remove the cutting tool and deburr the end of
the tube with a piece of fine grain sand paper.
Verify that the end of the tube is clean and free
of paint.
CUTTING THE SEAT TUBE HEIGHT
Fig 13
Fig 14
You can adjust the saddle height by adding
more spacers. THE E-POST 2 EVO comes with
the following spacers: 1mm (qty. 1) / 2mm (qty.
2) / 5mm (qty. 1) / 10mm (qty. 3). The maximum
height allowed for the added spacers is
30mm (i.e. 3x10mm spacers, stacked). To
adjust your seat height:
1. Loosen the 2 EVO E-Post and remove it
from the frame.
2. Place the spacers on the seatpost as
indicated on fig. 14.
3. Install the seat post as per the procedure
previously provided.
ADJUSTMENT OF THE SEAT TUBE HEIGHT
22
L
Note : The maximum overlap “L” of the tube is 150 mm in relation to the original length.

EN
23
MAINTENANCE
Always clean your bike and its accessories with soap or a mild detergent and water.
Use a soft cloth. Rinse with water and dry it with the soft cloth. Any heat source can irreparably
damage the bicycle and its components.
Do not use a high-pressure cleaning device, or abrasive products.
REGULAR INSPECTION AND MAINTENANCE ARE IMPORTANT FOR YOUR SAFETY AND THE LIFE
SPAN OF YOUR PRODUCT. A BICYCLE AND ITS COMPONENTS THAT ARE POORLY MAINTAINED
CAN BREAK OR MALFUNCTION, WHICH COULD LEAD TO AN ACCIDENT IN WHICH YOU COULD
BE KILLED, SERIOUSLY INJURED OR PARALYZED.
POST SALE PRODUCT SUPPORT
Despite all the care taken in our manufacturing process, if a defect appears or if a repair is
required, please contact your authorized LOOK dealer and bring the defective product, along
with your proof of purchase receipt, and specify its dysfunction.
WARRANTY
LOOK LIMITED WARRANTY
WARNING
We recommend registering your bike with our services. If you do not do so, we will not be
able to contact you to provide you with important information in the event of a product recall
or update.
PLEASE REFER TO THE REGISTRATION MANUAL.
The E-Post 2 EVO is warrantable for up to two years from the date of purchase against any
manufacturing or structural defects. LOOK, through its network of authorized dealers, in the
country in which the product was purchased, warranties the original purchaser or user of the
product against all manufacturing or structural defects.
This warranty does not apply to “Special Race Service” products and/or purchased by
professional or amateur teams, professional athletes, clubs, and/or via any rental program,
even if the product is new.
The warranty applies only if the product was assembled according to the instructions above.
The warranty does not apply to products subjected to improper use or maintenance.
The warranty is void if the product:

24
- Underwent a technical and/or structural modification, or if it has been repaired
or repainted at a non-LOOK authorized or approved repair center.
- Has been repaired and/or used with non-authorized spare parts.
- The product serial number has been removed, erased, altered or rendered
illegible.
This limited warranty does not apply to normal wear and tear, to parts that have
been restored or subject to repairs or improper modification or any damage caused
by an accident, abusive or inappropriate use, or a lack of due diligence. “Spinning”
(stationary bicycle) is included among the inappropriate uses that voids the warranty.
The only recourse within the limits of the LOOK limited warranty, where any warranty
is limited to the repair or exchange, at the sole discretion of LOOK, of all or part of the
product concerned. Under no circumstances, can LOOK and its agents or distributors
be held liable for any direct or ensuing damage, for any product shipping or transport
costs, and that the claim is based on the contract, the warranty, a negligence or product
liability claim, including, without limitation, loss or damage to property other than the
warrantable product itself, the loss of use of the property, or any other financial loss.
Regardless of the cause, neither LOOK, nor any agent or distributor, can be considered
liable for any financial contribution or compensation for a product. The rights allocated
by the warranty and associated benefits cannot be transferred or transmitted.
LOOK’s obligations under any warranty are limited, according to the wider acceptance
of the law, to those specified in this LOOK limited warranty.
However, some countries or states do not permit any time limit for an implicit warranty,
and/or for the exclusion or limitation of direct or consecutive damages which implies
that the limitations and exclusions listed above would not apply in this case. This
limited warranty gives you specific legal rights, but possibly other rights too, which
vary according to local legislation.
Disclaimer
• The information contained in this manual is given as an indication only. The
products described are subject to change without prior notice from the manufacturer,
due to ongoing technical improvements.
• LOOK grants no warranty or liability in case of damage related to or caused by
the use of this manual or the products described in it.
• LOOK is in no way responsible for damages, losses, expenses or costs, direct
or indirect, in the general scope, ensuing or specific, caused by or related to the use of
this manual and the products described in it.
EN

25
EN
WARNING ABOUT COUNTERFEIT PRODUCTS
THE USE OF COUNTERFEIT PRODUCTS IS VERY DANGEROUS AND CAN PROVOKE
SERIOUS FALLS CAUSING SIGNIFICANT INJURY OR EVEN DEATH TO YOU AND OTHER
PERSONS (THIRD PARTIES)
LOOK products are protected by industrial property rights. http://www.lookcycle.com/
patents/ Hence, in the case of purchase, use, or sale of a counterfeit product, we
reserve the opportunity to take all measures that we deem appropriate in order to stop
the violation of our rights and to receive compensation for the damage suffered as
defined in the Clauses L613-3 to L613-6, L615-14 and L716-9.
It goes without saying that counterfeit products do not benefit from any LOOK warranty
and implies the cancellation of all LOOK warranties on any valid LOOK product used with
counterfeit products. It also involves the annulment of all accidental, physical, moral,
civil and physical liabilities on the part of the company LOOK CYCLE INTERNATIONAL.
The sale of products on exotic websites, foreign in origin or character, is likely to be
unlawful and the products counterfeit.
For you to avoid any fraud, and without this advice being limited, we recommend that
you to be very vigilant:
- On websites offering products advertised as LOOK products at prices well
below market value.
- Regarding sales by private individuals that have no proof of purchase, nor any
record of maintenance and information about the origin of the product.
For any questions, you can contact us via our website or that of any of our authorized
retail dealers in the country where you are located (list of our authorized LOOK retail
dealers and Distributors on WWW.LOOKCYCLE.COM) and provide us with the serial
number and/or photos for verification.
This manual may not be used or reproduced, even partially, in any form whatsoever
and by any means whatsoever, without the prior written consent of LOOK.
This material complies with the guidelines in the provisions 93/42/EC.

lookcycle.com
