NEC XEN IPK DIGITAL TELEPHONE User manual

DIGITAL TELEPHONE USER GUIDE
NEC Xen Phone User Guide Cover 18/7/2003 3:54 PM Page 1

1
10
34
14
5
13
12
2/8
6
7
9
11

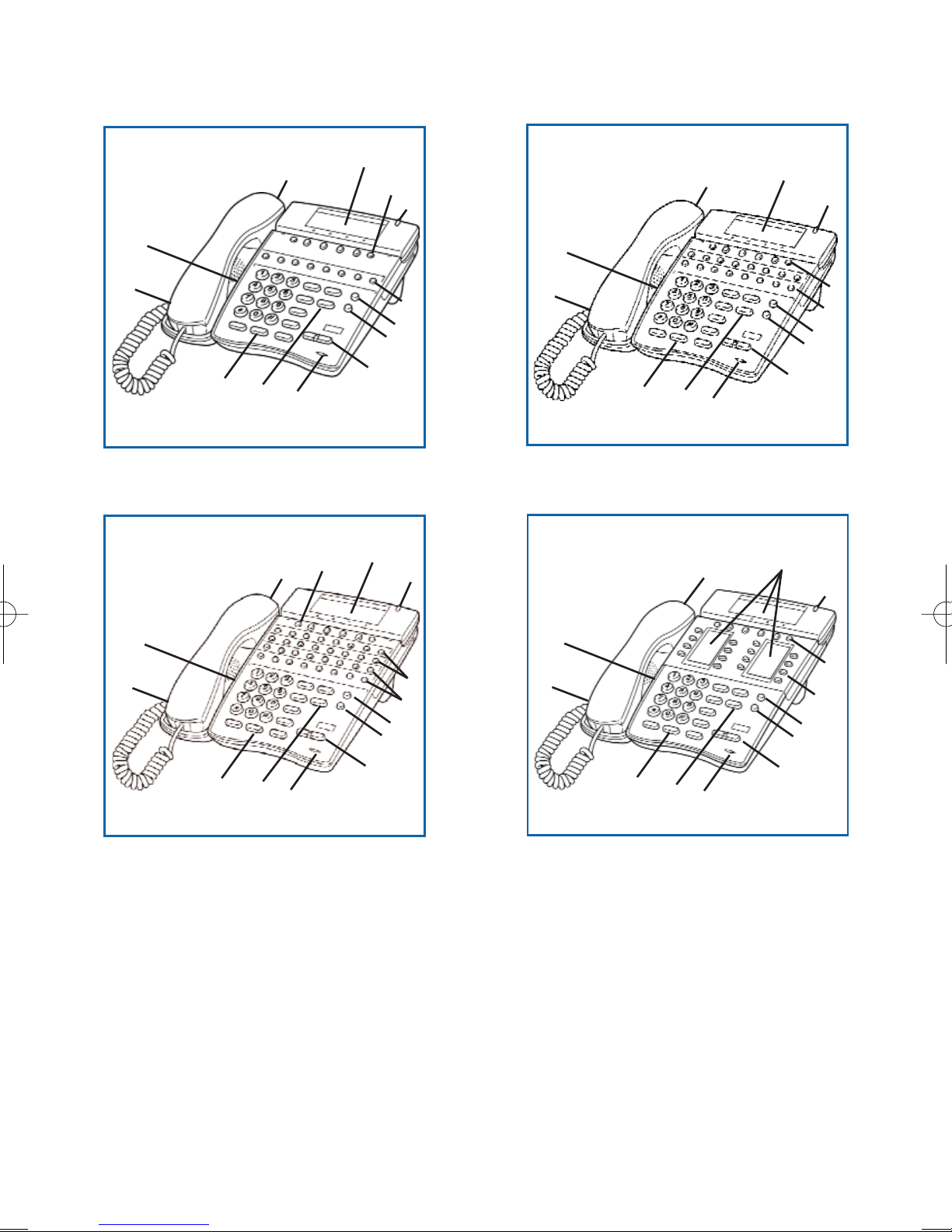

Xen IPK Digital Telephones
Dterm Series i8 line display
Dterm Series i16 line
(LCD) display
Dterm Series i16 line display
with 16 DSS/BLF One Touch
Keys
1. Speaker
2. Line Keys/Feature Access Keys
3. Dial pad/Dedicated Function Keys
4. Microphone
5. Volume Control
6. Large LED
7. Alphanumeric Display (LCD)
1
Dterm Series i16 line
(LED) display
10
34
14
5
13
12
2
6
11
97
1
10
3
4
14 5
13
12
8
6
7
9
11
1
10
34
14
5
13
12
8
6
7
911
2
8. One Touch Keys
9. Handset
10. Built-in Headset Jack
11. Soft Keys
12. Directory Key (DIR)
13. Message Key (MSG)
14. Microphone Key (MIC)
NEC Xen Phone User Guide Cover 21/7/03 1:51 PM Page 2

1
Table of Contents
General Information
Answering Calls Pages 2 – 3
Making Calls
Microphone Control
Handsfree Calls
Placing a call on Hold Pages 4 - 6
Transferring Calls
Conference
Conference Bridge
Call Park - System
Station Busy/No Answer Options Pages 6 - 9
Outside Call Dialling Options Pages 9 - 10
Call Pickup
Paging
Background Music
Call Forwarding Pages 11 - 12
Call Forwarding Destination
Customised Message
Set Relocation
Station Outgoing Lockout
Account Code Entry
Account Code Forced/Verified Pages 13 - 14
DISA Password
ACD/UCD
Volume Control
Programming Pages 15 - 16
Feature Access Keys
One Touch Keys
Speed Dial Name Input Pages 17 - 18
Quick Entry Guide
Quick Reference Guide Pages 19 - 20
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 1

2
General Information
The following should be considered when reviewing this User Guide:
Instructions are provided for the NEC Xen IPK digital telephones (Dterm Series i).
All operational instructions assume Prime Line Pickup is assigned to
intercom dial tone, Ringing Line Preference is assigned to all telephones,
a Call Appearance and Call Arrival key has been assigned to all digital
telephones and only a single tenant has been assigned in the system.
All access codes listed are standard; some may vary based on system
assignment. Please consult your authorised NEC Dealer for the access codes
applicable to your system.
Access to many features is based on system assignments. Not all features
may be available from your telephone.
Digital telephones are equipped with displays to provide useful call processing
information such as digits dialled, recall indications, feature confirmation, etc.
Xen IPK digital telephones also show features accessible by the soft keys.
Lamp Status
Line Keys:
Incoming Call
Held Call - Your telephone
Held Call - Other telephone
Call in progress
Your telephone
Other telephone
Hold recall
Feature Key:
DND Set
Call Forward Set
Callback Request
Other:
Held Intercom Call
Microphone On
Handset Muted
Conf LED Flashing Red
Mic LED Steady Red
Mic LED Flashing Red
Intermittent Flashing Red
Intermittent Flashing Red
Slow Flashing Red
Rapid Flashing Green
Rapid Flashing Red
Slow Flashing Green
Slow Flashing Red
Rapid Flashing Red
Slow Flashing Green
Slow Flashing Red
Steady Green
Steady Red
Intermittent Flashing Green
Large LED: (360˚ Visual Ring Indicator)
Incoming calls
(CO/PBX, DIT or ANA)
Incoming intercom,
TIE Line or DID Call
Message from Attendant
Voicemail Message
Function
LED Indications
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 2

3
Answering Calls
Ringing Calls
Lift Handset
Converse
Note: When assigned the delayed ringing feature, incoming calls will first ring at a
primary station. If the call is unanswered after a preprogrammed time
interval, calls will also ring at the assigned secondary station.
Ringing Calls To A Call Arrival Key
Lift handset
Converse
Note 1: A Call Arrival key must be assigned to appear and ring at a Line
Key/Feature Access Key.
Note 2: A Call Appearance key must be available to answer an incoming
outside call.
Voice Announce Calls
Ensure microphone (MIC) LED is lit
Adjust Speaker volume or as needed
Respond handsfree
Note: The handset may be used at any time during the conversation
Camp-on (Call Waiting)
Receive camp-on tone while on another call
Replace handset to disconnect present call OR press Hold and press the
Hookswitch to converse with second party.
Call Alert Notification
With a call in progress
Receive Call Alert Notification
Press Hold, converse with second party
Note 1: The second call may be placed on hold if the line appearance is assigned or
if a Call Appearance key is available
Note 2: Press flashing Line Key, Call Appearance key or Conf key to return to the
first call.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 3

4
Making Calls
Internal Calls
Lift handset
Dial station number or 9for the attendant (or reception)
OR press Feature Access Key or One Touch Key programmed for
Direct Station Selection
Voice announce after tone burst or wait for ringing call to be answered.
Note 1: When calling a digital telephone, dialling 1 after the station number will
change ringing to voice or voice to ringing.
Note 2: To directly access a personal voice mailbox on the Xen Mail system, press
Message or dial 7after dialling the station number.
Outside Calls
Lift handset
Dial trunk access code i.e 0
OR press idle Outside Line Key
Dial telephone number
Converse
Preset Dialling
Dial the desired number
Lift handset
Converse
Last CO/PBX Number Redial
Lift handset
Press Redial
Dial Last Number Redial code #
Converse
Speed Dial –Using The Redial key
Lift handset
Press Redial and dial Speed Dial Memory Location:
Station Speed Dial 80-99
System Speed Dial 00-79
OR press Feature Access key or One Touch Key programmed for
Station Speed Dial
Converse
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 4

5
Speed Dial –Using The Softkeys
Press the SYS. or STA. Softkey ( )
(System or Station Speed Dial respectively)
Press the UP or DOWN softkey ( ), repeatedly until the desired
name/number is displayed.
To search alphabetically (optional step):
Press the dial key showing the first letter of the name to be dialled
Continue to press this dial key until the desired letter is displayed
Press *to display the first match corresponding the chosen letter
Lift handset to dial the displayed name/number
Trunk Queuing
After dialling trunk access code or pressing a busy Line Key and receiving a line
busy indication:
Dial Trunk Queue set code 78
Replace handset
Note: When a line is available, your telephone will ring: lift handset and place call.
Microphone Control
Press MIC
or
Press Feature
Dial MIC On/Off code 1
Note 1: Lit MIC LED indicates MIC on
Note 2: MIC ON/OFF key may be assigned to a Feature Access Key or One Touch Key
Note 3: If talking on handset rather than handsfree, the handset microphone will be
muted and the MIC LED will flash.
Handsfree Calls
Press Speaker, LED lights
Ensure MIC LED is lit
Place internal or outside call
Converse
Press Speaker to disconnect call
Note: The handset may be used at any time during the conversation. To resume
handsfree operation or to monitor a call, press Speaker (LED lights) and
replace handset.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 5

6
Group Listening
With a call in progress via the handset/headset:
Press Speaker, then the LED Lights
Converse. Conversation is heard over the speaker and the handset/headset.
Only the handset/headset may be used to respond.
Press Speaker to cancel the Group Listening mode
Note: When switching from Group Listening mode to the Handsfree Mode, it is
recommended that the Microphone be turned off.
Placing A Call On Hold
Non-Exclusive Hold
With a call in progress:
Press Hold
Exclusive Hold
With a call in progress:
Press Feature
Press Hold
Note 1: To retrieve a held call, press the flashing Line Key, Call Appearance Key or
Conf key (for internal calls).
Note 2: Call on Non-Exclusive Hold can be retrieved from any digital telephone with
the held line appearance or Call Appearance key.
Note 3: After a preprogrammed time, the held call will recall to the originating
station.Once in a recall condition, Exclusively Held calls can be retrieved from
any station with the held line appearance or Call Appearance key.
Transferring Calls
Using Manual Dial Using Direct Station
Selection (DSS)
With a call in progress: With a call in progress:
Press Transfer Press Transfer
Dial station number Press programmed DSS
Announce call (optional) Announce call (optional)
Replace handset Replace handset
Note 1: If the called station is busy, replace handset to initiate a camp-on.
Unanswered camp-ons and unscreened transfers will recall to the attendant
telephone. After answering the recall, pressing Feature 86 will transfer the
call to the personal voice mailbox of the station number dialled.
Note 2: To return to the original party, press flashing Line Key, Call Appearance
key or Conf key.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 6

7
Note 3: A Feature Access Key or One Touch Key may be assigned for DSS.
Note 4: To transfer a call directly to a personal voice mailbox, press Message or dial 7
after dialling the station number.
Conference
With a call in progress:
Press Conf
Place second call (internal or external)
Announce conference
Press Conf to establish conference
Note 1: Repeat above procedure to add an additional party. (Max 2 outside parties).
Note 2: An unsupervised conference may be established by pressing the Conf key
again, after the conference has been established. The parties may continue to
converse in private. Press the flashing Conf key to return to the conversation.
Conference Bridge
To make a call using a conference Bridge:
Call a Conference Bridge extension.
When the voice prompt is heard, enter the password and press #.
Start the conference call.
Start a conference call from an incoming outside call using an Automated
Attendant:
Call an outside line that is answered by an Automated Attendant.
Dial the extension of the Conference Bridge.
When the voice prompt is heard, enter the password and press #.
Start the conference call.
Start a conference call from an off-premise location:
Call a line that is directed to the Conference Bridge.
When the voice prompt is heard, enter the password and press #.
Start the conference call.
Start a conference call from an incoming outside call using an Attendant:
Call the Attendant and ask to be transferred to a Conference
Bridge extension.
Wait until the transfer is complete.
When the voice prompt is heard, enter the password and press #.
Start the conference call.
Note: Default passwords: Conference #1 = 0001
Conference #2 = 0002
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 7

8
Call Park - System
Set Retrieve
With a call in progress: From any station:
Press Transfer Lift handset
Dial Call Park Set code 4*Dial Call Park Retrieval code 4#
Dial Call Park location 0-9 Dial Call Park Location 0-9
Replace handset Converse
Note: If the dialled Call Park location is busy, dial another Call Park location (0-9).
Station Busy/No Answer Options
Automatic Callback
Set Answer
When calling a busy digital When both telephones are idle
telephone: originating telephone rings:
Dial Automatic Callback code 0Lift handset
Replace handset Call is placed automatically
Callback Request
Set Answer
When calling a busy or Receive display and/or Feature
unanswered digital telephone: LED message indication:
Dial Callback Request code #Lift handset
Replace Handset Dial #; request originator is
automatically called
Repeat above procedure to
respond to additional messages
Note: Callback messages are automatically cancelled once the originating station is
called. Callback Request access code # must be assigned in system programming.
Tone Override
Set Answer
When calling a busy digital telephone: With a call in progress:
Dial Tone Override code *Receive tone override signal †
to send tone Press Hold
Wait for signalled party to answer Converse with second party
†If handsfree, a visual indication only (*) will be provided on the telephone’s display.
Note: An Override Tone will be sent each time *is pressed.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 8

9
Station Busy/No Answer Options (Continued)
Step Call
When calling a busy telephone:
Dial 2to advance to the next station number in that 10’s group
Voice Over
Originate
When calling a busy telephone:
Dial Voice Over code 6
Announce message
Answer
With a call in progress:
Receive Voice Over
announcement
Press Hold
Converse with Voice Over
originator
Press Answer key to alternate
between parties
Outside Call Dialling Options
Save & Repeat
Save Repeat
With an originating outside Lift handset
call in progress: Press Redial
Press Feature Dial #; stored number is dialled
Dial 9; called number is stored
Replace handset
Whisper Page
With a call in progress:
Receive Voice Over
announcement
Press Feature
Dial 65
Converse with Voice Over
originator while monitoring
first call
Press Feature
Dial 65
Converse with first caller while
monitoring Voice Over originator
Note: The Whisper Page Access
Code may be assigned to a
Feature Access Key or One
Touch Key.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 9

10
Outside Call Dialling Options (Continued)
Store & Repeat
Store Repeat
With an outside call in progress: Lift handset
Press Feature Press Redial
Dial 7Dial *; stored number is dialled
Dial new phone number to
be stored
Press Feature
Complete conversation and
replace handset
Note: Store & Repeat and Save & Repeat features cannot be used simultaneously.
Automatic Redial
After originating a busy or unanswered outside call:
Press Speaker
Replace handset
Press Feature
Press Redial
Call is repeatedly dialled until answered, cancelled or the
maximum number of redial attempts is reached
Lift handset when the called party answers
Note 1: Press Speaker to cancel Automatic Redial.
Note 2: System programming determines waiting time and number of redial attempts.
Caller ID
Answer
Receive incoming ringing or
transferred outside call:
Review telephone display for
calling party’s name or number
Answer call accordingly
Note 1: Caller ID will be displayed even when station is busy or in DND mode,
allowing the user to identify the incoming call.
Note 2: The last 50 calls received with caller ID information are stored and are
accessible with the Directory (or SCROLL) key.
Note 3: Least Cost Routing (LCR/ACR) is required to automatically dial Caller ID calls.
Note 4: Press lit Line Key to review calling party’s name or number while the call is in
progress.
Placing Caller ID Calls
Press Directory (or SCROLL Key)
repeatedly until desired
number is displayed
Lift handset to automatically
dial displayed number
Converse
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 10

11
Call Pick Up
Call Pick Up System Call Pick Up Direct
Upon hearing ringing at Upon hearing ringing or voice
another telephone: announcement at another
Lift handset telephone:
Dial Call Pickup code: Lift handset
- All Calls 68 Dial Call Pickup Direct code 67
- Outside Line 6*Dial station number of the
- Night Call Pickup 69 telephone to be answered
Converse Converse
Paging
Lift handset
Dial paging code:
Internal External
- All zones 51 - All int. & ext. 59
- Zone A 52 - All zones 55
- Zone B 53 - Zone A 56
- Zone C 54 - Zone B 57
- Zone C 58
Page
Wait for Meet-Me Answer or replace handset
Meet-Me Answer
Lift handset
Dial Meet-Me Answer code:
- Internal Page 5*
- External Page 5#
Converse
Background Music
Set/Cancel
Press Feature
Dial BGM On/Off code 26
Note: A BGM key may be assigned in system programming to set/cancel the
Background Music feature.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 11

12
Call Forward All Calls (CF/A)
Do Not Disturb (DND)
Set Cancel
Press Feature Press Feature
Dial Call Forward All/DND Dial Call Forward All/DND
set code 60 cancel code 69
Select operation Press Feature
- DND: Press Feature
- Call Forward All: Dial
destination station number or
voicemail and press Feature
Note 1: The Feature LED will flash intermittently when your telephone is in CFA/DND.
Note 2: While set, Call Forward All will override Call Forward Busy/No Answer setting.
Note 3: If Call Forward All and Do Not Disturb are both set, the feature set last is
activated.
Note 4: A CFA/DND key may be assigned in system programming to set/cancel this
feature. When setting Call Forward All, a destination station must be
entered. A lit LED indicates that Call Forward All/Do Not Disturb is set.
Call Forward Busy/No Answer (B/NA)
Set Cancel
Press Speaker Press Speaker
Dial Call Forward B/NA Dial Call Forward cancel code 44
set code 43 Press Speaker
Dial destination station number
or voicemail
Press Speaker
Note 1: While set, Call Forward All will override Call Forward Busy/No Answer setting.
Note 2: A CF B/NA key may be assigned in system programming to set/cancel this
feature. When setting Call Forward Busy/No Answer, a destination station
must be entered. A lit LED indicates that CF B/NA is set.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 12

13
Call Forward Destination
From Destination Station
Set Cancel
Press Speaker Press Speaker
Dial Call Forward All Destination Dial Call Forward All Destination
set code 47 cancel code 48
Dial your station number Dial your station number
Dial destination station number Press Speaker
or voicemail
Press Speaker
Customised Message
From display telephone:
Press Feature
Dial Customised Message code 70
Dial *to scroll through messages
Dial #to select messages
Dial return date and time if required (Month/Day, Hour/Minute,
using 4-digit, 24 hour clock)
Press Feature
Note: When your telephone is set for Do Not Disturb, other display telephones will
receive your message upon calling your station.
Set Relocation
Ask the Attendant to turn on the Set Relocation Mode.
From the new location, press Speaker, then the LED lights.
Dial Set Relocation code________
Dial your station number.
Dial the Station Password (same as the Station Outgoing Lockout
[Password] code).
Hear the confirmation tone and then press Speaker.
Inform the Attendant to turn Set Relocation Mode off.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 13

14
Station Outgoing Lockout
Changing Lockout Code
Press Speaker
Dial Lockout Change access code_____
Dial current Lockout code
Dial new Lockout code
Press Speaker
Note 1: By default, Lockout code is set at 0000000000 (10 zeros).
Note 2: When Lockout code is set for the first time, station is automatically restricted.
Note 3: Lockout code may be a maximum of 10 digits. If the new Lockout code is
less than 10 digits, press the Speaker to re-enter.
Note 4: When set, Station Outgoing Lockout restricts all outgoing calls.
Set/Cancel Station Outgoing Lockout
Press Speaker
Dial Station Lockout
- Set code _____
- Cancel code _____
Dial Lockout code
Press Speaker
Account Code Entry
With an outside call in progress: With an outside call on hold:
Press Feature Dial Account Code Entry
Dial 66 Code_____
Dial Account Code Dial Account Code
(16 digits maximum) (16 digits maximum)
Press Feature Retrieve held call
Note 1: The outside party will not hear digits being dialled.
Note 2: The Account Code Entry Code may be assigned to a Feature Access Key or
One Touch Key.
Account Code Forced
To place an outside call:
Lift handset
Dial Forced Account Code access code_____
Dial Forced Account Code_____(up to 13 digits)
Dial trunk access code i.e. 0 and outside number
Note: When calling from a station that is assigned the Account Code Forced /
Verified feature, outgoing call will only be processed after the dialled Account
Code is verified.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 14

DISA Password
Setting Your DISA Password
Lift handset
Dial DISA Password set access code
Dial your DISA ID code__________
Dial your current DISA password__________ default 0000000000 (10 zeros)
Dial your new DISA password__________
Replace handset
Note 1: Password may be a maximum of 10 digits. If the new password is less than
10 digits, replace the handset to enter.
Note 2: It is recommended that your DISA password be 10 digits and be changed
frequently to prevent unauthorised use.
ACD/UCD
Log On Log Off
Press Speaker Press Speaker
Dial access code____ Dial access code____
Dial 1Dial 2
Press Speaker Press Speaker
Note: A LOG key may be assigned in system programming to log/off from the
ACD/UCD group. A lit led indicates that the station is logged-on.
Break Mode
Set Cancel
Press Speaker Press Speaker
Dial 40 Dial 42
Press Speaker Press Speaker
Note 1: Break Mode is only available while an agent is logged-on.
Note 2: A Break key may be assigned in system programming to set/cancel Break
Mode. A lit LED indicates that the station is in Break Mode.
Answering Call Using Headset
Press HEADSET key to answer
Converse
Press HEADSET key to hang up
15
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 15

16
Volume Control
Off-Hook Ringing Volume Ringing Volume
Lift handset Press Speaker
Dial 60 Dial 60
Dial Off-Hook Ringing Dial Ringing Volume code 1
Volume code 1Press or to set level
Press or to set level Press Speaker
Replace handset
Note 1: Press or during audible telephone activity to adjust handset or speaker
volume.
Note 2: When the telephone is idle, or is used to adjust display contrast.
Programming
Resetting Feature LED
Press Feature
Dial 99
Press Feature
Note: Resetting the Feature LED will cancel Call Forward All Calls, Do Not Disturb
and Callback Request settings.
Station Speed Dial - Dial Access
Press Feature
Press Redial
Dial Speed Dial Memory location 80-99
Dial trunk access code i.e. 0(if necessary)
Dial telephone number to be stored (24 digits maximum)
Press Hold (if entering name) and dial name of party
(13 letters maximum)
Press Feature
Note 1: Press Redial to insert a pause or Recall to store a hookflash.
Note 2: Refer to Speed Dial Name Input when entering name of party.
Note 3: Station Speed Dial is not available when 1000 System Speed Dial mode is
selected.
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 16

Feature Access Keys
Station Speed Dial DSS/BLF (Stations)
(Outside Numbers) And Feature Access
Press Feature Press Feature
Press Redial Press Redial
Press Feature Access Key Press Feature Access Key to be
to be programmed programmed
Dial 0Dial 1and station number
Dial trunk access code to be stored
i.e 0(if necessary) OR dial feature access code
Dial telephone number to be to be stored as indicated
stored (16 digits maximum) in the Quick Entry Guide
Press Feature Press Feature
Note 1: Press Redial to insert a pause and Recall to insert a hookflash.
Note 2: Busy Lamp Field status indication will be provided on keys programmed for DSS.
One Touch Keys
Station Speed Dial DSS/BLF (Stations)
(Outside Numbers) And Feature Access
Press Feature Press Feature
Press Redial Press Redial
Press One Touch Key to Press One Touch Key
be programmed to be programmed
Dial 0Dial 1and station number
Dial trunk access code to be stored
i.e 0(if necessary) OR dial feature access code
Dial telephone number to be to be stored as indicated
stored (16 digits maximum) in the Quick Entry Guide
Press Feature Press Feature
Note 1: Press Redial to insert a pause and Recall to insert a hookflash.
Note 2: Busy Lamp Field status indication will be provided on keys programmed for DSS.
17
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 17

Key Press
Key 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th 11th 12th 13th 14th
11@[ ¥]^_‘{l}aa
^Back to 1
2ABCabc 2Back to A
3DEFdef3Back to D
4GHIghi4Back to G
5JKL jkl5Back to J
6MNOmn o 6Back to M
7PQRSpq r s 7Back to P
8TUVt uv8Back to T
9WXYZwxyz9Back to W
00!“#$%&‘()Back to 0
**+,-./:;<=>?Back to *
#Set Space Back to Set
Conf Clear and back 1 character before cursor
18
Speed Dial Name Input
To add a name to each speed dial entry, press the dial pad number corresponding
to the alpha character desired.
i.e 2 = A,B,D,a,b,c, or 2
3 = D, E, F, d, e, f, or 3
4 = G, H, I, g, h, i, or 4
For the name Bob press: 2-2-6-6-2-2
..
NEC Xen Phone UserGuide 18/7/2003 3:56 PM Page 18
